Module d'interface de rack Bently Nevada 3500/20 125744-02

Description

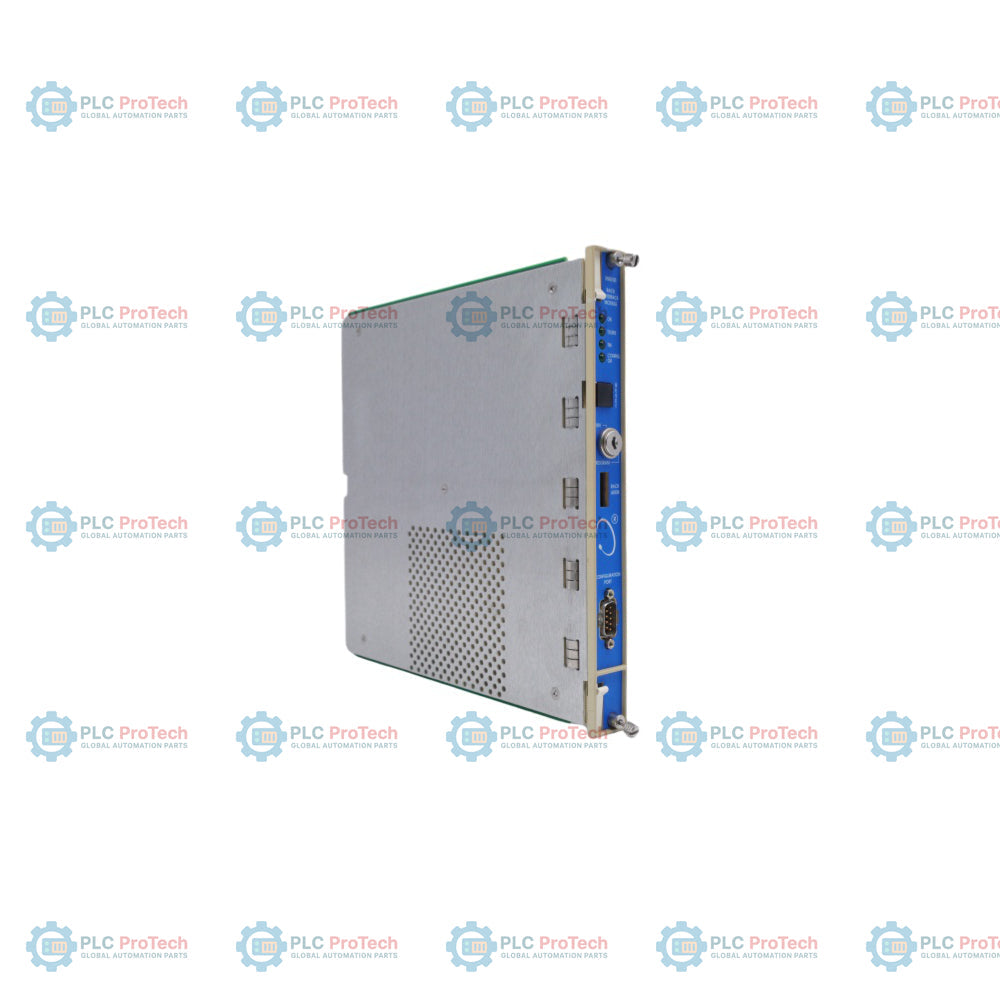

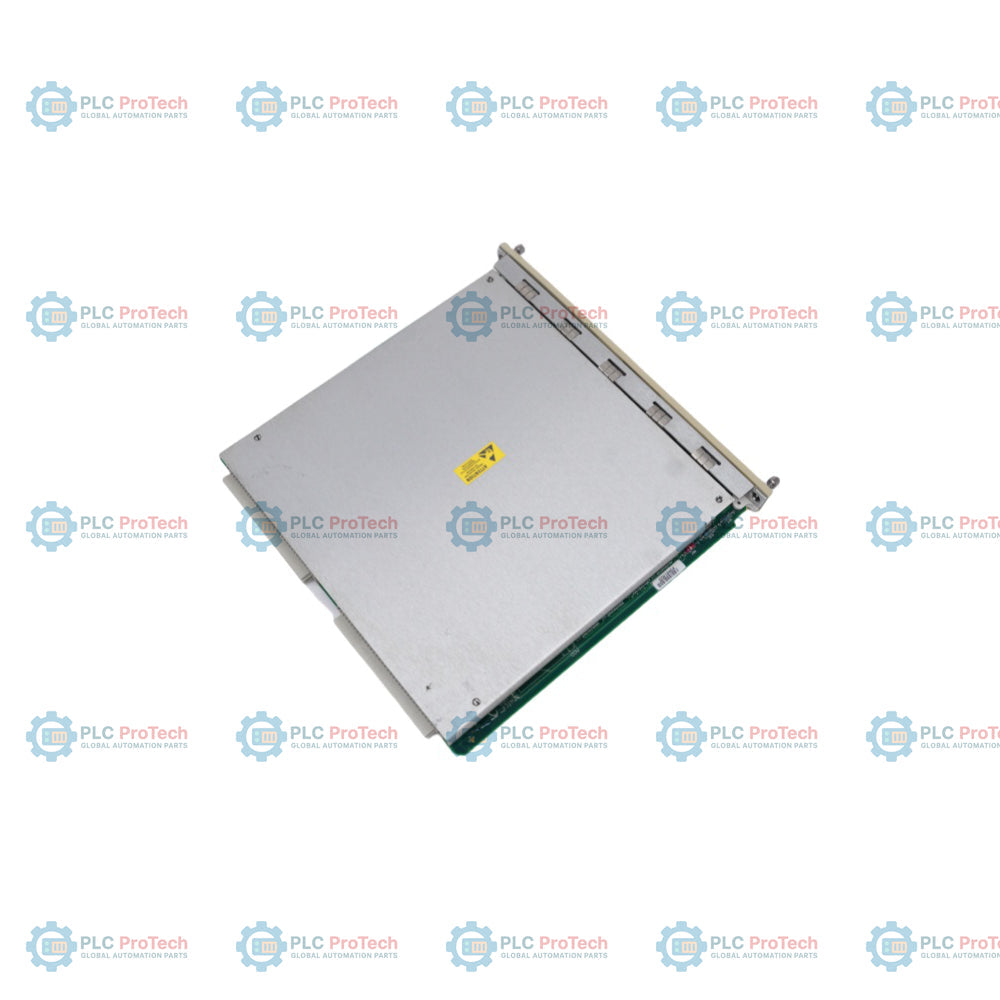

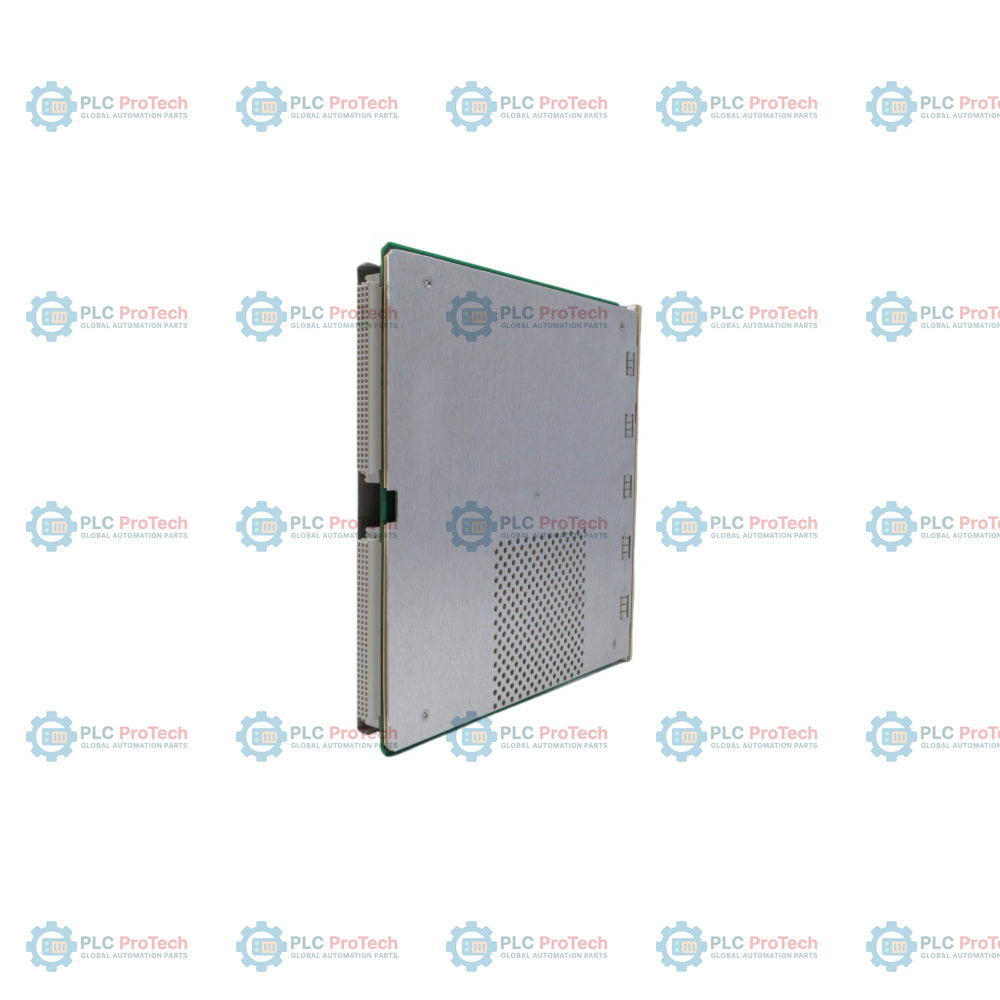

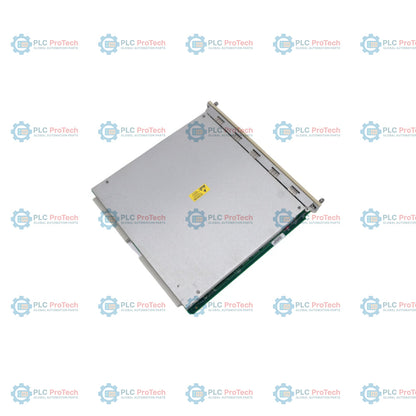

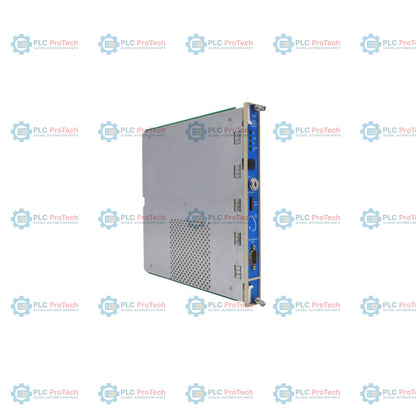

The Bently Nevada 125744-02 is a full-height Standard Rack Interface Module (RIM) that serves as the primary data and configuration link to the 3500 Series Machinery Protection System. This module supports a specialized proprietary communication protocol designed to safely configure monitoring chassis hardware and retrieve non-critical diagnostic machinery information for host software packages. It must be placed in slot 1 of the chassis rack structure directly next to the system power supply modules. While the 125744-02 executes vital baseline management roles including processing global system contact inputs, handling trip multiply controls, and running the internal OK relay, it functions independently of the critical machinery safety trip path, ensuring that any module-level service action has zero effect on the continuous, normal protective operations of the monitoring system.

Features

• Standard full-height front rack architecture optimized for slot 1 integration
• Direct physical interface for proprietary system programming and diagnostics data collection
• Front-panel keylock module allowing explicit hardware switching between RUN and PROGRAM modes
• Dedicated "OK" relay output indicating overall 3500 protection rack health and internal diagnostics status
• Front-panel status LEDs providing physical validation for system communications, errors, and trip conditions
• Integrated front-panel rack reset pushbutton to clear active latched machinery alarms

Applications

• Main hardware integration point for standard configuration on 3500 machinery protection loops
• Condition monitoring data collection interfaces for industrial power turbines and compression lines
• Central localized control platform for large multi-slot machine casing and rotation protection frameworks

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Slot Restrictions: Slide the interface card explicitly into the full-height Slot 1 location on the far left side of the machine protection rack.
• Electrostatic Discharge Precautions: Utilize a proper grounding wrist strap connected to a solid electrical earth before inserting or setting up the circuit cards.
• Keylock Integrity: Turn the front key switch to RUN position and extract the physical key to securely block unauthorized remote or local modification attempts.
• Thermal Management: Ensure that cooling pathways are completely clear, maintaining the ambient temperature immediately surrounding the module chassis below 65 degC.
