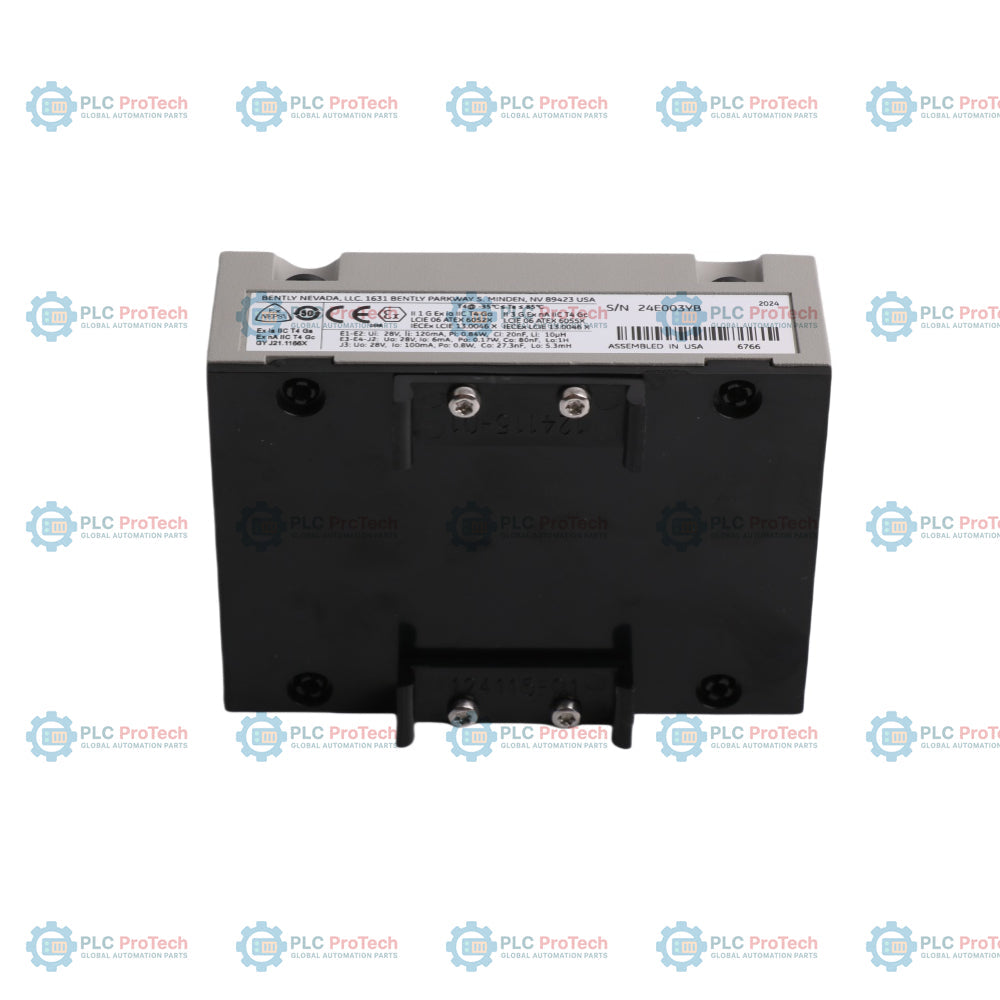

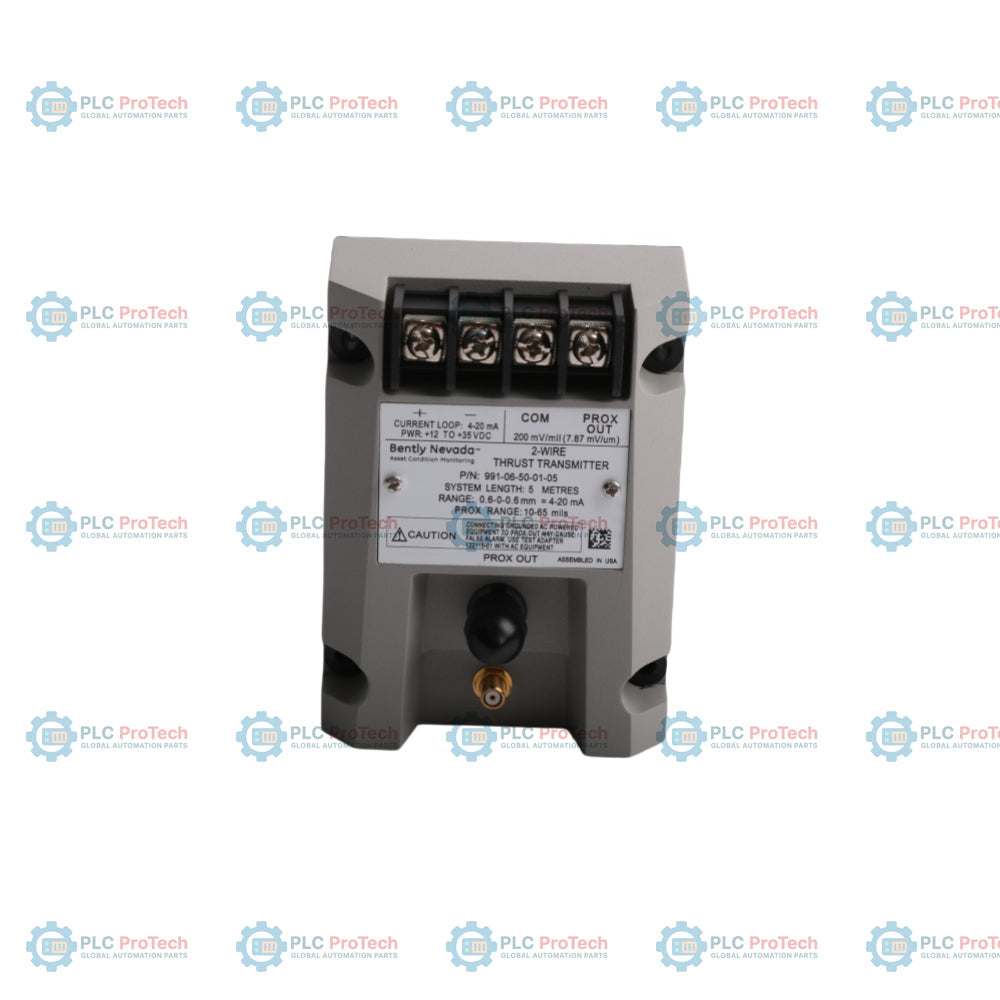

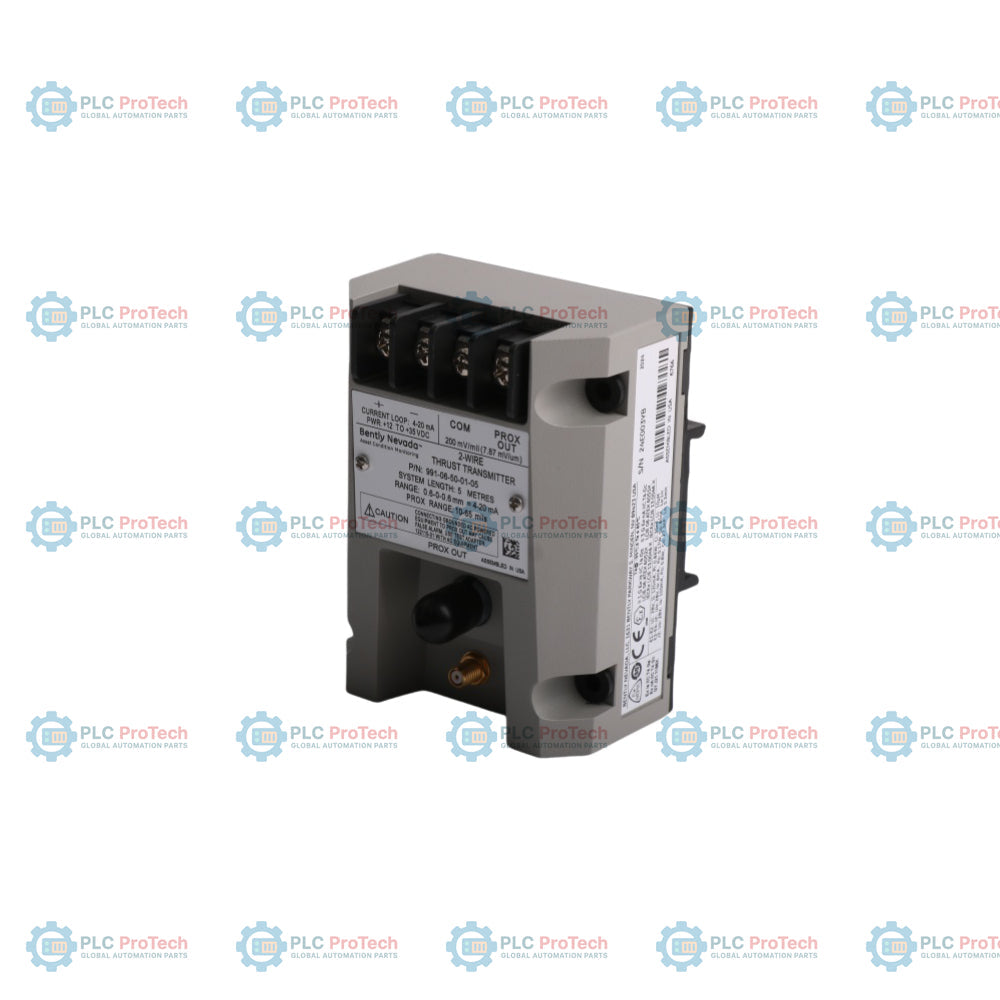

Transmetteur de poussée Bently Nevada 991-06-50-01-05 991

Description

The Bently Nevada 991-06-50-01-05 is a 2-wire, loop-powered machinery protection instrument designed to measure axial shaft displacement. This 991 Thrust Transmitter interfaces directly with a 3300 NSv proximity probe and its matching 5.0-meter extension cable. It processes proximity sensor signals into a standard 4 to 20 mA DC linear current output proportional to total thrust movement. This continuous monitoring signal integrates directly with standard programmable logic controllers (PLCs), distributed control systems (DCSs), or SCADA hardware without requiring dedicated machinery monitoring rack systems. The transmitter incorporates an internal Proximitor sensor within a single potted housing to withstand demanding industrial plant conditions.

Features

• Integrated Proximitor sensor inside a standalone enclosure requires no external driver module
• Non-isolated PROX OUT and COM coaxial terminals provide dynamic voltage access for portable diagnostic instruments
• Non-interacting zero and span adjustment potentiometers simplify field calibration trims
• Test Input pin accepts external signal sources for quick verification of current loop output performance
• Integral Power-up Inhibit circuit prevents signal tracking errors caused by initial line voltage transients

Applications

• Fluid-film thrust bearing monitoring on small centrifugal air compressors
• Shaft axial displacement tracking on industrial pumps, motors, and cooling tower fans
• Critical machinery protection inside petrochemical refineries and power generation plants
• General rotating machinery predictive maintenance setups lacking monitoring rack space

Technical Specifications

Connections / Interfaces

Installation Guidelines

• Snap the device onto a standard 35 mm DIN rail assembly or bolt using optional hardware within a weatherproof panel enclosure.
• Route the loop current conductors through dedicated conduit paths separate from high-current AC motor leads or switching control wires to protect against EMI.
• Seal all coaxial connections between the 3300 NSv proximity probe, extension cable, and transmitter terminal socket with self-fusing tape to prevent moisture infiltration.
• Avoid structural connection adjustments to the zero and span potentiometers until the proximity probe tip clearance has been set to the proper physical gap.
• Use an isolated test instrument or a matching Bently Nevada test adapter when connecting AC-powered oscilloscopes to the PROX OUT and COM terminals to protect loop signaling integrity.

Compliance and Certifications

• ATEX
• ABS
• CSA

FAQ

What mechanical movement does the Bently Nevada 991-06-50-01-05 measure?

It measures the axial thrust or displacement of a rotating machinery shaft rather than radial casing vibration.

Does this module require a standalone Proximitor driver unit?

No, it features a built-in Proximitor sensor that processes proximity probe eddy-current fields directly within the transmitter module.

What specific cable length is this transmitter calibrated to support?

The -50 option specifies that the transmitter is calibrated to match a 5.0-meter proximity probe and extension cable system.

What is the full-scale range defined by the -06 option?

The full-scale measurement limits are 0.6-0-0.6 mm, providing an aggregate scale of ±0.6 mm of shaft axial travel.

Can I connect an AC-powered oscilloscope directly to the PROX OUT pin?

Because the dynamic PROX OUT terminal is not isolated from the 4 to 20 mA power loop, using an external signal isolation adapter is highly recommended to protect against signal interference.

What sensor is electrically matched with this thrust transmitter?

It is built exclusively to read signals from a Bently Nevada 3300 NSv proximity probe.

How does the Power-up Inhibit feature protect the control room loops?

It mutes erroneous transient output currents during startup spikes to prevent false alarms or safety trips in the connected DCS or PLC.

What type of mounting method does this unit feature?

The -01 option provides integral 35 mm DIN rail mounting clips for immediate standard rail installation.

Can this unit operate in high-humidity machinery environments?

Yes, it is built with fully potted electronic assemblies and certified up to 100% condensing humidity when coaxial connections are properly protected.

What does the -05 configuration suffix represent?

The -05 code designates a specific multi-certification agency approval package, including ATEX, CSA, and ABS Marine ratings.
