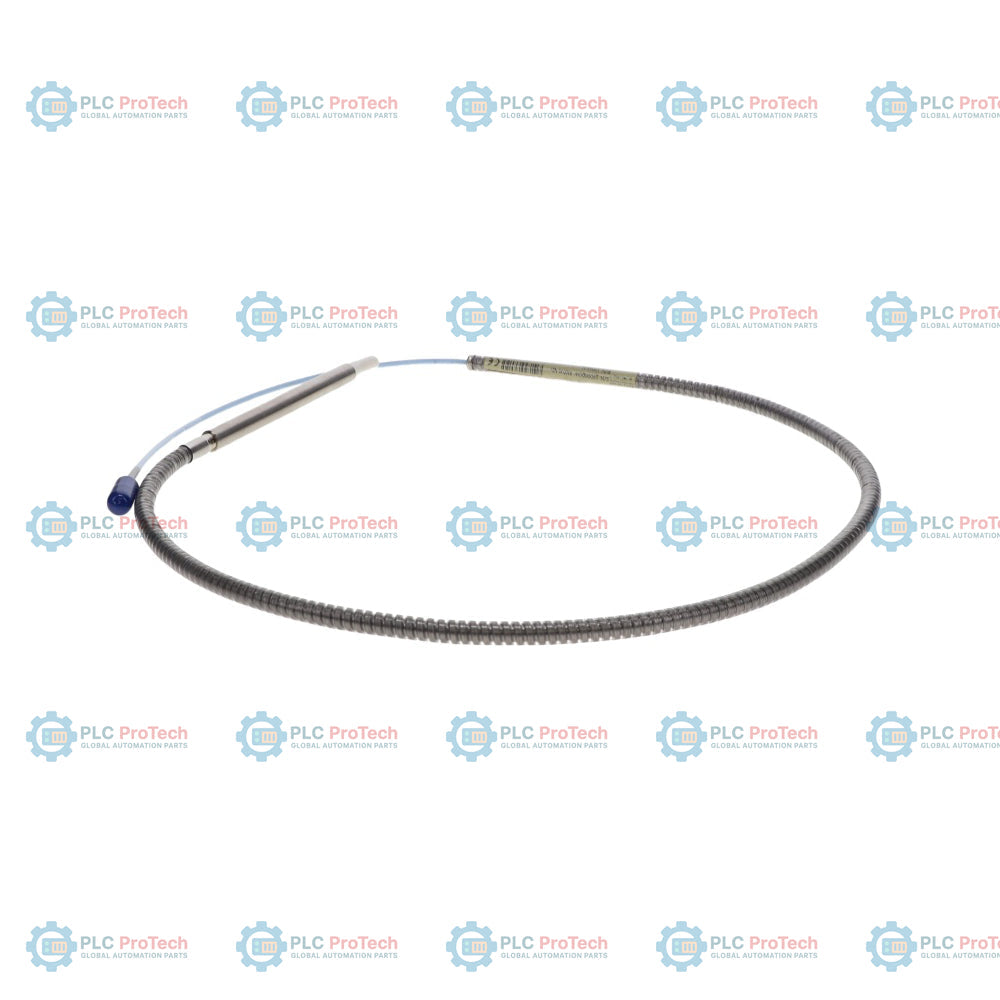

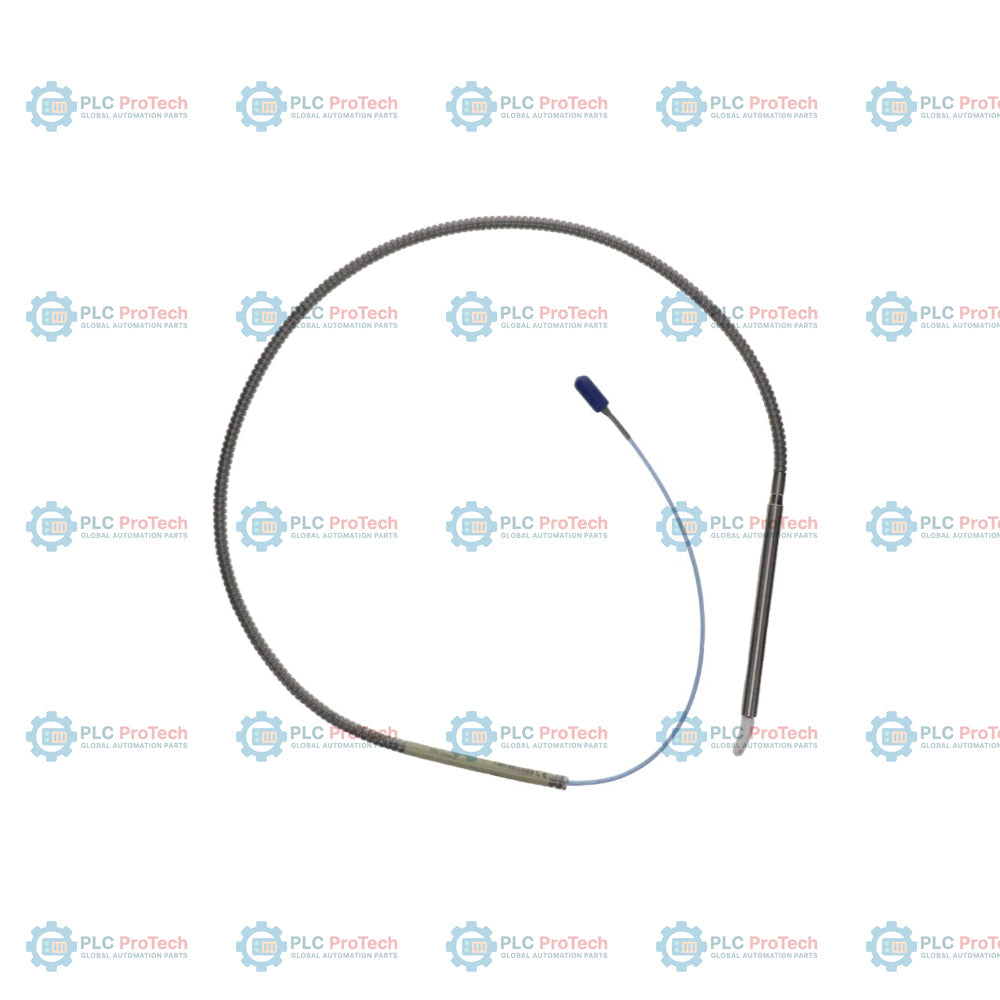

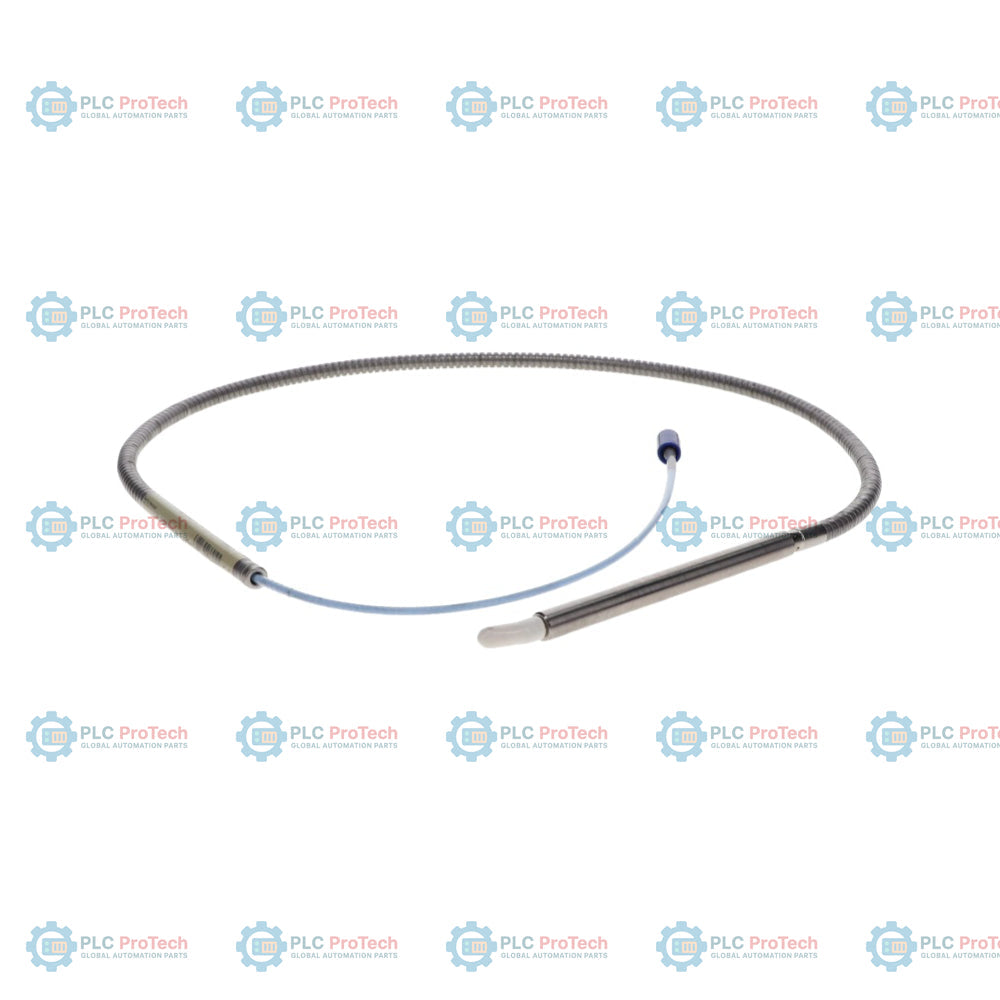

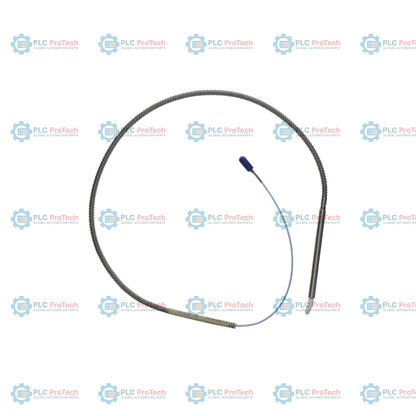

Sonde de transducteur de proximité NSv 3300 XL Bently Nevada AAP1407030-00100

The Bently Nevada AAP1407030-00100 (interchangeable with factory cross-reference code 109548-01 P1407030-00100) is a specialized, non-contact eddy-current eddy-current proximity probe sensor belonging to the high-density 3300 XL NSv (Narrow Side View) Series. Engineered specifically for industrial fluid-film bearing machinery with extremely tight installation spaces, it delivers an optimized radiation footprint to mitigate counterbore, side-view, or rear-view physical restrictions. The probe operates by generating a high-frequency electromagnetic field that measures static gap voltage displacements and dynamic vibration frequencies, transferring accurate shaft position signals to a paired 3300 XL NSv Proximitor Sensor. It is primarily deployed on small-diameter rotating assemblies such as centrifugal air compressors, refrigeration chillers, and process gas turbo-compressors where conventional 5 mm or 8 mm sensor tips encounter structural interference or scale factor distortion from confined housing walls.

Hardware Specifications

Engineering Notes

• Scale Factor Stability: For optimal eddy-current scaling, the target face must be flat and symmetric. If measuring on shaft diameters smaller than 30 mm (1.2 in) or flat profiles under 13 mm (0.5 in), reduction of the baseline gap voltage down towards the lower limit of the linear window may be necessary to correct for boundary attenuation.
• Side-View Clearance: The specialized configuration allows this probe to withstand close proximity to adjacent metallic structures. However, cross-talk or field distortions can occur if the clear side-view path dips below the structural limits of the machine's counterbore geometry.
• Interchangeability Rules: The probe must be paired exclusively with a 3300 XL NSv Proximitor Sensor and its corresponding 3300 NSv extension cable. Total electrical length configuration must be verified to prevent impedance mismatches across the channel.

Field Guidelines

• ClickLoc Terminal Torque: Hand-tighten the gold-plated coaxial connectors until a physical, tactile "click" is felt. Never apply pliers or wrenches to the miniature joints, as over-torqueing can fracture the internal center pin conductor.
• Cable Protection Measures: Use the factory-supplied silicone self-fusing tape to wrap outer connector couplings exposed to moisture or particulate contamination. Avoid deploying silicone wrapping sections within the internal machinery casing.
• Bending Radius Demands: Maintain a minimum structural bending radius of 25.4 mm (1.0 in) for standard probe leads and armored extensions to prevent macro-bending fractures within the internal coax core.

Technical & Procurement FAQ

Question: How does the AAP1407030-00100 model manage differential pressure inside process compressor casings?

Answer: The sensor case features a dedicated internal Viton O-ring pressure configuration. This barrier acts as a mechanical seal to isolate differential process gases from migrating up the internal probe core and into outer terminal junction boxes.

Question: What is the main differentiator between this NSv series probe and standard Bently Nevada 8 mm probes?

Answer: The NSv series utilizes a highly narrowed electromagnetic sensing footprint. This allows it to accurate track radial vibration on miniature targets down to 8.9 mm in diameter where standard 8 mm probes would face extreme eddy-current side-loading errors from the machine walls.

Question: Is bench calibration or matched trimming mandatory when swapping out this sensor head?

Answer: No. The product is manufactured to meet precise factory tolerance baselines, enabling complete structural interchangeability. Components can be swapped directly in the field without requiring bench recalibration or parameter scaling adjustments at the main machinery monitor rack.
