Vanne d'expansion électrique ETS 12,5 Danfoss 034G4210

Product Overview

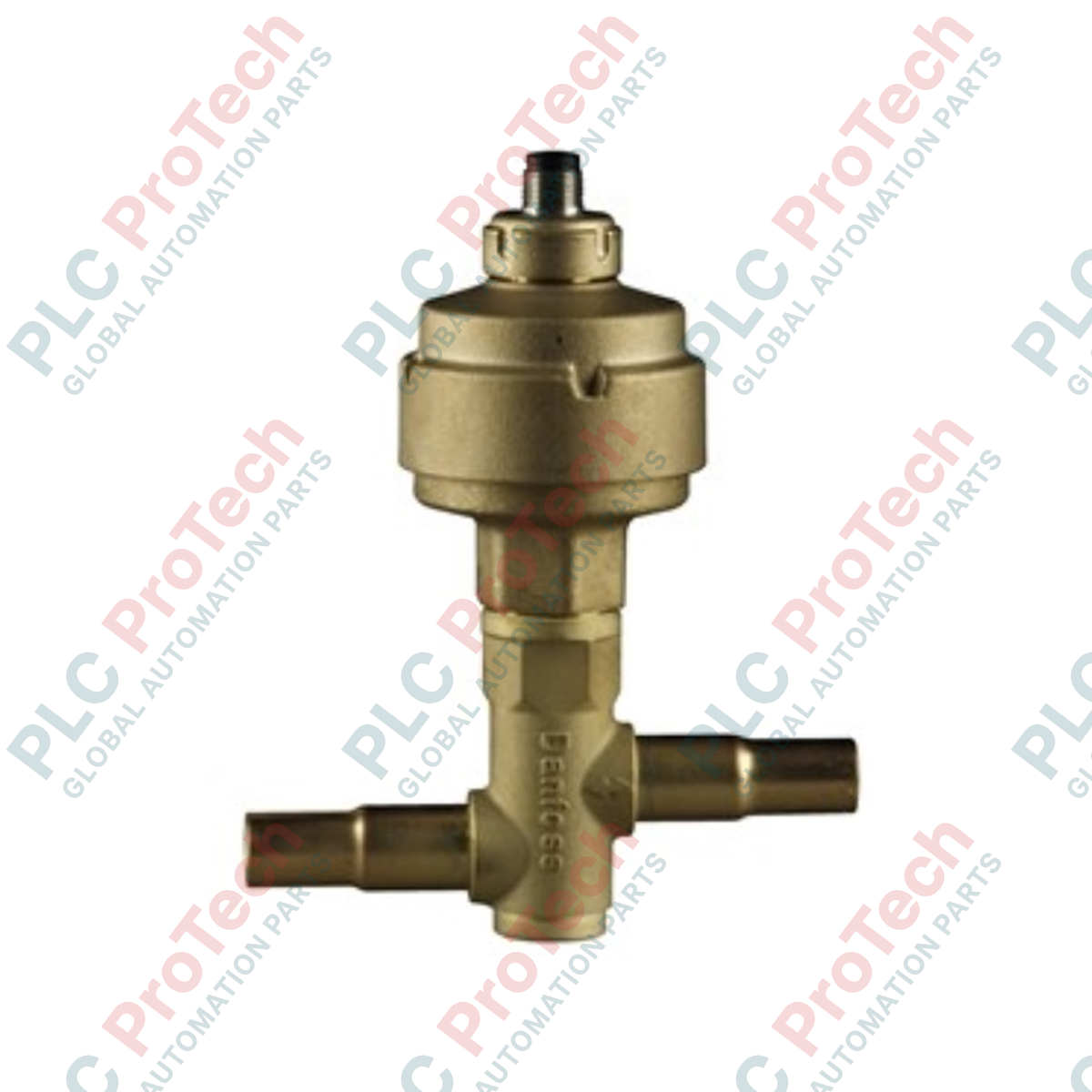

The 034G4210 (034G4210) is a precision-engineered ETS 12.5 series Electric Expansion Valve (EEV) designed by Danfoss for high-performance refrigerant flow control in air conditioning and refrigeration systems. Utilizing a sophisticated stepper motor drive, this valve ensures exceptionally accurate liquid injection into the evaporator, maintaining optimal superheat levels even under varying load conditions. The 034G4210 is a critical component for systems prioritizing energy efficiency and tight temperature control, such as chillers, heat pumps, and precision cooling units. Its balanced design and bi-flow capability allow for seamless operation in reversible systems, effectively reducing compressor stress and enhancing overall system reliability.

Technical Configuration

The ETS 12.5 platform is characterized by its robust, straightway design and high-grade copper solder (ODF) connections, which facilitate a leak-proof integration into 16.00 mm refrigerant lines. The valve utilizes a high-resolution bipolar stepper motor to modulate the orifice, providing linear flow characteristics and a tight shut-off function that eliminates the need for a separate solenoid valve in most applications. Electrically, the unit is equipped with a standard 4-pin M12 male connector, ensuring a secure and vibration-resistant interface with electronic controllers (such as the Danfoss EKE series). With an IP67 enclosure rating, the 034G4210 is fully protected against moisture and dust, making it suitable for environments with high humidity and significant temperature fluctuations.

Technical Specifications

Technical FAQs

Does the 034G4210 require a solenoid valve for pump-down?

The ETS 12.5 is designed to provide a tight internal shut-off. In most standard systems, the valve's ability to close completely under stepper motor control eliminates the requirement for an additional liquid line solenoid valve, simplifying system design and reducing cost.

What type of cable is required for the M12 connection?

A standard 4-wire M12 female cable is required. To maintain the IP67 rating and ensure signal integrity over distance, it is recommended to use a shielded cable with a cross-section of at least 0.34 mm2 (22 AWG) to minimize voltage drop to the stepper motor.

Is this valve compatible with CO2 refrigerants?

The 034G4210 is optimized for high-pressure refrigerants like R410A and R134a. For R744 (CO2) applications, particularly in transcritical systems, it is essential to verify that the maximum working pressure (MWP) of the valve meets the specific requirements of your CO2 circuit.

Engineering & Installation Guide

• Brazing Safety: During installation of the 16.00 mm copper connections, the valve body must be protected from excessive heat. Use a wet cloth or heat-sink paste to wrap the valve housing, ensuring the internal motor and seals do not exceed 100 deg C. Always direct the torch flame away from the valve body.

• Controller Calibration: Upon first power-up, ensure the electronic controller performs a "battery-backed" initialization to calibrate the zero-point (fully closed) position. This ensures the 4-pin stepper motor logic is perfectly synchronized with the valve’s mechanical stroke.

• Debris Protection: To prevent the orifice from clogging or the motor from jamming, a high-quality filter drier must be installed upstream of the valve. Any metallic shavings or brazing scale entering the 034G4210 can permanently damage the precision-machined internal needle and seat.
