Danfoss iC2-30 Variateur de fréquence 132L6108 refroidi par air

Product Overview

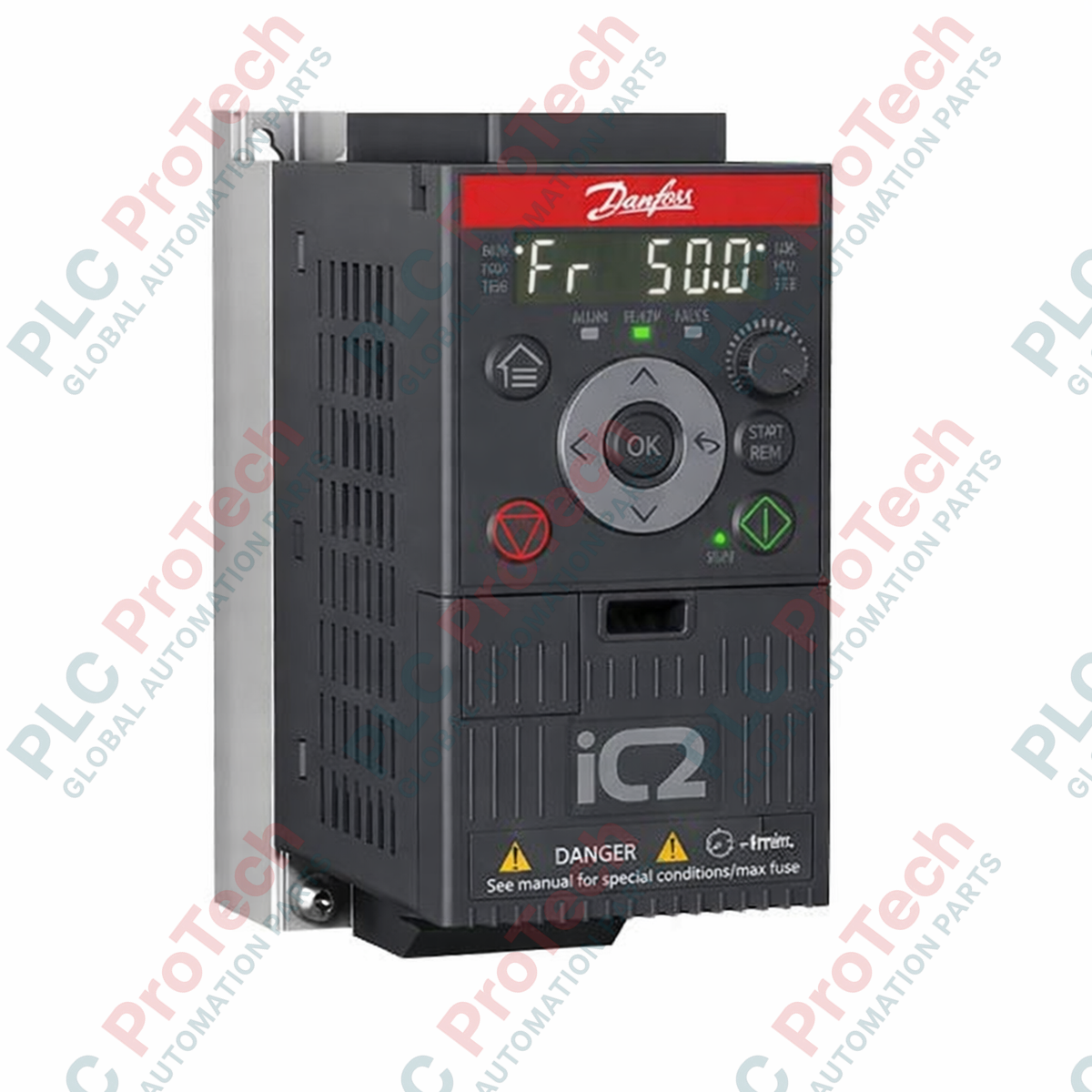

The 132L6108 (132L6108) is a high-performance Danfoss iC2-30 series frequency converter engineered for precise motor control in compact industrial environments. Designed as a reliable successor in the micro-drive category, this air-cooled unit optimizes energy efficiency for single-phase applications ranging from 200 to 240 VAC. In critical sectors such as wastewater treatment, HVAC systems, and food processing, the 132L6108 serves as the primary controller for pumps and fans, significantly reducing mechanical stress and preventing unplanned downtime through its robust power electronics architecture. Its streamlined interface and high torque capabilities ensure seamless integration into automated production lines where space and thermal management are paramount.

Suffix Breakdown

The model code IC2-30FA1N02-06A8E20F4+ACXX follows a specific logical structure defining its hardware capabilities:

• IC2-30: Identifies the iC2-30 series product group.

• FA: Indicates a Frequency Converter with Air Cooled thermal management.

• 1N: Specifies Single-phase input configuration.

• 02: Designates the Mains Voltage range of 200-240 VAC.

• 06A8: Represents the rated output current of 6.8 A.

• E20: Protection rating of IP20 / Open Type, suitable for cabinet mounting.

• F4: Integrated EMC filter meeting C4 category standards.

• +ACXX: Indicates the absence of an integrated brake chopper.

Technical Specifications

Technical FAQs

How does the iC2-30 handle electromagnetic interference in industrial grids?

The 132L6108 includes a built-in F4 category EMC filter. While this provides standard protection, for environments requiring C1 or C2 compliance (residential or light industrial), additional external filtering may be necessary to prevent signal noise on sensitive instrumentation.

Can this model be used for vertical lifting applications without a brake chopper?

No. This specific variant (+ACXX) lacks an integrated brake chopper. For applications involving regenerative braking or high-inertia loads like cranes or vertical conveyors, a model with an integrated chopper or an external regenerative unit is required to prevent over-voltage trips.

What are the primary mounting requirements for the IP20 chassis?

The IP20 rating requires the unit to be installed within a protective control cabinet. It supports side-by-side mounting to save rail space, provided that vertical clearance is maintained for the air-cooling intake and exhaust.

Engineering & Installation Guide

• Thermal Management & Clearance: To ensure the longevity of the 6.8 A power stage, maintain a minimum vertical clearance of 100 mm above and below the unit. Even though the iC2-30 supports side-by-side mounting, in high-ambient environments (above 40 deg C), a 5 mm gap between drives is recommended to prevent localized heat pockets.

• Wiring & Grounding Compliance: Always utilize shielded motor cables to minimize RFI. Ensure the shield is grounded at both the frequency converter and the motor end using metal saddles (360-degree grounding) rather than "pigtails," which act as antennas for high-frequency noise.

• Overload Protection: The unit provides electronic motor overload protection. Ensure the motor nameplate data (Current, RPM, Voltage) is accurately commissioned into the drive parameters to prevent stator overheating during low-speed, high-torque operations.
