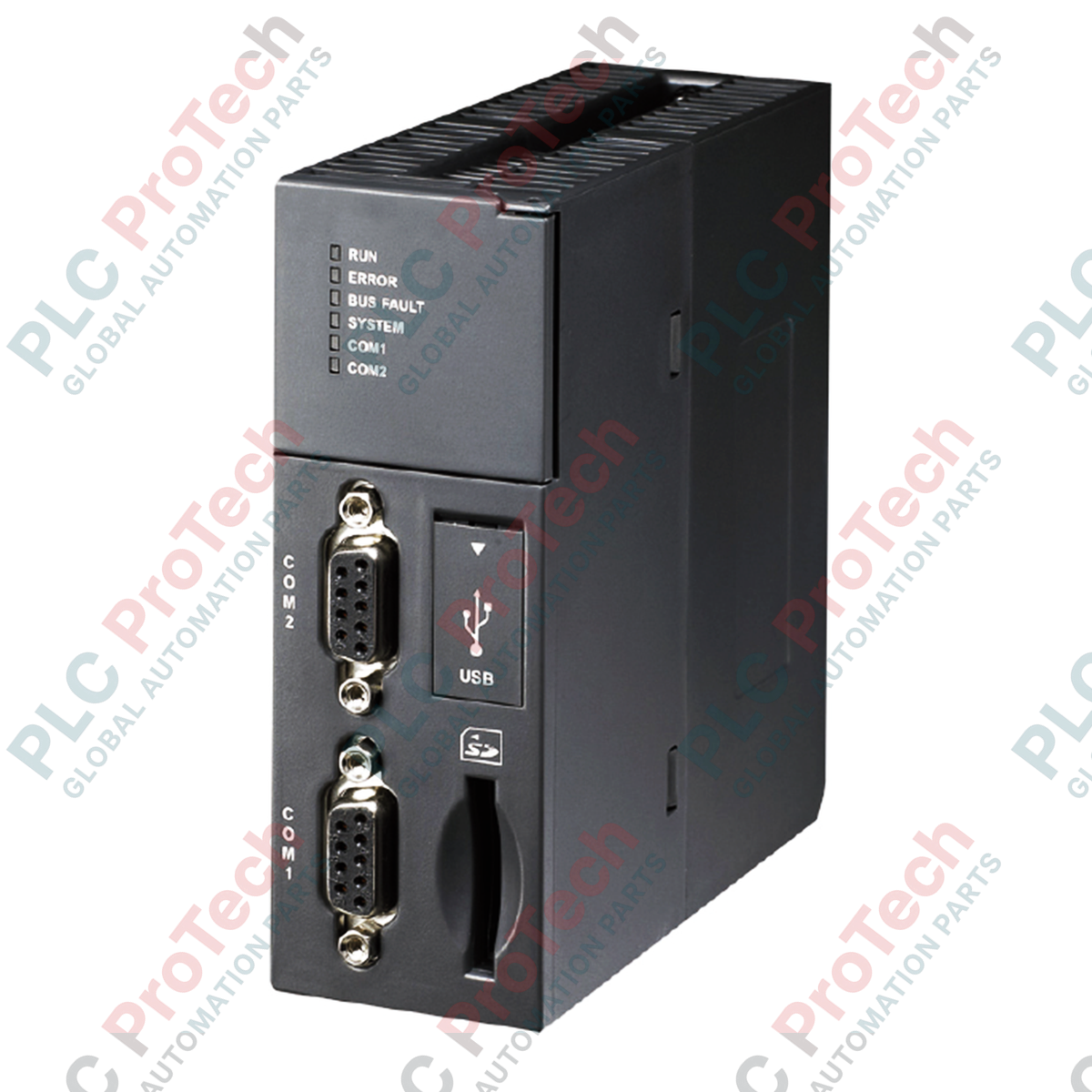

DELTA AHCPU510-RS2 Module CPU PLC modulaire série AH500

High-Density Infrastructure Automation Control Overview

The AHCPU510-RS2 (AHCPU510-RS2) is a high-performance, mid-to-high-end modular programmable logic controller processor block engineered within Delta’s flagship AH500 Series ecosystem. Developed to manage high-density localized execution alongside multi-protocol fieldbus routing, this automation engine provides deterministic processing capacity for complex, distributed applications. In challenging machine layouts such as large-scale material handling installations, municipal water distribution grids, paper manufacturing lines, and automated HVAC central plants, the AHCPU510-RS2 secures operational continuousness and lowers unexpected engineering downtime through its ultra-fast execution speeds, extensive non-volatile memory structure, and battery-free data preservation architecture. Its advanced online debugging capabilities enable maintenance technicians to apply program modifications without disrupting ongoing plant floor cycles.

Processor Capabilities & System Architecture

The internal computing core of the AH500 series processor is custom-tailored for parallel hardware task management and rapid networking:

• High-Speed Execution Layer: Processes standard LD instructions at 0.1 microseconds, providing a typical execution interval of 0.3 milliseconds per 1K steps to maintain hard real-time synchronization with physical processes.

• Battery-Free Data Preservation: Eliminates maintenance routines by utilizing non-volatile internal memory to retain system registers and ladder code permanently, eliminating the structural failure risks associated with dead lithium backup cells.

• Multi-Mode Serial Communication Arrays: Integrates two software-configurable serial communication links that support RS-232, RS-422, and RS-485 interfaces natively, reaching data transmission rates up to 921.6 kbps.

• Comprehensive Multi-Language Engine: Fully compliant with the IEC 61131-3 international control programming standard, allowing developers to combine Ladder Diagram (LD), Sequential Function Chart (SFC), Function Block Diagram (FBD), Instruction List (IL), and Structured Text (ST) structures inside a single runtime image.

Critical Engineering Parameters

The following specification data details the mechanical, electrical, and performance boundaries verified for automation system deployment:

Technical Knowledge Base & Common Inquiries

How does the 256 hardware interrupt matrix benefit high-speed process tracking?

The AHCPU510-RS2 features 256 individual hardware-assigned interrupts spanning timed triggers, high-speed physical I/O shifts, external signal transitions, communications packets, and low-voltage threshold events. When an interrupt condition is fulfilled, the CPU instantly freezes its main program scan loop to execute the dedicated interrupt routine in microseconds, allowing the controller to capture transient events that would otherwise be missed during regular sequential code execution.

What is the functional advantage of the PLC Link automatic data exchange system?

The native PLC Link utility permits the processor to build high-speed automatic data sharing networks over RS-485 Modbus networks without requiring manual polling instruction blocks inside the ladder logic code. By defining shared memory mapping tables in the hardware configuration wizard, the CPU manages background data mirroring across multiple variable frequency drives or secondary PLCs automatically, keeping processing cycles free for critical automation loops.

What specific memory restrictions apply to the integrated SD card expansion slot?

The onboard SD slot accepts standard memory expansion cards up to a maximum storage boundary of 2 GB. This storage allocation is dedicated to automated process data logging, system configuration backups, recipe file storage, and historic fault logging. It cannot be used to extend the active 64K steps program execution memory block.

Field Commissioning & Safety Guidelines

• Chassis Thermal Boundaries and Installation Trajectory: Mount the AH500 backplane vertically inside a rigid, low-vibration control enclosure. To guarantee efficient convective thermal airflow through the processor chassis venting, maintain an open clearance boundary of at least 50 mm above and below the module assembly. Monitor the cabinet interior to ensure high-density expansion blocks do not drive ambient air past the rated operating limits.

• Serial Network Termination and Shielding Layout: When running the RS-485 serial ports at the maximum 921.6 kbps baud rate, use high-grade twisted-pair shielded communications wire. Wire a 120 Ohm impedance matching termination resistor across the physical data lines at both extreme ends of the network run to suppress signal reflections. Ground the copper braid shield at a single star point inside the central enclosure to eliminate common-mode noise.

• Capacitor RTC Retainment Limits: Because this CPU module utilizes a battery-free architecture, the internal real-time clock (RTC) rely entirely on an integrated high-capacity storage capacitor for tracking time during complete power outages. If the system is left unpowered for more than 30 consecutive days, the capacitor will discharge, and the calendar parameters will reset to baseline values, requiring manual reconfiguration via the Mini-USB programming utility.
