Module interface I/O standard Lenze E82ZAFS série 8200

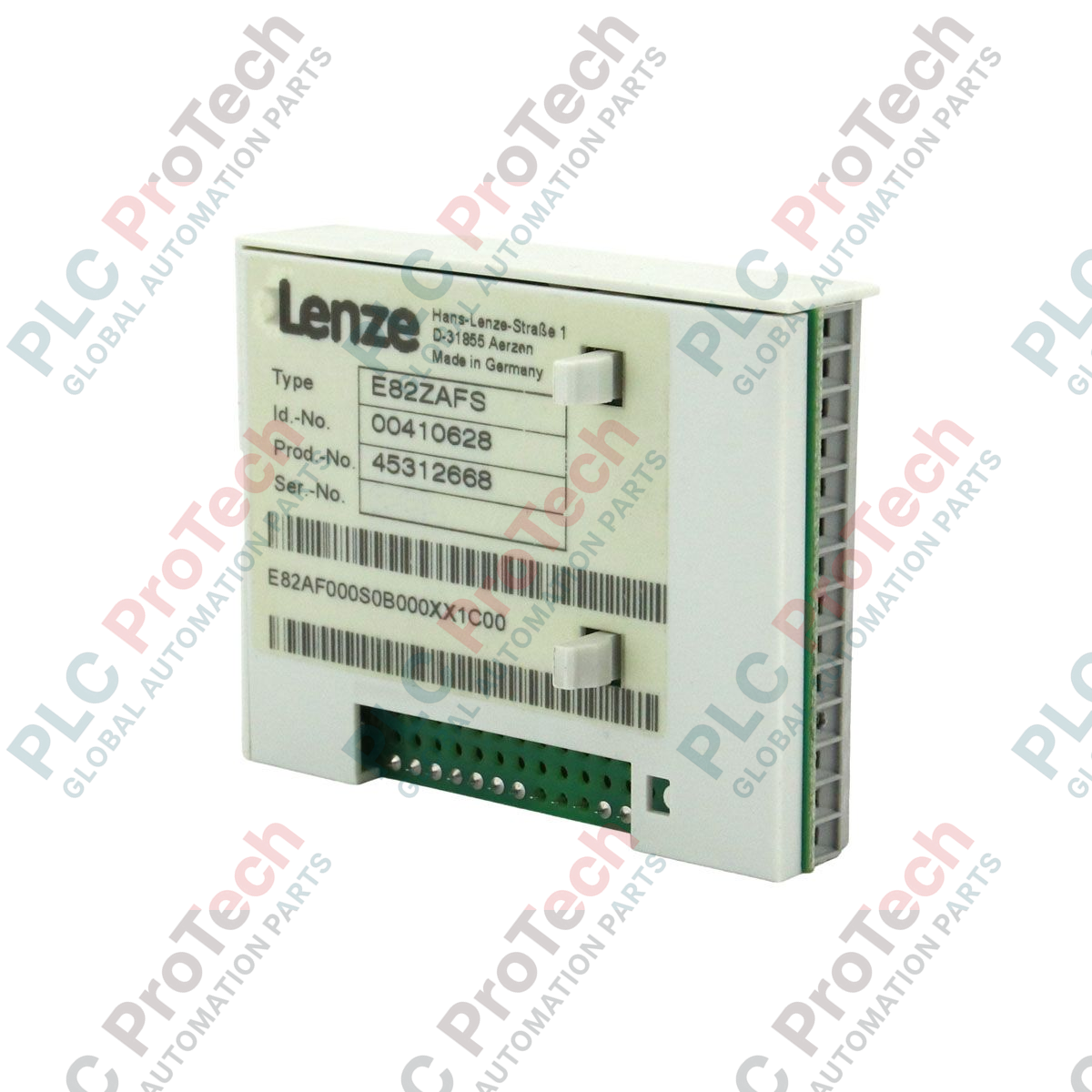

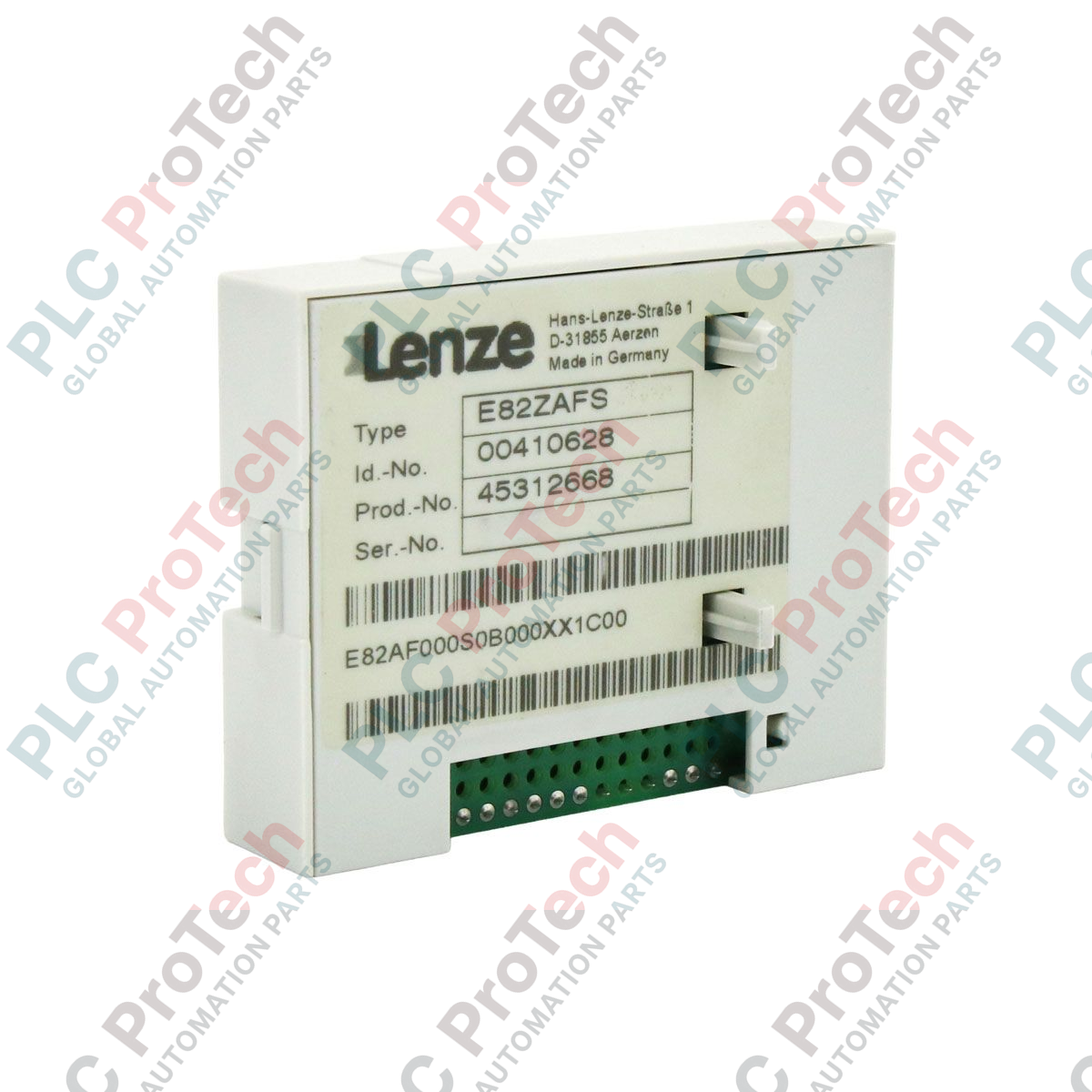

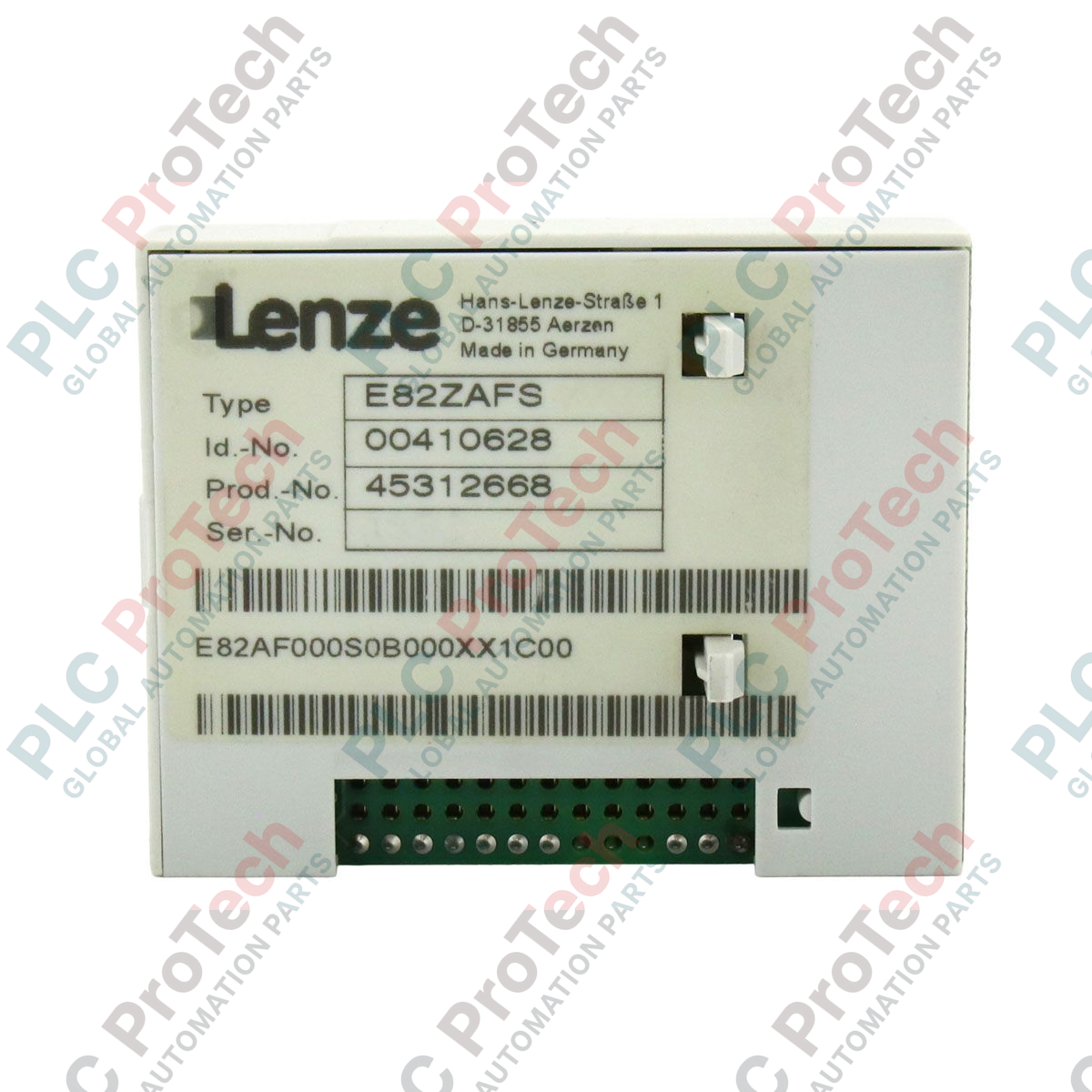

Product Overview

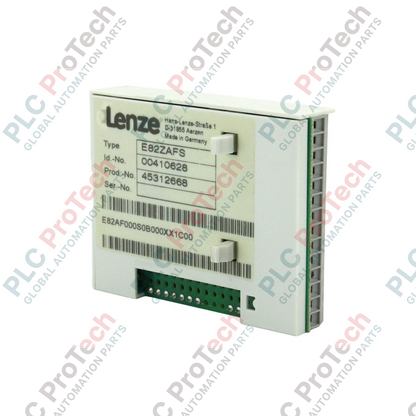

The E82ZAFS (E82ZAFS) is a standard I/O interface module engineered specifically for the Lenze 8200 Vector and 8200 Motec frequency inverter families. This module acts as the critical bridge between the drive's internal processing logic and the external control environment, providing the necessary terminal connections for analog and digital signaling. In industrial sectors such as material handling and food processing, the E82ZAFS is indispensable for implementing basic automation sequences, including start/stop commands, speed pot integration, and status signaling to supervisory PLCs. Its ultra-compact, plug-and-play design allows for rapid field installation, enabling production leaders to maintain system flexibility and ensure consistent uptime. Even as part of a "Phase-Out" series, this interface remains a vital component for the reliable upkeep and continued operation of legacy 8200-series drive architectures.

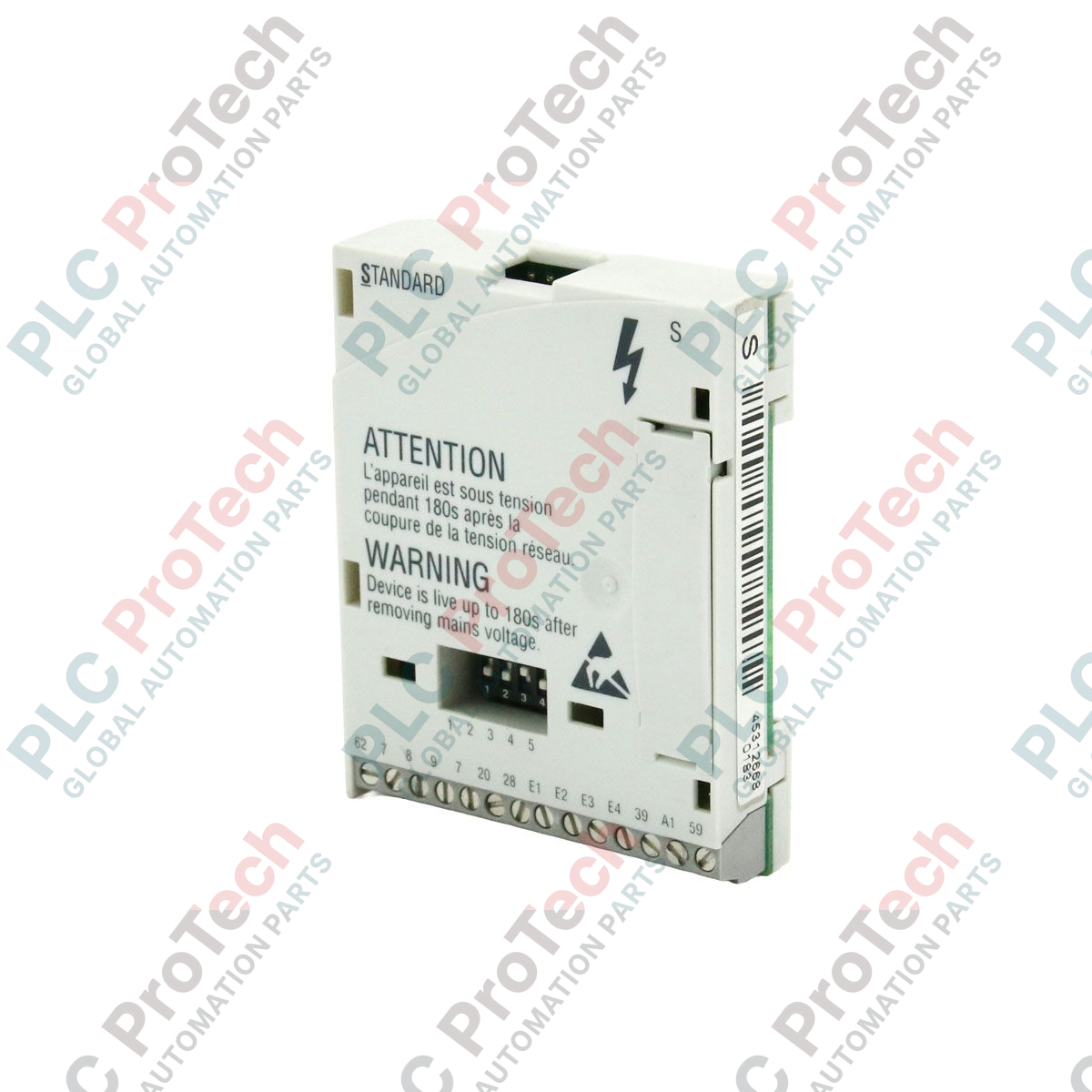

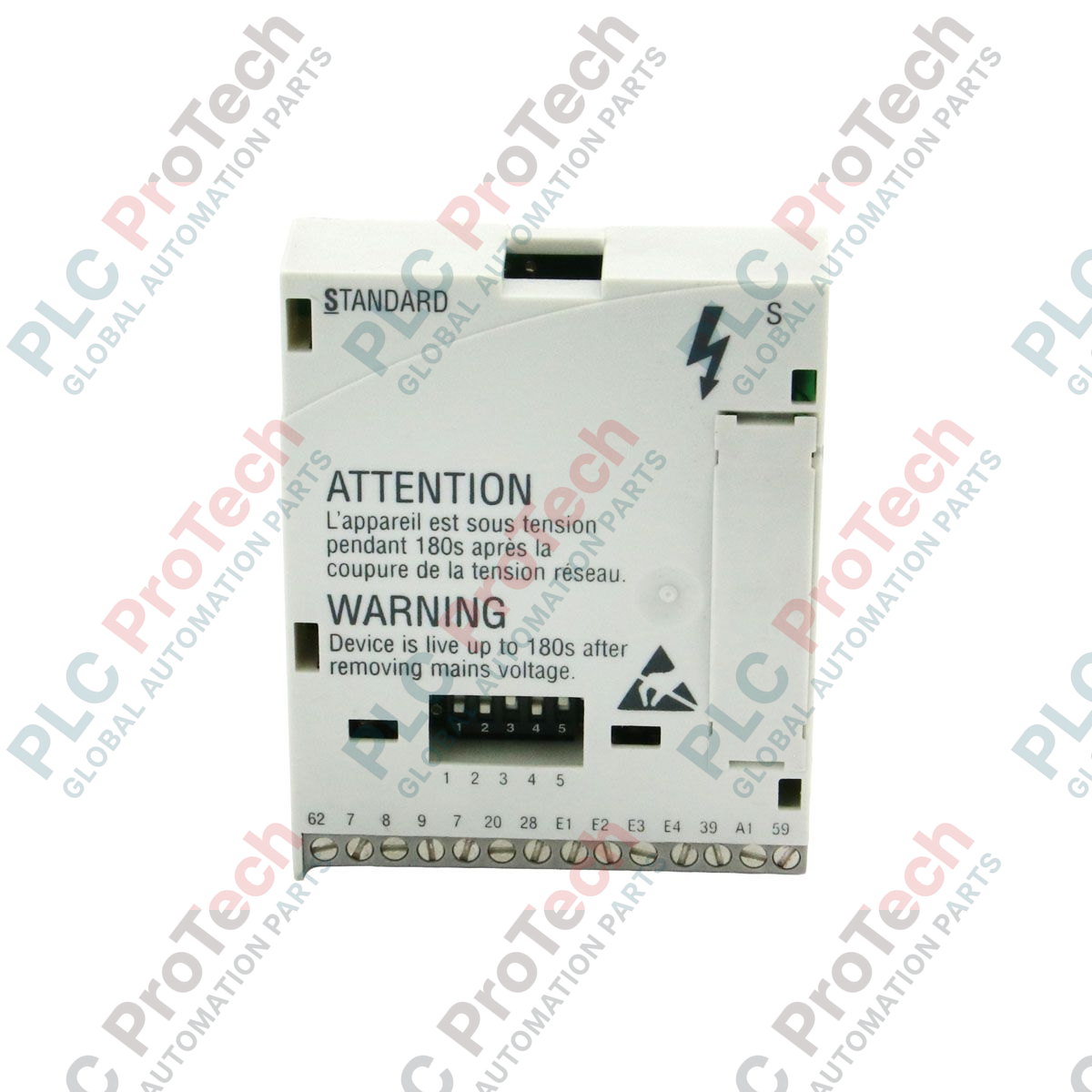

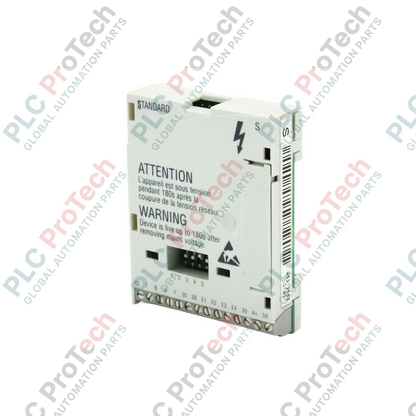

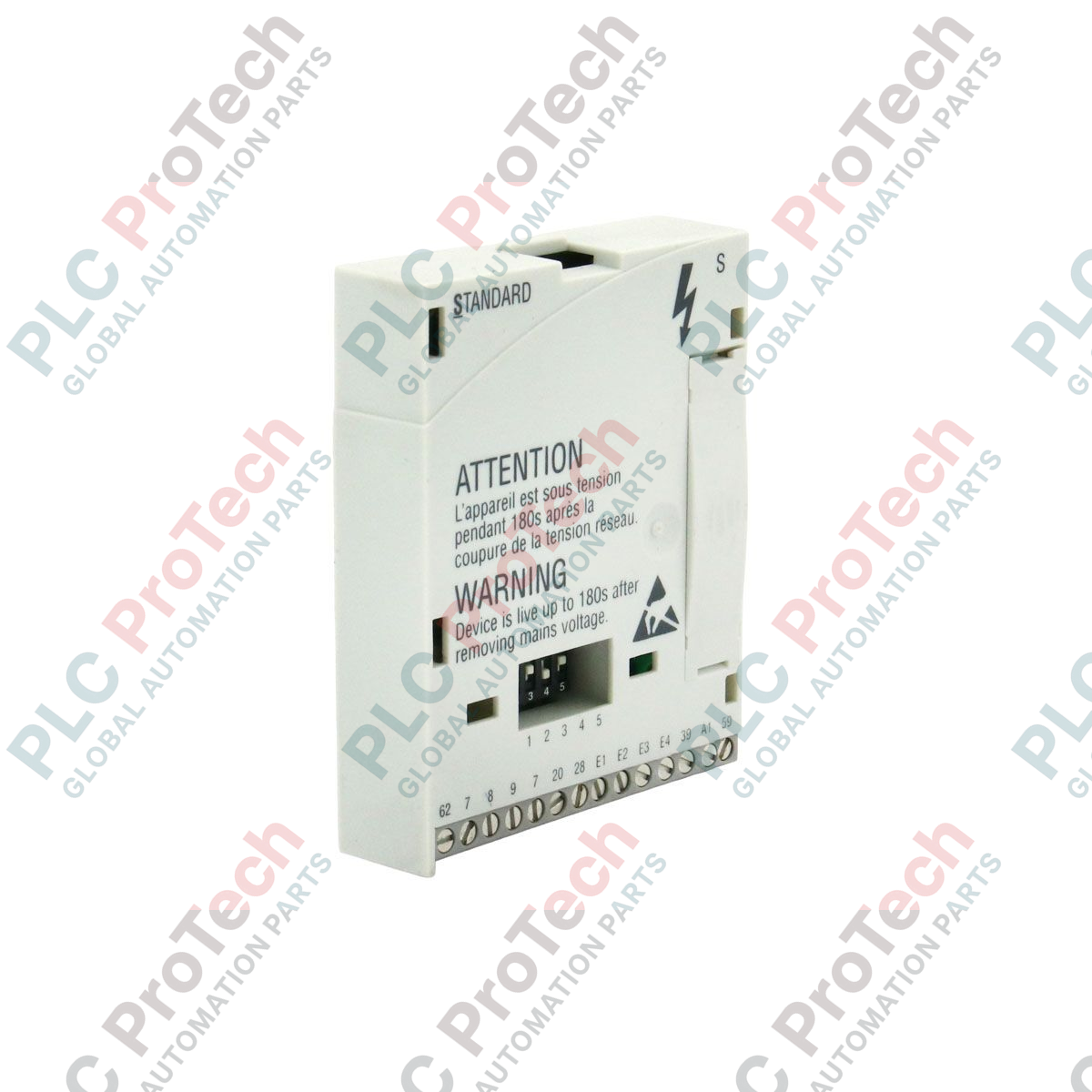

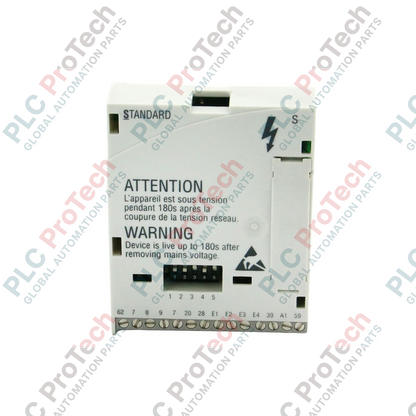

Technical Configuration

The E82ZAFS hardware architecture is designed to slide directly into the front-facing interface slot of the 8200 Vector inverter, drawing its control power directly from the drive's internal bus. It features a high-density terminal strip that supports a standardized array of inputs and outputs: typically providing several programmable digital inputs, a digital output (often used for fault signaling), and an analog input for 0-10 V or 4-20 mA speed references. The module utilizes high-quality screw terminals to ensure vibration-resistant connections, which is essential for stable performance in high-vibration industrial machinery. As a "Standard I/O" variant, it focuses on hardwired signal transparency, offering a cost-effective alternative to complex fieldbus modules for applications that do not require networked communication protocols like PROFIBUS or CANopen.

Technical Specifications

Technical FAQs

Does the E82ZAFS require external 24 VDC power for its digital inputs?

The module can utilize the internal 24 V supply provided by the 8200 Vector drive (Terminal 62) to power its digital inputs. However, if your control logic requires electrical isolation, an external 24 VDC power supply can be used by correctly configuring the common (GND) terminals.

Can I use the E82ZAFS and a keypad module (like E82ZBC) simultaneously?

No. The 8200 Vector drive features a single interface slot. The E82ZAFS occupies this slot for hardwired control. To parameterize the drive, you must either temporarily swap the E82ZAFS for a keypad or use a specialized "Lecom" communication module for PC-based setup.

Is this module compatible with the 8200 Motec (motor-mounted) drives?

Yes. The E82ZAFS is physically and electrically compatible with the interface slot found on the 8200 Motec series, allowing for standardized I/O wiring across both cabinet-mounted and motor-mounted Lenze drive systems.

Engineering & Installation Guide

• Signal Isolation and Noise Mitigation: To prevent intermittent signal "ghosting" or erratic speed references, ensure that all analog cables connected to the E82ZAFS are twisted-pair and shielded. The shield should be grounded at the drive’s PE terminal. Keep signal wires at least 10 cm away from the high-power U/V/W motor output cables.

• Terminal Wiring Torque: Given the compact 2.50 cm depth of the module, the terminals are small. Use a precision 2.5 mm flat-head screwdriver and apply a maximum torque of 0.5 N-m. Over-tightening can damage the internal PCB traces, leading to a permanent loss of input/output functionality.

• Mechanical Security: When inserting the E82ZAFS into the 8200 Vector drive, ensure the plastic retaining clips "click" into place. In high-vibration environments, an unseated module can lose connection with the internal bus, triggering an "External Fault" (EEr) on the drive.
