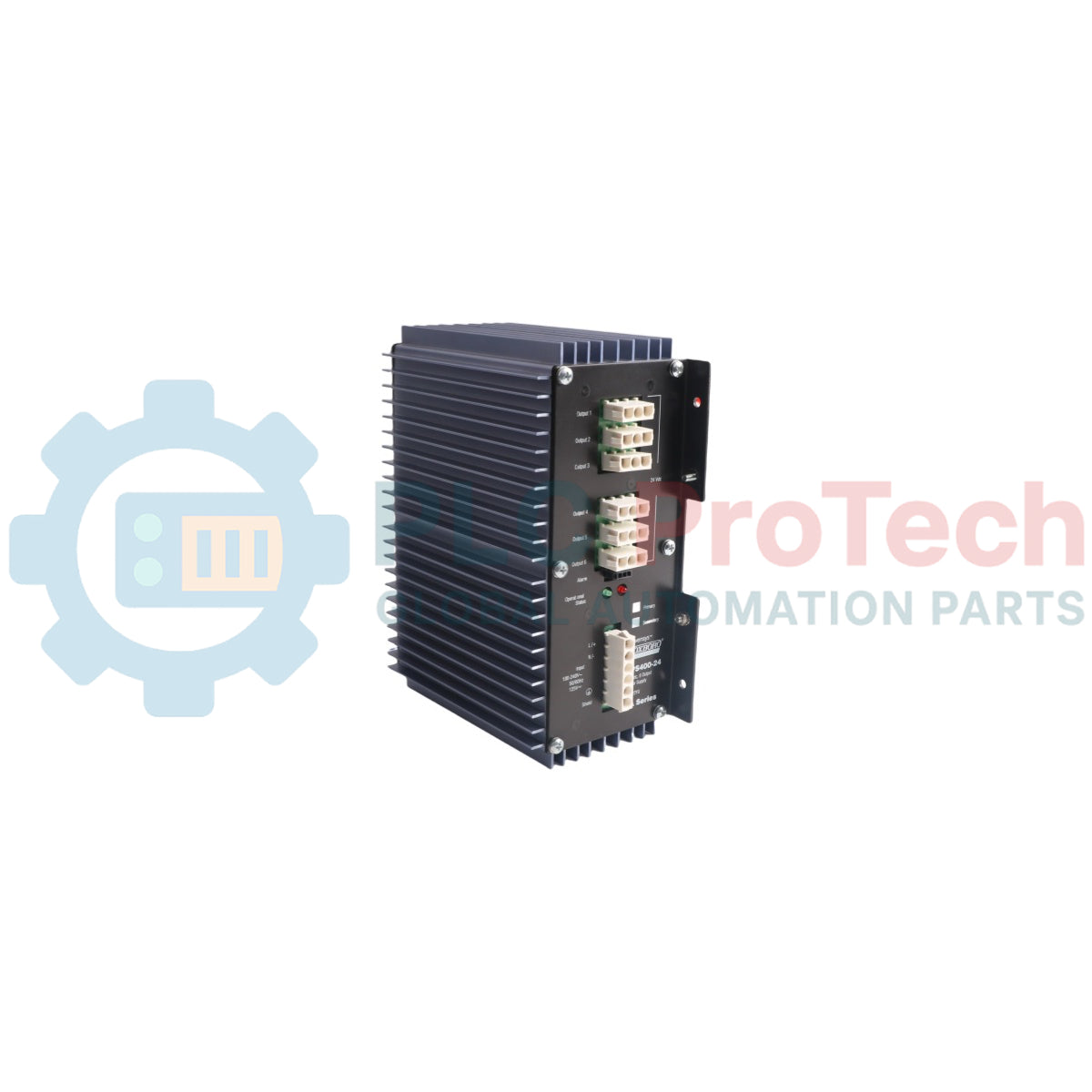

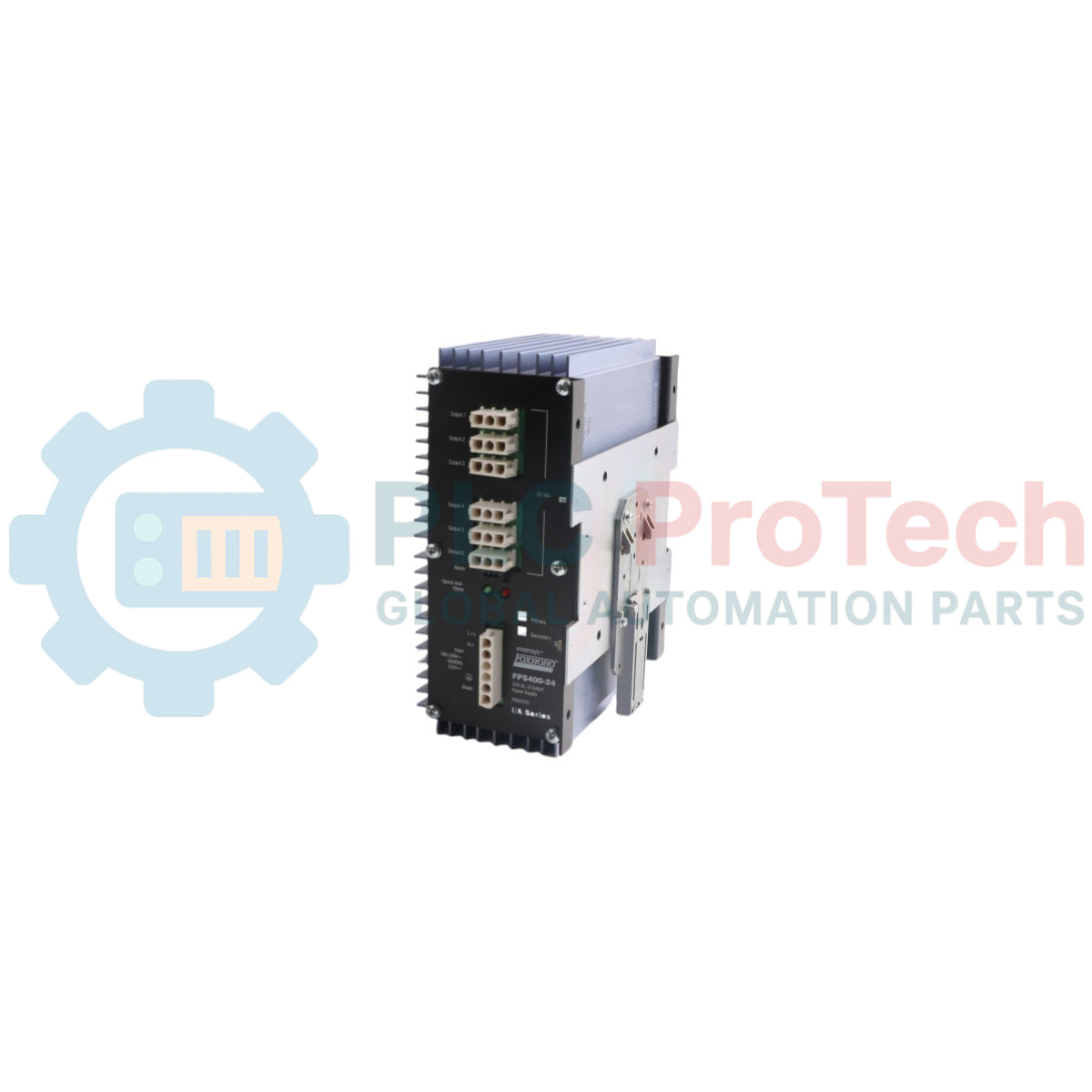

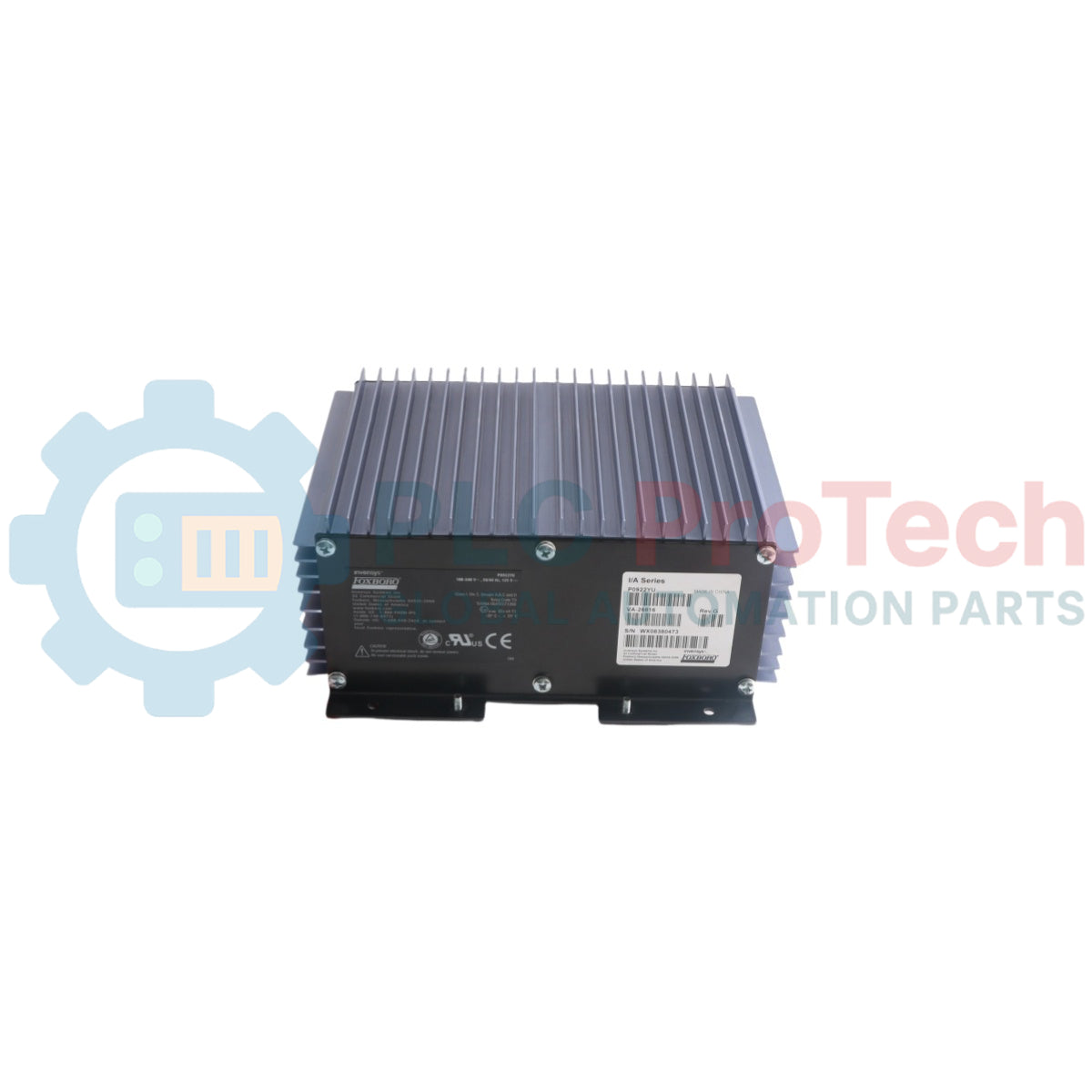

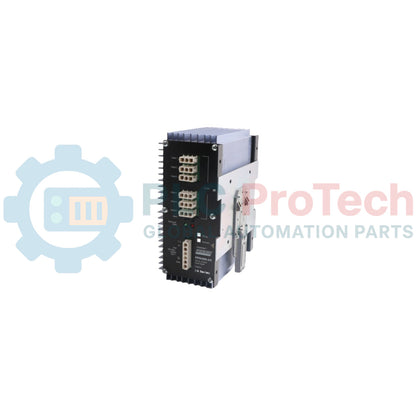

Module d'alimentation standard série 200 FPS400-24 Foxboro P0922YU

Product Overview

The P0922YU (P0922YU) is a high-performance FPS400-24 standard 200 Series power supply designed to provide reliable 24 VDC power to Foxboro Evo process automation subsystem baseplates. Delivering a robust 400 W output, this module is engineered for mission-critical industrial environments such as oil refineries, power generation plants, and chemical processing facilities. Its high-efficiency, convection-cooled design eliminates the need for mechanical fans, significantly reducing failure points and maintenance requirements in continuous process operations. By ensuring stable power delivery to 200 Series FBMs, the P0922YU plays a vital role in minimizing system downtime and maintaining control integrity.

Technical Configuration

The P0922YU is distinguished by its wide-range universal input stage. Unlike the DC-only variants, this unit features an advanced input circuit that automatically accepts 120/240 VAC (85 to 265 VAC) or 125 VDC (108 to 145 VDC).

• Active Power Factor Correction: For AC inputs, the module utilizes a sinusoidal current profile to achieve near-unity power factor, optimizing energy usage.

• Safety & Protection Layers: The architecture includes dual-stage current limiting set at 110 percent of maximum load and overvoltage shutdown circuitry with a sub-30 second reset time.

• Environmental Hardening: The unit features a G3 rating for harsh environments and a sealed, gasketed housing that protects sensitive electronics against corrosive gases like hydrogen sulfide and chlorine.

Technical Specifications

Technical FAQs

• Can I use the P0922YU to power both baseplates and field devices simultaneously?While the FPS400-24 can power external field devices, it is a best practice for system integrity to avoid powering DIN rail baseplates and field devices from the same unit.

• What should I do if the Red LED indicator is illuminated?The Red LED signifies an output undervoltage condition (less than 22 VDC). You should check for overloads or input power fluctuations. If an overvoltage shutdown has occurred, input power must be interrupted to reset the circuit.

• Is this power supply compatible with older 200 Series cables?Yes, the output power supply connector is designed to be compatible with both newer modular baseplate cables and older version cables used with P0914XA/XB baseplates.

• Does the unit require specific mounting orientations for cooling?The unit is convection cooled. While it supports both horizontal and vertical DIN rail mounting, a DIN rail clamp (P/N X0175TQ) must be used below the supply when mounted vertically to ensure stability.

Engineering & Installation Guide

• Thermal Management: To ensure proper convection cooling, maintain a minimum clearance of 76.2 mm (3 inches) at the top, bottom, and sides of the module. Consult the temperature derating table if operating in ambient temperatures exceeding 25 deg C, as available wattage drops as temperature rises.

• Wiring Safety: Utilize special Foxboro-qualified cables for all connections to improve personal safety and simplify installation. For AC inputs, ensure the P0926DZ terminal block is correctly integrated with the RH923DA or equivalent cable.

• Alarm Integration: Leverage the Form C relay status alarm output for remote monitoring. The relay de-energizes when output falls below 22 VDC, providing a reliable trigger for external alarm systems.

Engineering Advantages

The P0922YU offers an exceptional Return on Investment (ROI) of less than two years, driven by its 95 percent efficiency rating which lowers electrical overhead and heat dissipation. Its robust, fan-less design is purpose-built for the "invisible" infrastructure of a plant, providing 3000 VAC isolation between input and output to protect sensitive control logic from line-side transients. The downward compatibility with various baseplate generations makes it an ideal choice for site expansions or lifecycle upgrades within the Foxboro Evo ecosystem.
