Module d'entrée analogique 8 voies pour systèmes H41q H51q HIMA H 6215

Product Overview

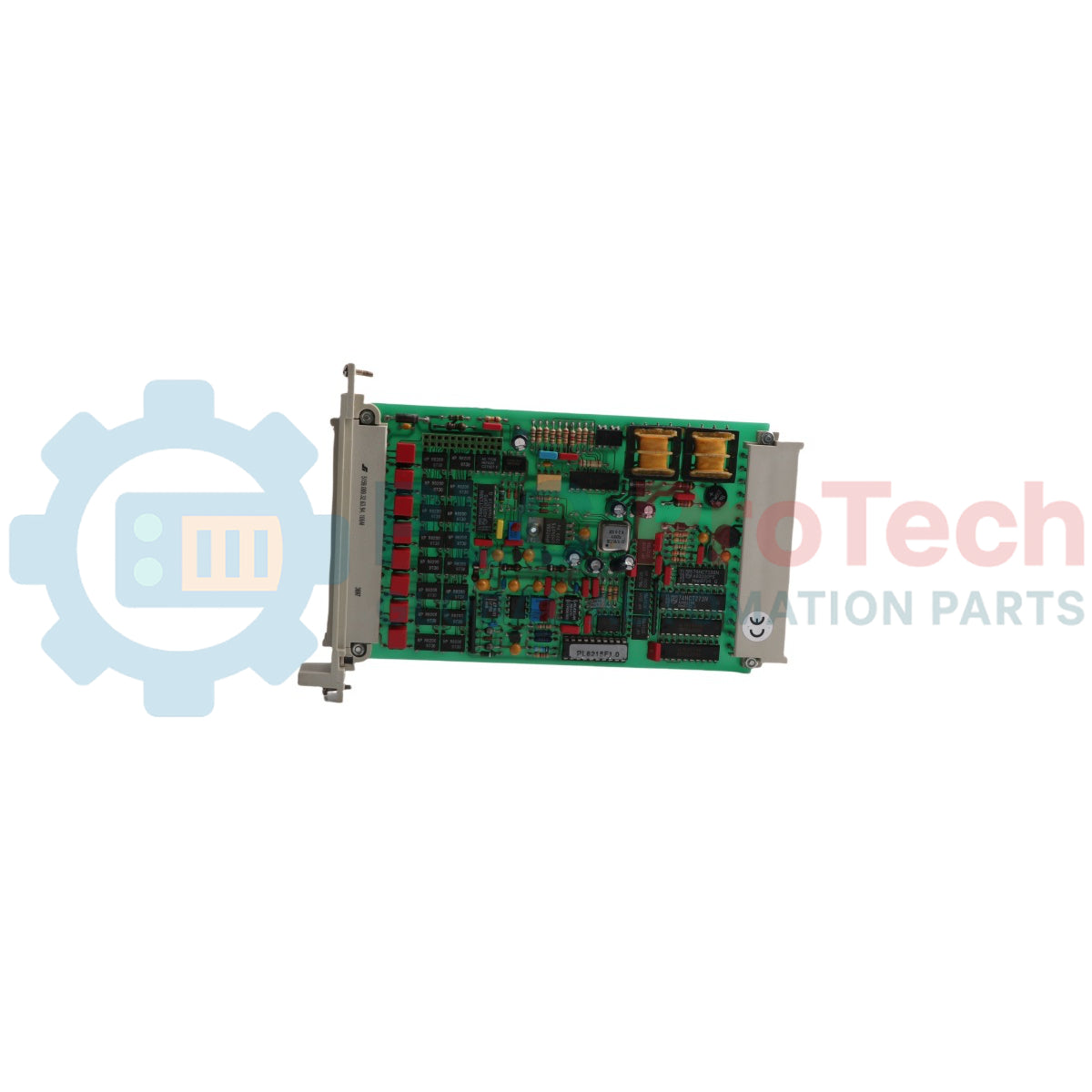

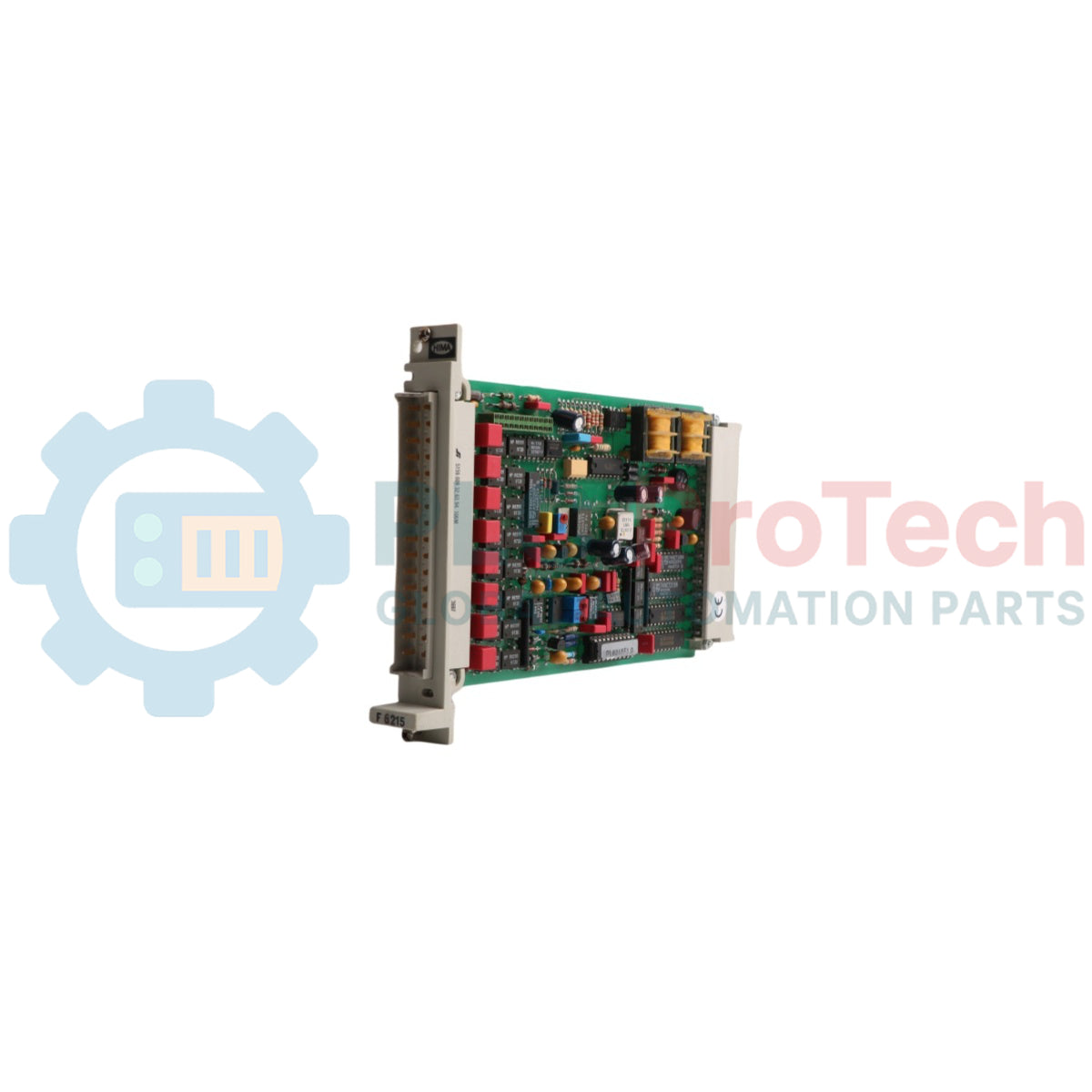

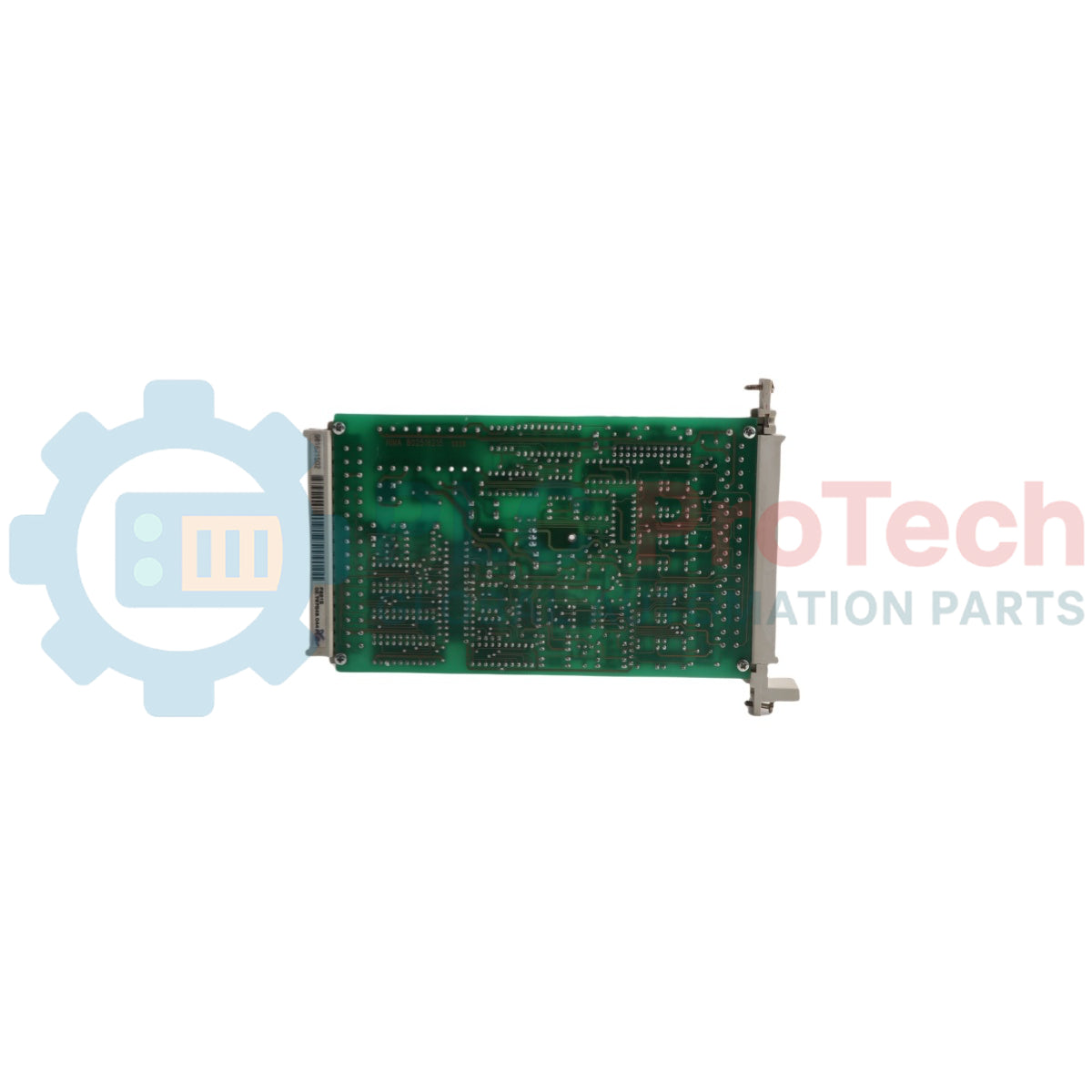

F 6215 (F6215) is an 8 fold analog input module designed for HIMA H41q and H51q safety systems. It processes voltage, current, and PT100 temperature signals in safety related industrial environments. Engineers deploy this module in process control, power generation, and chemical plants where signal integrity directly affects shutdown logic and safety interlocks.

The module supports galvanically isolated inputs to reduce interference between channels and the plant ground. It improves signal stability under electrically noisy conditions. The integrated isolation design reduces fault propagation and increases system availability. The module supports fast conversion cycles, which helps maintain real time monitoring accuracy.

Operators use this module to reduce unplanned downtime by improving diagnostic transparency in field instrumentation loops. It integrates into redundant HIMA architectures and supports continuous operation in safety critical environments.

Technical Configuration

The H 6215 module uses a multiplexed analog acquisition architecture with channel independent isolation. Each input channel operates with galvanic separation from adjacent channels and system ground.

It supports multiple signal types including voltage inputs, current loops with shunt conversion, and PT100 resistance sensors. The module performs onboard signal conditioning and A/D conversion with 12 bit resolution.

The design supports diagnostic feedback for open circuit detection, overrange monitoring, and input validation. It communicates with the HIMA central system through backplane integration inside H41q or H51q racks.

Technical Specifications

Technical FAQs

What signal types does F 6215 support?
It supports 0 to 10 V, 0 to 20 mA, and PT100 inputs.

Does the module provide isolation?
Yes, it provides galvanic isolation between inputs and system ground.

Can it be used in redundant systems?
Yes, it integrates into HIMA redundant H41q and H51q architectures.

What is the resolution of the input conversion?
The module provides 12 bit resolution for all channels.

Engineering & Installation Guide

Install the module inside certified HIMA rack systems only. Maintain proper grounding through the rack earth bar. Keep signal cables shielded to reduce EMI influence in industrial environments.

Avoid routing analog signal cables parallel to high voltage power lines. Maintain separation inside control cabinets to reduce cross coupling noise.

Ensure adequate airflow inside the cabinet to maintain temperature below 60 deg C. Avoid installing near high heat dissipation components.

Use proper shielding termination at one end of the cable to prevent ground loops. In hazardous environments, verify compliance with system level safety certification before deployment.
