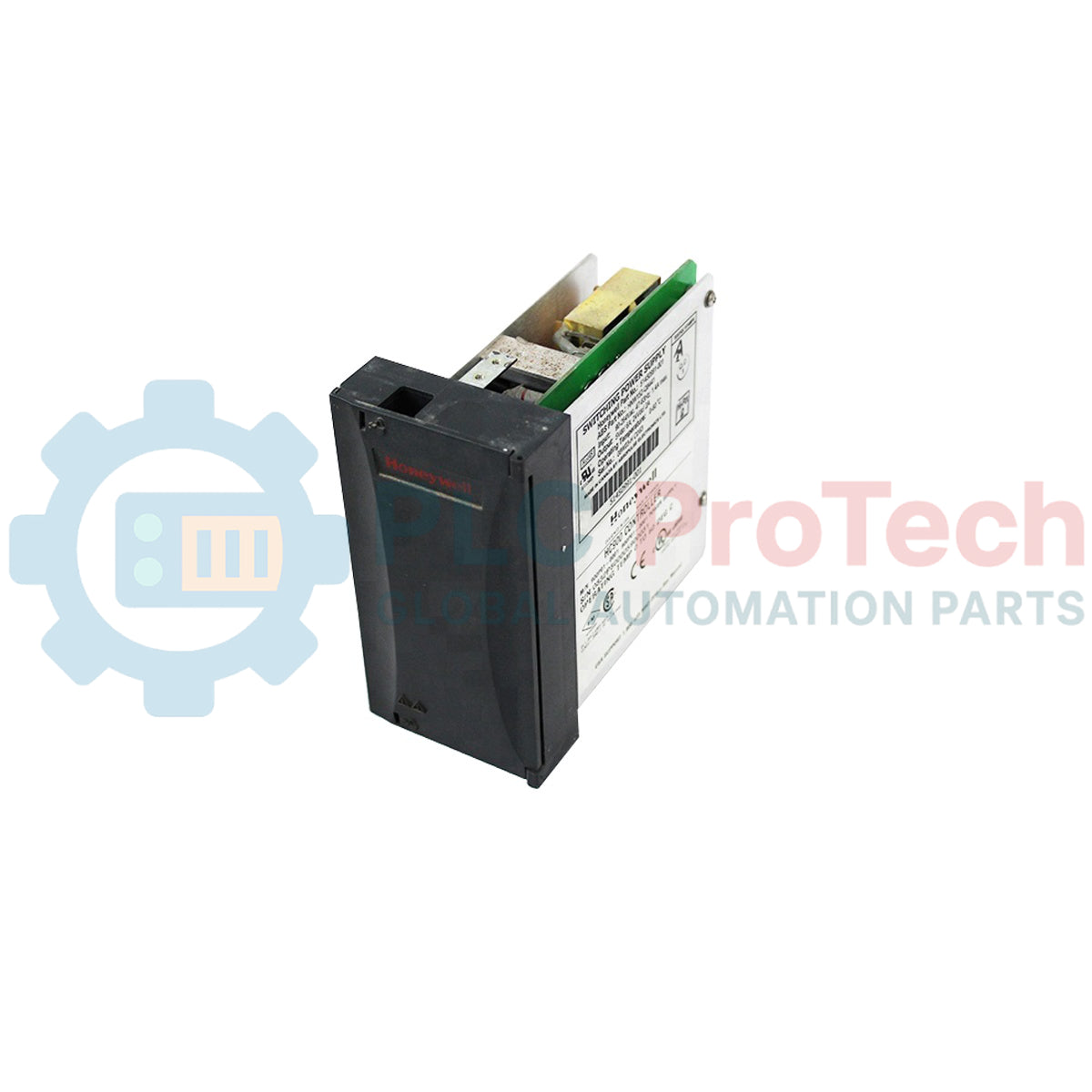

Honeywell 900P01-0001 Module d'Alimentation HC900

Description

Providing steady backplane power distribution, the Honeywell 900P01-0001 serves as the primary AC power supply module for the HC900 Process & Safety Controller system. This module converts incoming line voltage to the regulated DC levels required by the rack backplane to support CPU, scanner, and input/output modules. Engineered for high-availability industrial automation environments, it features robust transient protection, internal fusing, and a high-reliability hardware architecture that ensures uninterrupted operation under demanding thermal and electrical conditions.

Features

• Auto-sensing universal AC input voltage range eliminates manual jumper configurations.
• Delivers clean, regulated 5 VDC and 24 VDC rails directly to the HC900 backplane.
• Integral diagnostic monitoring relays status information directly to the controller CPU.
• Convection-cooled design eliminates moving mechanical parts, increasing mean time between failures (MTBF).
• Secure mechanical locking mechanism guarantees continuous electrical connection even in high-vibration applications.

Applications

• Thermal processing control systems including industrial kilns, ovens, and environmental chambers.
• Water and wastewater municipal treatment plant automation.
• Boiler combustion control systems and burner management systems (BMS).
• Chemical and petrochemical batch processing installations.

Technical Specifications Table

Connections and Interfaces

Alternative Models & Compatibility

The 900P01-0001 is intended for non-redundant power configurations on HC900 racks. If your application mandates a redundant power configuration to eliminate single points of failure, you must utilize the 900P02-0001 Redundant Power Supply module along with the appropriate redundant backplane and power status module. These models are not interchangeable in terms of backplane slot spacing.

Application Pitfalls & Engineering Notes

A common issue in sealed field enclosures is thermal stagnation. While the 900P01-0001 operates reliably up to 60 degC, prolonged exposure to high ambient temperatures accelerates the degradation of internal electrolytic capacitors. This degradation can lead to voltage ripple on the 5 VDC backplane rail, resulting in unexplained controller resets. Always maintain at least 50 mm of vertical clearance above and below the module rack to allow natural convective airflow.

Commissioning & Wiring Tips

For critical control tasks, feed the AC input of the power supply from an isolation transformer or a dedicated UPS system. Sharing an AC line with large inductive loads like induction motors or magnetic contactors can induce high-energy spikes. Additionally, ensure the Protective Earth (PE) ground wire is connected directly to a low-impedance copper busbar; poor grounding degrades the internal EMI filter's efficacy and can introduce high-frequency noise into sensitive analog I/O modules on the same rack.

Installation Guidelines
