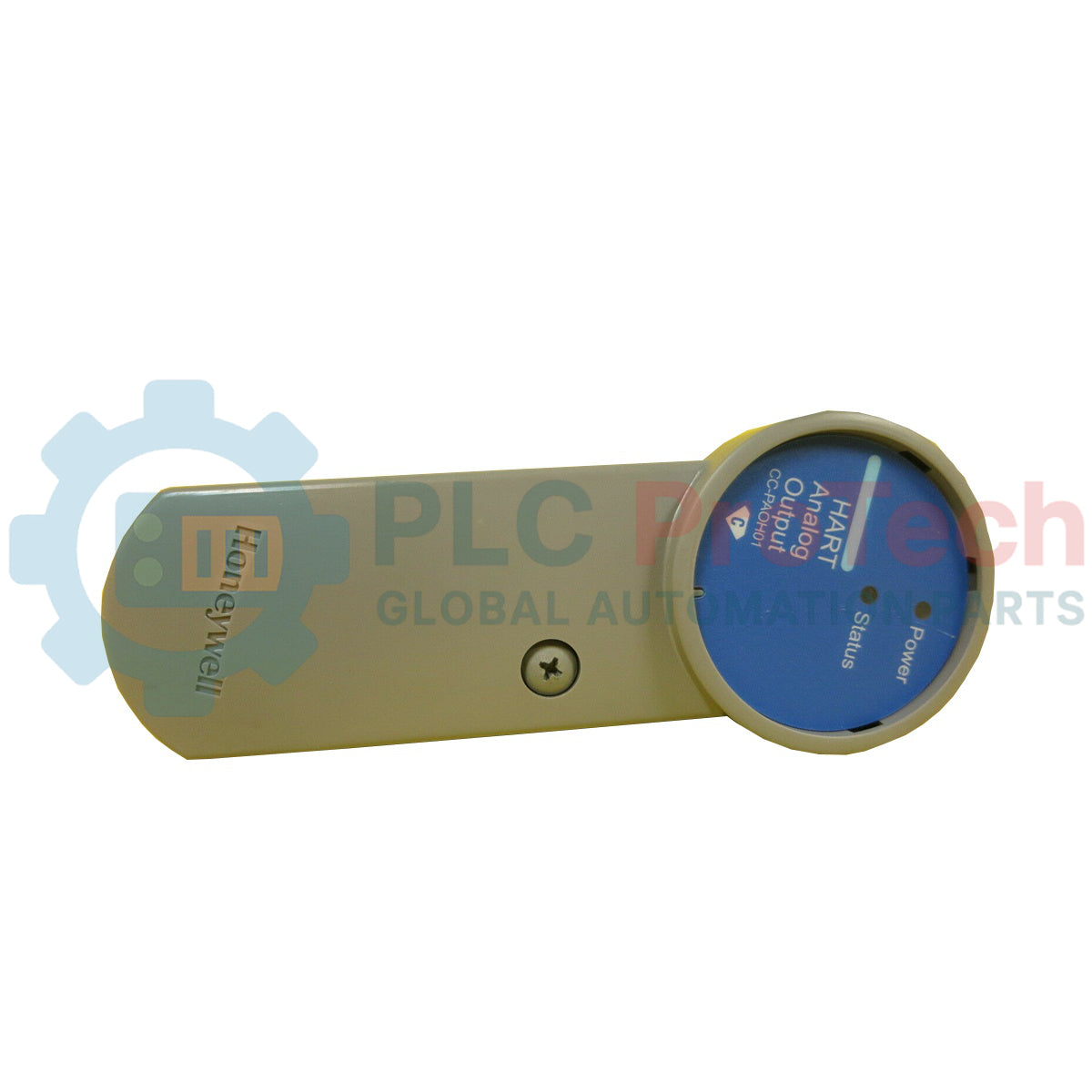

CC-PAOH01 | Honeywell | Module de sortie analogique HART

Description

Designed for integration within industrial process control systems, the CC-PAOH01 serves as a high-reliability HART analog output module. This module delivers precise current output signals to field instruments such as control valves, positioners, and actuators, while enabling robust bidirectional HART communication. By facilitating the transmission of digital diagnostic data alongside standard analog control signals, the unit provides operators with real-time health and status feedback from field-level devices.

Operating within the Series C architecture, this module minimizes loop control latency and ensures continuous diagnostic coverage. It interfaces directly with field devices, maintaining optimal signal integrity under rigorous plant floor conditions. Its ruggedized construction and active electronics are optimized to support high-density configurations in critical control applications.

Features

• Supports simultaneous 4-20 mA analog control signals and digital HART protocol communication.
• Provides galvanic isolation per channel to protect sensitive control system electronics from field-side electrical noise.
• Features a hot-swappable design, allowing for safe module replacement under power without process interruption.
• Implements continuous onboard diagnostics to monitor channel integrity, open loops, and short circuits.
• Optimized density footprint to conserve cabinet space within standard Series C I/O termination assemblies.

Applications

• Oil and gas refining and petrochemical processing.
• Power generation and utility distribution networks.
• Chemical production plants.
• Water treatment and municipal infrastructure management.
• Pulp and paper manufacturing lines.

Technical Specifications

Installation Guidelines

When installing the module, mount the unit securely onto the corresponding Series C Input/Output Termination Assembly (IOTA). Ensure all locking mechanisms are fully engaged. Grounding must comply with local industrial electrical codes to prevent electromagnetic interference. Shielded twisted-pair cabling is recommended for all analog output signal loops to maintain optimal signal-to-noise ratios. Maintain clear ventilation paths around the chassis to allow adequate heat dissipation.

Compliance and Certifications

• CE Compliant
• UL Listed for Industrial Control Equipment
