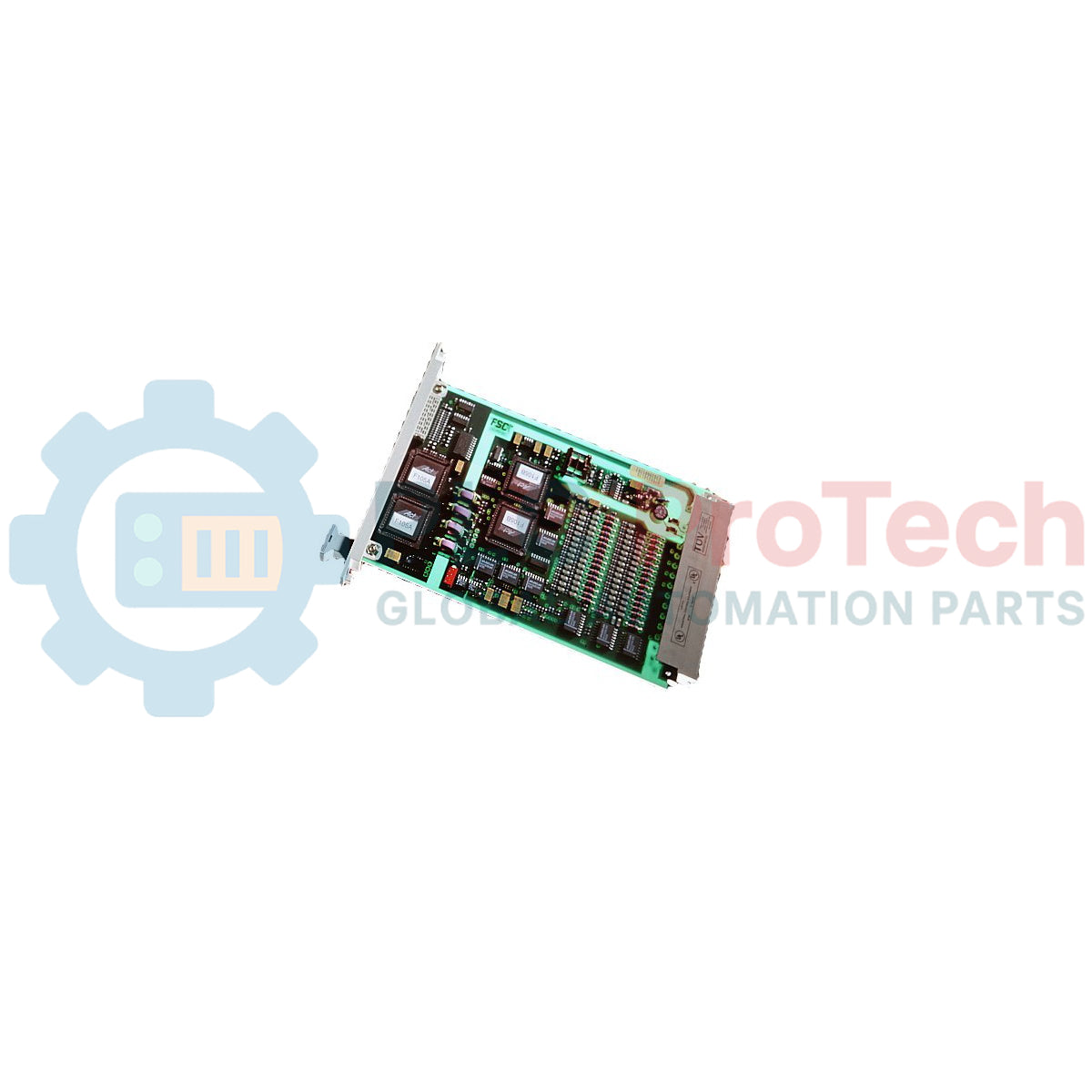

Module d'entrée analogique haute densité sûr Safety Manager Honeywell FC-SAI-1620M

Description

Processing safety-critical field measurements within the Safety Manager architecture, the Honeywell FC-SAI-1620M executes high-integrity analog signal acquisition for emergency shutdown (ESD) and fire and gas (F&G) systems. This high-density module continuously monitors up to 16 independent analog channels, executing strict onboard diagnostic routines to ensure loop integrity and fault detection. By interfacing directly with safety-critical transmitters, the module provides the fast response times and deterministic performance required to meet stringent safety integrity level requirements in heavy industrial processing environments.

Features

• 16 High-Density Channels: Supports dense field analog signal termination within a single physical slot.
• 24 Vdc Nominal Input: Optimized for standard industrial transmitters and safe loop operations.
• Comprehensive Self-Diagnostics: Continuous hardware test routines detect internal component drifts or circuit faults immediately.
• Galvanic Isolation: Protects internal control logic from external field transient surges and electrical noise.
• Safety-Critical Architecture: Designed specifically for seamless integration into Honeywell Safety Manager control loops.

Applications

• Emergency Shutdown (ESD) systems in petrochemical refineries.
• Fire and Gas (F&G) safety detection and mitigation loops.
• Critical burner management system (BMS) controls.
• High-pressure protection systems (HIPPS) in oil and gas pipelines.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The FC-SAI-1620M operates within legacy Honeywell Safety Manager configurations and requires alignment with corresponding Field Termination Assemblies (FTAs) such as the TS-SAI-1620. When replacing older revisions of this module, verify that your current Safety Builder software version supports the specific hardware firmware revision of the replacement unit to avoid system load mismatches or diagnostic compile-time warnings.

Application Pitfalls & Engineering Notes

Operating 16 channels of analog loops simultaneously can generate localized heat buildup inside fully populated enclosures. System designers must maintain adequate ventilation space and ensure that cabinet temperatures remain strictly below 60 degC to prevent premature degradation of the diagnostic circuits. If transmitters are powered externally, the system ground reference must be carefully configured to prevent ground loop noise from corrupting safe signal values.

Commissioning & Wiring Tips

During commissioning, ensure all unused channels are disabled or configured with appropriate dummy resistors in Safety Builder to suppress open-loop error codes. To maintain high-integrity safety functions, utilize double-shielded twisted pair cables for all analog signal runs and ground the shields exclusively at the designated cabinet grounding bar.

Installation Guidelines
