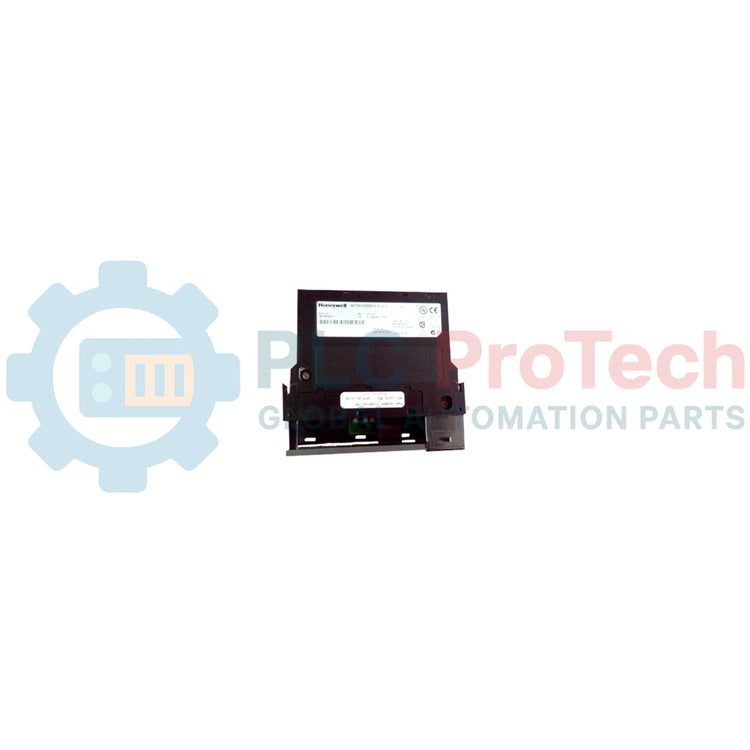

Honeywell TC-IXR061 Module d'entrée analogique Experion PKS

Overview

The TC-IXR061 (TCIXR061) is a high-precision, galvanically isolated analog input module designed for the Honeywell Experion PKS (Process Knowledge System) platform. In critical process industries such as hydrocarbon processing, large-scale chemical synthesis, and pharmaceutical manufacturing, signal integrity is non-negotiable. This module provides six channels of isolated measurement, shielding the control system from ground loops and high-voltage transients commonly found in heavy industrial environments. By providing a rapid module update rate of 50 ms and integrated open-wire detection, the TC-IXR061 ensures that operators receive immediate, accurate data for closed-loop control. This proactive diagnostic capability is vital for identifying field instrument failures before they lead to emergency shutdowns, thereby maximizing plant availability and safety.

Technical Configuration

The TC-IXR061 is engineered to maintain high-fidelity signal conversion under challenging electromagnetic conditions. Its architecture emphasizes both speed and environmental resilience.

• Galvanic Isolation: Each of the 6 channels is individually isolated, preventing common-mode noise and ground-current interference from migrating across the I/O backplane.

• Rapid Processing: The module features a comprehensive update rate of 50 ms for all channels, making it suitable for fast-acting control loops and sensitive monitoring applications.

• Robust RFI Immunity: Designed to withstand high-frequency interference, the module maintains an error rate of less than 2.0 percent even in the presence of 10 V/m radio frequency fields.

• Diagnostic Reporting: Built-in open-wire detection triggers an "Out of Range" status in less than 5 seconds, allowing for rapid fault localization in the field wiring.

Technical Specifications

FAQs

How does the TC-IXR061 handle field wiring breaks?

The module includes integrated open-wire detection. If a connection is lost, the system reports an "Out of Range" value within 5 seconds. This allows the Experion PKS control strategy to transition to a predefined safe state or shed the loop to manual.

What is the benefit of the galvanic isolation on this specific module?

Standard analog inputs often share a common ground, which can introduce noise if field instruments are grounded at different potentials. The galvanic isolation in the TC-IXR061 ensures each channel is electrically independent, significantly improving accuracy in "electrically noisy" plants.

Is this module compatible with standard Experion PKS chassis?

Yes, it is designed for standard Honeywell I/O racks and utilizes the TC-TBNH 20-position terminal block for field terminations.

Engineering & Installation Guide

• Shielding and Grounding: For optimal performance in environments with high RFI (Radio Frequency Interference), use high-quality twisted-pair shielded cable. Ensure the shield is terminated at the designated ground point on the Honeywell chassis and remains floating at the field instrument side to prevent the very ground loops the module is designed to isolate.

• Thermal Management: The TC-IXR061 dissipates up to 4.3 W. In high-density I/O cabinets, ensure that the rack is ventilated properly. Maintain at least 2 inches of clearance at the top and bottom of the chassis to allow natural convection, preventing heat-related drift in the analog-to-digital conversion circuitry.

• Wiring Precision: When utilizing the TC-TBNH terminal block, ensure all connections are torqued according to Honeywell standard specifications. Loose connections on high-impedance analog inputs can lead to intermittent "Out of Range" alarms and erratic signal behavior.
