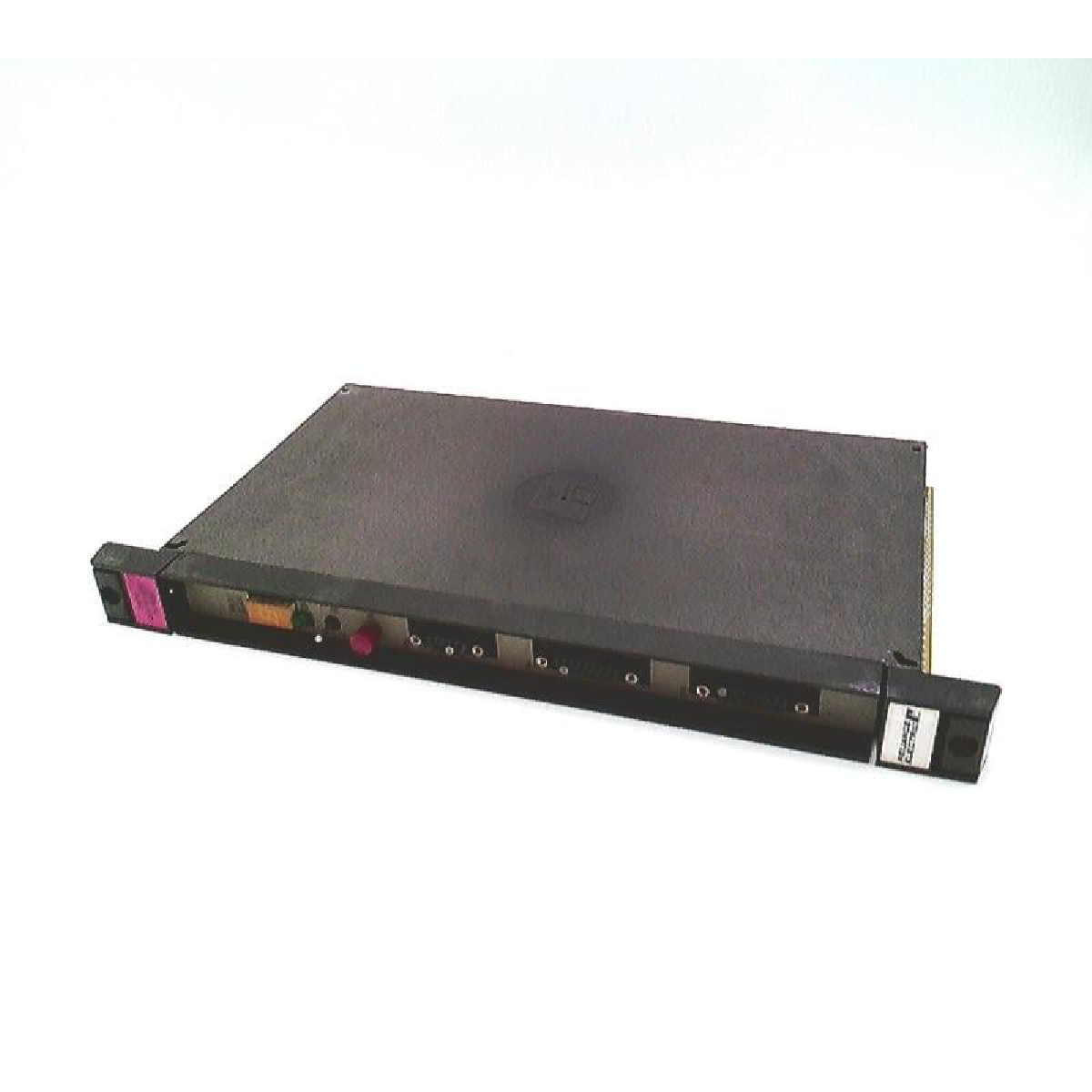

Reliance Electric 0-57406-H Contrôleur d'entraînement

Product Insights & Operational Application

The 0-57406-H (057406H) serves as a high-performance, rack-mounted drive controller module within the legacy Reliance Electric AutoMax distributed control system. Engineered for real-time, multi-axis coordinated drive control, this module executes complex velocity, torque, and position loops with deterministic precision. Heavy industrial operations—including section regulation in paper mills, tension control in steel rolling mills, and continuous processing in rubber extrusion—rely on this module to maintain synchronized motor speeds and prevent web breakage. By integrating directly into the AutoMax rack architecture, the 0-57406-H (057406H) eliminates communication bottlenecks between the supervisory PLC and the power hardware. This rapid loop execution minimizes transient speed deviations, maximizing system uptime and protecting mechanical drive trains from catastrophic stress failures.

Technical Configuration

The 0-57406-H relies on a dedicated microprocessor architecture optimized for real-time task execution within the AutoMax ecosystem. It communicates via the backplane using dual-port memory, allowing seamless data exchange with the master CPU and other co-processors.

• System Integration: The module occupies a single slot in an AutoMax high-density rack and interfaces with power modules via fiber-optic or high-speed serial links, ensuring complete electrical isolation and high noise immunity in severe electromagnetic environments.

• Diagnostic Capabilities: The front panel incorporates onboard LED status indicators that provide real-time hardware diagnostics, indicating run state, communication health, and fault conditions to expedite field troubleshooting.

• Control Capabilities: It supports complex regulatory control loops, accommodating feedback from encoders, resolvers, and tachometers to maintain tight speed and torque regulation.

Architecture & Physical Specifications

Technical FAQs

How do you address the discontinued status of the 0-57406-H during system failure?

Because the manufacturer has officially discontinued this module, standard factory support is unavailable. Plant engineers must source certified legacy stock or remanufactured units. It is highly recommended to maintain critical spares in climate-controlled storage to avoid prolonged operational downtime, as direct migration to modern drives typically requires a comprehensive and costly system redesign.

What are the primary causes for a fault indication on the front panel?

Fault indicators generally point to either a loss of communication across the AutoMax backplane, a failure in the feedback loop (such as encoder signal loss), or internal hardware degradation due to component aging. Inspect the backplane connectors for physical damage or contamination, and verify that the feedback cables are securely shielded and routed away from high-power motor leads.

Is the 0-57406-H hot-swappable within the AutoMax rack?

No. Removing or inserting this module while the AutoMax chassis is energized will cause transient electrical surges that can destroy the onboard CMOS components and disrupt the entire backplane communication bus. Always isolate the rack power supply before extracting or replacing the drive controller.

Engineering & Installation Guide

• Thermal Management and Rack Airflow:

  High-density AutoMax racks generate significant thermal loads. You must maintain a minimum clearance of 50 mm above and below the chassis for natural convection. If the ambient enclosure temperature approaches 50 deg C, install forced-air ventilation fans. Overheating accelerates the degradation of the internal electrolytic capacitors, leading to premature control loop drift.

• Grounding and Noise Abatement:

  To prevent electromagnetic interference (EMI) from corrupting the low-voltage control signals, ensure the rack chassis connects to a low-impedance earth ground using a minimum 8 AWG copper wire. All external encoder and drive command cables must utilize twisted-pair shielded cabling, grounded solely at the rack end to eliminate ground loops.

• Electrostatic Discharge (ESD) Protection:

  The 0-57406-H contains highly sensitive integrated circuits. Field personnel must wear a properly grounded ESD wrist strap during installation or replacement. Store uninstalled modules exclusively in static-shielding bags to prevent latent dielectric breakdown of the semiconductor gates.
