TK-ODJ161 Module de sortie DC Experion PKS Série C

Product Overview

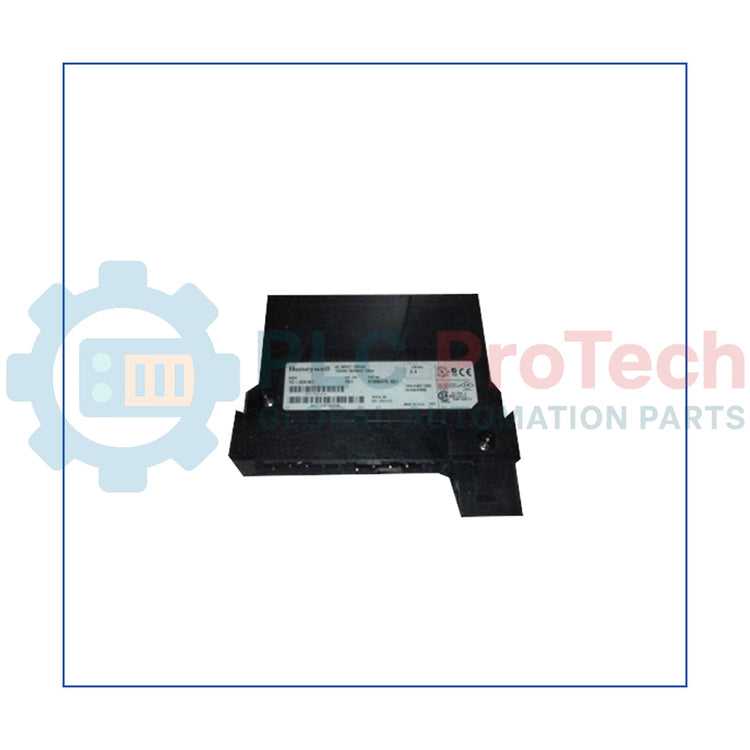

The TK-ODJ161 is a high-density, 24 VDC Digital Output Module for the Honeywell Experion® PKS (Process Knowledge System) Series C platform. Featuring 16 output points, this module is responsible for executing control commands from the Series C controller to field devices such as solenoid valves, relays, and indicators. This "TK" version features a conformal coating, providing enhanced protection against harsh environmental contaminants, moisture, and corrosion, making it ideal for deployment in demanding process industries like oil & gas, chemicals, and offshore applications.

Functional Engineering & Reliability

The TK-ODJ161 is designed for the high-availability requirements of modern industrial automation. It integrates seamlessly into the Series C I/O architecture, mounting directly onto its associated IOTA (Input/Output Termination Assembly). The module includes advanced internal diagnostics and short-circuit protection to ensure that any field-side electrical faults do not damage the sensitive control electronics. Its vertical orientation in the Series C rack promotes natural convection cooling, ensuring stable performance even at maximum output density.

Technical Specifications

Technical FAQs

What is the benefit of the conformal coating on the TK-ODJ161?

The "TK" prefix signifies that the printed circuit board is treated with a specialized protective film. This coating prevents the growth of "dendrites" and protects against chemical vapors and salt spray, which are common causes of electronic failure in coastal or heavy industrial facilities. It is essential for maintaining the system's long-term reliability in environments classified as "Harsh" or "Corrosive."

Can this module be used in redundant configurations?

Yes. When paired with a redundant IOTA (such as the CC-TDOB11 or similar), the TK-ODJ161 can be used in a primary/secondary pair. This ensures that even if one module fails, the control signals to the 16 field devices remain active, providing the high availability necessary for safety-critical loops.

How does the module communicate its status to the Experion system?

The module features integrated LED indicators on the front panel for "Power" and "Status." Additionally, it transmits real-time diagnostic data to the Experion PKS controller, alerting operators to faults such as "Open Wire" or "Short Circuit" through the system HMI.

Field Engineering & Installation Guide

• Module Seating: Ensure the TK-ODJ161 is firmly pressed into the IOTA socket. The Series C locking mechanism should click into place to prevent accidental disconnection due to vibration.

• Thermal Management: While the module is highly efficient, ensure that the cabinet’s fan units are functional and filters are clean. Maintaining an ambient temperature within the specified range (typically 0°C to 60°C) is key to maximizing the lifespan of the solid-state output components.

• IOTA Pairing: This module must be used with a compatible Series C Digital Output IOTA. Verify that the terminal block wiring matches the 16-point assignment in the Experion Configuration Studio to prevent incorrect device activation during commissioning.

Engineering Advantages

The TK-ODJ161 offers a robust and compact solution for discrete control. Its high-current capability per point allows it to drive most industrial solenoids directly, reducing the need for interposing relays. For B2B procurement, sourcing the original Honeywell TK-ODJ161 ensures that your process control system maintains its original safety ratings and environmental certifications, providing a stable and reliable interface between your digital logic and physical field operations.
