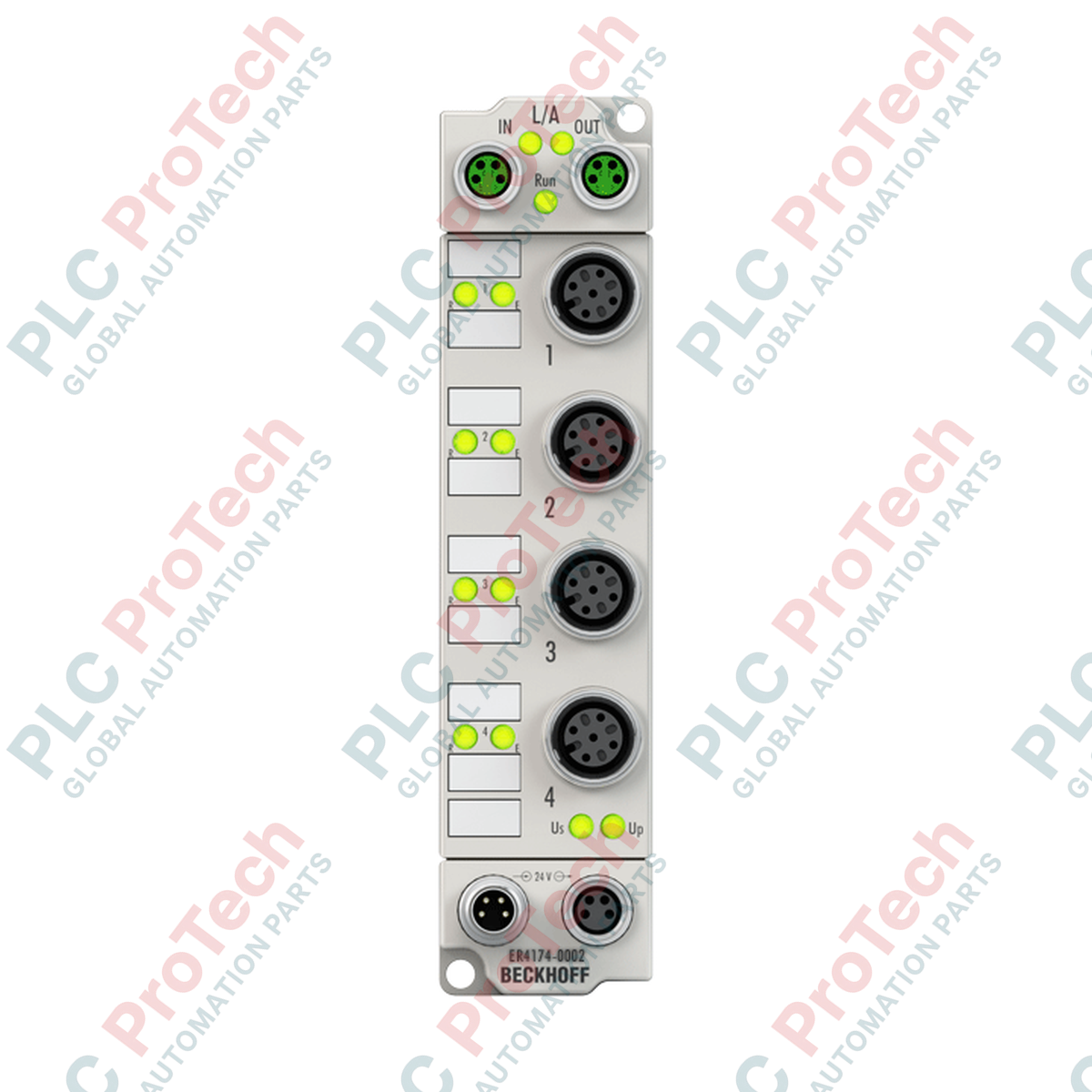

Beckhoff ER4174-0002 EtherCAT Box 4-channel Analog Output Module

Description

Direct field deployment of analog control signals is achieved through the Beckhoff ER4174-0002 EtherCAT Box, which provides processing of highly precise output signals without requiring an electrical cabinet. This IP67-rated module features 4 analog outputs that are individually parameterizable, allowing each channel to be configured to output either -10 to +10 V voltage signals or 0/4 to 20 mA current loops. Operating with 16-bit resolution, the device provides rapid and low-noise conversion directly at the machine, feeding actuators with clean signals over field-level M12 interfaces.

Features

• Parameterizable Output Modes: Individual software configuration per channel for voltage (-10 V to +10 V) or current loop (0 to 20 mA, 4 to 20 mA) operation.
• Industrial Environmental Protection: Fully encapsulated zinc die-cast housing designed for direct field mounting in IP65, IP66, and IP67 environments.
• Ultra-Fast Conversion: Conversion times of approximately 40 microseconds ensure high compatibility with real-time motion control loop requirements.
• Local Actuator Power: Supply voltage for the connected actuators is drawn directly from the auxiliary voltage (UP) line, simplifying cabling.
• EtherCAT Direct Interface: Direct processing of EtherCAT protocol with direct integration via TwinCAT software.

Applications

• Decentralized Valve and Actuator Control: Direct regulation of proportional valves, speed regulators, and variable frequency drives on machine frames.
• Robotics and End-of-Arm Tooling: Lightweight, direct-mount analog control for tool positioning and sensory systems.
• Heavy-Duty Washdown Zones: Automotive assembly lines, packaging plants, and material handling systems exposed to moisture and mechanical stress.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The ER4174-0002 utilizes an ultra-durable zinc die-cast housing designed for high-impact physical environments. For applications with identical electrical properties but lighter weight requirements, the plastic-housed EP4174-0002 serves as a direct drop-in network alternative. Both modules feature identical EtherCAT XML device description (ESI) profiles and are fully interchangeable inside the TwinCAT system manager config without reprogramming.

Application Pitfalls & Engineering Notes

When cascading auxiliary voltage (UP) and system voltage (US) downstream to adjacent EtherCAT boxes, engineers must monitor total cumulative current. The M8 power connectors are strictly limited to a maximum continuous current of 4 A. Exceeding this limit will cause internal thermal stress and contact oxidation. If high-draw actuators (such as proportional solenoid valves) are connected, auxiliary power (UP) should be externalized or isolated using specialized power feed modules.

Commissioning & Wiring Tips

To guarantee the high precision offered by the 16-bit DAC, users must use fully shielded, twisted-pair cabling for the M12 analog connections. Grounding the zinc die-cast housing via the integrated mounting tabs directly to a low-impedance machine frame is critical for draining high-frequency industrial noise. If high common-mode voltage is expected between field actuators and the controller, the 500 V electrical isolation boundary provides safety, but shielding is required to suppress analog signal ripple.
