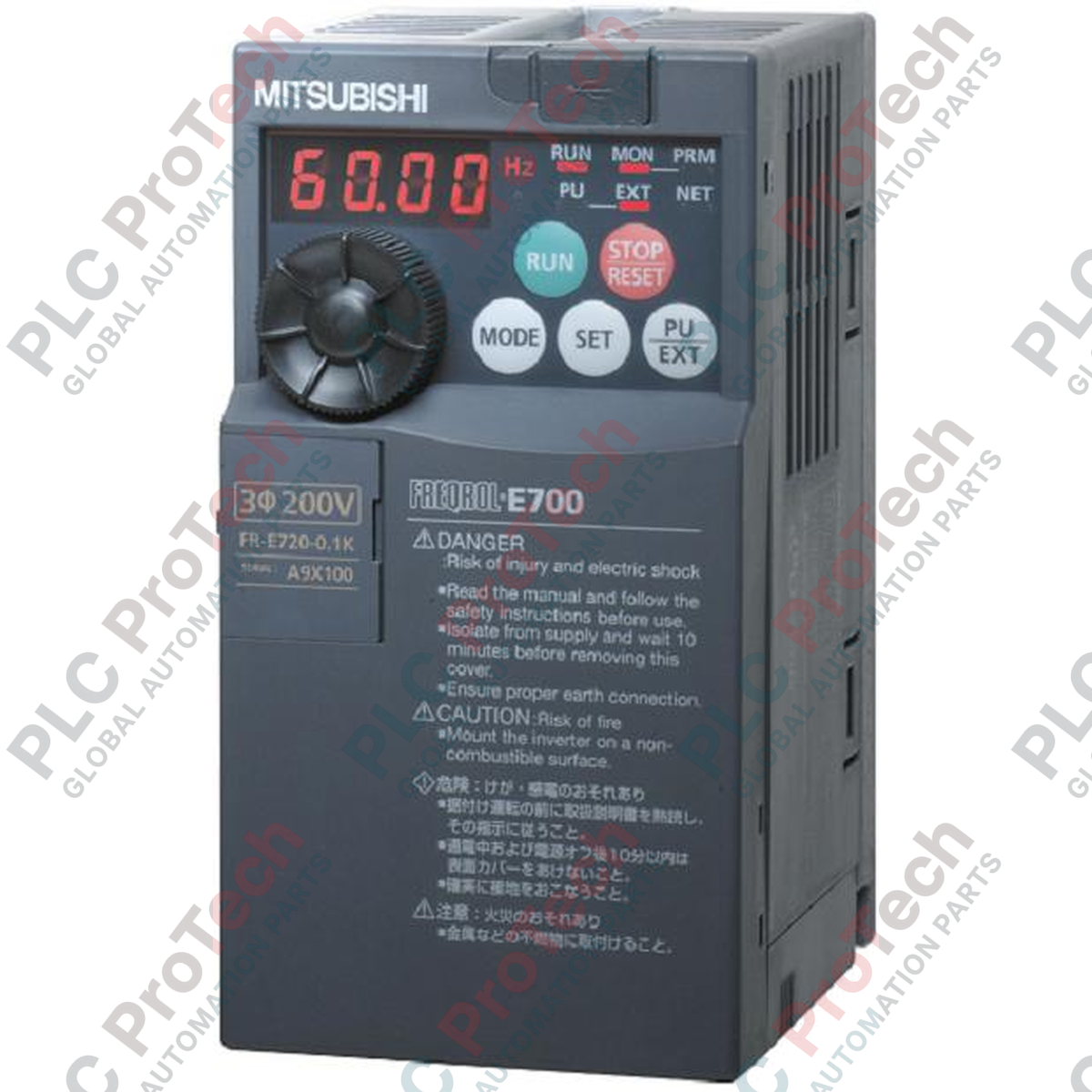

Mitsubishi Electric FR-E740-7.5K FREQROL-E700 Series Variable Frequency Drive

Description

Engineered for highly precise motor speed regulation, the Mitsubishi Electric FR-E740-7.5K variable frequency drive delivers robust torque performance in heavy-duty mechanical environments. This compact unit supports advanced magnetic flux vector control, allowing it to supply optimal torque even at lower operating frequencies. Outfitted with comprehensive protective circuits and an integrated PID controller, this drive is suited for seamless integration into industrial control systems requiring dependable mechanical speed modulation and direct fieldbus communication.

Features

• Advanced Torque Vectoring: Achieves 200% or higher starting torque at 0.5 Hz under advanced magnetic flux vector control configurations.
• Multi-Protocol Fieldbus Support: Built-in RS-485 interface with direct hardware compatibility for CC-Link, DeviceNet, PROFIBUS-DP, and Modbus RTU network architectures.
• Flexible Control Methods: User-selectable Soft-PWM control, high carrier frequency PWM control, standard V/F control, and optimal excitation control.
• Robust I/O Capabilities: Features 7 digital inputs, 2 analog inputs, 2 open-collector outputs, and 1 dedicated fault relay output for comprehensive system integration.
• Integrated Safety System: Built-in overcurrent, overvoltage, undervoltage, and thermal overload protection to secure downstream mechanical systems.

Applications

• Conveyor and Material Handling: For high-inertia transport lines needing reliable starting torque.
• Industrial Pumps and Fans: Ideal for flow-rate modulation using built-in PID loop control to optimize operational efficiency.
• Packaging and Assembly Lines: For precise speed synchronizations and high-duty start-stop operations.
• Machine Tool Spindles: Direct speed and torque control for wood and metal processing equipment.

Technical Specifications Table

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

When replacing an legacy FR-E500 series drive with the FR-E740-7.5K, pay close attention to the structural depth dimensions. While mounting screw alignments align well with standardized spacing, the E700 series unit possesses an altered footprint depth. Additionally, the control terminal blocks on the FR-E700 series are removable and utilize different terminal assignments. Existing control wire looms must be verified pin-by-pin against the schematic to prevent auxiliary I/O miswiring.

Application Pitfalls & Engineering Notes

Operating the drive continuously under high-load conditions at low output frequencies (below 6 Hz) reduces internal fan efficiency. This can trigger thermal overload protection codes (E.THT or E.THT2). If slow-speed operation is mandatory, you must use a specialized inverter-duty motor equipped with independent auxiliary cooling or derate the continuous torque limit of the system. For applications with rapid deceleration steps, connect an external braking resistor across terminals PR and PX to prevent E.OV3 (deceleration overvoltage) trip faults.

Commissioning & Wiring Tips

To ensure stable analog frequency signals, route all control terminal cabling (especially Terminals 2 and 4) using twisted-shielded copper conductors. Ground the shield at the drive's control-common terminal block only. Do not mix signal cabling with power lines (U, V, W or R, S, T) in the same conduit. Maintain a separation gap of at least 10 cm between signal and power lines to suppress industrial EMF noise in 4-20mA loop configurations.
