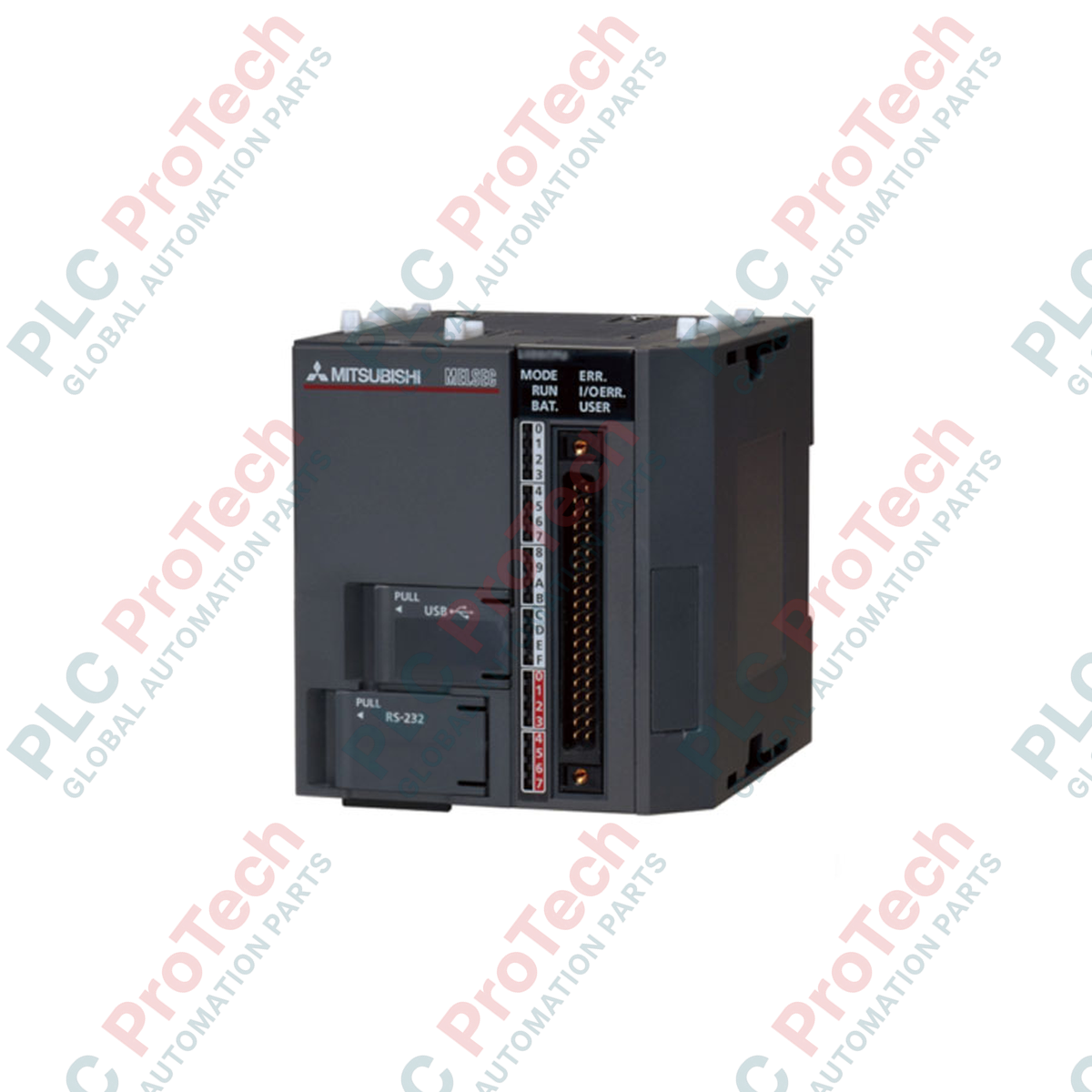

Mitsubishi Electric L06CPU-P MELSEC L Series CPU Module

Description

Optimizing compact control architectures with high-speed execution, the Mitsubishi Electric L06CPU-P serves as a highly capable central processing unit within the rack-free MELSEC L Series family. This controller integrates built-in digital inputs and outputs directly on the CPU body, configured specifically for PNP (source) switching logic. Designed with a program capacity of 240K bytes (approximately 60K steps), it manages sophisticated control tasks while offering onboard Ethernet, USB, and SD/SDHC card interfaces. The module eliminates the physical constraints of traditional backplanes, mounting directly to a standard DIN rail and connecting via lateral bus connectors for modular expansion.

Features

• PNP Output Configuration: Integrated 24-point I/O block featuring 16 digital inputs and 8 transistor outputs utilizing source (PNP) logic.
• Onboard Communications: Dedicated RJ45 Ethernet port supporting MC Protocol and Modbus/TCP, paired with a Mini-USB port for programming.
• Flexible Data Storage: Integrated SD/SDHC memory card slot for data logging, firmware updates, and comprehensive parameter backup.
• High-Speed Processing: Achieves basic instruction execution times of 9.5 ns for sequence instructions, ensuring fast program scans.
• Rack-Free Modular Design: Direct-mount DIN-rail installation with side-by-side connector coupling simplifies cabinet layouts.

Applications

• Packaging Machinery: Executing registration control, high-speed counting, and positioning profiles on compact packaging lines.
• Conveyor and Material Handling: Localized routing, sorting, and lifter controls utilizing integrated PNP sensor networks.
• Water Treatment Subsystems: Standalone pump station controllers requiring native Ethernet communications and compact foot-prints.

Technical Specifications

Connections and Interfaces

Alternative Models & Compatibility

The L06CPU-P is the source-type counterpart to the standard L06CPU, which relies on sink (NPN) transistor outputs. Substituting one for the other requires careful verification of field sensor wiring and polarity. If scaling program parameters or requiring larger data tables, consider migrating to the L26CPU-P, which doubles step execution capabilities while remaining completely compatible with the same lateral extension bus modules.

Application Pitfalls & Engineering Notes

When utilizing the integrated high-speed counters built into the I/O block, ensure the signal rise and fall times do not exceed the configured response filter. High electrical noise in proximity to the I/O cables can cause miscounts. Always route I/O lines separate from high-voltage AC cables. In fully enclosed control panels with limited air circulation, note that continuous high-speed switching across all 8 output channels simultaneously can raise module temperature; verify that panel ambient temperatures remain below 55 degC.

Commissioning & Wiring Tips

To communicate with the CPU over Ethernet, ensure the programming laptop resides on the same subnet as the default CPU IP address or utilize the direct-connection search tool within GX Works2. When terminating the 40-pin I/O connector, apply a separate, regulated external 24 VDC power supply to the designated common terminals to isolate the CPU backplane logic from potential field wiring short-circuits.
