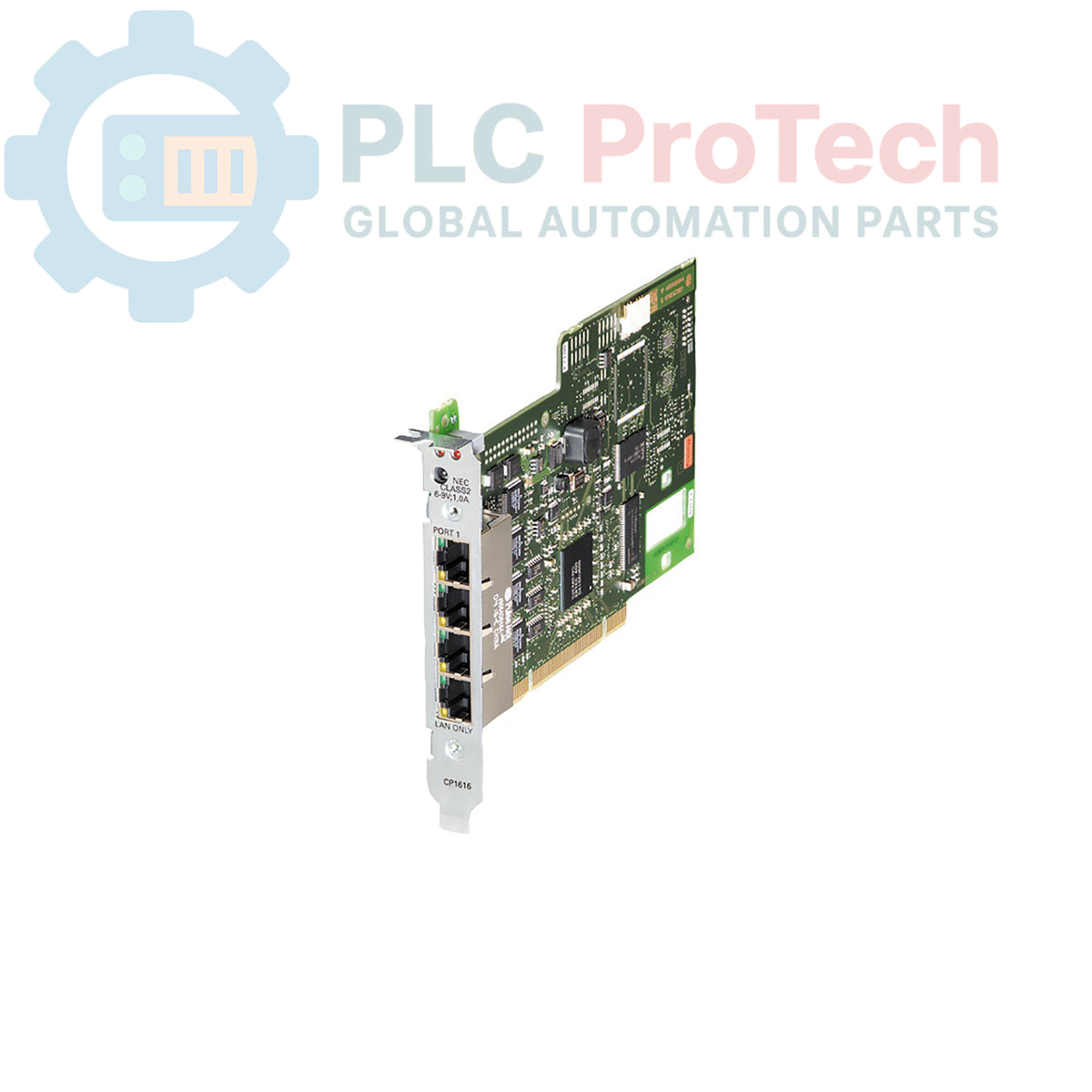

Siemens 6GK1161-6AA02 SIMATIC Communications Processor CP 1616 PCI Card

Siemens 6GK1161-6AA02 SIMATIC Communications Processor CP 1616 PCI Card

Only 3 item(s) left in stock

  • Manufacturer: Siemens

  • Product No.: 6GK1161-6AA02

  • Country of origin:Németország

  • Product Type: Communications Processor

  • Barcode: 85176200

  • Payment: T/T, Western Union

  • Weight: 310g

  • Dimensions: 1.80 x 16.70 x 10.70 cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Minden részlet megtekintése
Termékleírás
FAQ
Szállítási visszaküldések
További részletek
Vélemények

Description

The Siemens 6GK1161-6AA02 is a Communications Processor CP 1616 PCI card designed for industrial PC-based PROFINET IO communication. This module operates as a 32-bit PCI card with support for 33/66 MHz bus speeds and 3.3/5 V signaling. It integrates an ASIC ERTEC 400 for efficient real-time processing and features a 4-port real-time switch with RJ45 connectors for direct connection to PROFINET IO networks. The 6GK1161-6AA02 is compatible with the DK-16XX PN IO development kit and NCM PC for configuration and management within SIMATIC automation environments.

Features

  • PCI card interface (32-bit, 33/66 MHz, 3.3/5 V)
  • Integrated ASIC ERTEC 400
  • PROFINET IO connectivity
  • 4-port real-time switch with RJ45 connectors
  • Compatibility with DK-16XX PN IO development kit
  • Supports NCM PC for configuration

Applications

  • Industrial PC-based PROFINET IO communication
  • Real-time Ethernet applications in automation systems
  • Integration of industrial PCs into PROFINET networks
  • Data exchange between PC applications and PROFINET devices

Technical Specifications

Manufacturer Siemens
Range SIMATIC
Product Type Communication modules
PLM Product Phase Active
Interface Type PCI card (32 bit; 33/66M Hz; 3.3/5 V)
ASIC ERTEC 400
Network Protocol PROFINET IO
Network Ports 4-port real-time switch (RJ45)
Package Dimensions (Calculated) 1.80 x 16.70 x 10.70 cm
Shipping Weight 0.31 kg
Commodity Code 85176200
Export Control Regulations (ECCN) N

Connections / Interfaces

  • PCI Interface: For connection to the industrial PC's PCI slot.
  • RJ45 Ports (x4): For connection to the PROFINET IO network.

Installation Guidelines

  1. Power Off: Ensure the industrial PC is completely powered down and disconnected from the main power supply before opening the chassis.
  2. Open PC Chassis: Carefully open the PC chassis to access the internal components and expansion slots.
  3. Locate PCI Slot: Identify an available 32-bit PCI slot compatible with the card's voltage requirements (3.3V or 5V).
  4. Insert Card: Align the 6GK1161-6AA02 card with the chosen PCI slot and firmly press it down until it is fully seated.
  5. Secure Card: Use the retaining bracket or screw to secure the card in place within the PC chassis.
  6. Close PC Chassis: Reassemble and close the PC chassis.
  7. Connect PROFINET Cables: Connect standard Ethernet cables with RJ45 connectors from your PROFINET IO network to the available RJ45 ports on the module.
  8. Power On: Reconnect the PC to the power supply and power it on.
  9. Driver Installation: Install the necessary drivers and NCM PC software as required for the operating system to recognize and configure the CP 1616 card for PROFINET IO communication.
Key Features:
#Communications Processor #SIMATIC

What is the primary function of the Siemens 6GK1161-6AA02?
It is a Communications Processor CP 1616 PCI card designed to connect industrial PCs to PROFINET IO networks.

What type of interface does this module use for PC integration?
The module uses a 32-bit PCI card interface, supporting 33/66 MHz bus speeds and 3.3/5 V signaling.

How many PROFINET ports are available on the card?
The card features a 4-port real-time switch with RJ45 connectors for PROFINET IO.

What ASIC is integrated into the 6GK1161-6AA02?
It integrates an ASIC ERTEC 400 for efficient real-time processing of PROFINET IO communication.

What software is mentioned for configuring this module?
The module is compatible with NCM PC for configuration and management.
