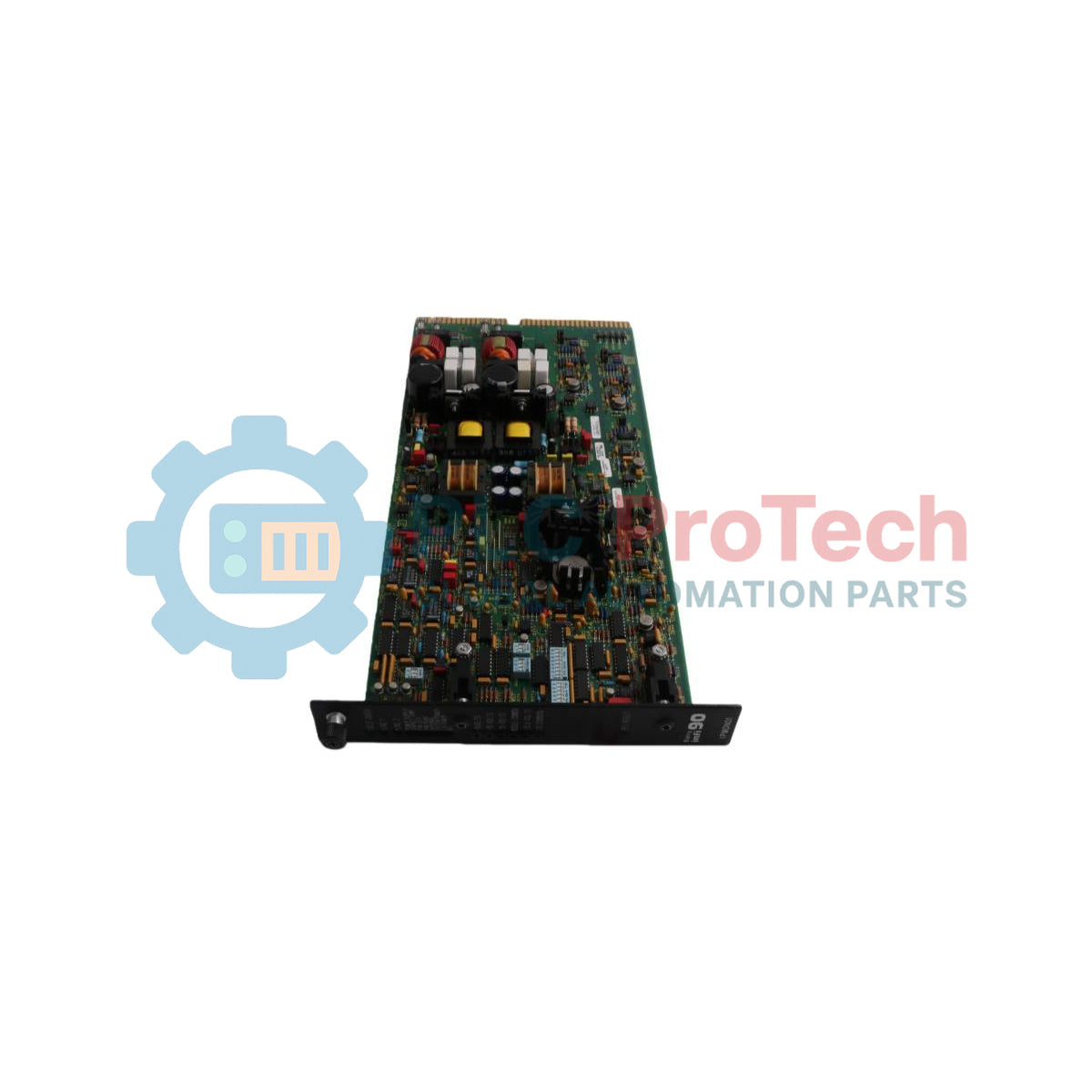

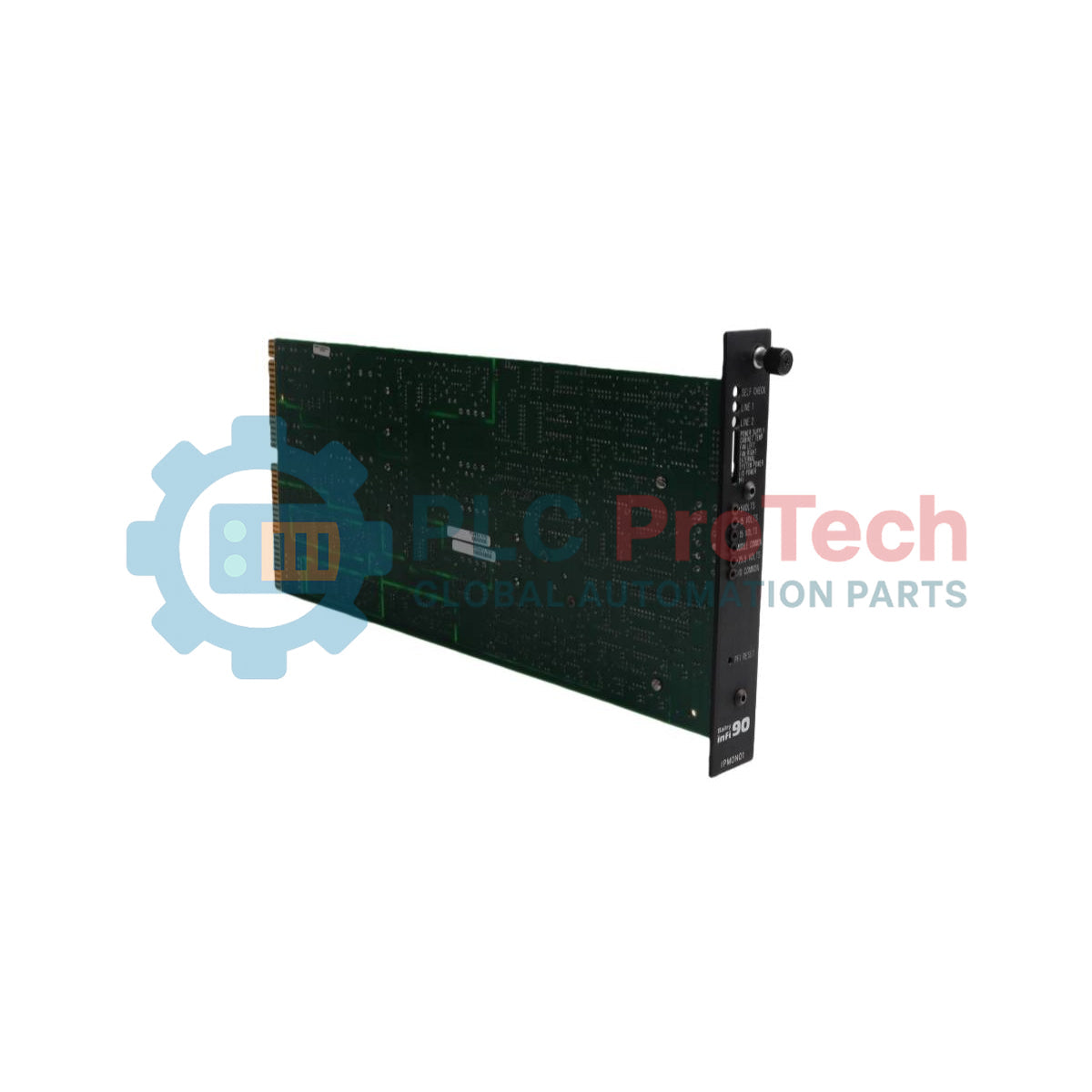

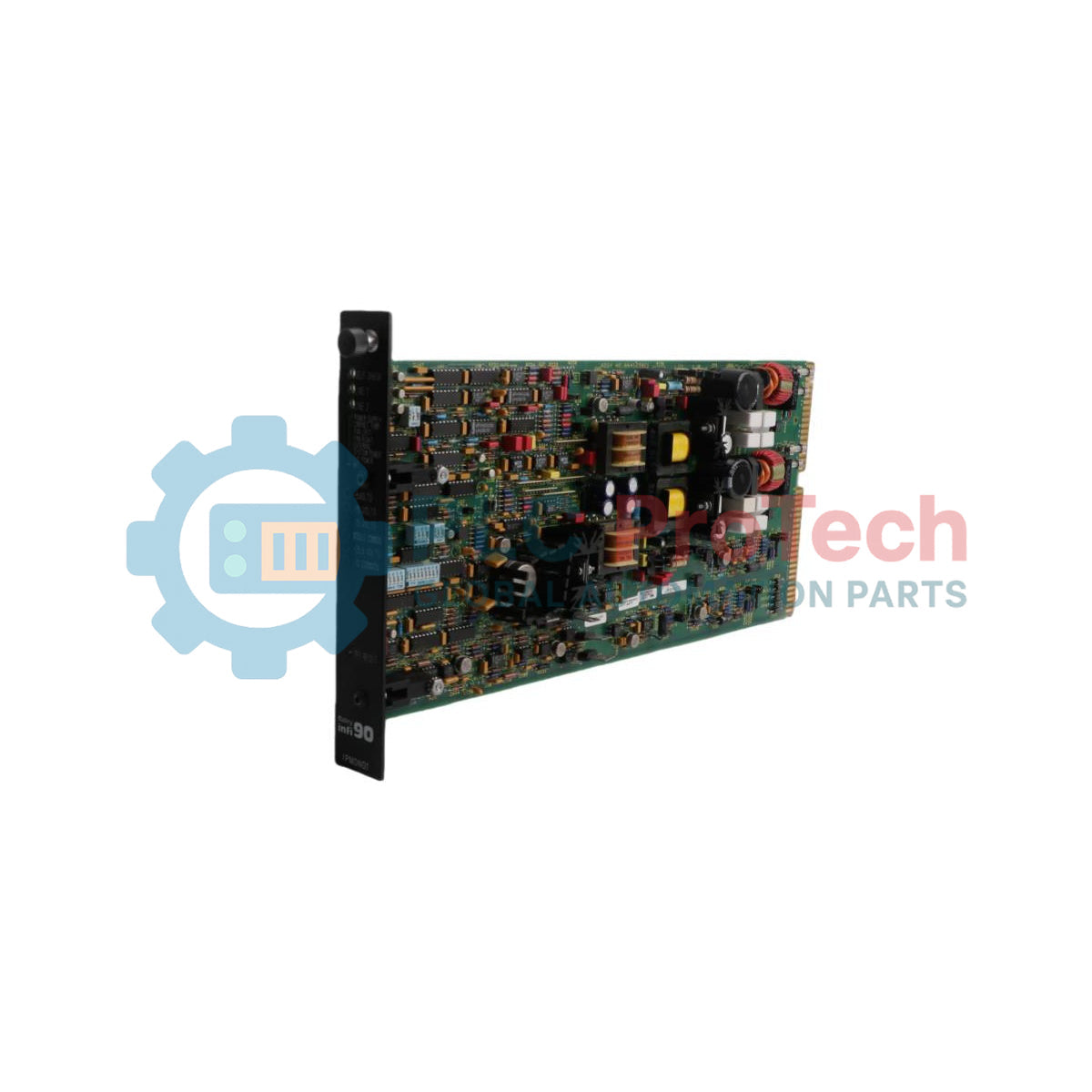

Modul Monitor Daya ABB IPMON01 Bailey INFI 90

The ABB IPMON01 is a Power Monitor Module designed for the Bailey INFI 90 OPEN Modular Power System II. This module serves as a central diagnostics and monitoring interface within the system, providing real-time data on system bus voltages, input power status, and localized environmental or hardware parameters. The ABB IPMON01 features three red/green status LEDs, eight red alarm LEDs, and an integrated interface for direct diagnostics. It assesses the health of input power lines, system and I/O bus voltages, and external conditions like cabinet temperature and cooling fan operation to protect critical infrastructure.

Features

• Integrates three dual-color red/green status LEDs (Self-check, Line 1, Line 2) for immediate operational status verification.
• Features eight dedicated red alarm LEDs to isolate faults such as power supply failure, overtemperature conditions, fan failure, and PFI status.
• Configurable LED operation controlled via internal dipswitch and jumper settings to monitor multiple lines, buses, and distinct hardware signals.
• Includes six physical faceplate test points enabling direct bus voltage measurements via voltmeter probes.
• Equipped with a faceplate PFI reset pushbutton to clear latched power fail interrupt signals after fault conditions resolve.

Applications

• Bailey INFI 90 OPEN Modular Power System II diagnostic monitoring.
• Real-time voltage loop and operational fault tracking in industrial power architectures.
• Overtemperature and cooling fan failure tracking within electronic enclosures.

Technical Specifications

Ordering Information

Installation Guidelines

• Document and verify all dipswitch and jumper configurations prior to module insertion to ensure correct mapping of lines, buses, and alarm signals.
• Ensure proper structural grounding and isolate power sources before manipulating hardware components inside the drive or system cabinet.
• Align the module along the chassis guide rails to protect backplane pins and component infrastructure from mechanical damage during seating.
• Keep an updated copy of the dipswitch and jumper configuration matrix inside or near the cabinet enclosure as a reference guide for maintenance personnel.
