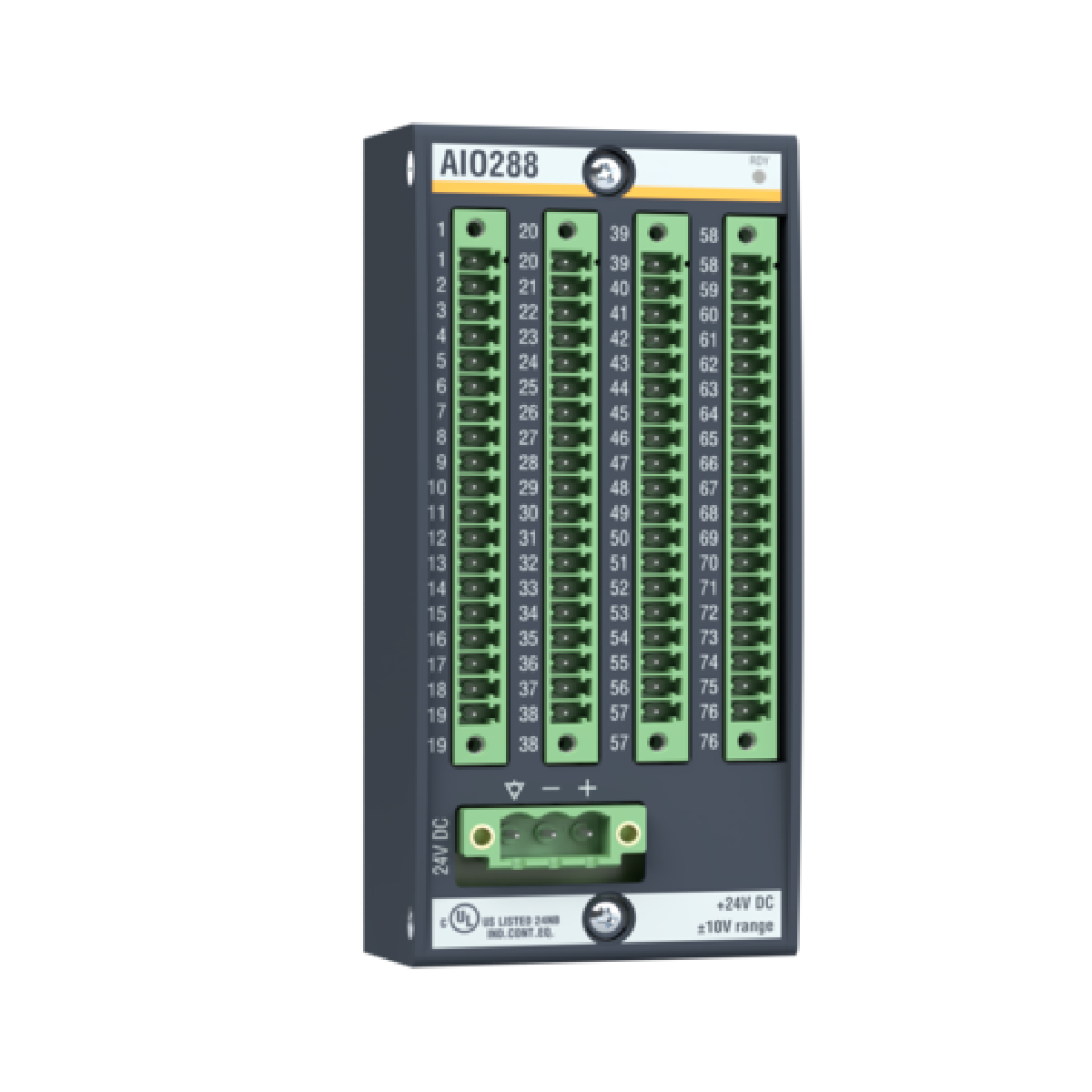

Bachmann Electronic AIO288 M1 Control System Analog Input/Output Module

Hanya 19 item tersisa di stok

Produsen: Bachmann
Nomor Produk: AIO288
Negara asal:Austria
Jenis Produk: Analog Input/Output Module
Kode batang: 8537101190
Pembayaran: T/T, Western Union
Berat: 220g
Dimensi: 5.5 x 5.5 x 12 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The Bachmann Electronic AIO288 is a high-precision analog input/output module developed for the M1 controller system. This hardware module provides 8 analog input channels and 8 analog output channels within a single space-saving layout. Configurable to support single-ended or differential interface pathways, the module handles accurate signal interfacing for complex mechanical operations. It also features built-in power provisioning capability for up to 4 potentiometers and direct temperature measurement links for up to 4 Pt100/Pt1000 sensors, making it highly versatile for demanding industrial applications.

Features

Interface versatility allowing single-ended or differential signal path choices
Power supply capacity to drive up to 4 external industrial potentiometers
Integrated temperature sensing capability for up to 4 Pt100/Pt1000 sensors
Flexible sensor wiring infrastructure accommodating 2-wire or 4-wire configurations
Secure wire break detection logic across voltage and temperature input channels
Reliable short circuit proof protections on all operational output loops
Embedded overload monitoring for integrated potentiometer power lines
Constant real-time monitoring of external operational supply voltage status

Applications

High-density analog signal logging in industrial factory sites
Temperature regulation and monitoring using Pt100/Pt1000 resistance thermometers
Feedback tracking networks integrating industrial potentiometer sensors
Multi-channel analog device networks inside M1 control architectures

Ordering Information

Part Type Designation	Part Number	Description
AIO288	00014470-00	Analog input/output module
AIO288 CC	00016157-00	Analog input/output module - Cold climate variant
AIO288/1	00014470-10	Analog input/output module variant

Technical Specifications

Input/Output Capacity

Parameter	Value
Analog Inputs	8 channels
Input Voltage Range	±1 V or ±10 V
Input Impedance	> 100 kΩ
Digital Resolution	14 bit
Permitted Common Mode Voltage	Max. ±1 V
Accuracy at 25 degC	Max. ±0.05 % of input voltage range
Input Cutoff Frequency	1.5 kHz (3 dB)
Common-Mode Rejection	> 60 dB
Sampling Time	200 us
Analog Outputs	8 channels

Mechanical & Environmental

Parameter	Value
Manufacturer	Bachmann electronic GmbH
Product Model	AIO288
Country of Origin	Austria
Tariff Code	8537101190
Weight	0.22 kg
Estimated Shipping Size	5.5x5.5x12cm
Operating Temperature (Standard)	-30 degC to +60 degC
Relative Air Humidity (Operation)	5% to 95%, non-condensing
Storage Temperature	-40 degC to +85 degC
Relative Air Humidity (Storage)	5% to 95%, with condensation

Electrical & Isolation

Parameter	Value
External Power Input	24 V DC
Electrical Isolation to System	500 V

Installation Guidelines

Cabinet Mounting: Fix the hardware unit securely into its assigned spot inside the M1 controller chassis environment.
Sensor Cabling: Implement standard 2-wire or 4-wire shielding setups when connecting sensitive Pt100 or Pt1000 thermal sensors to reduce electrical interference.
Environmental Mitigation: Maintain operating ambient temperatures between -30 degC and +60 degC for standard applications to guarantee full measurement stability.

Key Features:

#Analog I/O Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

What sensor connection types are supported for temperature measurement?

The module allows direct temperature measurement with options for either 2-wire or 4-wire interface layouts using standard Pt100 or Pt1000 sensors.

Does the device provide protection features for its analog output circuits?

Yes, the device is designed with built-in short circuit proof protections on all analog output lines to prevent physical damage during wiring faults.

What safety detection systems are integrated into the input channels?

The device includes advanced diagnostic diagnostics like wire break detection covering both voltage inputs and temperature inputs, alongside overload tracking for its internal potentiometer power rails.
