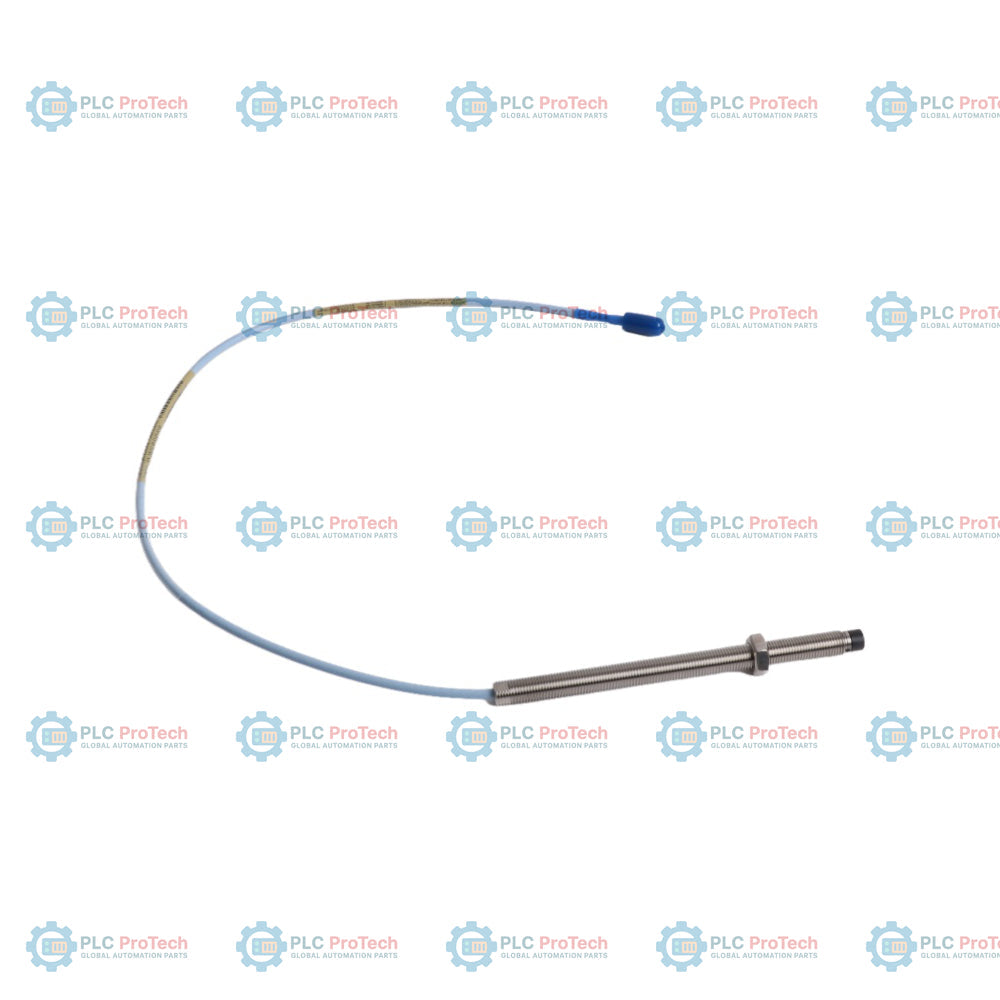

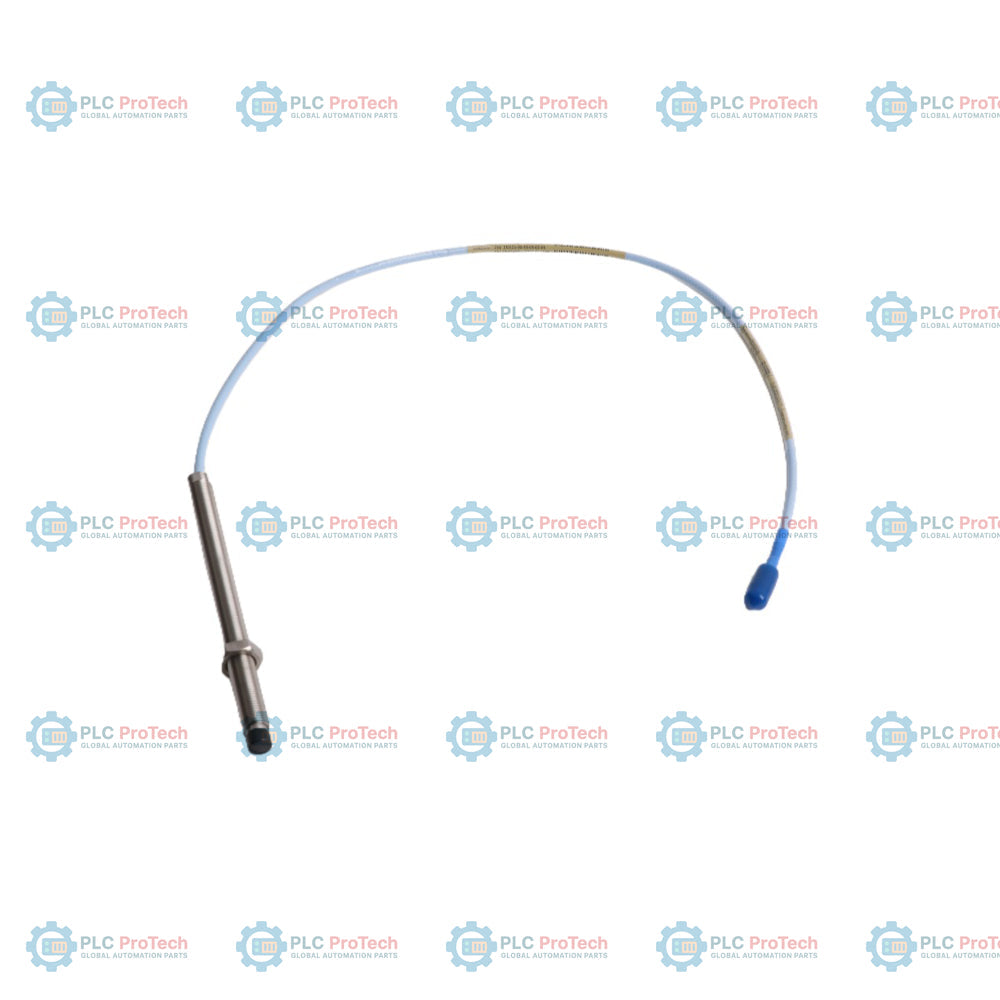

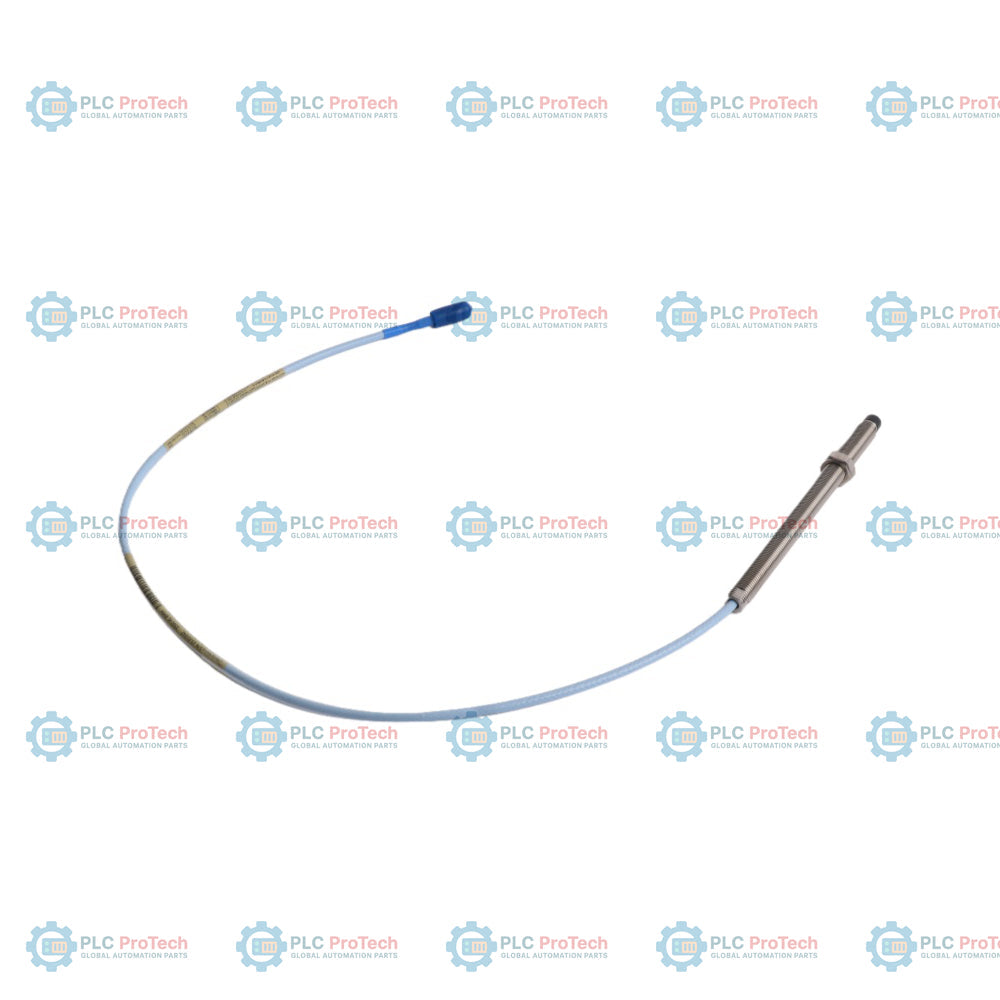

Bently Nevada 330101-00-55-05-02-05 3300 XL 8 mm Proximity Probe

Description

Designed for non-contact vibration and shaft position monitoring in demanding industrial environments, the Bently Nevada 330101-00-55-05-02-05 is a high-precision 8 mm proximity probe. This specific configuration features an unthreaded length of 0.0 inches (0 mm) and an overall case length of 5.5 inches (140 mm), making it ideal for deep insertion bearing housings where fully threaded probe support is required. This unarmored proximity probe is built with a standard 0.5-meter (1.6 feet) triaxial cable terminated with a miniature gold-plated coaxial ClickLoc connector. It is certified under CSA, ATEX, and IECEx standards for safe deployment in hazardous industrial areas.

Operating as part of the 3300 XL 8 mm proximity transducer system, this probe utilizes eddy-current principles to measure the relative displacement or position of a rotating shaft. The robust design handles extreme thermal and chemical environments. When connected to a 3300 XL Proximitor sensor and standard extension cables, the probe provides continuous, high-accuracy measurement signals to critical machinery protection platforms, such as the Bently Nevada 3500 monitoring system.

Features

• Non-contact eddy-current measurement design eliminates wear and mechanical friction.
• Unthreaded case length option of 0.0 inches allows full thread engagement in tight casing designs.
• Threaded case length of 5.5 inches provides deep reach and reliable structural support for bearing mounts.
• 0.5-meter (1.6 feet) standard triaxial cable delivers reliable signal pathing and minimizes electrical interference.
• Gold-plated miniature ClickLoc coaxial connector ensures high signal integrity with quick, secure lockouts.
• Approved for global hazardous environments with CSA, ATEX, and IECEx certifications.
• Polyphenylene sulfide (PPS) probe tip offers superior chemical resilience and physical protection in hot oil environments.
• AISI 303/304 stainless steel case offers outstanding resistance to corrosion and structural fatigue.

Applications

• Radial vibration and shaft dynamic movement tracking in rotating machinery.
• Axial position and thrust displacement monitoring on critical bearing surfaces.
• Supervisory monitoring of steam and gas turbine shafts in power generation plants.
• Casing expansion and rotor displacement measurements on large industrial compressors and process pumps.
• Permanent machinery protection and preventative maintenance programs in chemical processing and petrochemical refineries.

Ordering Information

Technical Specifications

Installation Guidelines

• Prior to installing, verify the machine casing depth to ensure the 5.5-inch threaded case length and 0.0-inch unthreaded configuration allow safe clearance with the target shaft.
• Establish the physical probe gap using a digital voltmeter measuring the Proximitor sensor output; standard calibration target is AISI 4140 steel, gapped at 1.27 mm (50 mils) corresponding to -10.0 Vdc.
• Avoid twisting or pinching the probe cable during mounting; maintain a bend radius greater than 25.4 mm (1.0 in) along the run.
• Always torque the probe case to proper limits when tightening into mounting brackets or bearing housings, staying within the recommended maximum torque of 11.2 N-m (100 in-lbf).
• Clean and dry ClickLoc connectors prior to coupling. Ensure they are engaged finger-tight until they click. Utilize Bently Nevada connector protectors to shield connections from turbine oil and moisture.
• Terminate shields and grounds according to appropriate electrical installation guidelines: keep the probe body electrically isolated, and terminate the cable shield at the instrument panel or Proximitor sensor housing.

Compliance and Certifications

• CSA: Certified for Hazardous Locations (Class I, Div 1, Div 2, Zones 0, 1, 2)
• ATEX: II 1 G Ex ia IIC T5...T1 Ga (for intrinsically safe environments)
• IECEx: Ex ia IIC T5...T1 Ga / Ex ia IIIC T90 degC...T280 degC Dc
• CE: Compliant with all applicable Electromagnetic Compatibility (EMC) and environmental directives
• RoHS: Compliant with restriction of hazardous substances
