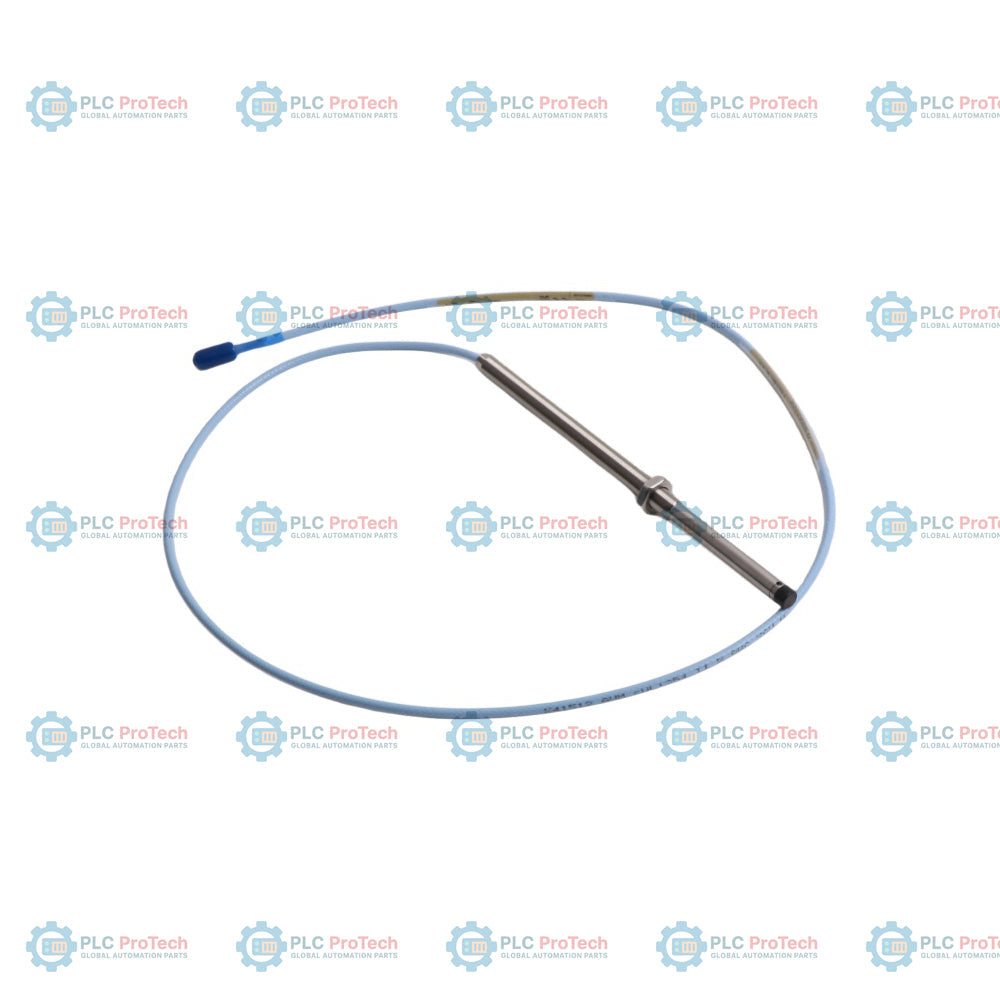

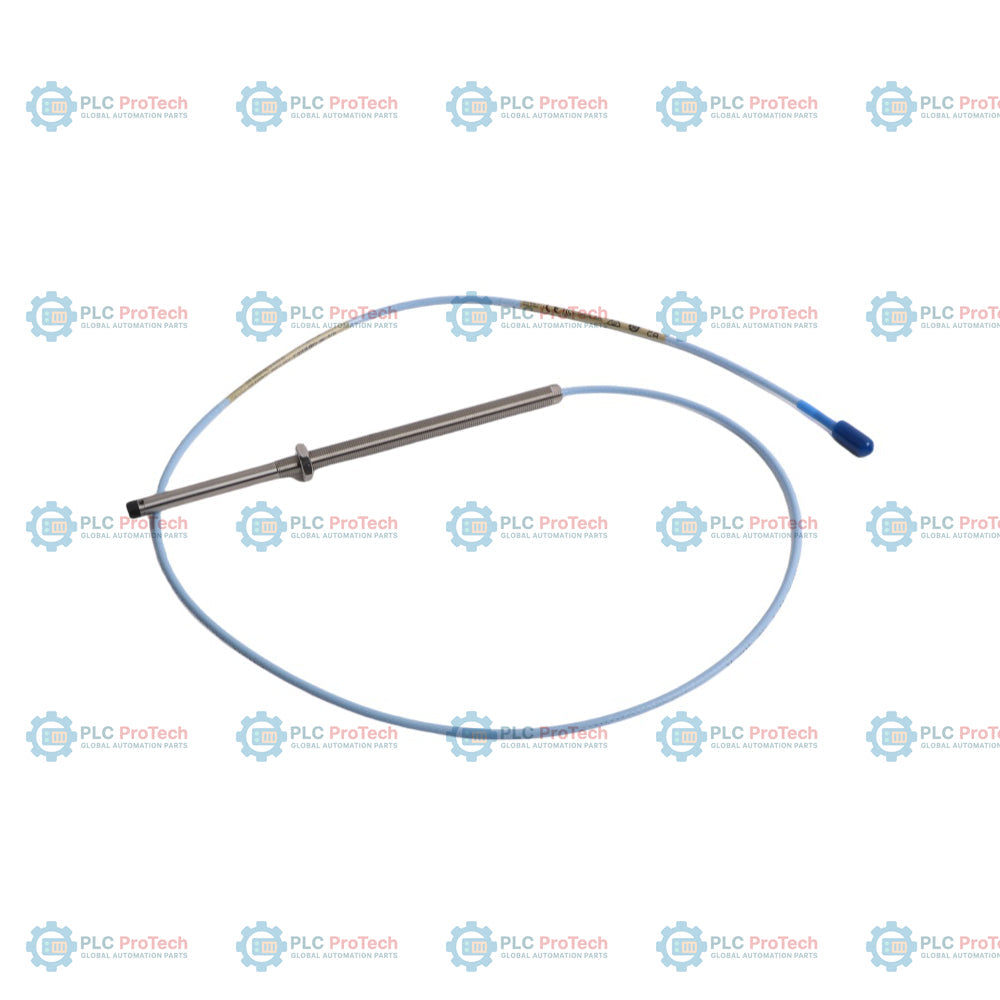

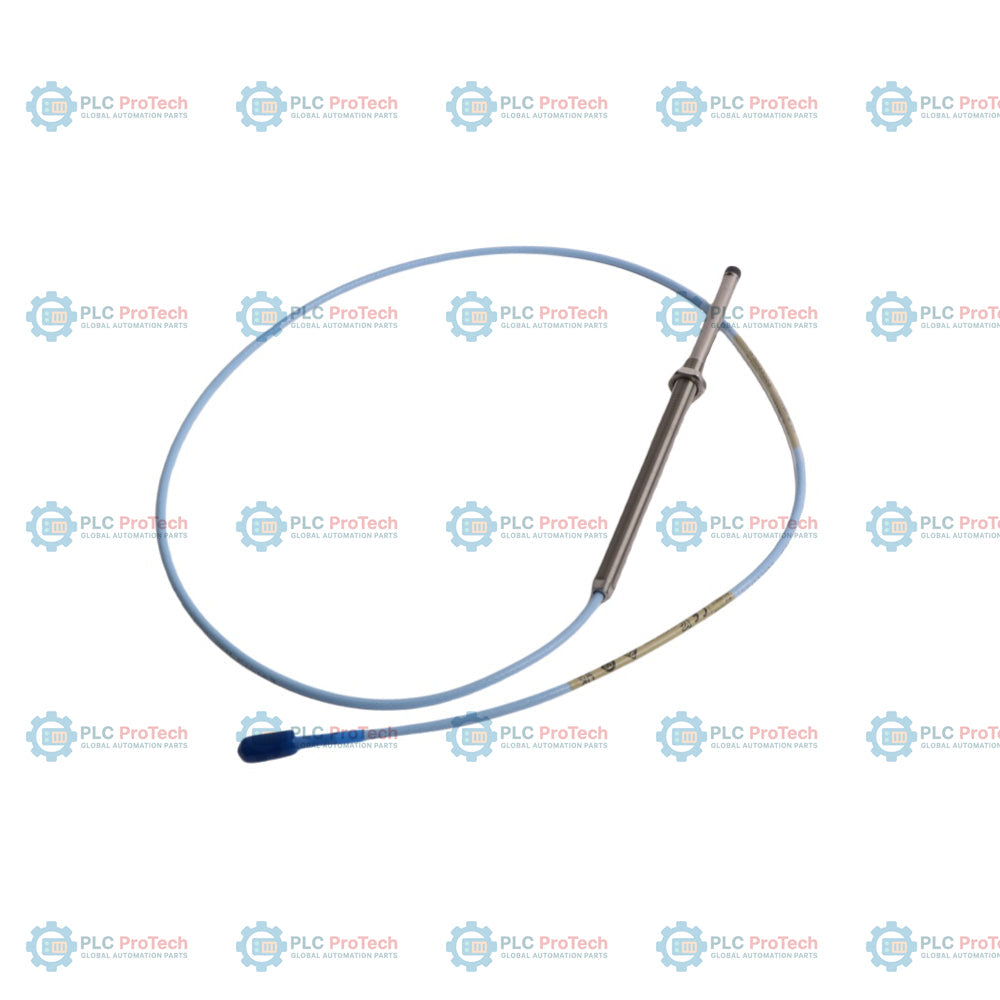

Bently Nevada 330103-06-20-10-02-00 3300 XL 8 mm Proximity Probe

Bently Nevada 330103-06-20-10-02-00 3300 XL 8 mm Proximity Probe

Hanya 3 item tersisa di stok

  • Produsen: Bently Nevada

  • Nomor Produk: 330103-06-20-10-02-00

  • Negara asal:Amerika Serikat

  • Jenis Produk: 3300 XL 8 mm Proximity Probe

  • Kode batang: 8537101190

  • Pembayaran: T/T, Western Union

  • Berat: 320g

  • Dimensi: 45 mm x 150 mm x 150 mm (H x W x D)

  • Pelabuhan pengiriman: Xiamen

  • Garansi: 12 bulan

Lihat detail lengkap
Deskripsi Produk
FAQ
Pengembalian Pengiriman
Detail tambahan
Ulasan

Description

Option 06 (60 mm unthreaded length) and Option 20 (200 mm overall case length) specify this metric 3300 XL 8 mm proximity probe configuration — 330103-06-20-10-02-00.

This metric configuration features an M10 x 1 thread and lacks mechanical armor protection, contrasting with the armored 330104 series or the imperial-threaded 330101 and 330102 series. The 1.0-meter cable length (Option 10) utilizes a standard coaxial cable terminated with a miniature ClickLoc connector (Option 02) without a connector protector. Because it is specified under option code 00, this unit does not carry hazardous area agency approvals, unlike the Option 05 variants.

Features

  • Unthreaded length: 60 mm (Option 06) for deep recess installations.
  • Overall case length: 200 mm (Option 20) with metric M10 x 1 threads.
  • Total cable length: 1.0 meter (Option 10) standard coaxial construction.
  • Connector type: Miniature coaxial ClickLoc (Option 02) without connector protector.
  • Thread configuration: Metric M10 x 1 thread without armor.
  • Agency approvals: Option 00 specifies no hazardous area approvals required.

Applications

Industrial machinery protection applications including:

  • Steam and gas turbines.
  • Centrifugal and axial compressors.
  • Pumps and generators.
  • Hydroelectric turbines.
  • Industrial gearboxes and electric motors.

Ordering Information

Option / Segment Code on This SKU Meaning / Description
Orderable Part Number 330103-06-20-10-02-00 3300 XL 8 mm proximity probe, M10 x 1 thread, without armor
A - Unthreaded Length Option 06 60 mm unthreaded length
B - Overall Case Length Option 20 200 mm overall case length
C - Total Length Option 10 1.0 meter (3.3 feet)
D - Connector and Cable-Type Option 02 Miniature coaxial ClickLoc connector, standard cable
E - Agency Approval Option 00 Not required

Technical Specifications

Manufacturer Bently Nevada
Part Number / SKU 330103-06-20-10-02-00
Probe Tip Diameter 8.0 mm (0.31 in)
Thread Size M10 x 1 (Metric)
Armor Option None (without armor)
Unthreaded Length 60 mm
Overall Case Length 200 mm
Total Lead Length 1.0 meter (3.3 feet)
Cable Type Standard coaxial
Connector Type Miniature coaxial ClickLoc (male)
Probe DC Resistance (R_probe) 7.59 ohms +/- 0.50 ohms (typical)
Target Material Calibration AISI 4140 steel
Recommended Gap 1.27 mm (50 mils)
Operating Temperature Range -52 degC to +177 degC
Pressure Seal Rating Seals differential pressure between probe tip and case
Dimensions 45 mm x 150 mm x 150 mm (H x W x D)
Weight 0.32 kg

Connections and Interfaces

Connector Component Function
Center Conductor Signal transmission (RF / AC-DC voltage)
Outer Shield Signal return / ground reference

Installation Guidelines

  • Tighten the M10 x 1 probe thread to the recommended torque limits. Do not exceed 15 mm of maximum thread engagement length to avoid binding.
  • Ensure minimum side clearance of 3 probe diameters (approximately 24 mm) from surrounding metal to prevent calibration drift or side-loading errors.
  • Ensure the coaxial connector remains clean and dry. Avoid exposing the connector to turbine oil without proper environmental shielding.

Compliance and Certifications

  • Agency Approval: Option 00 (no hazardous area approvals required).
  • RoHS compliant.
Loading product navigation…

RECOMMENDED RELATED MODELS

Product Image Model Number / Title Condition Availability Action
330901-00-78-10-02-00 Bently Nevada 330901-00-78-10-02-00 Probe Proksimitas NSv 3300 XL Original New In Stock View Details
330104-00-04-10-11-01 Bently Nevada 330104-00-04-10-11-01 Probe Proksimitas 8 mm 3300 XL Original New In Stock View Details
330104-00-04-10-02-01 Bently Nevada 330104-00-04-10-02-01 Probe Proksimitas 8 mm 3300 XL Original New In Stock View Details
Key Features:
#Bently Nevada 3300 XL #Proximity Probes

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bently Nevada 330103-06-20-10-02-00 3300 XL 8 mm Proximity Probe

Download Open in new tab

What does option 06 and 20 signify for this probe?
Option 06 designates a 60 mm unthreaded probe length, while option 20 specifies a 200 mm overall case length. Both options use a metric M10 x 1 thread without mechanical armor.

What cable and connector are provided on this variant?
The 330103-06-20-10-02-00 probe is configured with a 1.0-meter standard coaxial cable (Option 10) and a miniature coaxial ClickLoc connector (Option 02) without a connector protector.

Does this proximity probe have hazardous area certifications?
No, the agency approval option is 00, meaning no hazardous area certifications are required for this specific configuration.

What is the standard target material for calibration?
The system is calibrated for an AISI 4140 steel target at a standard gap of 1.27 mm (50 mils).
