Bently Nevada 330104-05-13-10-02-05 3300 XL Probe Proksimitas Berlapis Baja

Description

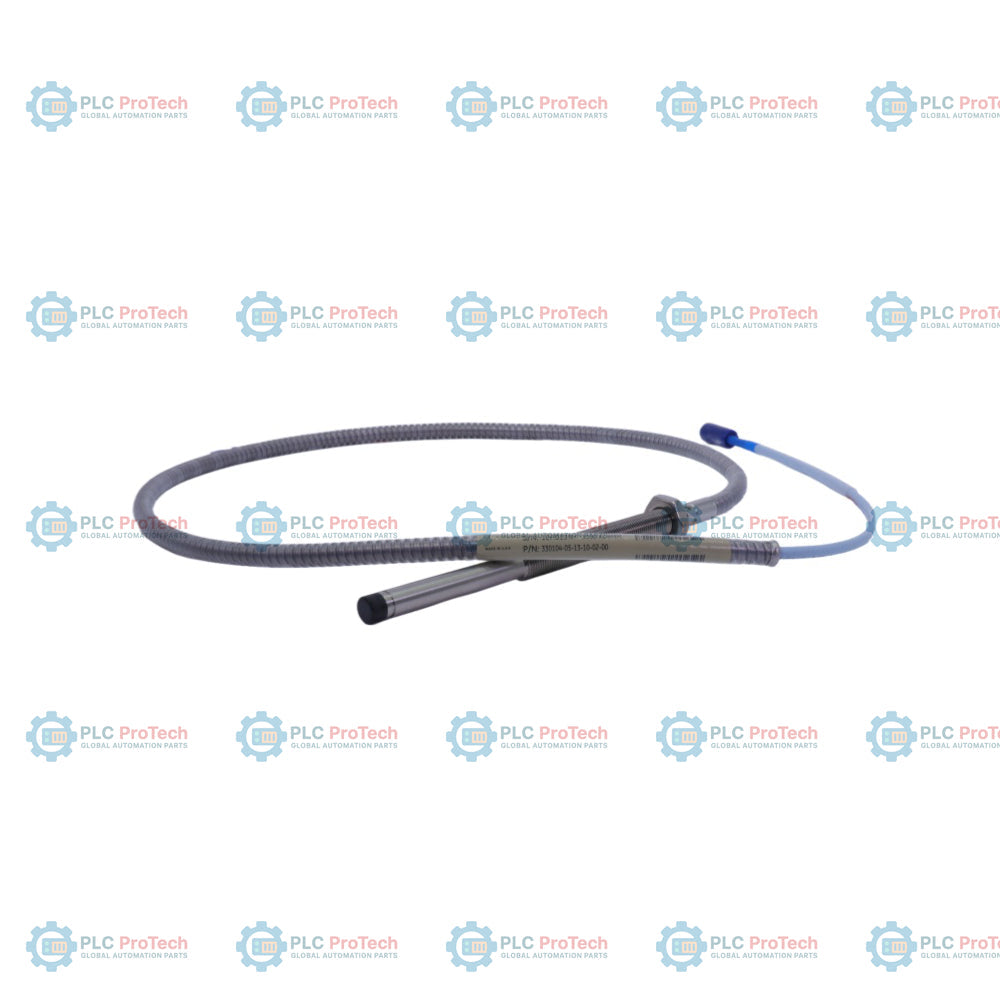

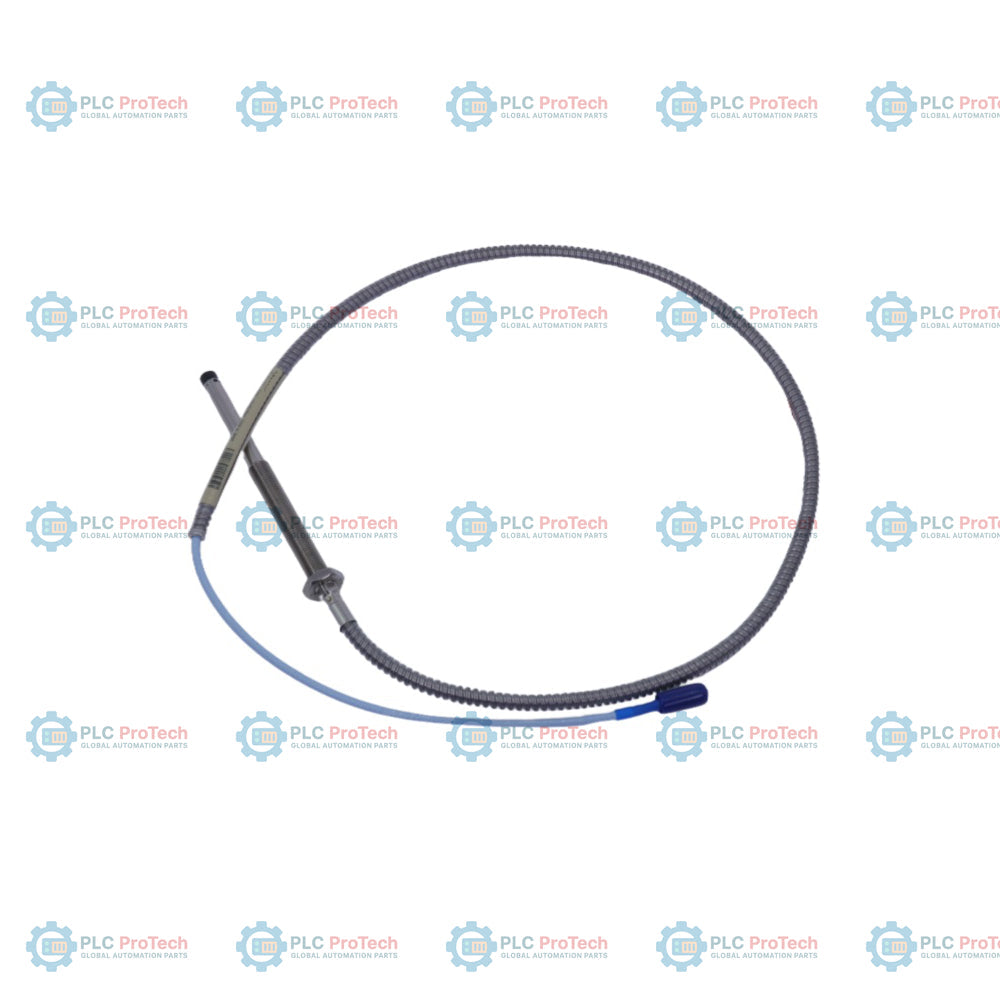

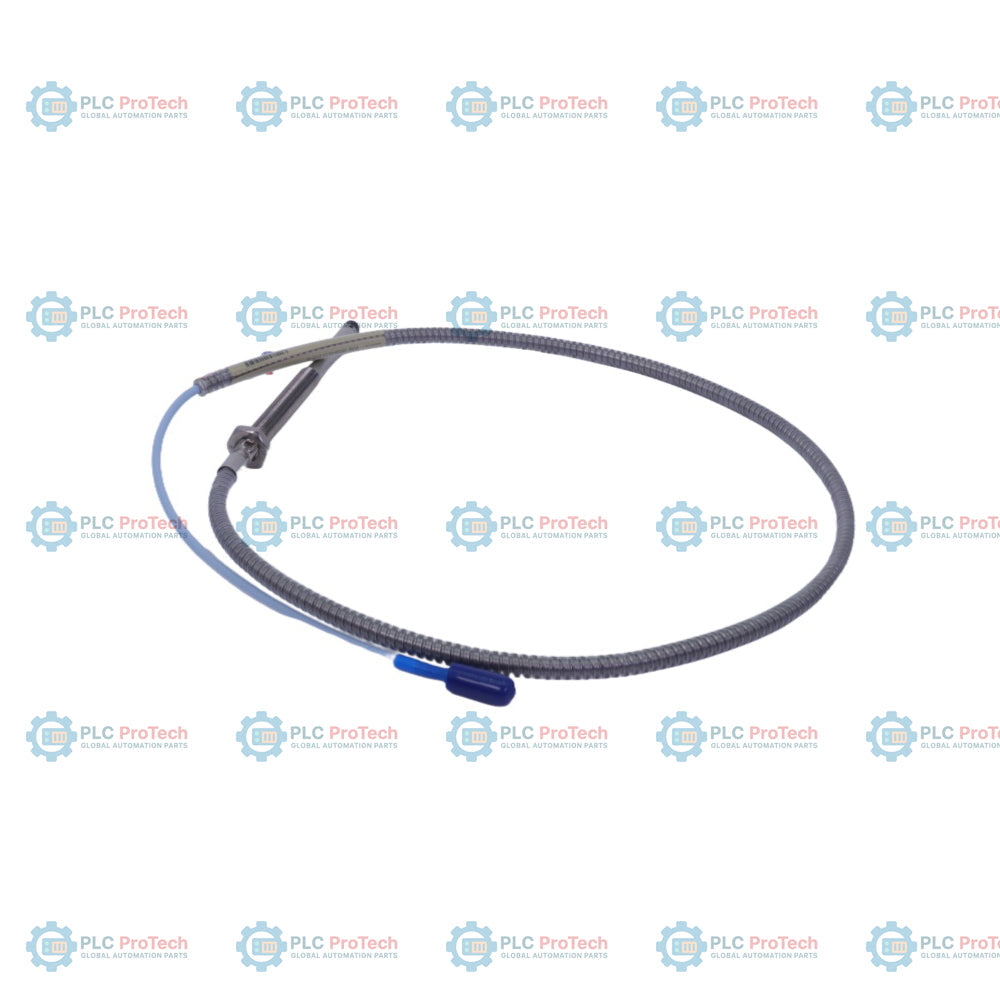

Option 05 (50 mm unthreaded length) and Option 13 (130 mm overall case length) specify this metric, armored 3300 XL 8 mm proximity probe configuration — 330104-05-13-10-02-05. This eddy-current proximity probe is used for non-contact shaft vibration, axial position, and speed monitoring on utility turbines, compressors, and general rotating industrial machinery. Unlike unarmored models such as the 330103, this variant includes integrated stainless steel armor with an outer FEP jacket to protect the coaxial cable from physical abrasion, cuts, and mechanical damage in demanding plant environments.

The probe utilizes a metric M10 x 1 threaded steel case and is fully compatible with standard 3300 XL extension cables and Proximitor sensors. The 1.0-meter integral cable (Option 10) connects to a 3300 XL extension cable to build a complete 5-meter or 9-meter transducer system. This specific configuration is equipped with a miniature ClickLoc coaxial connector (Option 02) and is certified for hazardous areas under Option 05 (CSA, ATEX, and IECEx approvals).

Features

• M10 x 1 metric threaded steel probe body with integrated FEP-jacketed stainless steel armor.
• 50 mm unthreaded length (Option 05) with 130 mm overall case length (Option 13).
• 1.0 meter total probe length (Option 10) for integration into standard transducer loops.
• Miniature male coaxial ClickLoc connector (Option 02) without connector protector.
• CSA, ATEX, and IECEx agency approvals (Option 05) for hazardous locations.
• Polyphenylene sulfide (PPS) probe tip with molded coil packaging.

Applications

• Radial shaft vibration monitoring in electric motors, generators, and fans.
• Axial thrust position measurement on steam turbines and turbocompressors.
• Phase reference and shaft speed detection via Keyphasor applications.
• Condition monitoring of critical machinery components in oil, gas, power generation, and petrochemical plants.

Ordering Information

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Tighten the M10 x 1 threaded probe body using an 8 mm wrench on the wrench flats. Do not exceed the recommended mounting torque of 7.5 N-m (66 in-lb).
• Maintain a minimum side clearance of 15 mm (0.6 in) from surrounding metal surfaces to prevent side-view interference with the eddy-current field.
• Ensure probe-to-probe separation is at least 40 mm (1.6 in) to prevent cross-talk between adjacent sensors.
• Maximum recommended thread engagement length is 15 mm. Thread engagement exceeding this may cause binding during installation.
• Avoid bending the armored section of the cable past its minimum bend radius of 25.4 mm (1.0 in).

Compliance and Certifications

• CSA: Class I, Division 1, Groups A, B, C, D; Class II, Groups E, F, G; Class III
• ATEX: II 1 G Ex ia IIC T1...T5 Ga
• IECEx: Ex ia IIC T1...T5 Ga
