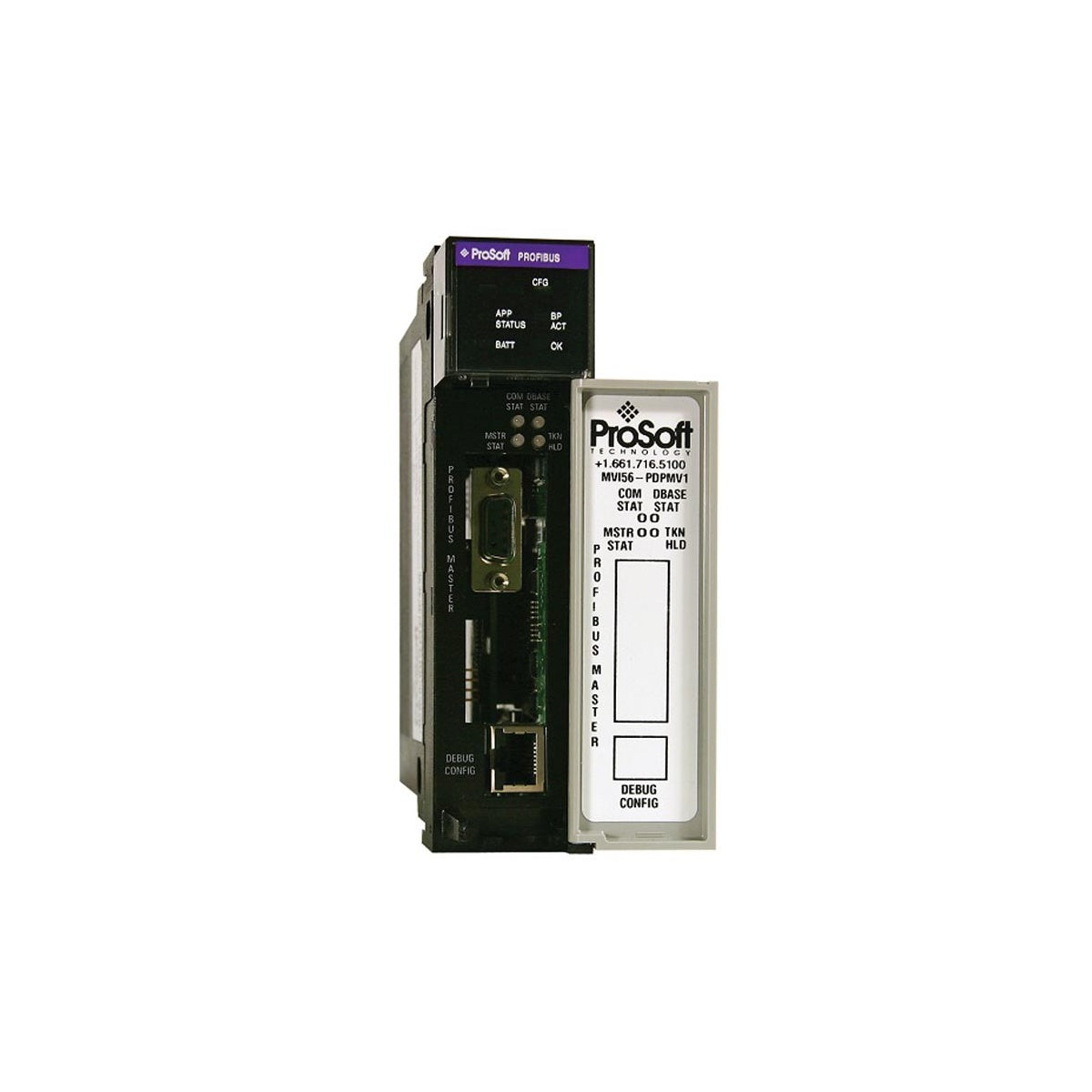

ProSoft MVI56-PDPMV1 ControlLogix PROFIBUS DPV1 Master Communication Module

Hanya 10 item tersisa di stok

Produsen: ProSoft
Nomor Produk: MVI56-PDPMV1
Negara asal:Amerika Serikat
Jenis Produk: PROFIBUS Communication Modules
Pembayaran: T/T, Western Union
Berat: 2000g
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Lihat detail lengkap

Description

Integrating PROFIBUS DP network connectivity directly into Rockwell Automation ControlLogix systems, the ProSoft MVI56-PDPMV1 PROFIBUS DPV1 Master Communication Module functions as an efficient gateway between the PLC backplane and distributed field devices. This single-slot module mounts directly into the ControlLogix chassis, enabling the processor to control slave devices via high-speed cyclic data exchange (DPV0) and configuration/diagnostic acyclic data transfer (DPV1).

The MVI56-PDPMV1 establishes high-speed communication without consuming excessive rack space or requiring complex ladder logic. Featuring a dedicated RS-232 RJ45 serial configuration port, the module also supports remote configuration and diagnostics across EtherNet/IP using CIPConnect technology, allowing engineers to maintain the system through a network-linked ControlLogix Ethernet bridge.

Features

Provides a seamless PROFIBUS DP Master connection directly within the ControlLogix backplane.
Supports both DPV0 cyclic messaging for real-time control and DPV1 acyclic messaging for advanced instrument configuration.
Compatible with CIPConnect, enabling remote diagnostics and network configuration routing through ControlLogix Ethernet modules.
Equipped with a dedicated RJ45 configuration port operating on the RS-232 standard.
Comprehensive front-panel LED diagnostics for rapid assessment of module status, backplane transfers, and serial communications.

Applications

Integration of PROFIBUS field instrumentation (transmitters, valves, actuators) in oil and gas production systems.
Distributed I/O management in water treatment plants and wastewater facilities.
Process automation and factory floor machinery integration requiring DPV1 acyclic parameterization.
Heavy industrial material handling and power generation automation.

Technical Specifications

Manufacturer	ProSoft Technology
Part Number/Model	MVI56-PDPMV1
Platform Compatibility	Allen-Bradley ControlLogix (1756 series)
Backplane Current Draw	800 mA at 5 VDC, 3 mA at 24 VDC
Operating Temperature	0 to 60 degC (32 to 140 degF)
Storage Temperature	-40 to 85 degC (-40 to 185 degF)
Relative Humidity	5% to 95% (non-condensing)
Vibration Resistance	5 g from 10 Hz to 150 Hz
Operational Shock	30 g (operational), 50 g (non-operational)
Configuration Port	RJ45 (RS-232), supports CIPConnect routing
Shipping Weight	2 kg

Connections and Interfaces

Interface Type	Function / Description
CFG Port	RJ45 connection (RS-232 protocol only) for system setup, database downloads, and local diagnostic interface. Includes RJ45 to DB-9M cable adapters.
PROFIBUS Port	DB-9 Female connection conforming to PROFIBUS DP physical layer specifications.

Installation Guidelines

Ensure the ControlLogix chassis is powered off before inserting or removing the module.
Avoid electrostatic discharge (ESD) damage by using a grounding strap during installation.
Secure the module in any available slot of the 1756 chassis by aligning with guides and locking the top and bottom latches.
Verify standard network termination resistors are placed on the end nodes of the PROFIBUS segment.

Compliance and Certifications

CE Mark
UL/cUL Class I, Division 2 Hazardous Locations

Key Features:

#Communication Modules #ProSoft ControlLogix

What is the primary function of the ProSoft MVI56-PDPMV1 module?

The MVI56-PDPMV1 allows an Allen-Bradley ControlLogix processor to act as a PROFIBUS DP Master. It handles cyclic high-speed data transfer (DPV0) and acyclic configuration transfer (DPV1) to communicate with downstream PROFIBUS slaves.

Does this module support remote configuration?

Yes, through CIPConnect technology, the MVI56-PDPMV1 can be configured and diagnosed remotely over an EtherNet/IP network routed through a standard ControlLogix Ethernet module.

What configuration cables are included with the MVI56-PDPMV1?

The module is shipped with RJ45 to DB-9M cables for the serial configuration ports and a standard 6-foot RS-232 configuration cable.

What are the power requirements of the module from the backplane?

The module draws 800 mA at 5 VDC and 3 mA at 24 VDC from the ControlLogix chassis backplane.
