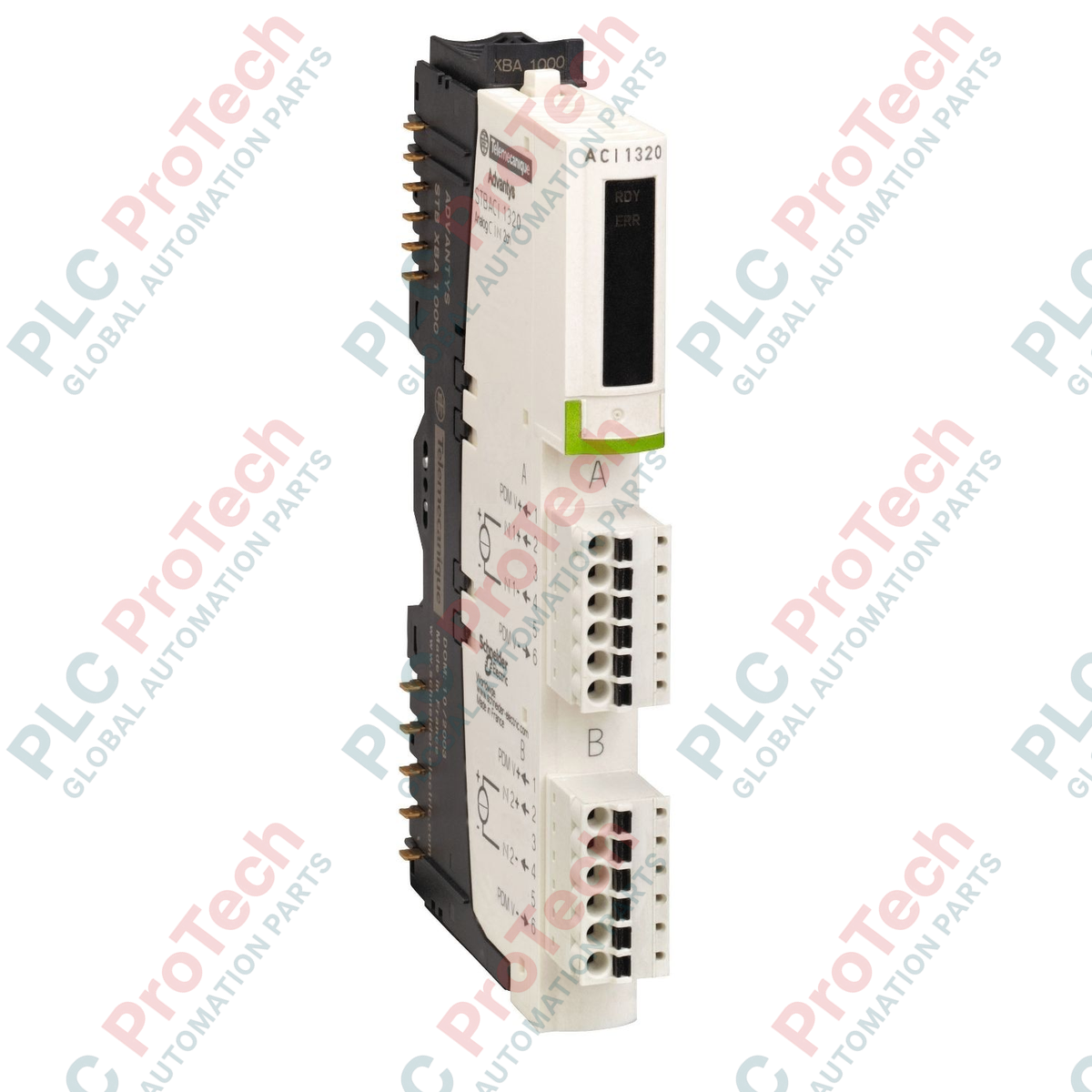

Schneider Electric STBACI0320K Modicon STB Analog Input Module

Hanya 6 item tersisa di stok

Produsen: Schneider Electric
Nomor Produk: STBACI0320K
Negara asal:Prancis
Jenis Produk: Analog Input Modules
Pembayaran: T/T, Western Union
Berat: 150g
Dimensi: 27 mm x 130 mm x 80 mm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Lihat detail lengkap

Description

The Schneider Electric STBACI0320K is a high-precision analog input module developed for the Modicon STB distributed I/O platform. This module features four differential input channels designed to interface with field transmitters and sensors operating on standard current loops. It supports input signals of 0 to 20 mA and 4 to 20 mA, converting them into digital values with a resolution of 15 bits plus sign. The differential configuration provides excellent noise immunity, making it ideal for electrically noisy industrial environments.

Operating as a component within the Modicon STB island, this module communicates directly over the island bus to interface with main controller networks through STB network interface modules (NIMs). Its compact footprint and high-density channel configuration allow for efficient utilization of control cabinet space while maintaining accurate signal conversion and diagnostics.

Features

Four differential analog input channels.
Selectable current input ranges: 0 to 20 mA and 4 to 20 mA.
High conversion resolution of 15 bits plus sign.
Differential input design for improved common-mode noise rejection.
Hot-swappable module replacement on the STB base assembly.
LED diagnostic indicators for module status, channel activity, and bus communication.

Applications

Process monitoring and control in oil and gas facilities.
Water and wastewater treatment plants.
Chemical processing systems.
Power generation and distribution control systems.
General factory automation and remote I/O stations.

Technical Specifications

Manufacturer	Schneider Electric
Part Number / Model	STBACI0320K
Product Series	Modicon STB / Advantys STB
Module Type	Analog Input Module
Number of Channels	4 differential
Input Range	0 to 20 mA, 4 to 20 mA
Resolution	15 bits + sign
Absolute Accuracy Error	+/-0.1% of full scale at 25 degC
Input Impedance	250 Ohms (nominal)
Bus Current Consumption	120 mA at 5 VDC
Isolation Voltage	1500 Vrms for 1 minute between inputs and bus logic
Dimensions (W x H x D)	27 mm x 130 mm x 80 mm
Weight	0.15 kg
Country of Origin	France

Connections and Interfaces

Terminal Pin	Signal Designation	Description
1	In 1 +	Channel 1 Positive Input
2	In 1 -	Channel 1 Negative Input
3	In 2 +	Channel 2 Positive Input
4	In 2 -	Channel 2 Negative Input
5	In 3 +	Channel 3 Positive Input
6	In 3 -	Channel 3 Negative Input
7	In 4 +	Channel 4 Positive Input
8	In 4 -	Channel 4 Negative Input

Installation Guidelines

The module must be mounted onto a compatible Modicon STB I/O base (such as the STBXBA1000 or STBXBA2000). Ensure the DIN rail is properly grounded and that shielded cables are used for all analog input runs to prevent electromagnetic interference. Connect the cable shield to the designated functional ground terminal on the STB assembly. Under no circumstances should the module be inserted into an incompatible base type, as this can cause physical damage to the module connectors.

Compliance and Certifications

CE
UL
CSA
FM Class 1 Division 2
ATEX Category 3G

Product Image	Model Number / Title	Condition	Availability	Action
	Yokogawa AAI135-S03 Modul Input Analog CENTUM VP	Original New	In Stock	View Details

Key Features:

#Analog Input Modules #Modicon STB

What is the resolution of the STBACI0320K analog input module?

The module provides a high conversion resolution of 15 bits plus sign.

What input signal ranges does this module support?

It supports standard analog current input loops of 0 to 20 mA and 4 to 20 mA.

Does the STBACI0320K support hot-swapping?

Yes, as part of the Modicon STB distributed I/O system, the module can be hot-swapped (removed or inserted under power) when used with the appropriate base assembly.

What base modules are compatible with this input module?

It is compatible with standard Modicon STB I/O base modules, typically the STBXBA1000 or STBXBA2000.

Pengiriman Ekspres Global

Pengiriman Standar: 4-6 Hari Kerja melalui DHL, FedEx, dan UPS.
Pengiriman Ekspres: Pengiriman pada hari yang sama untuk pesanan dalam stok yang dilakukan sebelum pukul 2:00 PM (GMT+8).
Cakupan Seluruh Dunia: Melayani lebih dari 150 negara, termasuk pengiriman cepat ke Arab Saudi dan UAE.

Pengembalian & Garansi

Jaminan 30 Hari: Pengembalian diterima untuk produk yang tersedia dalam stok dengan kemasan asli yang tersegel pabrik.
Garansi 12 Bulan: Setiap komponen industri didukung oleh garansi teknis profesional kami.

Pesanan diproses dan dikirimkan Senin-Jumat (tidak termasuk hari libur nasional).

Untuk kelayakan penuh, biaya pengisian ulang, dan detail pengembalian internasional, silakan lihat resmi kami Kebijakan Pengembalian & Pengembalian Dana .
