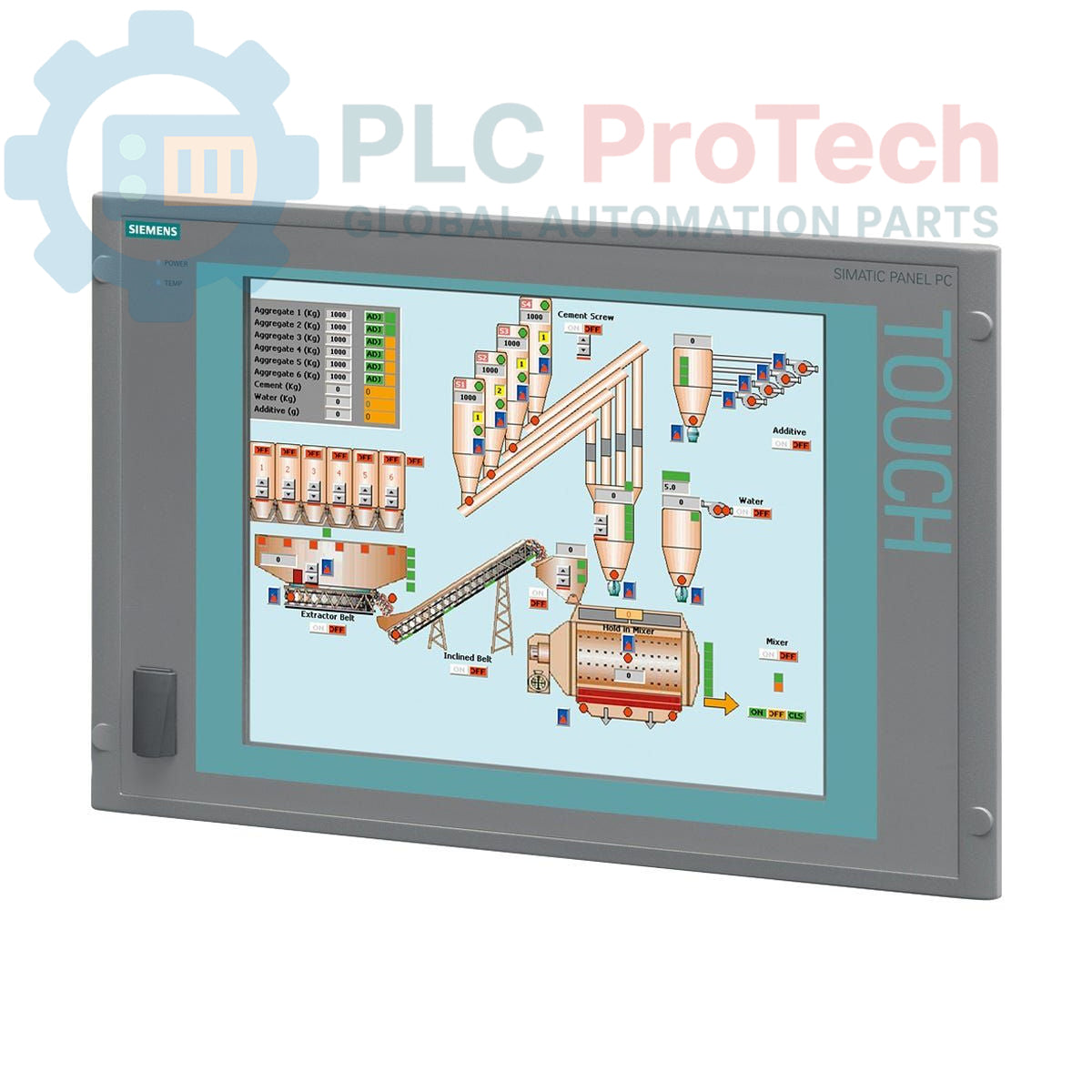

Siemens 6AV7873-0BC30-1AC0 SIMATIC Panel PC 677B

Hanya 8 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6AV7873-0BC30-1AC0
Negara asal:Jerman
Jenis Produk: Panel PC
Kode batang: 85371098
Pembayaran: T/T, Western Union
Berat: 17g
Dimensi: 55 x 45 x 25 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The Siemens 6AV7873-0BC30-1AC0 is a SIMATIC Panel PC 677B, an integrated human-machine interface (HMI) solution for industrial control and visualization. This unit features a 15-inch keypad display with a resolution of 1024 x 768 pixels. It is powered by an Intel Core 2 Duo T5500 processor and includes an integrated 110/230 V AC power supply with NAMUR specifications. The system comes pre-installed with Windows XP Professional and is equipped with multiple communication interfaces, including dual Gigabit Ethernet, USB 2.0, and a PROFIBUS/MPI port, making it suitable for complex automation tasks.

Features

■15-inch keypad-operated display
■Intel Core 2 Duo T5500 processor at 1.66 GHz
■Integrated 110/230 V AC power supply
■Dual 10/100/1000 Mbit/s Ethernet ports for network connectivity
■Onboard PROFIBUS/MPI communication interface
■Includes 2 GB DDR2 RAM and a 160 GB SATA hard drive
■Front-side USB port for convenient access
■Equipped with a DVD+-R+-RW optical drive

Applications

■Machine-level control and visualization
■Process monitoring and data acquisition systems
■Factory automation and assembly line management
■Industrial computing platforms requiring legacy OS support

Technical Specifications

Specification	Value
Product Type	Panel PC
Series	SIMATIC Panel PC 677B
Processor	Intel Core 2 Duo T5500, 1.66 GHz, 2 MB SLC
Memory (RAM)	2 GB DDR2
Storage	160 GB SATA HDD (3.5 inch)
Display	15-inch Keypad Interface
Resolution	1024 x 768 pixels
Input Power	110/230 V AC with NAMUR
Power Cable	Europe
Ethernet Ports	2 x 10/100/1000 Mbit/s
USB Ports	4 x USB V2.0 (rear), 1 x USB (front)
Serial Port	1 x COM1
Fieldbus Interface	PROFIBUS/MPI
Expansion Slots	2 x PCI
Buffered Memory	2 MB Buffered SRAM
Optical Drive	DVD+-R+-RW
Operating System	Windows XP Professional MUI (de, en, fr, es, it, ja, zh, ko)
Product Lifecycle Status	Obsolete
Shipping Weight	17.00 kg
Commodity Code	85371098
Manufacturer	Siemens
Country of Origin	Germany (Estimated)
Package Dimensions (Calculated)	55 x 45 x 25 cm

Installation Guidelines

CRITICAL WARNING: Electrical Hazard

This equipment is operated with hazardous voltages. Installation, servicing, and maintenance must be performed by qualified personnel only. Failure to de-energize the system using proper Lockout/Tagout (LOTO) procedures before accessing terminals can result in severe injury or death.

1 Ensure the control cabinet or panel cutout meets the dimensional requirements for the Panel PC 677B chassis. Verify adequate clearance for ventilation and cable routing.
2 Mount the unit securely into the panel cutout using all provided mounting clamps. Tighten the clamps evenly to ensure a proper seal and prevent chassis distortion.
3 Connect the protective earth (PE) conductor to the designated grounding terminal on the chassis. A low-impedance ground connection is essential for safety and noise immunity.
4 Connect the 110/230 V AC power supply cable. Ensure the source voltage matches the unit's rating. Route the power cable separately from communication and I/O cables to minimize electrical noise.
5 Connect all required communication cables (Ethernet, PROFIBUS, USB, Serial) to their respective ports. Ensure all connectors are fully seated and secured.

Key Features:

What operating system is installed on the 6AV7873-0BC30-1AC0?

This Panel PC comes with Windows XP Professional Multi-Language User Interface (MUI), which includes support for German, English, French, Spanish, Italian, Japanese, Chinese, and Korean.

What are the power supply requirements for this unit?

The device has an integrated power supply that accepts 110/230 V AC input. It is supplied with a power cable for European outlets.

What industrial communication ports are available?

The unit is equipped with two 10/100/1000 Mbit/s Ethernet ports for standard networking and a dedicated PROFIBUS/MPI port for fieldbus communication.

Is this model a current product?

No, the 6AV7873-0BC30-1AC0 is classified as an obsolete product by the manufacturer, but it is available as a spare part for existing systems.

Can I expand the functionality of this Panel PC?

Yes, the unit includes two standard PCI slots for installing compatible expansion cards.
