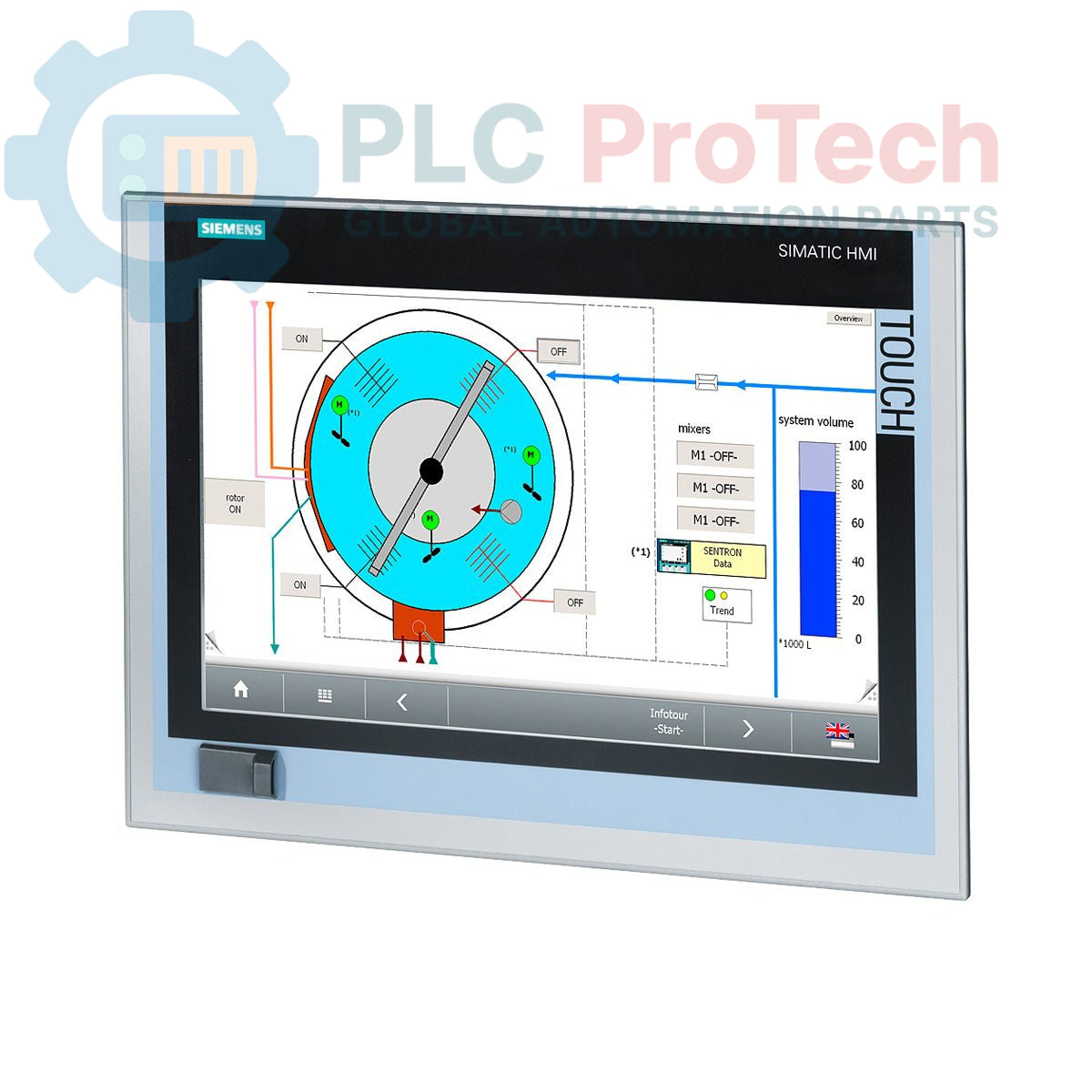

Siemens 6AV7882-0DA20-2CA0 SIMATIC IPC277E Nanopanel PC

Hanya 7 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6AV7882-0DA20-2CA0
Negara asal:Jerman
Jenis Produk: Panel PC
Kode batang: 85371098
Pembayaran: T/T, Western Union
Berat: 4g
Dimensi: 48.2 x 29.0 x 2.7 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The Siemens 6AV7882-0DA20-2CA0 is a SIMATIC IPC277E Nanopanel PC designed for embedded control and visualization tasks in industrial environments. This unit features a 15-inch Touch TFT display, an Intel Celeron N2807 processor, 4 GB of RAM, and a 240 GB solid-state drive. It operates on a 24 V DC power supply and comes pre-installed with Windows Embedded Standard 7E SP1. The device offers a comprehensive set of interfaces, including dual Gigabit Ethernet, USB 3.0, and a DisplayPort for external monitors, making it a versatile human-machine interface (HMI) and control platform.

Features

15-inch widescreen Touch TFT display for operator interaction.
Powered by an Intel Celeron N2807 dual-core processor.
Equipped with 4 GB of system memory (RAM).
Includes a 240 GB solid-state drive for fast boot and data access.
Pre-installed with Windows Embedded Standard 7E SP1 (64-bit, English).
Dual 10/100/1000 Mbps Ethernet ports for robust network communication.
Extensive peripheral support with USB 3.0, USB 2.0, and a serial COM port.
Integrated CFast slot for removable storage media.

Applications

Human-Machine Interface (HMI) for process visualization and control.
Data acquisition and logging at the machine level.
Gateway applications for industrial communication protocols.
Embedded control systems in manufacturing and automation cells.
Supervisory control in building automation and infrastructure projects.

Technical Specifications

Specification	Value
Manufacturer	Siemens
Model Number	6AV7882-0DA20-2CA0
Product Family	SIMATIC IPC277E (Nanopanel PC)
Display	15-inch Touch TFT
Processor	Intel Celeron N2807 (2 Cores / 2 Threads)
Memory	4 GB RAM
Storage	240 GB SSD
Operating System	Windows Embedded Standard 7E SP1, English, 64-bit
SIMATIC Software	Not included
Power Supply	24 V DC
Ethernet Ports	2x 10/100/1000 Mbps Ethernet RJ45
Graphics Port	1x DisplayPort
USB Ports	1x USB 3.0, 3x USB 2.0, 1x Front USB
Serial Port	1x Serial (COM1)
Expansion Slot	1x CFast Slot
Product Lifecycle Status	Phase-Out
Shipping Weight	4.00 kg
Commodity Code	85371098
ECCN	5A992
Country of Origin	Germany (Estimate)
Package Dimensions (Calculated)	48.2 x 29.0 x 2.7 cm

Installation Guidelines

CRITICAL WARNING: Disconnect all power sources and follow Lockout/Tagout (LOTO) procedures before installation or maintenance. This device contains components sensitive to electrostatic discharge (ESD). Use appropriate ESD protection, such as a wrist strap and mat, when handling.

1 Ensure the control cabinet or mounting panel is fully de-energized and verified to be at zero potential.
2 Verify the panel cutout dimensions match the requirements for the IPC277E chassis. Ensure the mounting surface is clean, flat, and free of debris.
3 Carefully insert the Panel PC into the cutout from the front of the panel. Ensure the gasket provides a proper seal against the panel surface.
4 From the rear, install and tighten the mounting clamps in a staggered sequence to apply even pressure and secure the unit firmly in place. Do not overtighten.
5 Connect a stable, correctly rated 24 V DC power source to the power supply terminal. Verify correct polarity (+/-) before connecting.
6 Connect the protective earth (PE) terminal to the cabinet's main grounding point using a low-impedance conductor.
7 Connect Ethernet, USB, DisplayPort, and any other required peripheral cables. Ensure all connectors are fully seated.
8 Once all connections are secure, re-energize the cabinet and power on the Panel PC to verify correct startup and operation.

Key Features:
