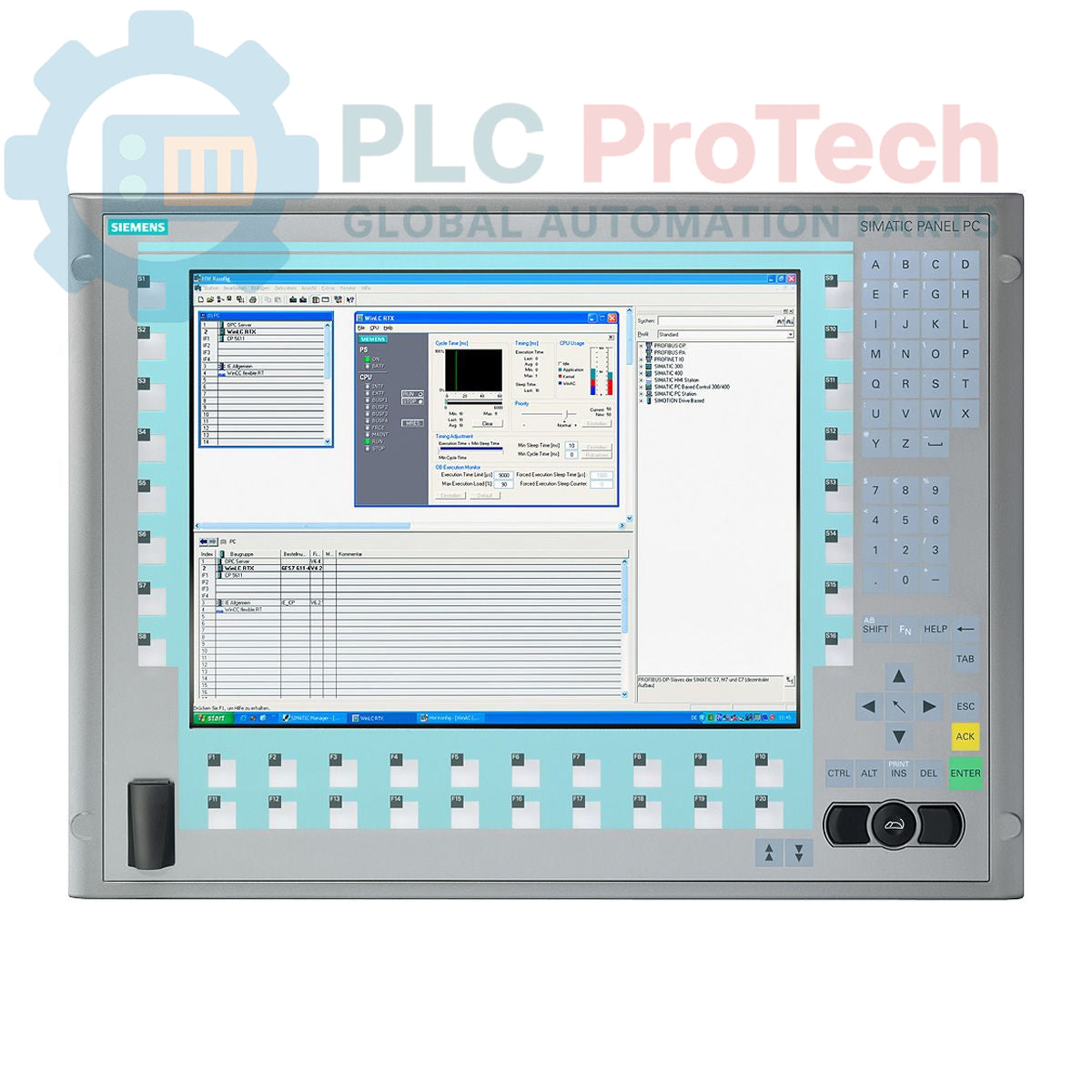

Siemens 6AV7893-0BE30-1AB0 SIMATIC HMI IPC677C Panel PC

Hanya 2 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6AV7893-0BE30-1AB0
Negara asal:Jerman
Jenis Produk: Industrial Panel PC
Kode batang: 85371091
Pembayaran: T/T, Western Union
Berat: 17450g
Dimensi: Corrections Applied: none
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Description

The Siemens 6AV7893-0BE30-1AB0 is a SIMATIC HMI IPC677C Panel PC designed for robust and reliable operation in demanding industrial environments. This unit integrates a 15-inch display with a 1024 x 768 resolution and an accessible front-side USB interface. It is equipped with an Intel Core i3-330E processor (2 cores, 4 threads, 2.13 GHz), 4 GB DDR3 memory, and a 250 GB SATA hard disk, along with a DVD+-R+-RW drive for data storage and software installation. The 6AV7893-0BE30-1AB0 features extensive connectivity, including two Gigabit Ethernet ports, four USB 2.0 ports, one serial COM1 port, and an onboard CP 5611-A2-compatible interface for PROFIBUS/MPI. Enhanced reliability features include a built-in RAID controller, 2 MB buffered SRAM, and watchdog, temperature, and fan monitoring. It comes pre-installed with Windows XP Professional SP3 MUI, supporting multiple languages (German, English, French, Spanish, Italian), and is powered by a 110/230 V AC supply unit with NAMUR standard, complete with a European power cable.

Features

Integrated 15-inch display with 1024 x 768 resolution
Intel Core i3-330E processor (2 cores, 4 threads, 2.13 GHz, HT, VT, 3 MB cache)
4 GB DDR3 1066 DIMM RAM
250 GB SATA Hard Disk Drive and DVD+-R+-RW optical drive
Dual Gigabit Ethernet ports (2x 10/100/1000 Mbit/s)
Four USB V2.0 ports (including front-side USB-Schnittstelle)
One serial (COM1) port
PROFIBUS/MPI (CP 5611-A2-compatible) interface
Onboard RAID controller and 2 MB buffered SRAM
Watchdog, temperature, and fan monitoring functions
110/230 V AC power supply unit with NAMUR standard
Pre-installed Windows XP Professional SP3 MUI (de, en, fr, es, it)
Two free PCI expansion slots

Applications

The Siemens SIMATIC HMI IPC677C Panel PC is suitable for a wide range of industrial applications requiring integrated control, monitoring, and visualization capabilities. Typical deployments include:

Machine control and operation within manufacturing environments
Process visualization and data acquisition in industrial plants
Human-Machine Interface (HMI) applications for production lines
Industrial data logging and archiving solutions
Front-end computing for Distributed Control Systems (DCS) and Supervisory Control and Data Acquisition (SCADA) systems

Technical Specifications

Parameter	Value
Manufacturer	Siemens
Brand	Siemens
Range	Simatic Panel PC
Subrange	IPC677C
Product Type	PC panels
PLM Product Phase	Phase-Out
Display Size	15 inches
Display Resolution	1024 x 768
Processor	Core I3-330E (2C/4T, 2.13 GHz, HT, VT, 3 MB cache)
RAM	4 GB DDR3 1066 DIMM
Buffered SRAM	2 MB
Hard Disk Drive	250 GB SATA
Optical Drive	DVD+-R+-RW
Ethernet Ports	2x 10/100/1000 Mbit/s
USB Ports	4x USB V2.0
Serial Port	1x (COM1)
PROFIBUS/MPI Interface	CP 5611-A2-compatible
Expansion Slots	2x PCI free
Operating System	Windows XP Prof. SP3 MUI (de, en, fr, es, it)
Power Supply	110/230 V AC with NAMUR
Shipping Weight	17.45 kg
Commodity Code	85371091
Export Control Regulations (ECCN)	N

Connections / Interfaces

Interface Type	Quantity / Description
Ethernet	2x 10/100/1000 Mbit/s ports
USB	4x USB V2.0 ports (including a front-side interface)
Serial	1x COM1 port
PROFIBUS/MPI	Onboard CP 5611-A2-compatible interface
Power Supply	110/230 V AC input with NAMUR standard

Installation Guidelines

De-energize System: Ensure all power to the installation area and associated equipment is completely de-energized and locked out before beginning any work.
Mounting: Securely mount the Panel PC into a prepared panel cutout, ensuring proper sealing to maintain the specified IP rating of the front panel.
Power Connection: Connect the provided European power cable to the 110/230 V AC power supply unit, adhering to local electrical codes and safety standards. Verify correct voltage and grounding.
Grounding: Establish a robust protective earth (PE) connection to the Panel PC chassis to ensure electrical safety and minimize electromagnetic interference.
Interface Cabling: Connect Ethernet, USB, and serial communication cables to their respective ports. Ensure proper cable routing to avoid strain and interference.
PROFIBUS/MPI Connection: If utilizing the PROFIBUS/MPI interface, connect the bus cable according to the PROFIBUS standard, ensuring correct termination and shielding.
Environmental Considerations: Ensure the installation environment is within the specified operating temperature and humidity ranges to prevent damage and ensure reliable operation.
Power On: After all connections are verified, re-energize the system and observe for proper startup and functionality.

Key Features:

#IPC677C #Panel PC

What operating system is pre-installed on this Panel PC?

The unit comes with Windows XP Professional SP3 MUI, supporting multiple languages including German, English, French, Spanish, and Italian.

What are the primary connectivity options for the IPC677C?

It offers two Gigabit Ethernet ports, four USB V2.0 ports, one serial COM1 port, and a PROFIBUS/MPI interface compatible with CP 5611-A2.

Does the Panel PC include any features for data integrity?

Yes, it features an onboard RAID controller and 2 MB of buffered SRAM, along with watchdog, temperature, and fan monitoring for enhanced reliability.

What is the display size and resolution?

The Panel PC is equipped with a 15-inch display offering a resolution of 1024 x 768 pixels.
