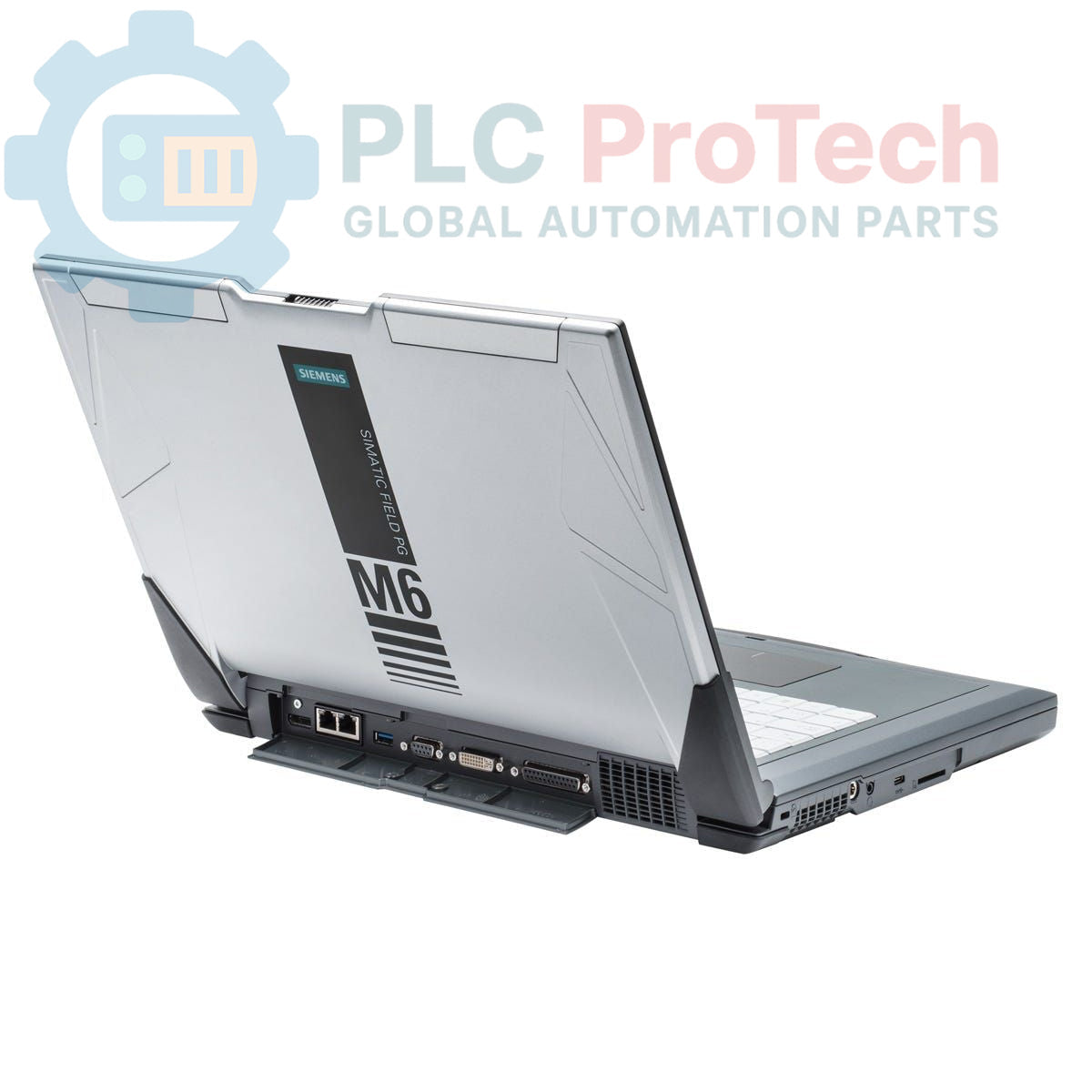

Siemens 6ES7718-1CC00-0AA0 SIMATIC Field PG M6 Advanced Field Programming Device

Hanya 4 item tersisa di stok

Produsen: Siemens
Nomor Produk: 6ES7718-1CC00-0AA0
Negara asal:Jerman
Jenis Produk: Field Programming Device
Kode batang: 84713000
Pembayaran: T/T, Western Union
Berat: 4100g
Dimensi: 39.5 x 30.0 x 17.0 cm
Pelabuhan pengiriman: Xiamen
Garansi: 12 bulan

Lihat detail lengkap

Description

The Siemens 6ES7718-1CC00-0AA0 is a SIMATIC Field PG M6 Advanced, a ruggedized portable programmer designed for commissioning, servicing, and maintaining industrial automation systems. This unit is equipped with a high-performance Intel Core i7-8850H processor featuring 6 cores and hyper-threading, operating at a base frequency of 2.6 GHz with a turbo boost up to 4.3 GHz. It includes 32 GB of DDR4 SD-RAM and a 2 TB SATA SSD for demanding engineering applications. The device features a 15.6-inch Full HD display and comes pre-installed with Windows 10 IoT Enterprise and trial licenses for key Siemens TIA Portal software, including STEP 7 Professional, WinCC Advanced, and Safety Advanced.

Features

Processor: Intel Core i7-8850H (6 Cores, 9 MB Smart Cache)
Memory: 32 GB DDR4 SD-RAM SO-DIMM
Storage: 2 TB SATA Solid-State Drive (2.5")
Display: 15.6" Full HD (1920 x 1080)
Graphics: Integrated Intel UHD Graphics 630
Connectivity: WLAN 802.11ac and Bluetooth V5.0
Optical Drive: DVD +/-RW
Keyboard: QWERTZ/QWERTY (German layout)
Operating System: Windows 10 IoT Enterprise 2019 LTSC (64-bit)
Included Software: Trial licenses for STEP 7, WinCC Advanced, and Safety Advanced

Applications

PLC and Safety PLC programming and commissioning
HMI and SCADA system configuration and deployment
On-site system diagnostics and troubleshooting
Industrial network analysis and configuration
Field maintenance and servicing of automation equipment
Mobile engineering workstation for plant floor environments

Technical Specifications

Specification	Value
Manufacturer	Siemens
Product Range	SIMATIC Field PG
Series	Field PG M6 Advanced
Processor	Intel Core i7-8850H (2.6 to 4.3 GHz)
Processor Cores	6 Cores with Hyper-Threading
Cache	9 MB Smart Cache
Memory (RAM)	1x 32 GB DDR4 SD-RAM SO-DIMM
Storage	2 TB SSD SATA (2.5")
Display Size	15.6 inch
Display Resolution	Full HD (1920 x 1080)
Graphics Controller	Intel UHD Graphics 630
Wireless Communication	WLAN 802.11ac & Bluetooth V5.0
Optical Drive	DVD +/-RW
Operating System	Windows 10 IoT Enterprise 2019 LTSC, 64-bit
Keyboard Layout	QWERTZ/QWERTY (Germany)
Power Cable Plug	Europe
S5 Interface	Not included
S5 EPROMMER	Not included
NVMe (M.2) Slot	Not included
Product Lifecycle Phase	Obsolete
Export Control (ECCN)	5A992
Harmonized Tariff Code	84713000
Shipping Weight	4.10 kg
Package Dimensions	39.5 x 30.0 x 17.0 cm
Country of Origin	Germany (Estimate)

Installation and Handling Guidelines

CRITICAL WARNING: Always create a full backup of existing automation project files before connecting to a live industrial control system. Failure to do so can result in data loss, equipment damage, or unintended process interruption. Ensure the Field PG is connected to a properly grounded mains outlet.

1
Initial Setup: Upon first use, connect the provided power adapter and allow the battery to fully charge. Follow the on-screen prompts to complete the initial Windows operating system setup.
2
Software Activation: Activate the pre-installed trial software licenses as required for your engineering tasks. It is recommended to create a system recovery image before installing additional third-party software.
3
Environmental Conditions: Operate the Field PG in a clean, dry environment. Avoid exposure to excessive dust, moisture, vibration, and extreme temperatures to ensure reliable operation and longevity.
4
Connecting to Equipment: Use appropriate, high-quality communication cables (e.g., PROFIBUS, PROFINET) for connecting to PLCs and other automation devices. Ensure secure connections at both the Field PG and the target device.
5
Transport and Storage: When not in use, store the Field PG in a protective case. Disconnect all peripherals and the power adapter before transport to prevent damage to ports and connectors.

Key Features:

What processor is included in the 6ES7718-1CC00-0AA0 Field PG?

This model is equipped with an Intel Core i7-8850H processor, which has 6 cores, hyper-threading, and a clock speed ranging from 2.6 to 4.3 GHz.

How much memory and storage does this device have?

The unit comes with 32 GB of DDR4 SD-RAM and a 2 TB SATA Solid-State Drive (SSD).

What operating system and software are pre-installed?

It comes with Windows 10 IoT Enterprise 2019 LTSC (64-bit) pre-installed. It also includes trial licenses for Siemens software: STEP 7 Professional, WinCC Advanced, and Safety Advanced.

Does this Field PG M6 model have an interface for older S5 PLCs?

No, the product specifications explicitly state that this model is supplied without an S5 interface and without an S5-EPROMMER.

What is the keyboard layout and power plug type?

This configuration includes a QWERTZ/QWERTY keyboard for the German market and a power cable with a standard European power plug.
