Siemens 6SE7012-0TP50-Z SIMOVERT MASTERDRIVES Konverter Frekuensi

Description

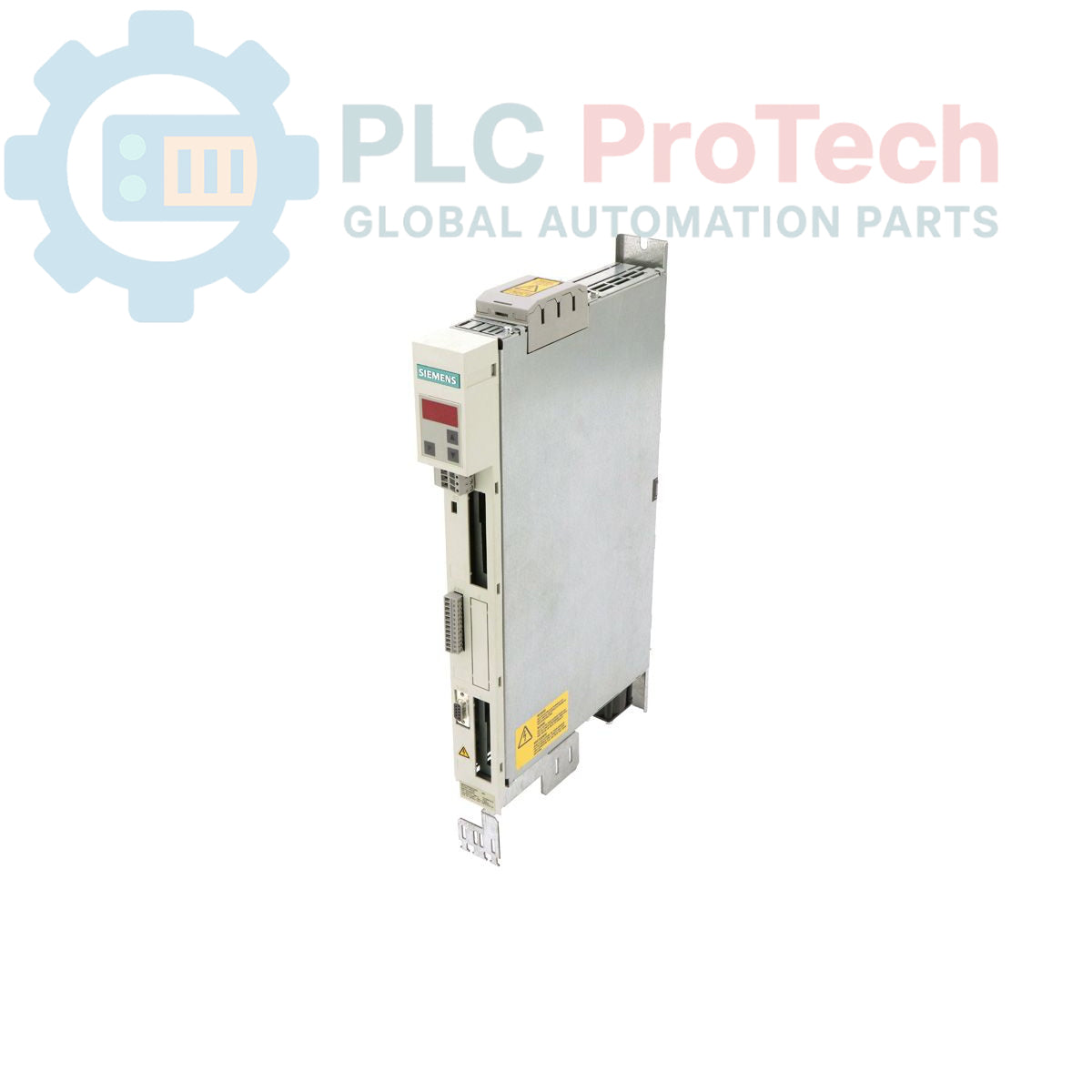

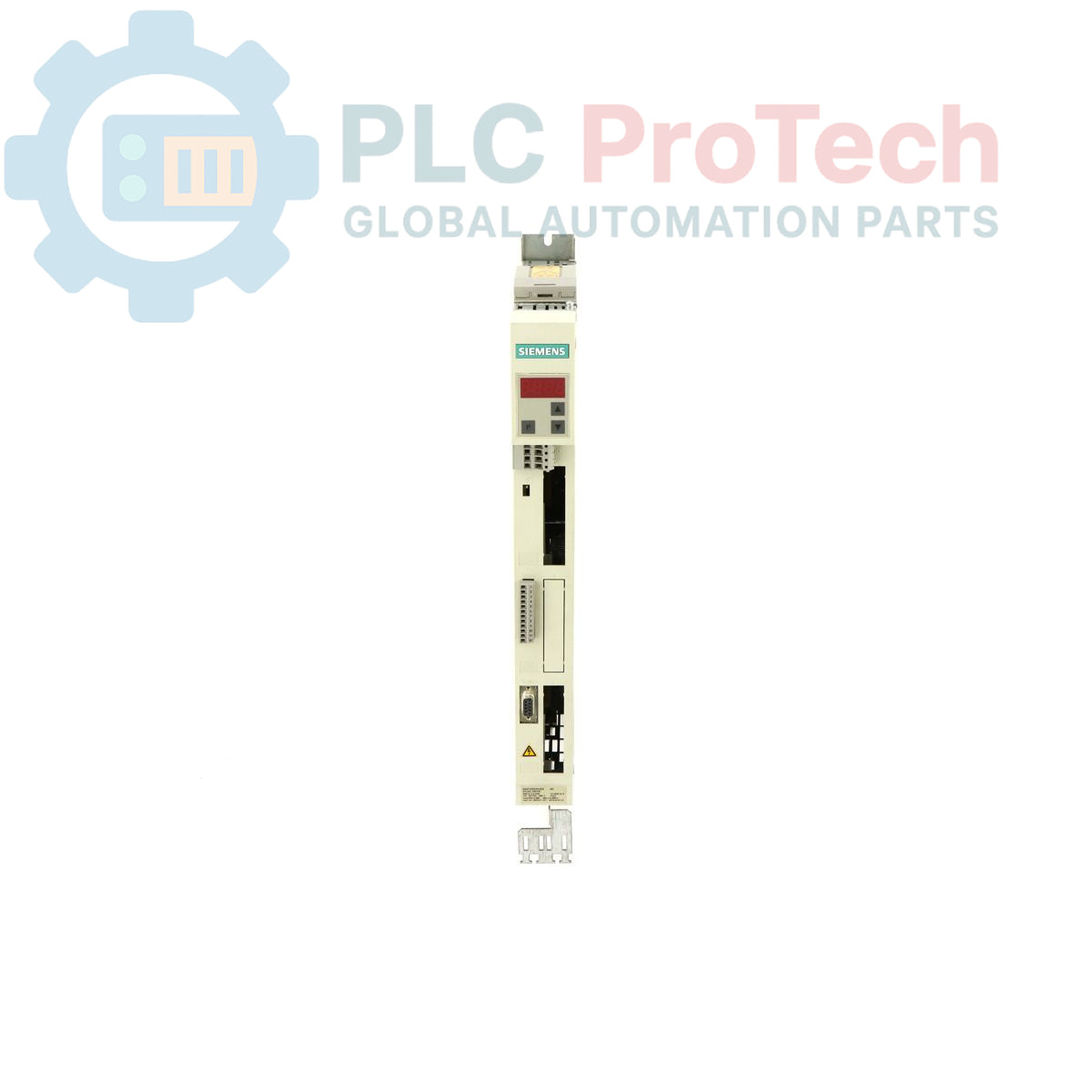

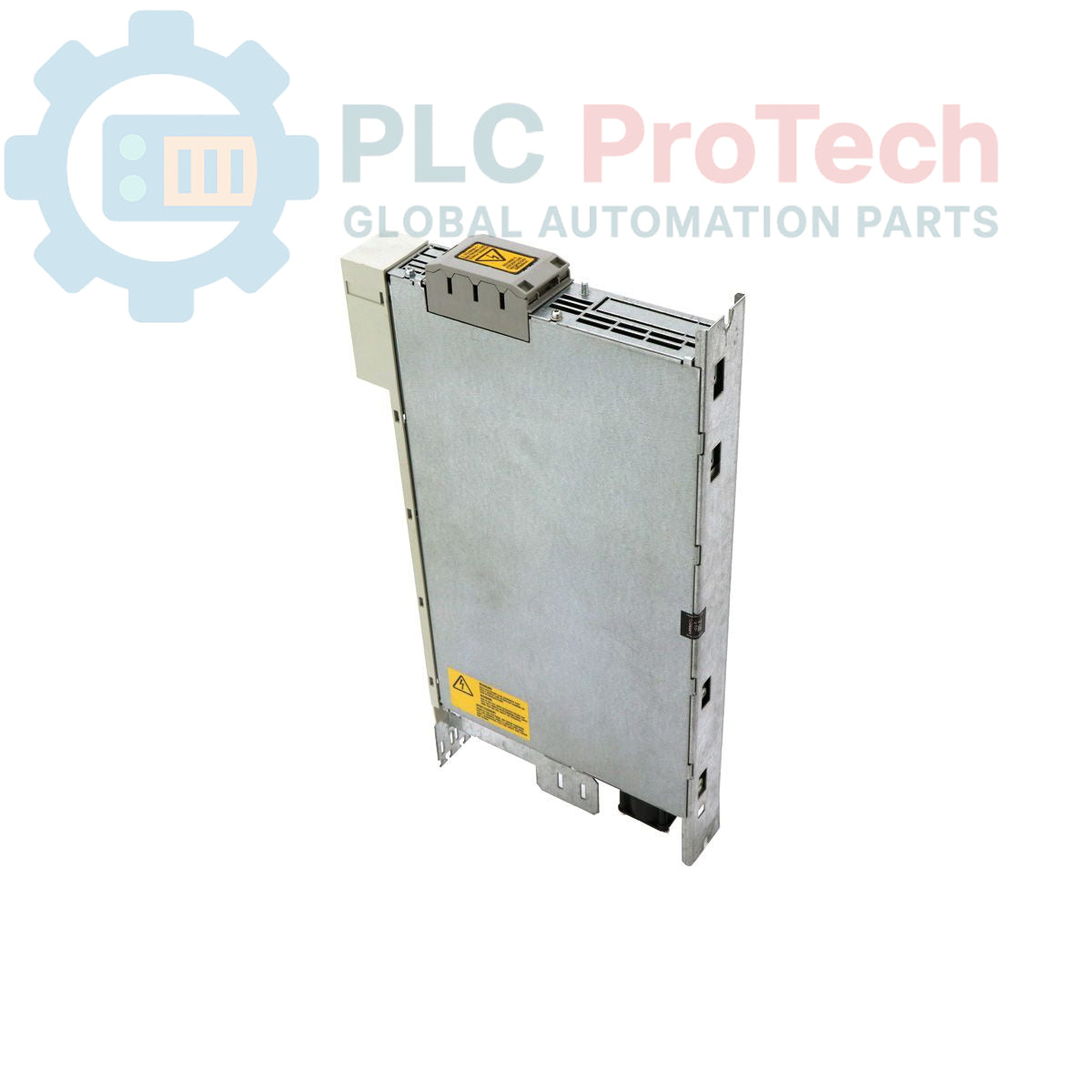

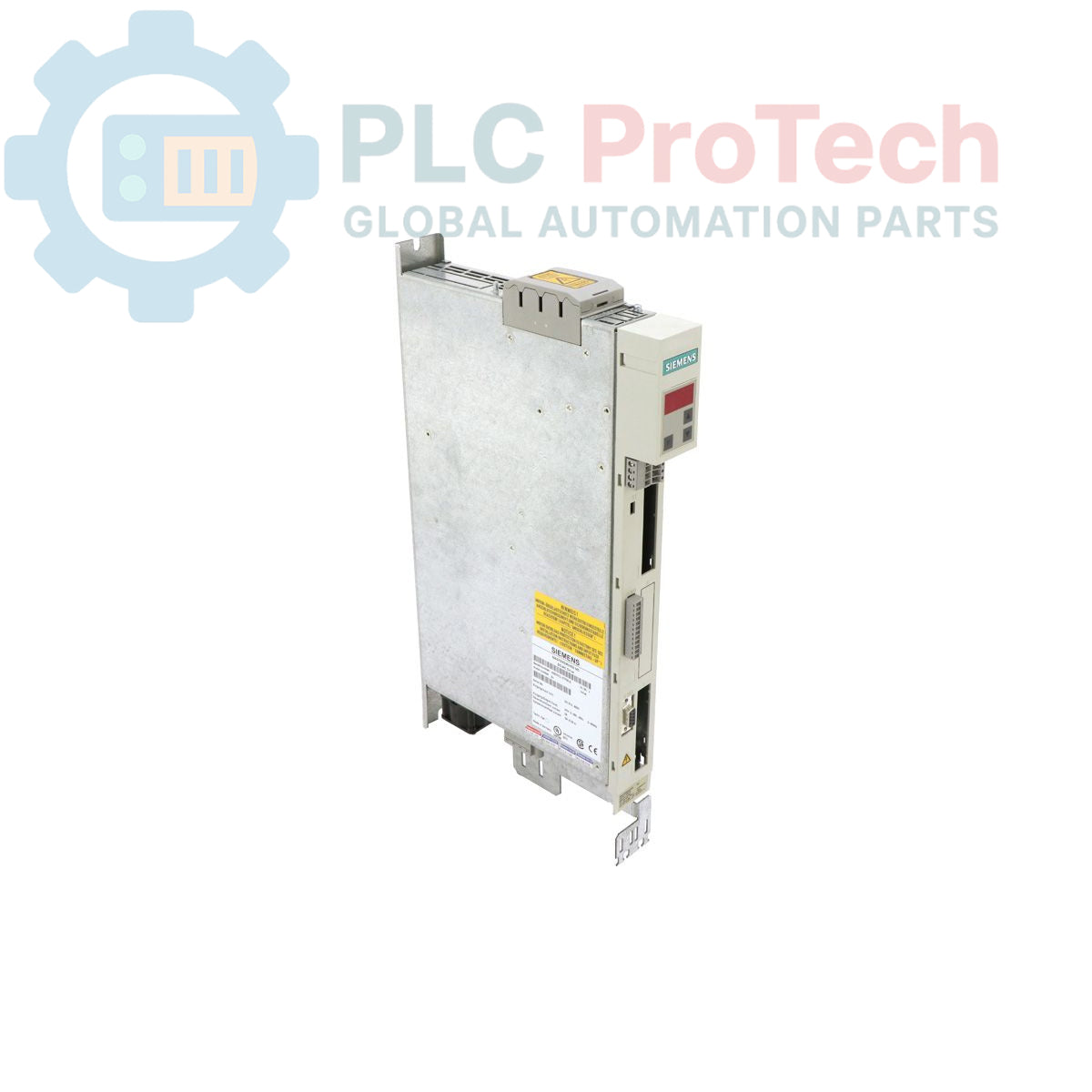

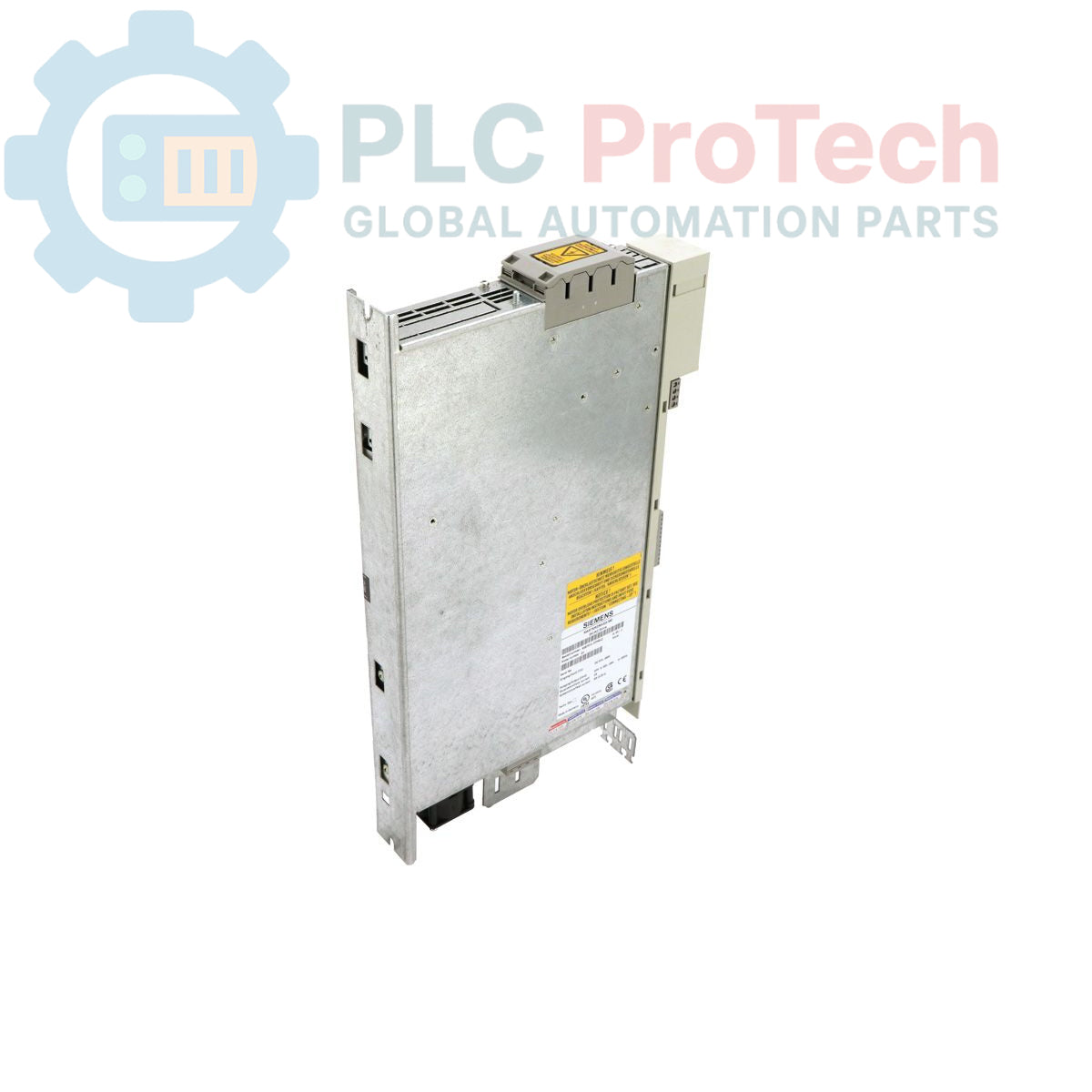

The 6SE7012-0TP50-Z is a SIMOVERT MASTERDRIVES Motion Control Compact Plus Inverter designed for high-precision motor control applications. This 6SE7012-0TP50-Z base drive unit operates within a DC input voltage range of 510 V to 650 V and delivers a nominal output current of 2 A, supporting a power rating of 0.75 kW. It is engineered to provide robust performance in demanding industrial settings, functioning as a foundational component that can be customized with additional options to suit specific motion control requirements in automated systems.

Features

• SIMOVERT MASTERDRIVES motion control technology
• Compact Plus inverter design
• Nominal power rating: 0.75 kW
• Input voltage range: 510 V to 650 V DC
• Nominal output current: 2 A
• Base drive configuration (supports additional options)
• High-precision motor speed and torque regulation

Applications

• High-precision positioning systems
• Material handling and conveyor control
• Spindle drives for machine tools
• Complex industrial motion automation
• Packaging and processing machinery

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is mounted vertically in a clean, dry, and well-ventilated enclosure to ensure optimal heat dissipation.
• Environmental: Protect the inverter from conductive dust, moisture, and corrosive gases to avoid short circuits and insulation degradation.
• Wiring: Use appropriately sized shielded motor cables to mitigate electromagnetic interference (EMI). Ensure the DC link connections are secure and tightened to the specified torque.
• Grounding: Establish a robust connection to the protective earth (PE) bus to ensure safety and signal integrity.
• Configuration: As this is a base drive, ensure that any additional option boards or modules are installed and configured according to the specific master drive system documentation.
