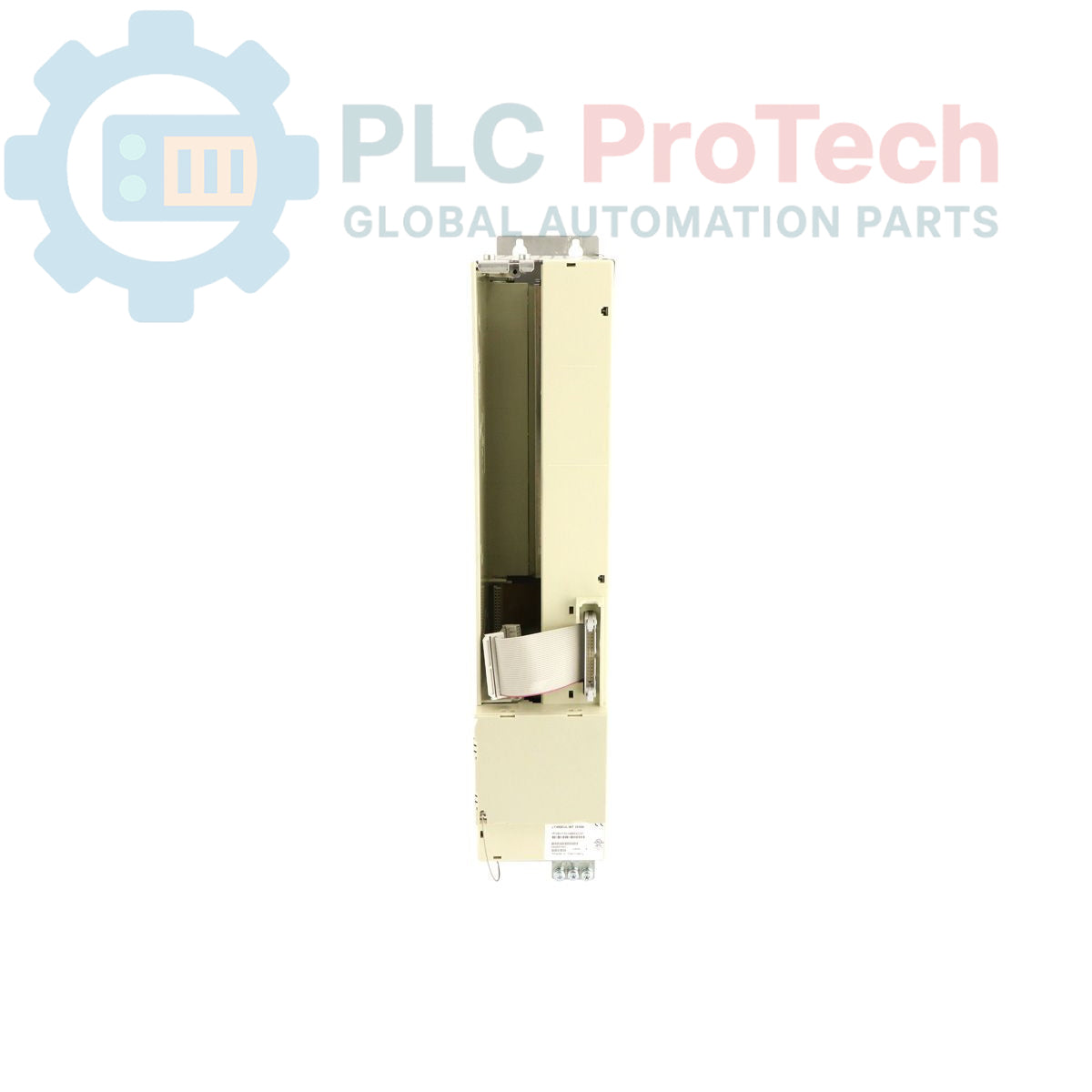

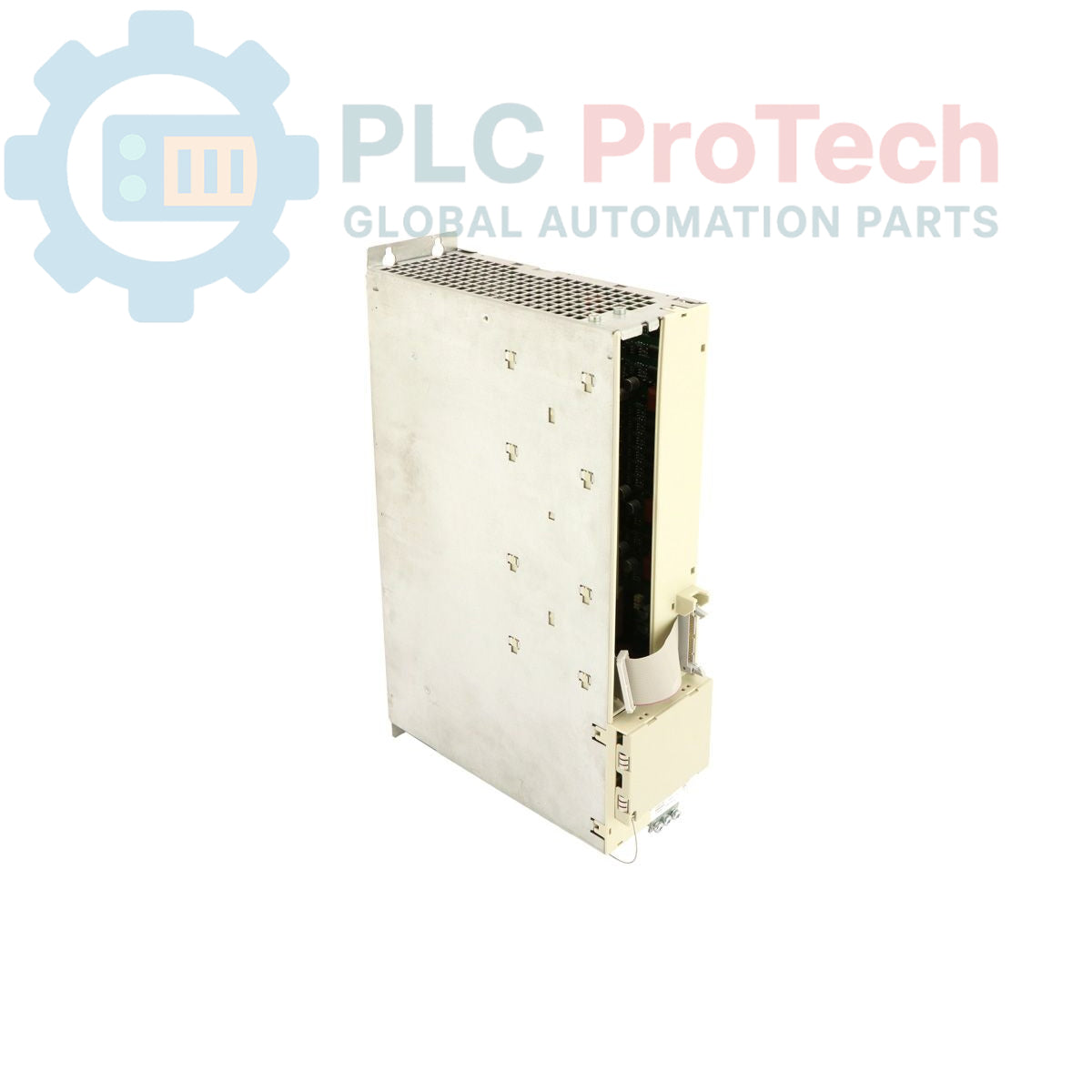

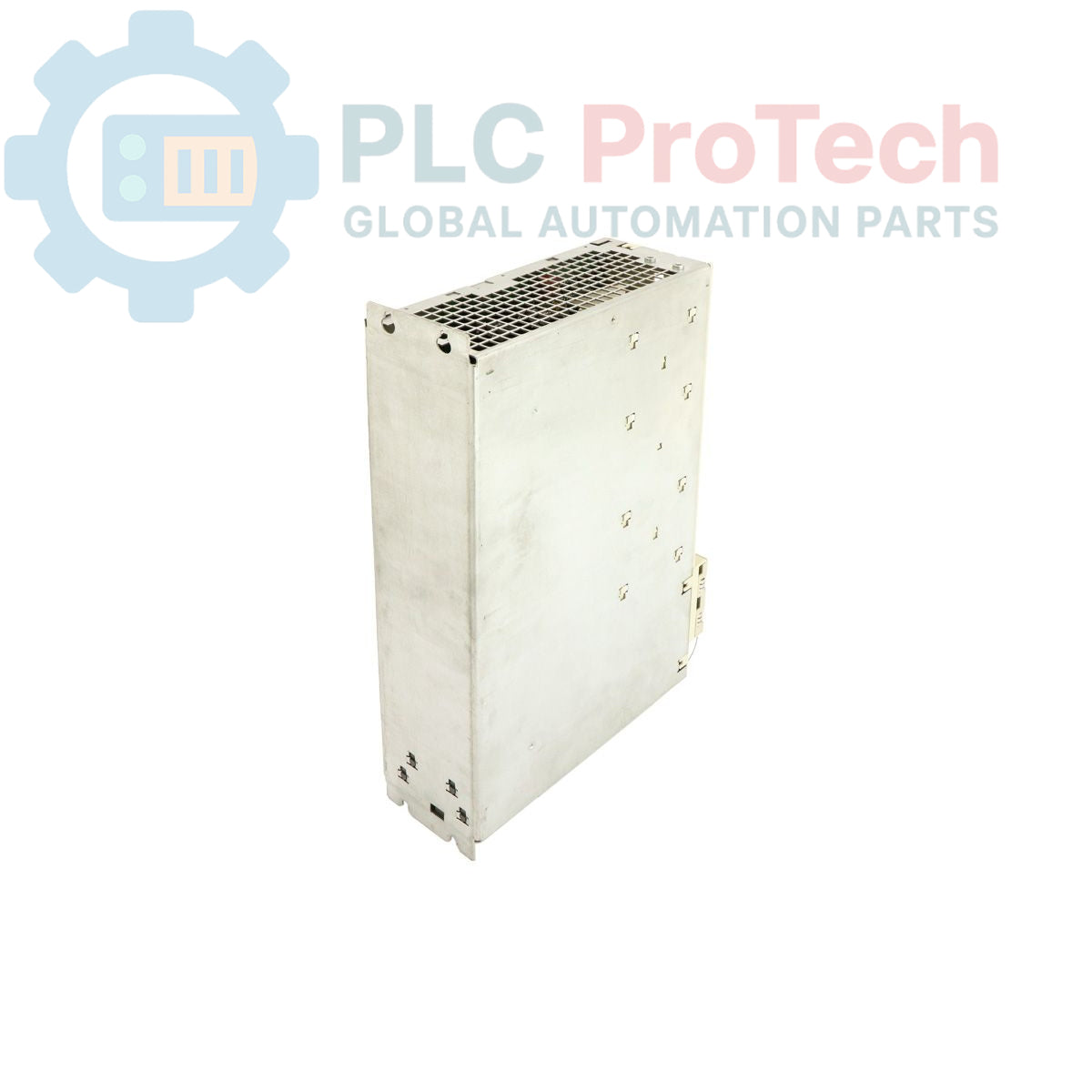

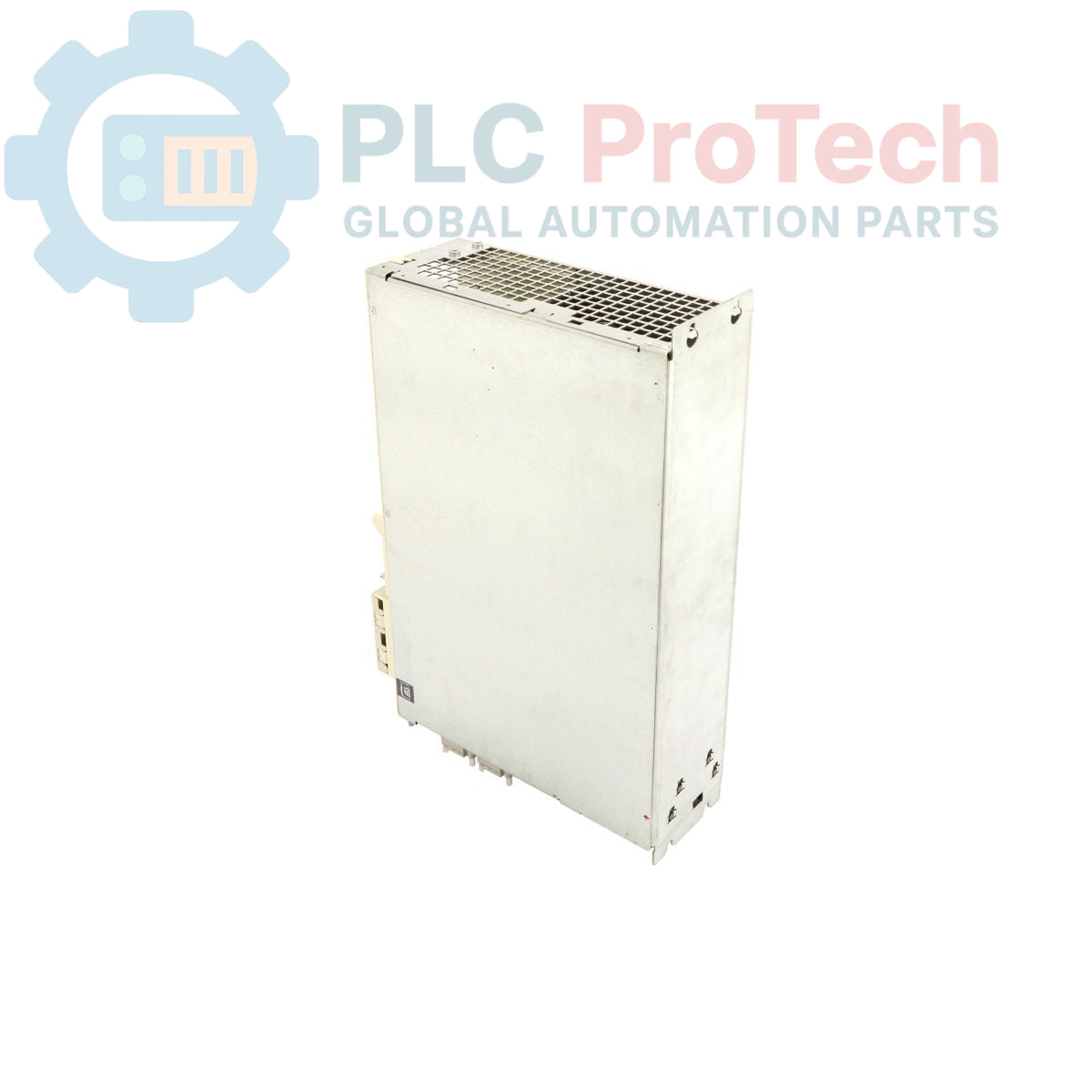

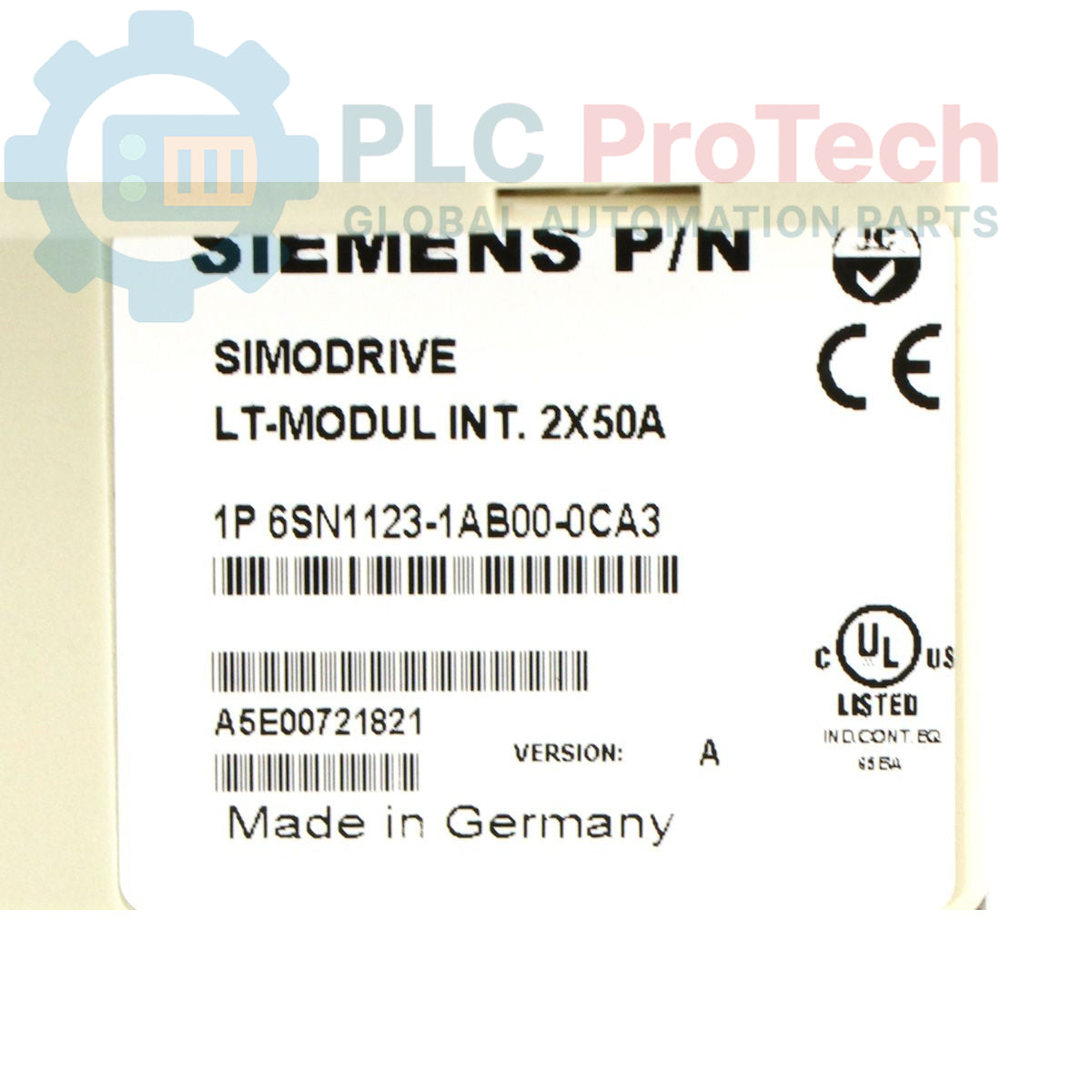

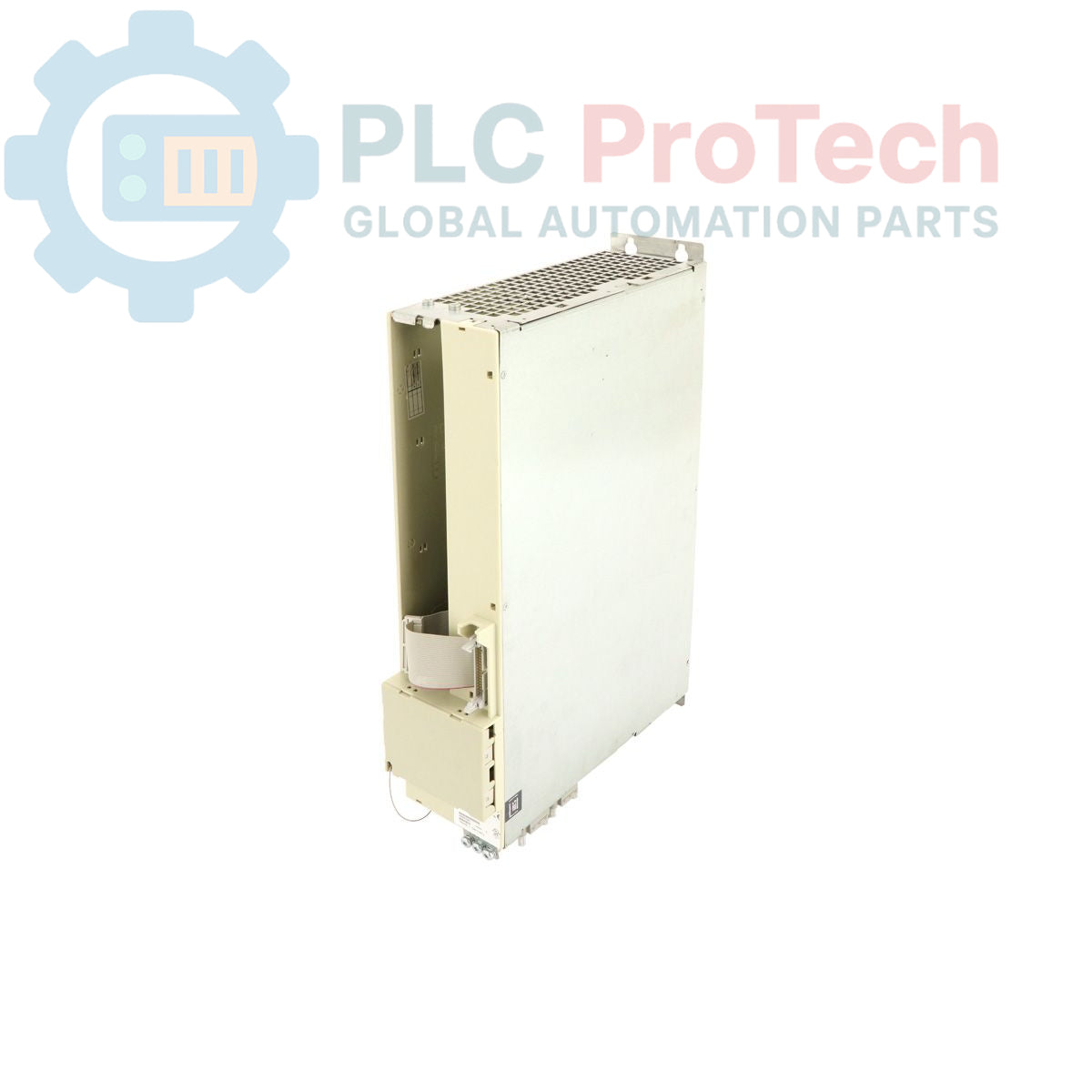

Modul Daya Siemens 6SN1123-1AB00-0CA3 SIMODRIVE 611

Description

The 6SN1123-1AB00-0CA3 is a SIMODRIVE 611 Power Module engineered for the precise control of two-axis configurations in industrial motion control systems. This 6SN1123-1AB00-0CA3 unit is designed to manage high-performance motor requirements, providing a rated current capacity of 50A. It utilizes internal heat dissipation to maintain thermal stability during operation, ensuring reliability in demanding production environments. It is specifically rated for a feed axis current of 18A and a main spindle axis current of 24A, providing the necessary torque and speed regulation for complex automated machinery.

Features

• Dual-axis control capability
• Rated output current: 50A
• Feed axis rated current: 18A
• Main spindle axis rated current: 24A
• Integrated internal heat dissipation
• Compatible with SIMODRIVE 611 drive systems

Applications

• CNC machine tools
• Multi-axis robotic systems
• Industrial spindle drives
• Automated assembly lines
• Motion control systems for manufacturing

Technical Specifications

Installation Guidelines

• Mounting: Install the power module in a vertical orientation within an appropriately rated electrical cabinet to ensure proper airflow for internal heat dissipation.
• Clearance: Maintain minimum required spacing above and below the module as specified in the SIMODRIVE 611 hardware manual to prevent overheating.
• Wiring: Use shielded power cables for motor connections to minimize electromagnetic interference (EMI). Ensure all high-voltage connections are torqued to the manufacturer's specifications.
• Grounding: Connect the module's PE (Protective Earth) terminal to the common cabinet ground bus to ensure electrical safety and system stability.
• Environmental: Ensure the installation environment is free from conductive dust, corrosive gases, and excessive moisture to prevent insulation failure.
