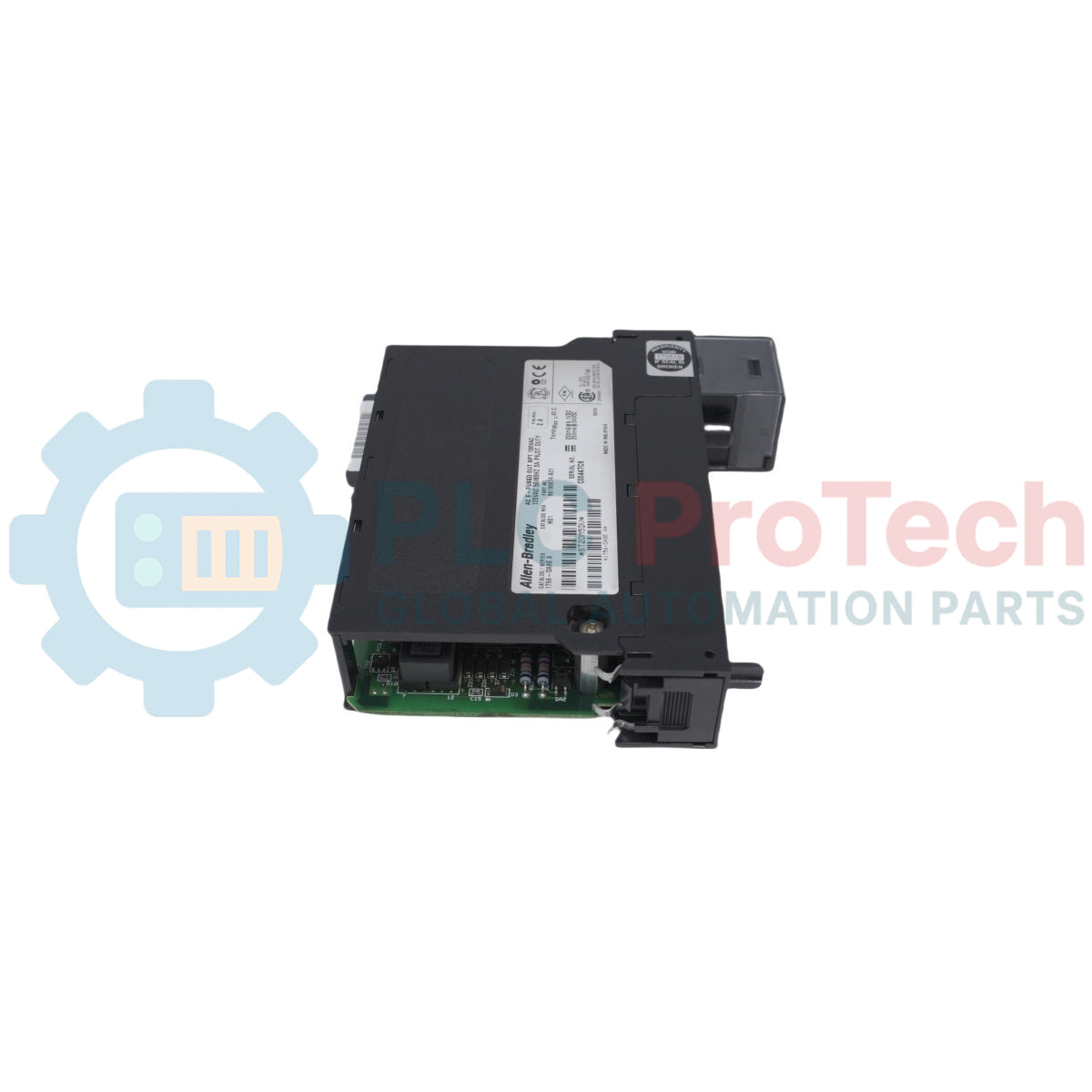

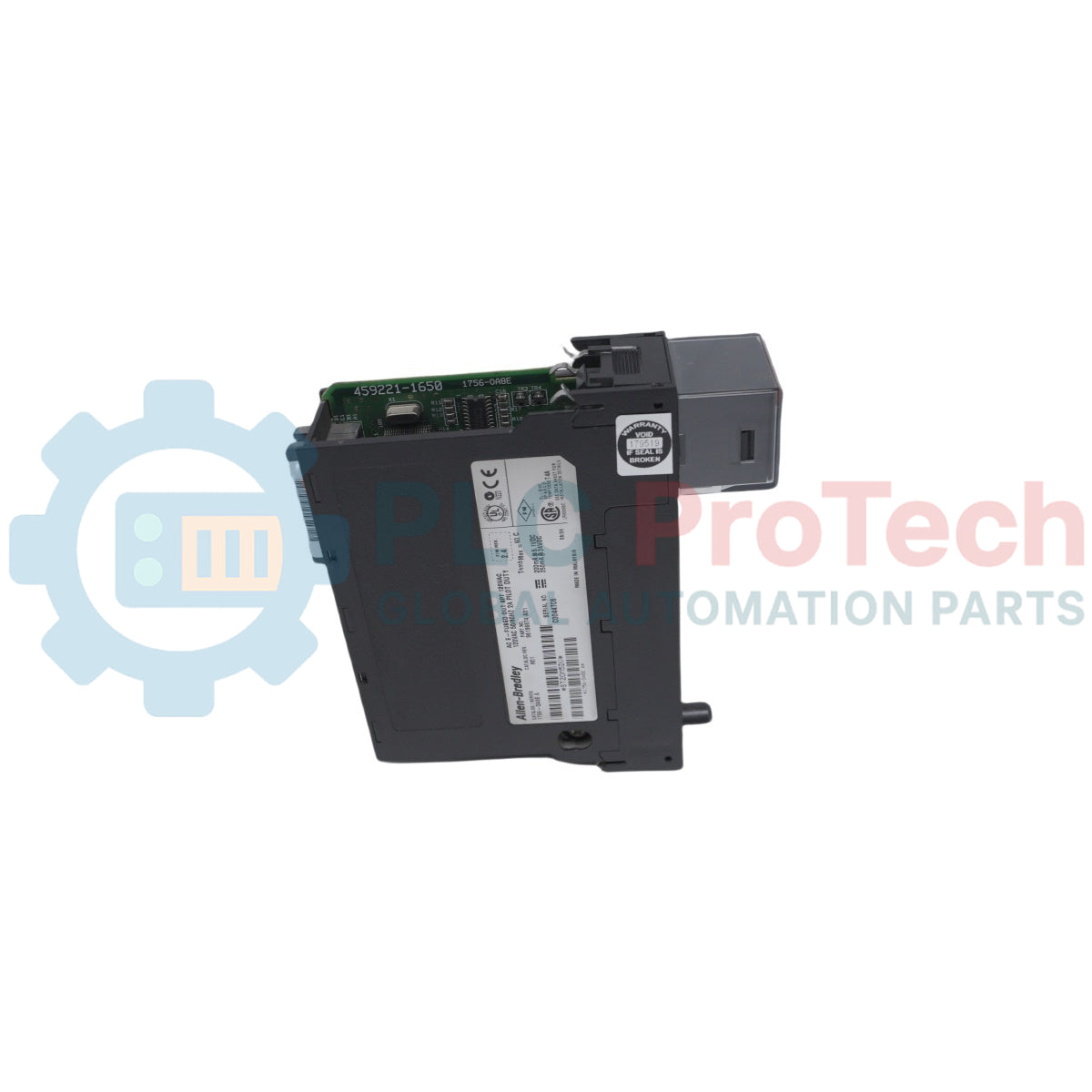

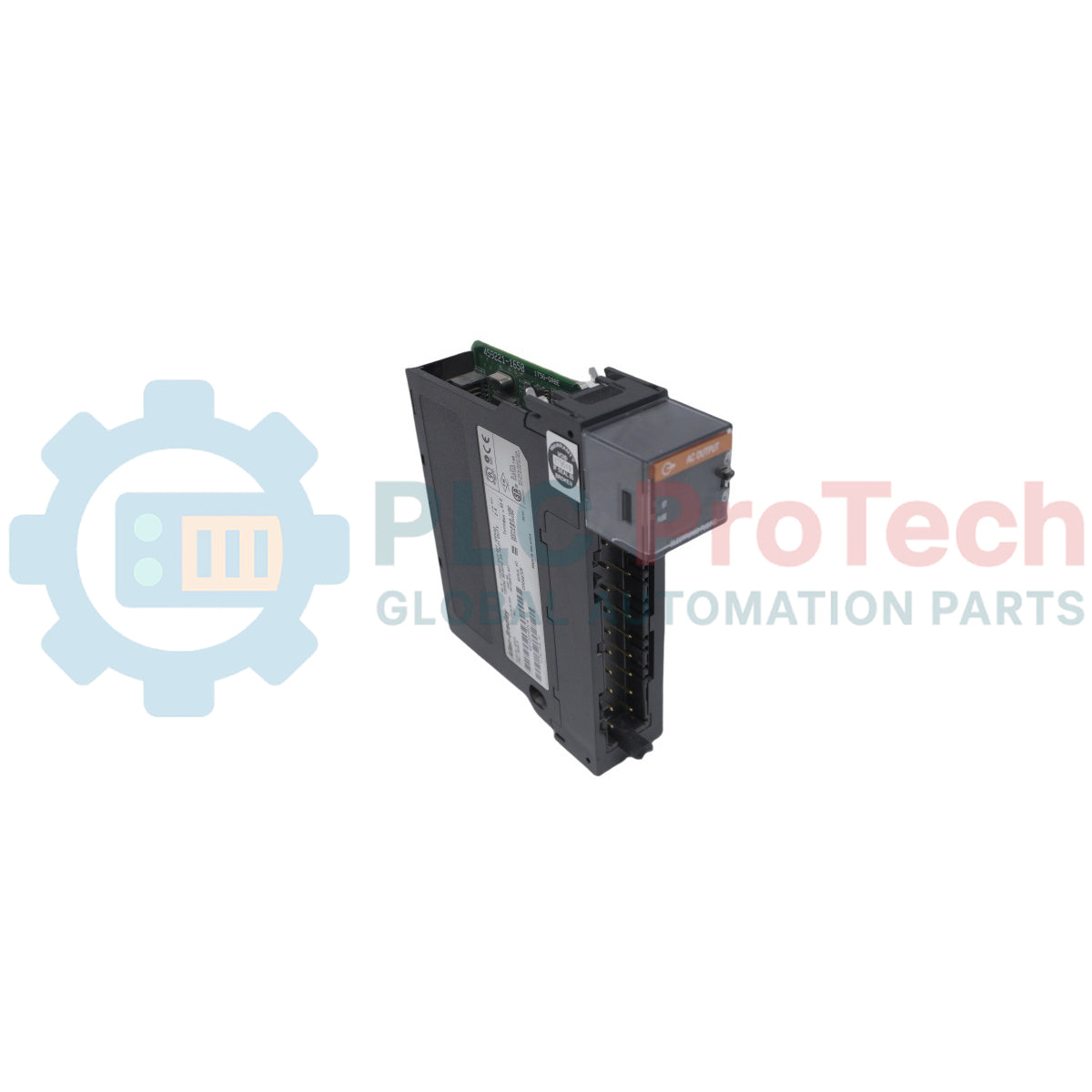

The 1756-OA8E is a ControlLogix digital AC output module featuring 8 electronic fused outputs arranged in groups of 4. Designed for high-density control applications, it operates across a broad voltage range of 74 to 265V AC at 47 to 63 Hz. The module delivers up to 2.0A per output point (up to 4.0A max per group) and includes integrated electronic fusing to protect individual output points and connected field loads against overcurrent conditions. It provides 125V continuous basic isolation between output groups and utilizes a removable terminal block (RTB) interface for field wiring.
| Attribute | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1756-OA8E |
| Product Type | ControlLogix AC Digital Output Module |
| UPC | 612598171392 |
| Country of Origin | Malaysia |
| Outputs | 8 electronically fused (4 points/group) |
| Output Voltage Category | 120/240V AC |
| Operating Voltage Range | 74...265V AC, 47...63 Hz |
| Output Current Rating (per point) | 2.0A max @ 60 degC |
| Output Current Rating (per group) | 4.0A max @ 60 degC |
| Output Current Rating (per module) | 8.0A max @ 60 degC |
| Output Delay Time (Off to On) | 9.3 ms @ 60 Hz max / 11 ms @ 50 Hz max |
| Output Delay Time (On to Off) | 9.3 ms @ 60 Hz max / 11 ms @ 50 Hz max |
| Current Draw @ 5.1V DC | 260 mA |
| Current Draw @ 24V DC | 2.5 mA |
| Total Backplane Power | 1.39 W |
| Power Dissipation, Max | 4.6 W @ 60 degC |
| Thermal Dissipation | 15.7 BTU/hr |
| Off-State Leakage Current | 3.0 mA per point |
| On-State Current, Min | 10 mA |
| Surge Current, Max | 20A for 43 ms per point (repeatable every 1 s @ 60 degC) |
| Isolation Voltage | 125V (continuous), basic insulation type, outputs-to-backplane and output group-to-group |
| Routine Isolation Test | Tested @ 1200V AC for 2 s |
| Module Keying | Electronic, software configurable |
| Compatible RTB Housings | 1756-TBNH, 1756-TBSH |
| Slot Width | 1 |
| Operating Temperature | 0 to 60 degC (32 to 140 degF) |
| Nonoperating Temperature | -40 to 85 degC (-40 to 185 degF) |
| Relative Humidity | 5...95% noncondensing |
| Enclosure Type | None (open-style) |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 1756-OA8E
Country of origin:Malaysia
Product Type: AC Digital Output Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 300g
Dimensions: 140 mm x 112 mm x 35 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
