Product Operational Summary

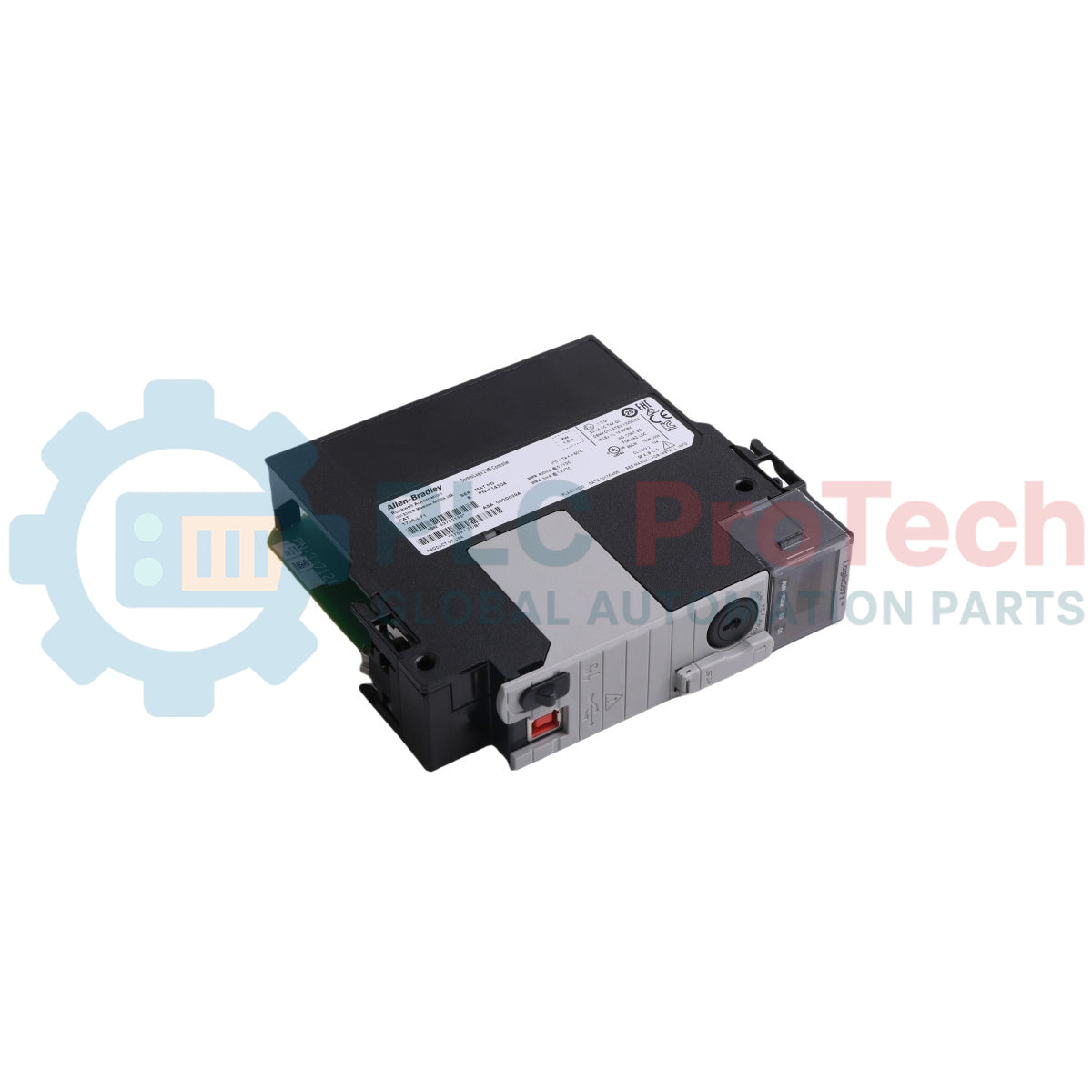

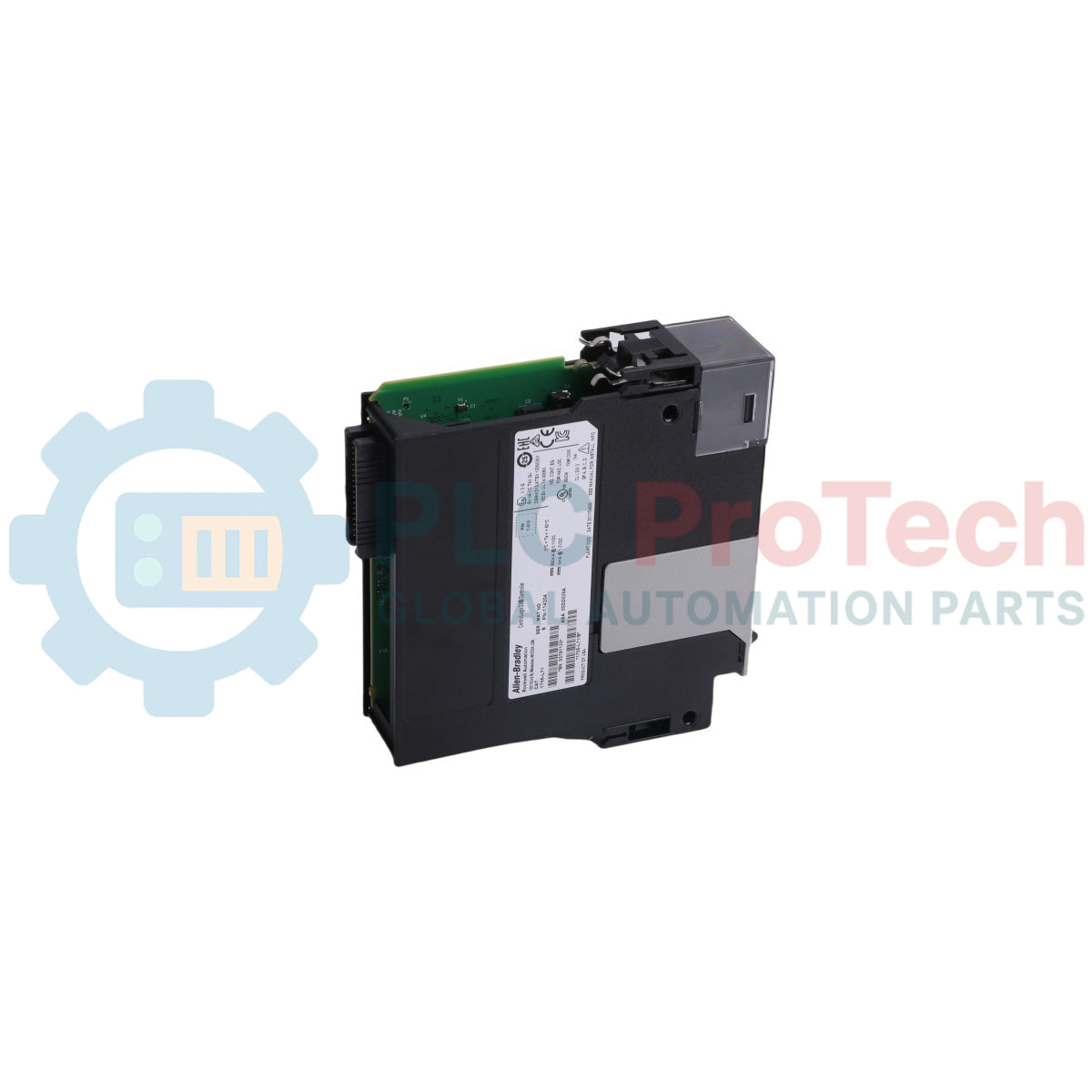

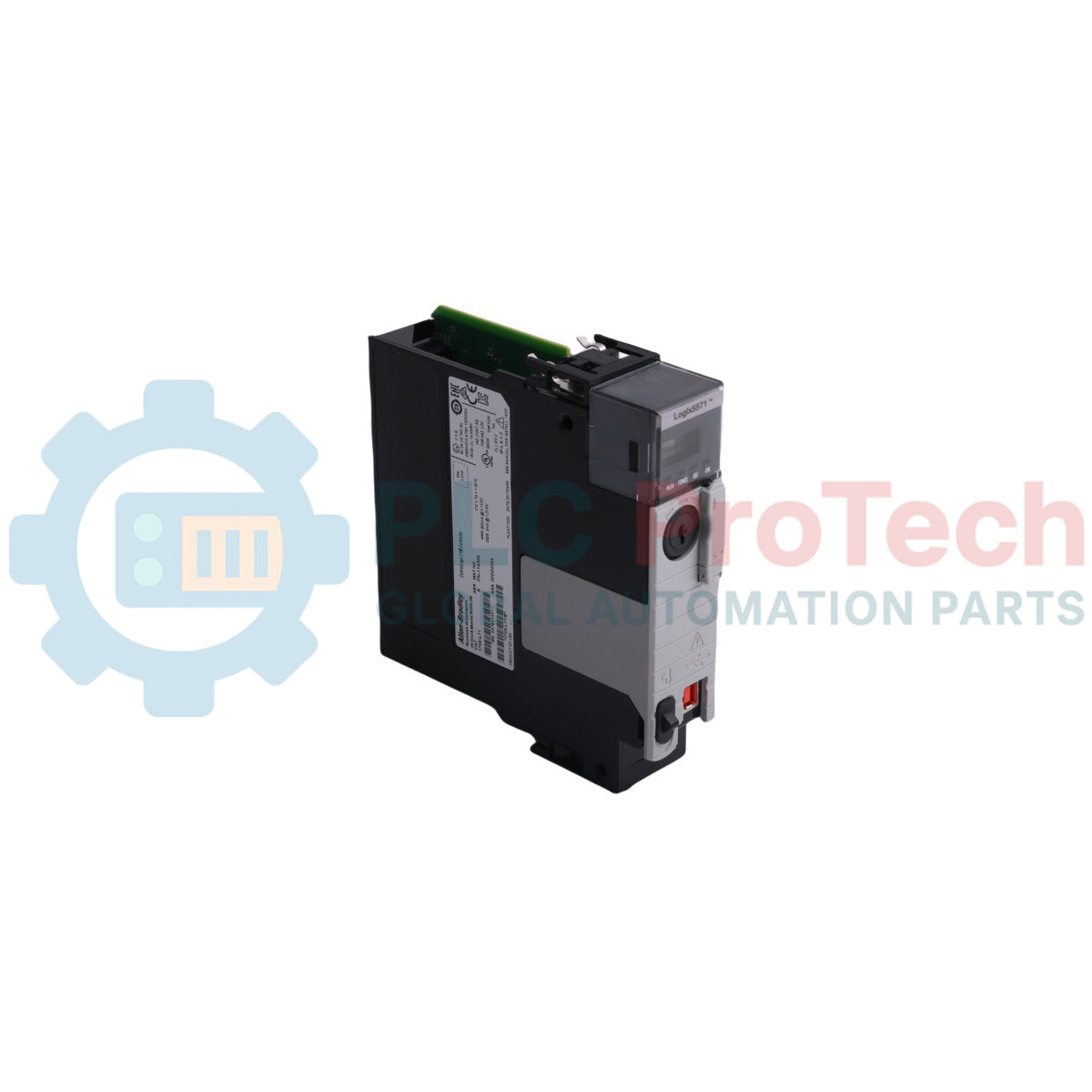

The 1756-L71S is an industrial functional safety automation controller belonging to the Allen-Bradley Bulletin 1756 GuardLogix 5570 family, engineered to fulfill the exact operational criteria of the Logix 5571S Automation Controller 2/1M. This module delivers state-of-the-art dual-processor multitasking execution, purposefully built for safety-critical control application loops. It manages safety zones in high-risk processing environments—such as automotive robotic assembly cells, complex material handling lines, and chemical processing facilities—while concurrently running standard plant logic tasks. By providing decoupled execution tasks, it allows developers to execute discrete safety interlocking and standard machine automation routines simultaneously inside a single physical chassis slot.

System Architecture and Functional Design

The hardware architecture of the 1756-L71S uses a 2-out-of-2 (2oo2) electronic voting structure. The standard ControlLogix processor executes primary machine control routines, while a dedicated Safety Partner module (such as the 1756-L7SP) acts as a co-processor to execute safety tasks and provide continuous diagnostic validation. For its internal memory layout, the "2/1M" designation corresponds directly to its calibrated volatile memory boundaries: it features 2 MB of User Memory reserved exclusively for standard tasks, alongside 1 MB of Safety Memory dedicated entirely to safety tasks. Programmatic execution constraints enforce that safety tasks support the Ladder Diagram (LD) programming language exclusively to ensure deterministic cross-checking, while standard logic tasks can be programmed across multiple languages, including Structured Text (ST), Function Block Diagram (FBD), and Sequential Function Charts (SFC).

Technical Specifications

Frequently Asked Questions

What does the 2/1M rating mean for programming a safety system?

The 2/1M description defines the physically segregated memory allocations of the 1756-L71S module. The standard portion of your project file (such as non-safety HMI communication, diagnostic mappings, and sequencing code) can utilize up to 2 MB of user memory. The critical safety-related interlocking code (such as light curtains, emergency stops, and safe-speed control loops) is restricted to a separate 1 MB memory area.

Is the 1756-L71S controller capable of running safety routines independently without accessories?

No, the 1756-L71S cannot execute safety tasks alone. It must be paired with an adjacent 1756-L7SP (or 1756-L7SPK) Safety Partner module in the same local chassis. The Safety Partner acts as the secondary voting channel, checking the primary controller's safety logic processing to achieve functional safety certifications.

How are program backups preserved during an unexpected loss of backplane power?The controller ships with an installed 1756-ESMCAP capacitor energy storage module. When backplane power fails, this capacitor provides temporary internal power, allowing the processor to automatically flush the active project from its volatile RAM into the nonvolatile 1 GB SD card (1784-SD1). This design eliminates the need for legacy lithium backup batteries.

Field Commissioning and Safety Declarations

• Local Safety Partner Placement: When installing the 1756-L71S inside a 1756-A series backplane chassis, the mandatory 1756-L7SP safety partner must be placed in the slot immediately to the right of the primary controller. The two modules communicate over a high-speed local connection to maintain synchronous safety diagnostics.
• Energy Storage Transport Safety: If your facility requires the module to be completely depleted of electrical energy before removal or air transit, replace the standard 1756-ESMCAP module with a 1756-ESMNSE No-Stored-Energy module. The ESMNSE module drops its residual energy below 40 µJ in less than 40 seconds upon power disconnection.
• Local Programming Port Restrictions: The front-facing USB 2.0 port is designed strictly for short-term maintenance tasks, such as initial firmware flashing, configuration changes, or uploading logic modifications. It is not rated or certified for permanent network connections, and it must not be connected while hazardous or explosive atmospheric conditions are present.
