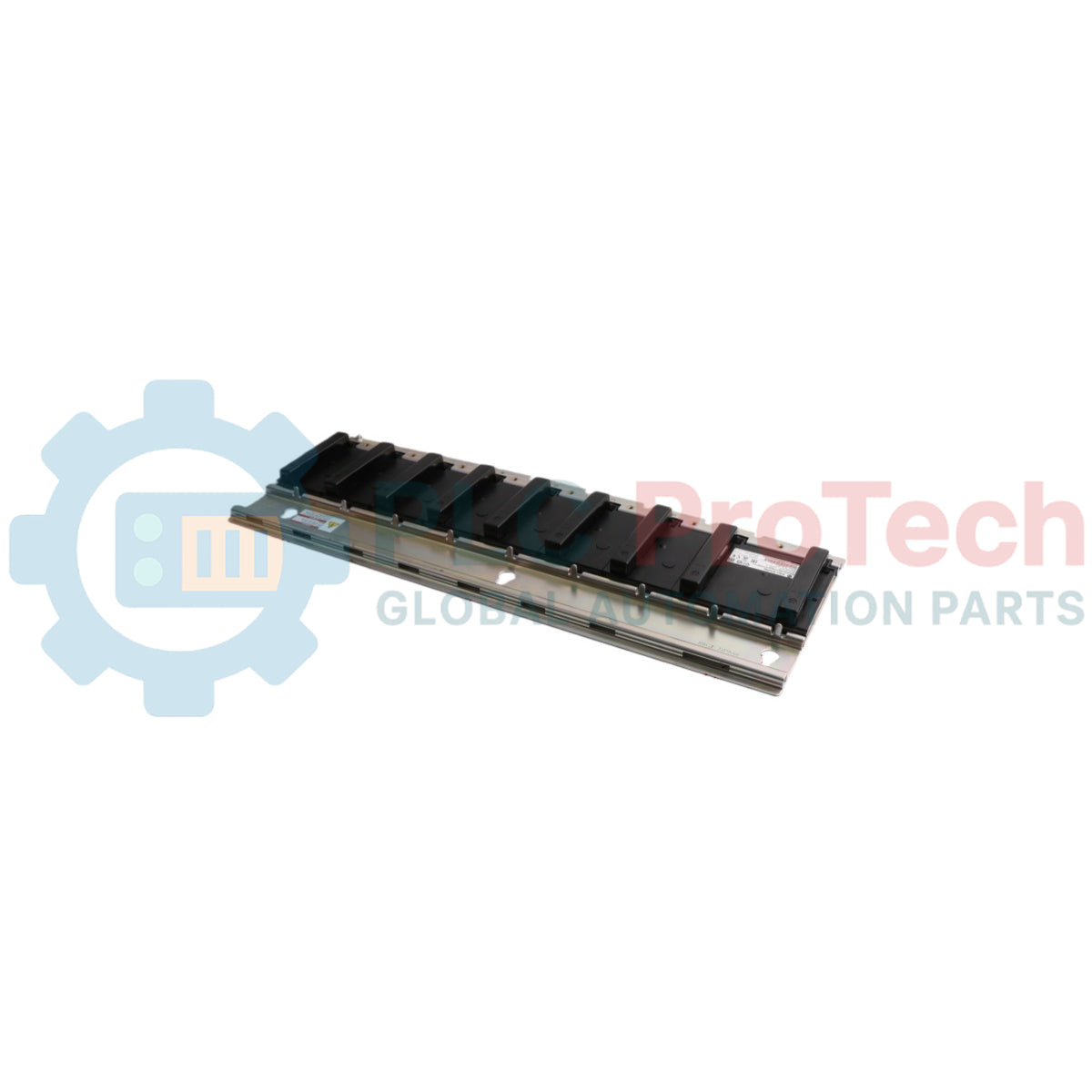

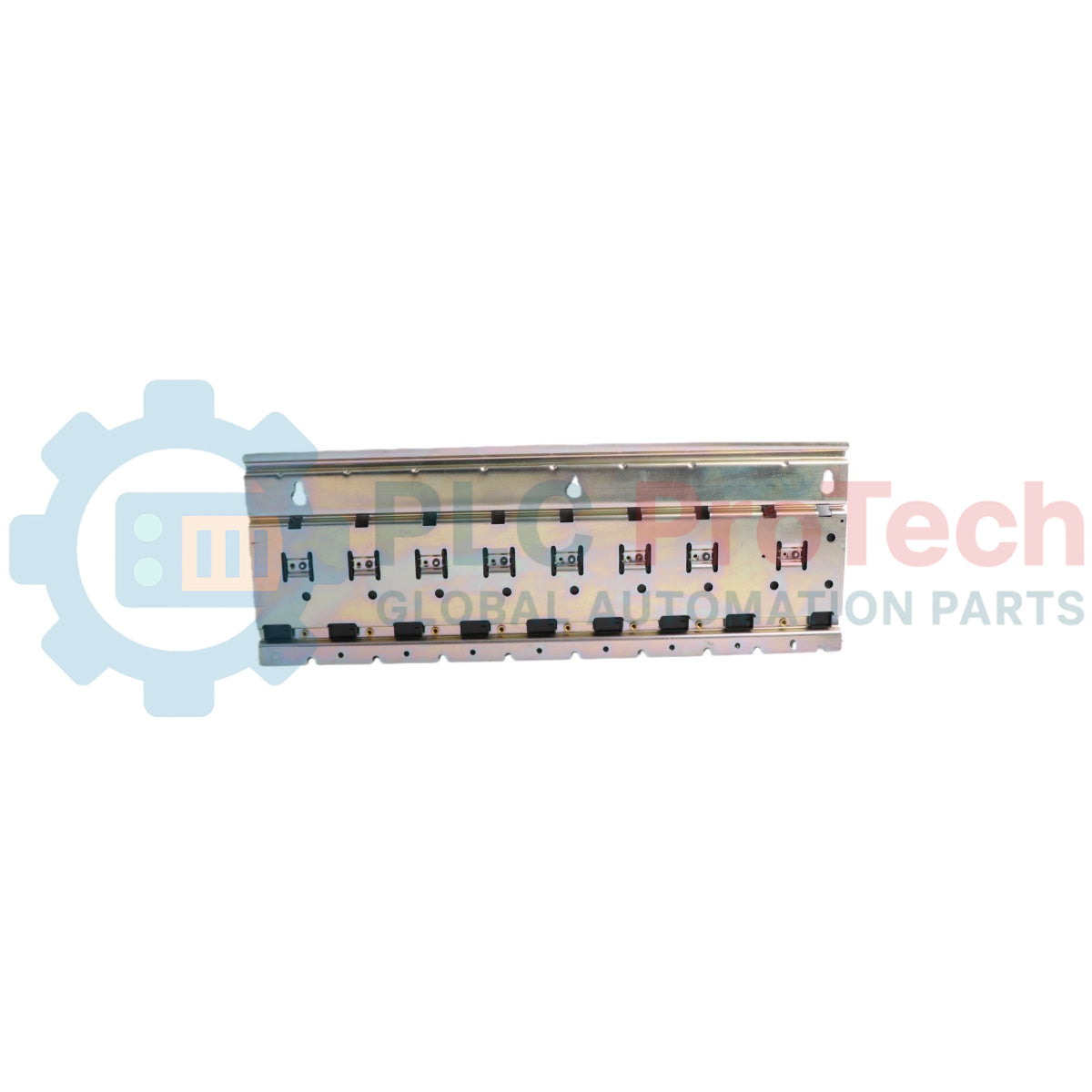

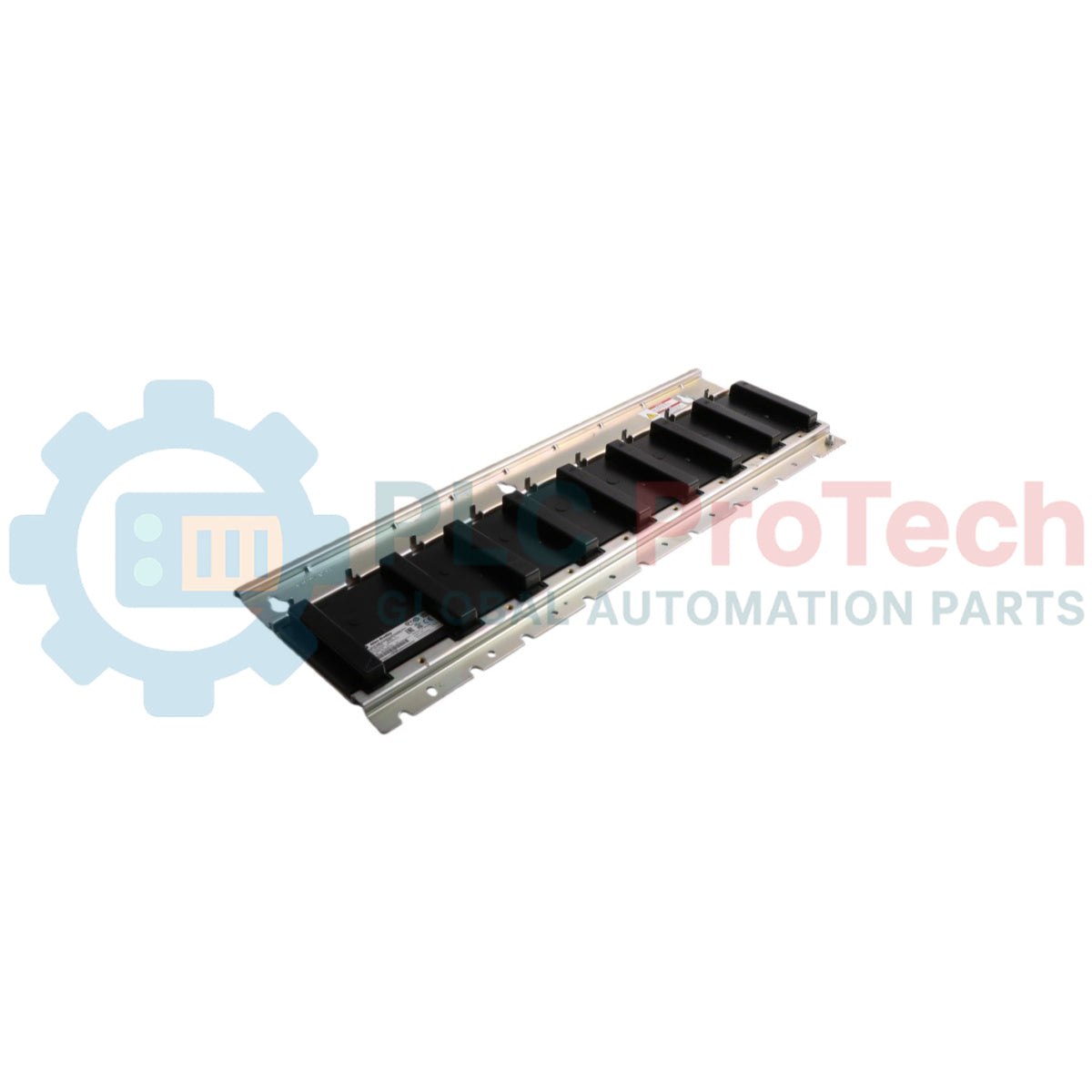

The 2094-PRS4 (2094PRS4) is a specialized Slim Power Rail within the Kinetix 6000 multi-axis servo drive family. Serving as the physical and electrical backbone for the drive system, this 4-position rail provides the mounting interface and high-voltage DC bus distribution for one Integrated Axis Module (IAM) and up to three additional Axis Modules (AM). The 2094-PRS4 is engineered to simplify cabinet construction by eliminating the need for complex power wiring between individual drives. By utilizing a common backplane for power and control signals, the rail enables "Shared DC Bus" energy efficiency and provides a rigid, vibration-resistant foundation for high-performance motion control systems.
The 2094-PRS4 is a passive component that facilitates the distribution of high-voltage DC power and low-voltage control power across the drive lineup.
Slot Configuration: Features 4 dedicated positions. The leftmost position is reserved for the IAM (Integrated Axis Module), while the remaining 3 slots support any combination of Axis Modules or Shunt Modules.
Integrated DC Bus: Features high-current pins that link the DC bus across all modules, allowing regenerative energy from one braking motor to be instantly utilized by another accelerating motor.
Control Power Distribution: Distributes the 24 VDC control power required for the drive logic and safety circuits, reducing the number of external wiring terminations.
Modular Design: Part of the "Slim" series, designed to minimize panel depth and width, allowing for more axes in a smaller enclosure footprint.
| Specification | Details |
| Model | 2094-PRS4 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Number of Slots | 4 Positions (1 IAM + 3 AM/Specialty) |
| Series | Kinetix 6000 / 6000M |
| Mounting Type | Backpanel (Vertical) |
| DC Bus Current (Max) | 100 A (Continuous) |
| Weight | 2.3 kg |
| Operating Temp | 0 to 50 Celsius |
| Dimensions | Designed for "Slim" module profiles |
| Shipping Weight | 3.5 kg |
Can I install a 5th axis on a 2094-PRS4 power rail?
No. The 2094-PRS4 is physically limited to four slots. If your application requires five or more axes, you must upgrade to a larger rail, such as the 2094-PRS5 or 2094-PRS8, or use a second rail with a bus-extender cable.
Do I need to cover unused slots on the power rail?
Yes. To maintain electrical safety and prevent debris from entering the high-voltage DC bus connectors, it is highly recommended to use 2094-PRF slot covers on any position that does not have an axis module installed.
How is the power rail grounded?
The 2094-PRS4 must be mounted to a conductive (unpainted) sub-panel. It features dedicated grounding studs that must be bonded to the main system ground to ensure the EMI filters in the attached modules function correctly.
Module Torque Requirements: When securing a Kinetix 6000 module to the 2094-PRS4, the mounting screws must be tightened to 2.26 Nm (20 lb-in). Under-tightening can cause high-resistance paths on the DC bus, leading to "Bus Undervoltage" faults and localized overheating.
Alignment Accuracy: Before tightening the screws, ensure the module's backplane connectors are perfectly aligned with the pins on the 2094-PRS4. Forcing a module into a misaligned rail can result in bent pins and a permanent "Bus Fault."
Panel Flatness: Ensure the mounting surface is perfectly flat. A warped sub-panel can cause the rail to flex, potentially stressing the internal PCB traces and causing intermittent communication errors between the modules.
The 2094-PRS4 stands out for its Simplified MTTR (Mean Time to Repair). Because all power and control signals are routed through the rail, an axis module can be replaced in minutes by simply loosening two screws and swapping the module—no complex power wiring required. This modularity, combined with the energy-saving benefits of the common DC bus, makes the 2094-PRS4 the ideal infrastructure choice for multi-axis systems in the packaging, converting, and printing industries.
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 2094-PRS4
Country of origin:United States
Product Type: Power Rail
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 900g
Dimensions: 3.5cm x 13cm x 14.5cm
Shipping port: Xiamen
Warranty: 12 months
The 2094-PRS4 (2094PRS4) is a specialized Slim Power Rail within the Kinetix 6000 multi-axis servo drive family. Serving as the physical and electrical backbone for the drive system, this 4-position rail provides the mounting interface and high-voltage DC bus distribution for one Integrated Axis Module (IAM) and up to three additional Axis Modules (AM). The 2094-PRS4 is engineered to simplify cabinet construction by eliminating the need for complex power wiring between individual drives. By utilizing a common backplane for power and control signals, the rail enables "Shared DC Bus" energy efficiency and provides a rigid, vibration-resistant foundation for high-performance motion control systems.
The 2094-PRS4 is a passive component that facilitates the distribution of high-voltage DC power and low-voltage control power across the drive lineup.
Slot Configuration: Features 4 dedicated positions. The leftmost position is reserved for the IAM (Integrated Axis Module), while the remaining 3 slots support any combination of Axis Modules or Shunt Modules.
Integrated DC Bus: Features high-current pins that link the DC bus across all modules, allowing regenerative energy from one braking motor to be instantly utilized by another accelerating motor.
Control Power Distribution: Distributes the 24 VDC control power required for the drive logic and safety circuits, reducing the number of external wiring terminations.
Modular Design: Part of the "Slim" series, designed to minimize panel depth and width, allowing for more axes in a smaller enclosure footprint.
| Specification | Details |
| Model | 2094-PRS4 |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Number of Slots | 4 Positions (1 IAM + 3 AM/Specialty) |
| Series | Kinetix 6000 / 6000M |
| Mounting Type | Backpanel (Vertical) |
| DC Bus Current (Max) | 100 A (Continuous) |
| Weight | 2.3 kg |
| Operating Temp | 0 to 50 Celsius |
| Dimensions | Designed for "Slim" module profiles |
| Shipping Weight | 3.5 kg |
Can I install a 5th axis on a 2094-PRS4 power rail?
No. The 2094-PRS4 is physically limited to four slots. If your application requires five or more axes, you must upgrade to a larger rail, such as the 2094-PRS5 or 2094-PRS8, or use a second rail with a bus-extender cable.
Do I need to cover unused slots on the power rail?
Yes. To maintain electrical safety and prevent debris from entering the high-voltage DC bus connectors, it is highly recommended to use 2094-PRF slot covers on any position that does not have an axis module installed.
How is the power rail grounded?
The 2094-PRS4 must be mounted to a conductive (unpainted) sub-panel. It features dedicated grounding studs that must be bonded to the main system ground to ensure the EMI filters in the attached modules function correctly.
Module Torque Requirements: When securing a Kinetix 6000 module to the 2094-PRS4, the mounting screws must be tightened to 2.26 Nm (20 lb-in). Under-tightening can cause high-resistance paths on the DC bus, leading to "Bus Undervoltage" faults and localized overheating.
Alignment Accuracy: Before tightening the screws, ensure the module's backplane connectors are perfectly aligned with the pins on the 2094-PRS4. Forcing a module into a misaligned rail can result in bent pins and a permanent "Bus Fault."
Panel Flatness: Ensure the mounting surface is perfectly flat. A warped sub-panel can cause the rail to flex, potentially stressing the internal PCB traces and causing intermittent communication errors between the modules.
The 2094-PRS4 stands out for its Simplified MTTR (Mean Time to Repair). Because all power and control signals are routed through the rail, an axis module can be replaced in minutes by simply loosening two screws and swapping the module—no complex power wiring required. This modularity, combined with the energy-saving benefits of the common DC bus, makes the 2094-PRS4 the ideal infrastructure choice for multi-axis systems in the packaging, converting, and printing industries.
