Product Overview and Operator Visualization

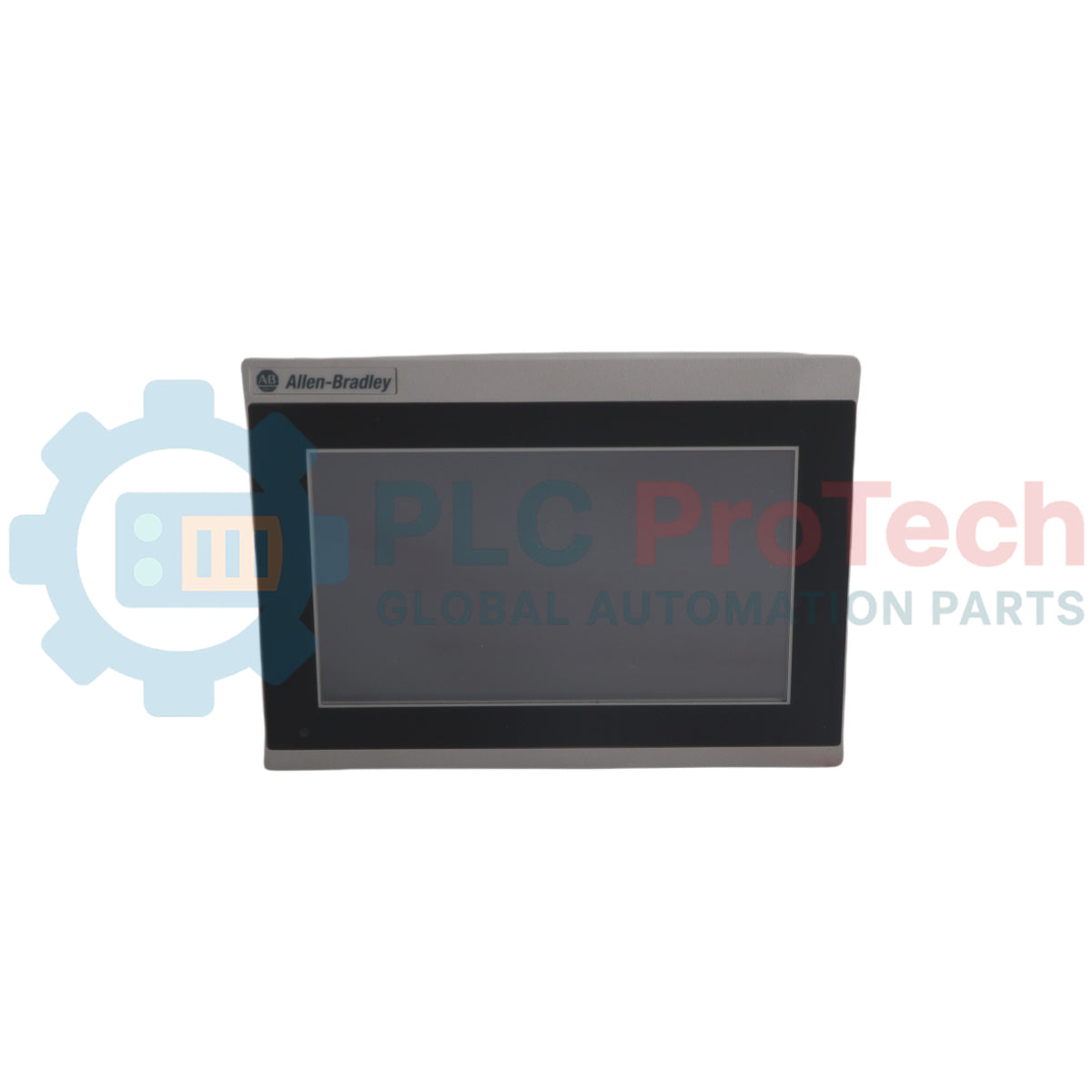

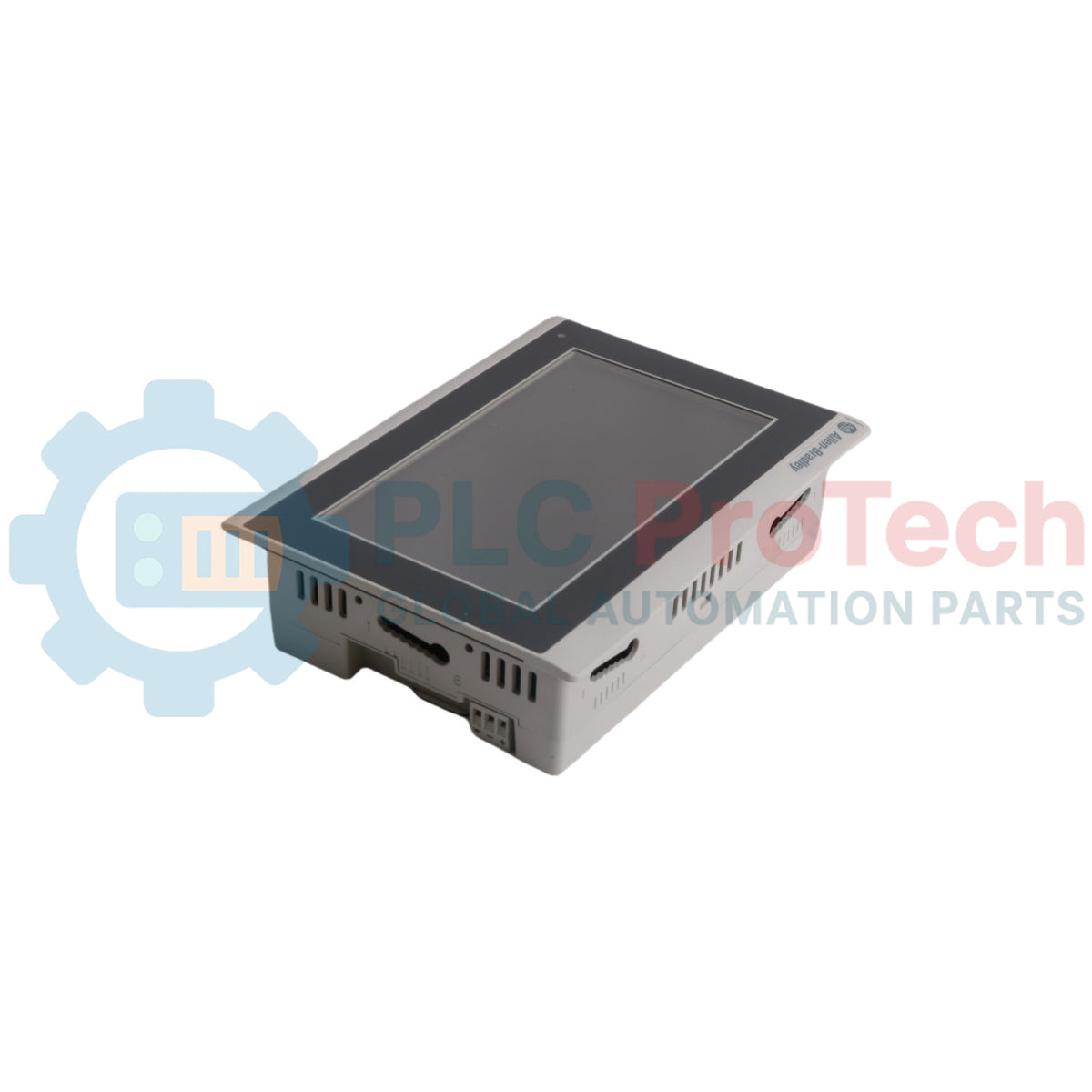

The 2711R-T7T (2711RT7T) is a high-performance operator interface within the PanelView 800 family, designed to provide a professional, cost-effective visualization solution for small-to-medium standalone machines. Featuring a 7-inch widescreen TFT display, this HMI is specifically optimized for use with Allen-Bradley Micro800 and MicroLogix controllers. The 2711R-T7T offers a significant upgrade in processing speed and memory over its predecessors, supporting high-resolution graphics and complex alarm handling. Its rugged design and versatile communication options—including Ethernet, RS-232, and RS-485—make it the industry standard for OEMs in packaging, material handling, and pump control applications.

Hardware Architecture and Integrated Logic

The 2711R-T7T is built on an ARM-based processor architecture, enabling rapid screen switching and responsive touch interaction. It operates on a Windows CE-based environment optimized for industrial reliability.

• Widescreen Display: A 7-inch display with 800 x 480 WVGA resolution and 65K colors, providing clear, sharp visualization for detailed process mimics and trending objects.

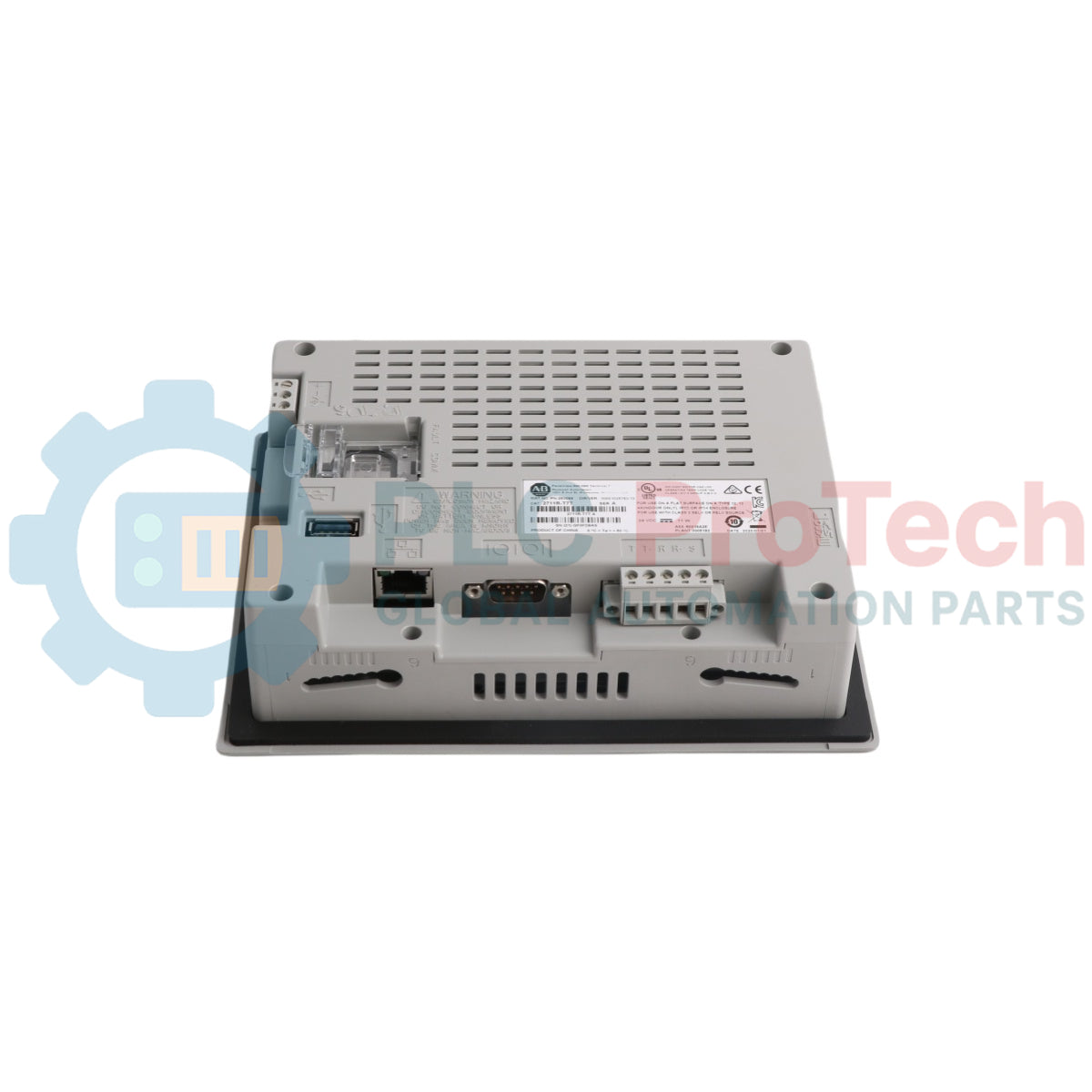

• Flexible Communication: Includes an embedded 10/100 Ethernet port for high-speed PLC communication and a serial combo port that supports both RS-232 and RS-485 (isolated).

• High-Speed Processing: Equipped with an 800 MHz processor and 256 MB of RAM, allowing for complex scripts and high-speed data sampling.

• Portrait and Landscape Modes: The terminal supports both horizontal and vertical mounting orientations, allowing it to fit into narrow control panels or specialized machine profiles.

Technical Specifications

Integrated Technical FAQ

Which software is used to program the 2711R-T7T?

The 2711R-T7T is programmed using Connected Components Workbench (CCW) software. CCW provides a unified design environment for the HMI, Micro800 controllers, and PowerFlex drives, allowing for shared tags and faster integration.

Can I use this HMI with a CompactLogix controller?

Yes. While optimized for Micro800/MicroLogix, the 2711R-T7T supports communication with CompactLogix (specifically L1, L2, and L3 controllers) using EtherNet/IP, though it is limited to a maximum of 50 screen objects when communicating with Logix-based systems.

How do I update the firmware on the terminal?

Firmware updates can be performed directly through the CCW software via the Ethernet port, or by loading the firmware onto a microSD card and using the terminal's built-in "File Manager" utility to execute the upgrade.

Engineering & Installation Protocols

• Panel Cutout Accuracy: Use the factory-provided template for the panel cutout. Ensure the surface is flat and free of burrs; the 2711R-T7T relies on a perimeter gasket to maintain its IP65/NEMA 4X rating.

• Power Supply Quality: The terminal requires 24 VDC power. To prevent "reboot loops" or touchscreen interference, use a dedicated industrial power supply with a low ripple voltage and ensure the ground terminal is bonded to the common system ground.

• USB and SD Port Safety: The USB and microSD ports are for maintenance and data logging. In high-vibration environments, ensure that any external storage media is physically secured or removed after the configuration is complete to prevent mechanical damage to the ports.

Engineering Advantages

The 2711R-T7T stands out for its "Unified Architecture" benefits. By utilizing the same software for the HMI and the PLC, engineers can reduce commissioning time by up to 30% through tag-name synchronization. Its ability to perform data logging and recipe management without a dedicated server makes it an ideal "Edge" device for small manufacturing cells. Furthermore, the resistive touch technology ensures that operators can interact with the screen while wearing heavy industrial gloves, a critical requirement in many food processing and chemical environments.
