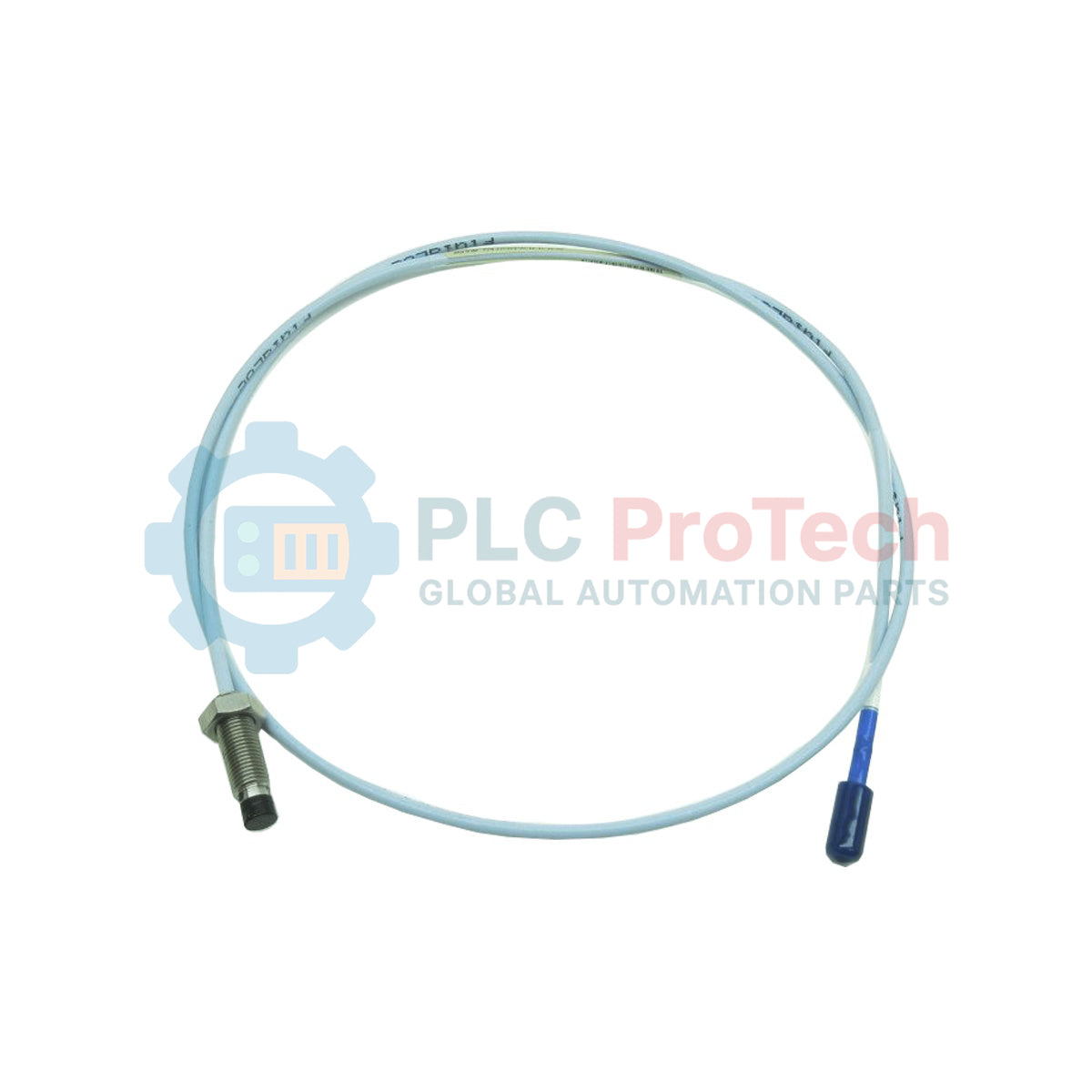

The 330101-00-33-10-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe designed for non-contact vibration and position measurement in eddy current transducer systems. The probe operates as part of the 3300 XL 8 mm Proximity Transducer System together with an extension cable and Proximitor sensor.
The system provides an output voltage proportional to the distance between the probe tip and a conductive target surface. It supports both static (position) and dynamic (vibration) measurements. Primary use includes monitoring fluid-film bearing machinery, as well as Keyphasor reference and speed measurement applications.
The probe integrates improved mechanical bonding technologies including TipLoc molding and CableLoc construction to enhance durability and tensile strength. The ClickLoc connector design provides secure, tool-free installation and stable electrical connection.
The probe is designed for interchangeability within the 3300 XL system architecture, maintaining compatibility with 5 mm and 8 mm legacy components when system configuration rules are observed.
| Option Code | Description |
|---|---|
| 330101 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| -00 | Unthreaded Length Option: 0.0 in |
| -33 | Overall Case Length Option: 3.3 in |
| -10 | Total Length Option: 1.0 meter (3.3 feet) |
| -02 | Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable |
| -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Category | Specification |
|---|---|
| Probe Type | Eddy current proximity probe |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Cable Type | 75 ohm triaxial cable (FEP or PFA insulation depending on variant) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Tensile Strength | 330 N (75 lbf) probe assembly (max rated) |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Cable Capacitance | 69.9 pF/m typical |
| Operating Probe Temperature | -52 C to +177 C |
| Extended Probe Temperature Range | Up to +218 C (tip), cable up to +260 C |
| Linear Range | 0.25 mm to 2.3 mm (approx.) |
| Frequency Response | 0 to 10 kHz (system dependent) |
| Minimum Target Size | 15.2 mm flat target |
| Shaft Diameter Recommendation | 50.8 mm minimum (76.2 mm recommended) |
| Probe DC Resistance | Varies by probe length (approx. 7.45 to 9.87 ohm range) |
| Connector Pin / Interface | Function |
|---|---|
| Center Conductor | Signal output |
| Outer Conductor | Signal return / shielding |
| ClickLoc Connector | Probe-to-extension cable connection |
| Cable Shield | EMI/RFI protection and grounding reference |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 330101-00-33-10-02-CN
Country of origin:United States
Product Type: Proximity Probe
Payment: T/T, Western Union
Weight: 320g
Dimensions: 8 mm x 8 mm x 200 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
The 330101-00-33-10-02-CN is a Bently Nevada 3300 XL 8 mm proximity probe designed for non-contact vibration and position measurement in eddy current transducer systems. The probe operates as part of the 3300 XL 8 mm Proximity Transducer System together with an extension cable and Proximitor sensor.
The system provides an output voltage proportional to the distance between the probe tip and a conductive target surface. It supports both static (position) and dynamic (vibration) measurements. Primary use includes monitoring fluid-film bearing machinery, as well as Keyphasor reference and speed measurement applications.
The probe integrates improved mechanical bonding technologies including TipLoc molding and CableLoc construction to enhance durability and tensile strength. The ClickLoc connector design provides secure, tool-free installation and stable electrical connection.
The probe is designed for interchangeability within the 3300 XL system architecture, maintaining compatibility with 5 mm and 8 mm legacy components when system configuration rules are observed.
| Option Code | Description |
|---|---|
| 330101 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor |
| -00 | Unthreaded Length Option: 0.0 in |
| -33 | Overall Case Length Option: 3.3 in |
| -10 | Total Length Option: 1.0 meter (3.3 feet) |
| -02 | Connector and Cable-Type Option: Miniature coaxial ClickLoc connector, standard cable |
| -CN | China hazardous area approval package (NEPSI + CCC + applicable markings) |
| Category | Specification |
|---|---|
| Probe Type | Eddy current proximity probe |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Cable Type | 75 ohm triaxial cable (FEP or PFA insulation depending on variant) |
| Connector Type | Miniature coaxial ClickLoc connector |
| Probe Case Material | AISI 303 or 304 stainless steel |
| Tensile Strength | 330 N (75 lbf) probe assembly (max rated) |
| Maximum Connector Torque | 0.565 N·m (5 in·lbf) |
| Cable Capacitance | 69.9 pF/m typical |
| Operating Probe Temperature | -52 C to +177 C |
| Extended Probe Temperature Range | Up to +218 C (tip), cable up to +260 C |
| Linear Range | 0.25 mm to 2.3 mm (approx.) |
| Frequency Response | 0 to 10 kHz (system dependent) |
| Minimum Target Size | 15.2 mm flat target |
| Shaft Diameter Recommendation | 50.8 mm minimum (76.2 mm recommended) |
| Probe DC Resistance | Varies by probe length (approx. 7.45 to 9.87 ohm range) |
| Connector Pin / Interface | Function |
|---|---|
| Center Conductor | Signal output |
| Outer Conductor | Signal return / shielding |
| ClickLoc Connector | Probe-to-extension cable connection |
| Cable Shield | EMI/RFI protection and grounding reference |
