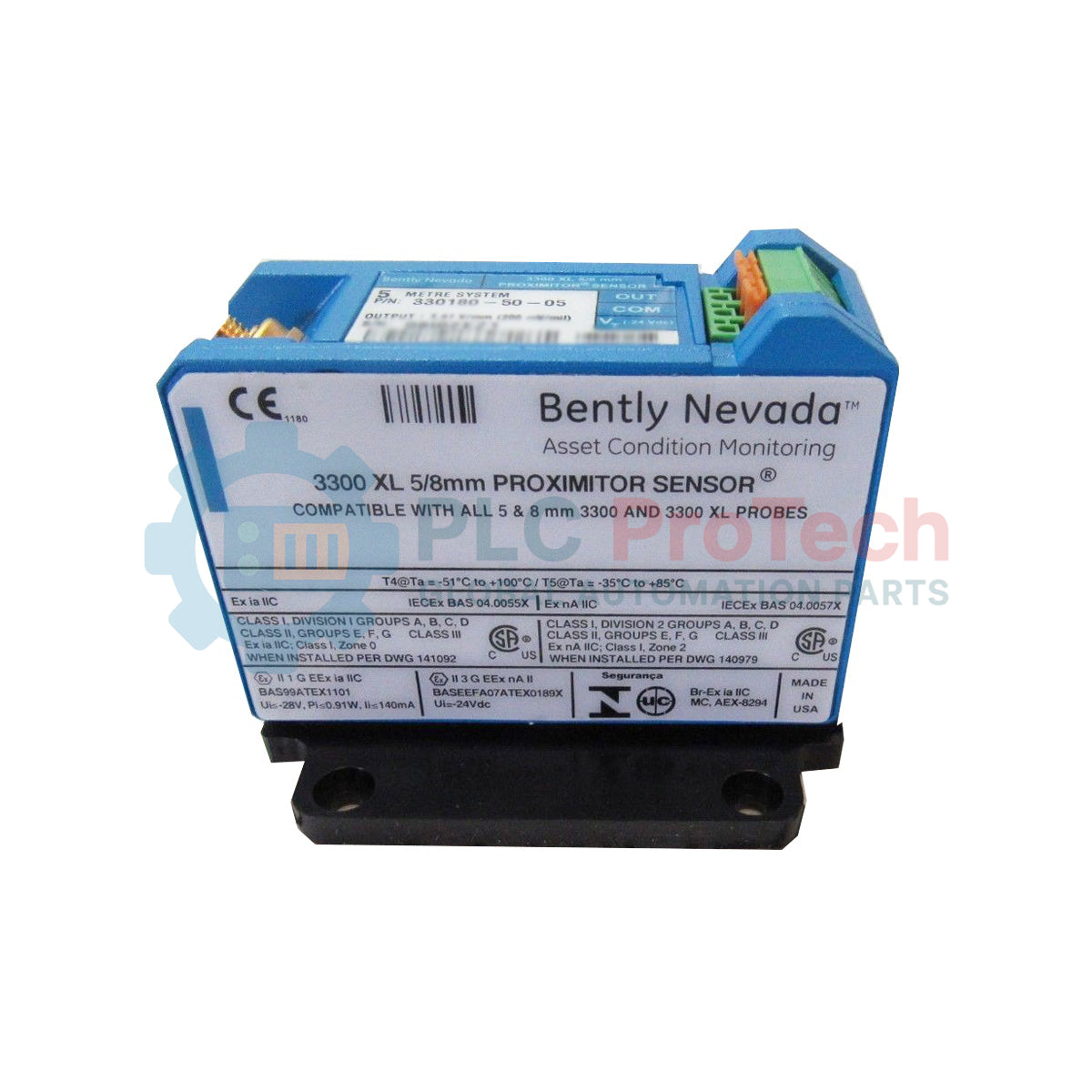

The 330180-X1-CN MOD 145004-14 (330180-X1-CN-145004-14) by Bently Nevada is a specialized 3300 XL Proximitor Sensor designed for advanced machinery protection in demanding sectors like heavy mining, offshore oil platforms, and thermal power plants. This specific MOD 145004-14 variant is factory-calibrated for AISI 1040 steel target material, ensuring maximum linearity and accuracy when standard 4140 calibration is insufficient. By converting the complex eddy current signal from the probe into a stable voltage output, this sensor enables real-time tracking of radial vibration and axial thrust. Its robust design is critical for detecting early-stage rotor imbalances and shaft misalignments, allowing operators to execute predictive maintenance and significantly reduce the probability of catastrophic machine failure or unplanned outages.
Each segment of this model number represents a critical hardware or calibration specification tailored for industrial compliance:
330180: Base series identifier for the 3300 XL Proximitor Sensor.
X1: Specifies the total system length and mounting hardware configuration (typically compatible with 5.0 or 9.0 meter systems).
CN: Denotes global and regional agency approvals, including ATEX/IECEx for explosive atmospheres and the Chinese NEPSI hazardous area certification.
MOD 145004-14: Indicates a factory-level modification for non-standard requirements.
14: Target Material Calibration. This unit is specifically tuned for AISI 1040 steel targets, adjusting the scale factor to maintain the standard 7.87 V/mm (200 mV/mil) output.
| Feature | Technical Detail |
| Model | 330180-X1-CN MOD 145004-14 |
| Brand | Bently Nevada |
| Origin | U.S.A |
| Target Material | AISI 1040 Steel (Custom Calibration) |
| Standard Scale Factor | 7.87 V/mm (200 mV/mil) |
| Input Power | -17.5 VDC to -26 VDC |
| Operating Temp | -52 to 100 deg C |
| Shipping Weight | 2.0 kg |
| Approvals | ATEX, IECEx, NEPSI |
Why is AISI 1040 calibration necessary for this MOD version?
Standard Bently Nevada sensors are calibrated for AISI 4140 steel. If your shaft material is AISI 1040, using a standard sensor would result in significant linearity errors and incorrect vibration readings. This MOD version ensures the 200 mV/mil output remains accurate for the specific metallurgy of your machine.
Can this Proximitor be mounted in a high-vibration area?
While the 3300 XL series is robust, it should ideally be mounted in a weather-tight housing (like a 3300 XL internal or external housing) to shield it from direct environmental impact and excessive structural vibration, ensuring long-term signal stability.
Is this unit compatible with non-XL 3300 probes?
The 3300 XL Proximitor is designed for use with 3300 XL probes; however, it provides backward compatibility with some non-XL 3300 5 mm and 8 mm probes. Always verify total system length (5 m or 9 m) before commissioning.
Shielding and Grounding Requirements
To prevent EMI (Electromagnetic Interference) from distorting the vibration signal, the coaxial cable shield must be isolated from the machine ground. Ensure the Proximitor is mounted on a DIN rail that is properly bonded to a clean instrument ground. Failure to maintain a single-point ground can lead to "noise" that the monitoring system may misinterpret as actual machinery vibration.
Target Material Sensitivity
Since this unit is modified for AISI 1040 steel (MOD 145004-14), ensure that the probe is not installed on a shaft made of 4140 or other alloys. Using the wrong calibration will cause a Scale Factor Error (SFE). We recommend verifying the shaft material via the original equipment manufacturer (OEM) documentation prior to replacing existing sensors with this modified version.
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 145004-14
Country of origin:United States
Product Type: 3300 XL Proximitor Sensor
Payment: T/T, Western Union
Weight: 320g
Shipping port: Xiamen
Warranty: 12 months
The 330180-X1-CN MOD 145004-14 (330180-X1-CN-145004-14) by Bently Nevada is a specialized 3300 XL Proximitor Sensor designed for advanced machinery protection in demanding sectors like heavy mining, offshore oil platforms, and thermal power plants. This specific MOD 145004-14 variant is factory-calibrated for AISI 1040 steel target material, ensuring maximum linearity and accuracy when standard 4140 calibration is insufficient. By converting the complex eddy current signal from the probe into a stable voltage output, this sensor enables real-time tracking of radial vibration and axial thrust. Its robust design is critical for detecting early-stage rotor imbalances and shaft misalignments, allowing operators to execute predictive maintenance and significantly reduce the probability of catastrophic machine failure or unplanned outages.
Each segment of this model number represents a critical hardware or calibration specification tailored for industrial compliance:
330180: Base series identifier for the 3300 XL Proximitor Sensor.
X1: Specifies the total system length and mounting hardware configuration (typically compatible with 5.0 or 9.0 meter systems).
CN: Denotes global and regional agency approvals, including ATEX/IECEx for explosive atmospheres and the Chinese NEPSI hazardous area certification.
MOD 145004-14: Indicates a factory-level modification for non-standard requirements.
14: Target Material Calibration. This unit is specifically tuned for AISI 1040 steel targets, adjusting the scale factor to maintain the standard 7.87 V/mm (200 mV/mil) output.
| Feature | Technical Detail |
| Model | 330180-X1-CN MOD 145004-14 |
| Brand | Bently Nevada |
| Origin | U.S.A |
| Target Material | AISI 1040 Steel (Custom Calibration) |
| Standard Scale Factor | 7.87 V/mm (200 mV/mil) |
| Input Power | -17.5 VDC to -26 VDC |
| Operating Temp | -52 to 100 deg C |
| Shipping Weight | 2.0 kg |
| Approvals | ATEX, IECEx, NEPSI |
Why is AISI 1040 calibration necessary for this MOD version?
Standard Bently Nevada sensors are calibrated for AISI 4140 steel. If your shaft material is AISI 1040, using a standard sensor would result in significant linearity errors and incorrect vibration readings. This MOD version ensures the 200 mV/mil output remains accurate for the specific metallurgy of your machine.
Can this Proximitor be mounted in a high-vibration area?
While the 3300 XL series is robust, it should ideally be mounted in a weather-tight housing (like a 3300 XL internal or external housing) to shield it from direct environmental impact and excessive structural vibration, ensuring long-term signal stability.
Is this unit compatible with non-XL 3300 probes?
The 3300 XL Proximitor is designed for use with 3300 XL probes; however, it provides backward compatibility with some non-XL 3300 5 mm and 8 mm probes. Always verify total system length (5 m or 9 m) before commissioning.
Shielding and Grounding Requirements
To prevent EMI (Electromagnetic Interference) from distorting the vibration signal, the coaxial cable shield must be isolated from the machine ground. Ensure the Proximitor is mounted on a DIN rail that is properly bonded to a clean instrument ground. Failure to maintain a single-point ground can lead to "noise" that the monitoring system may misinterpret as actual machinery vibration.
Target Material Sensitivity
Since this unit is modified for AISI 1040 steel (MOD 145004-14), ensure that the probe is not installed on a shaft made of 4140 or other alloys. Using the wrong calibration will cause a Scale Factor Error (SFE). We recommend verifying the shaft material via the original equipment manufacturer (OEM) documentation prior to replacing existing sensors with this modified version.
