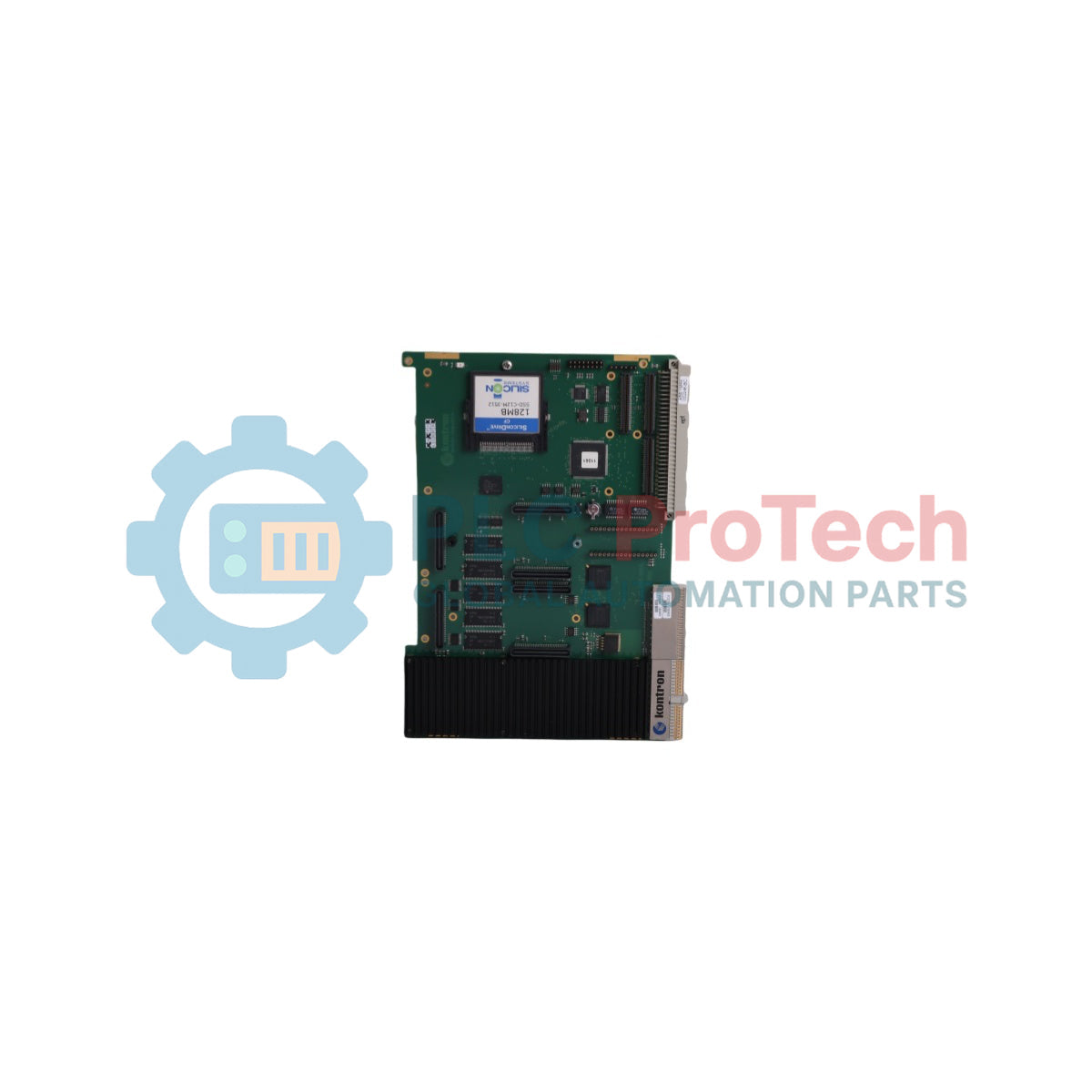

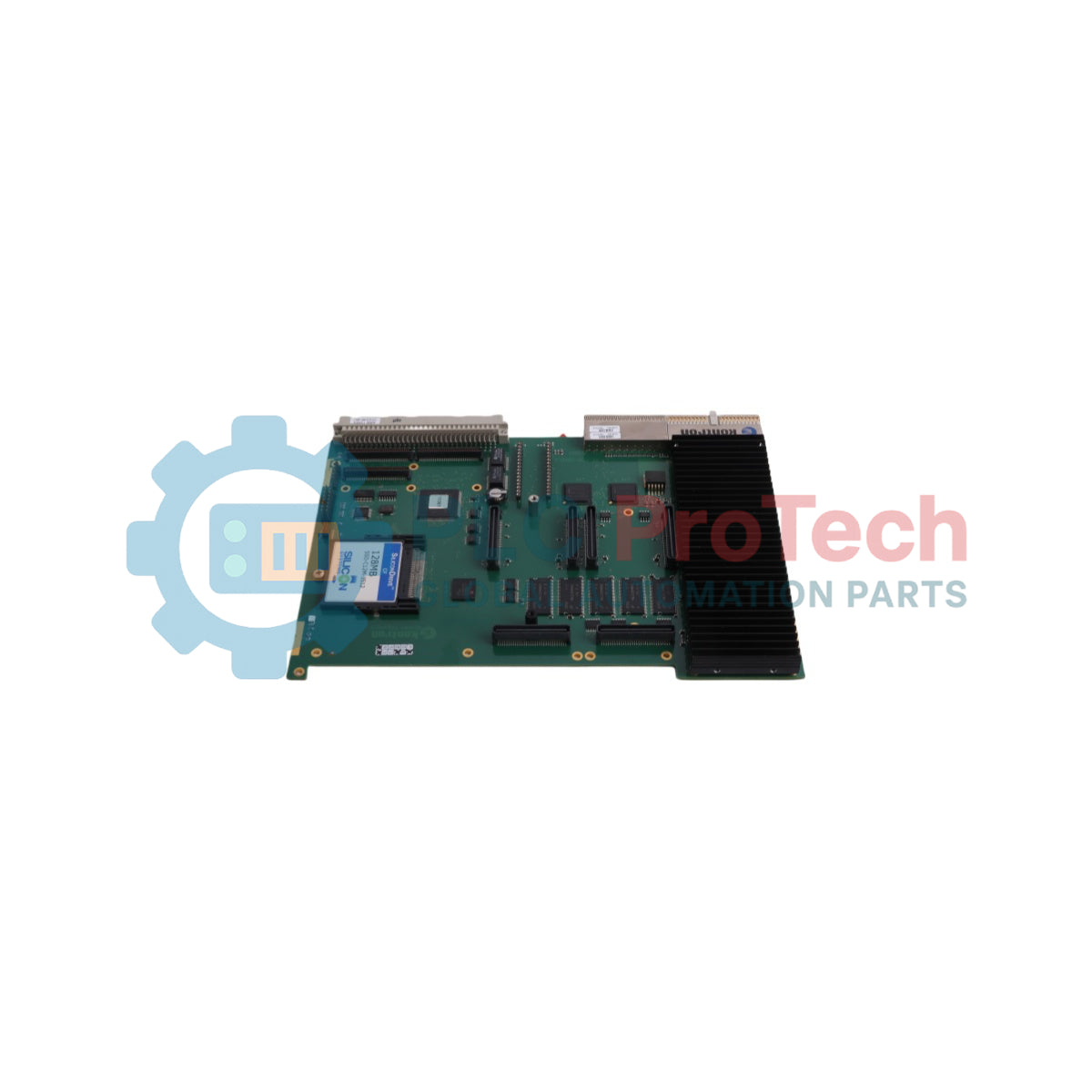

ABB 1MRK002246-BC Numeric Processing Module

SKU 1MRK002246-BC

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 1MRK002246-BC
  • Origin Switzerland
  • Product Type: Numeric Processing Modules
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: 220 mm x 160 mm x 30 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Numeric Processing Modules
Quantità
Call sales Contact

Product Description

The ABB 1MRK002246-BC is a numeric processing module designed for high-speed signal evaluation and control functions within automation and protection architectures. Located at position P30, this unit processes complex algorithms using a 600 MHz processor equipped with a 512 kB cache for efficient instruction execution and real-time data handling. The 1MRK002246-BC provides reliable computational performance for demanding industrial system applications.

Features

  • Integrated 600 MHz numeric processor
  • 512 kB dedicated cache memory
  • Standardized connection type interface
  • Engineered for installation in Location P30 slots

Applications

  • Digital protection and control systems
  • Industrial substation automation
  • Process control and numeric processing architectures

Technical Specifications

Parameter Specification
Manufacturer ABB
Model 1MRK002246-BC
Module Type Numeric Processing Module (NUM)
Slot Location P30
Processor Speed 600 MHz
Cache Memory 512 kB
Connection Type Basic

Installation Guidelines

  • Ensure power to the system rack or chassis is completely isolated before insertion or removal of the module.
  • Align the module card edges with the slot guides at Location P30 and slide it into the chassis until fully seated.
  • Maintain proper electrostatic discharge (ESD) precautions during handling to protect internal electronic components.
  • Ensure adequate ventilation around the chassis to support passive heat dissipation.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What processor speed does the module operate at?
The module features a 600 MHz numeric processing unit.
How much cache memory is integrated into the device?
The device includes 512 kB of dedicated cache memory.
Which chassis slot location is specified for installation?
The module is designed for installation in Location P30.
