ABB 3ADT316400R0502 SDCS-BAB-F02 DCS550/DCS880 Bridge Adaption Board

SKU SDCS-BAB-F02 3ADT316400R0502

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: SDCS-BAB-F02 3ADT316400R0502
Origin China
Product Type: Bridge Adaption Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.299 kg
Dimensions: 24 cm x 19 cm x 5.3 cm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

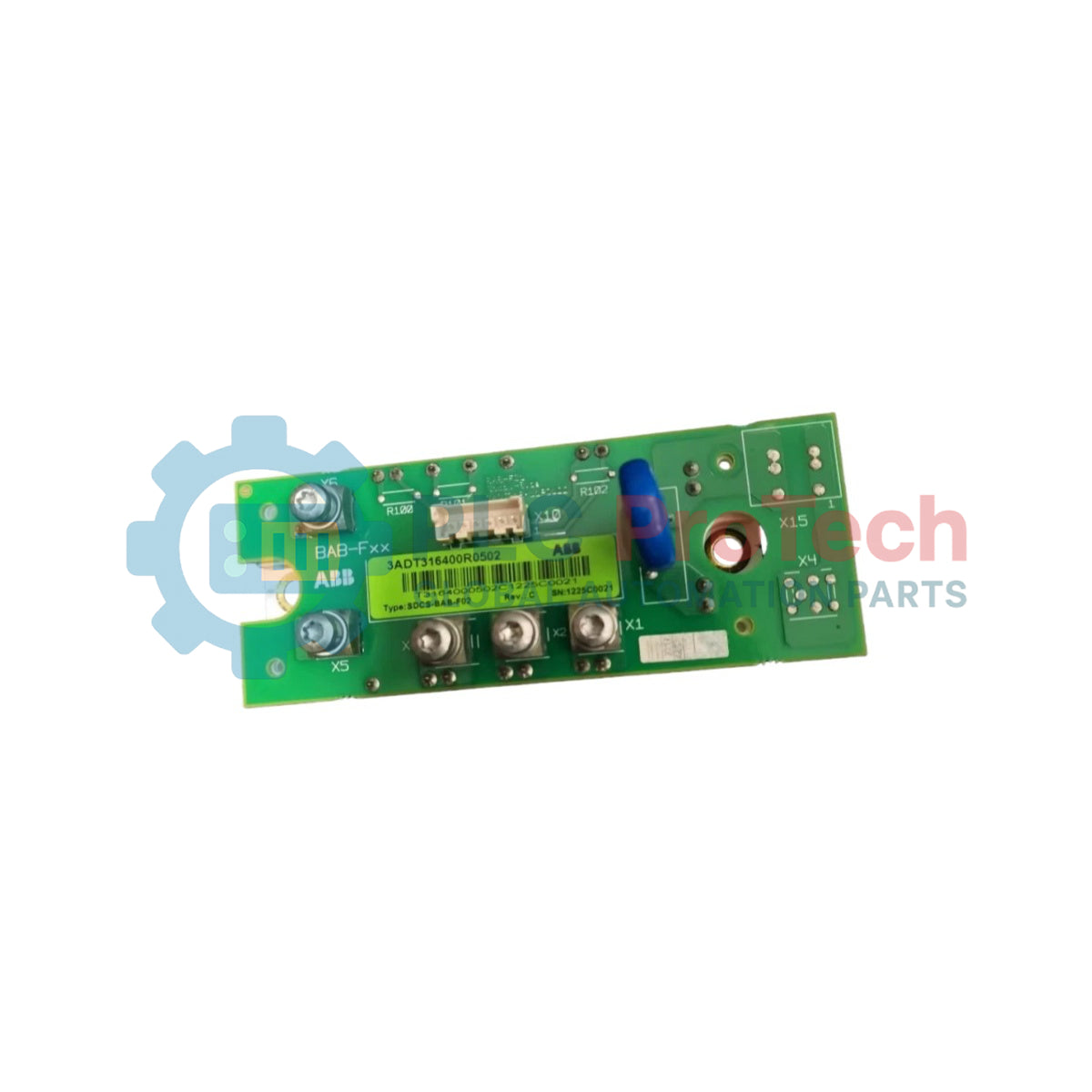

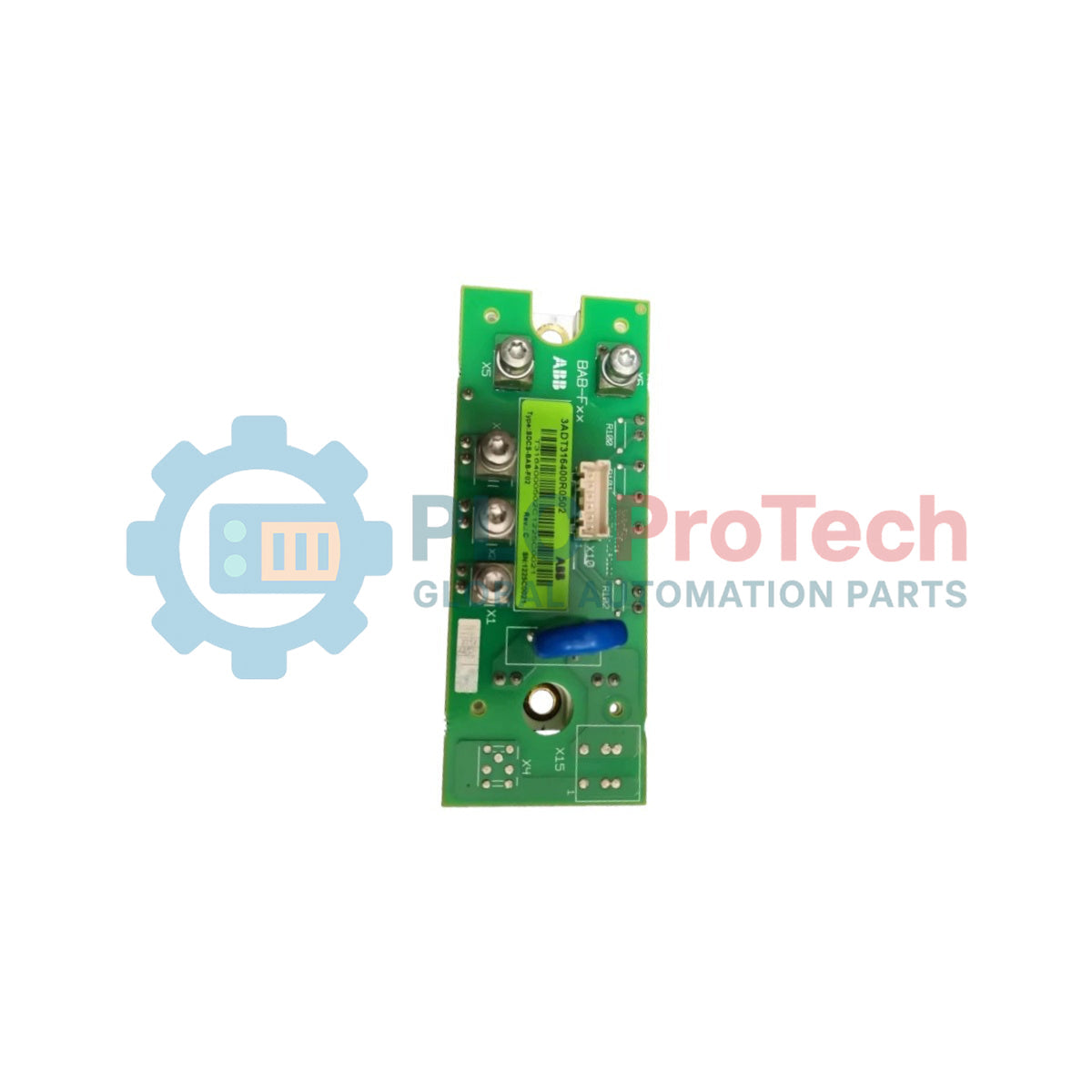

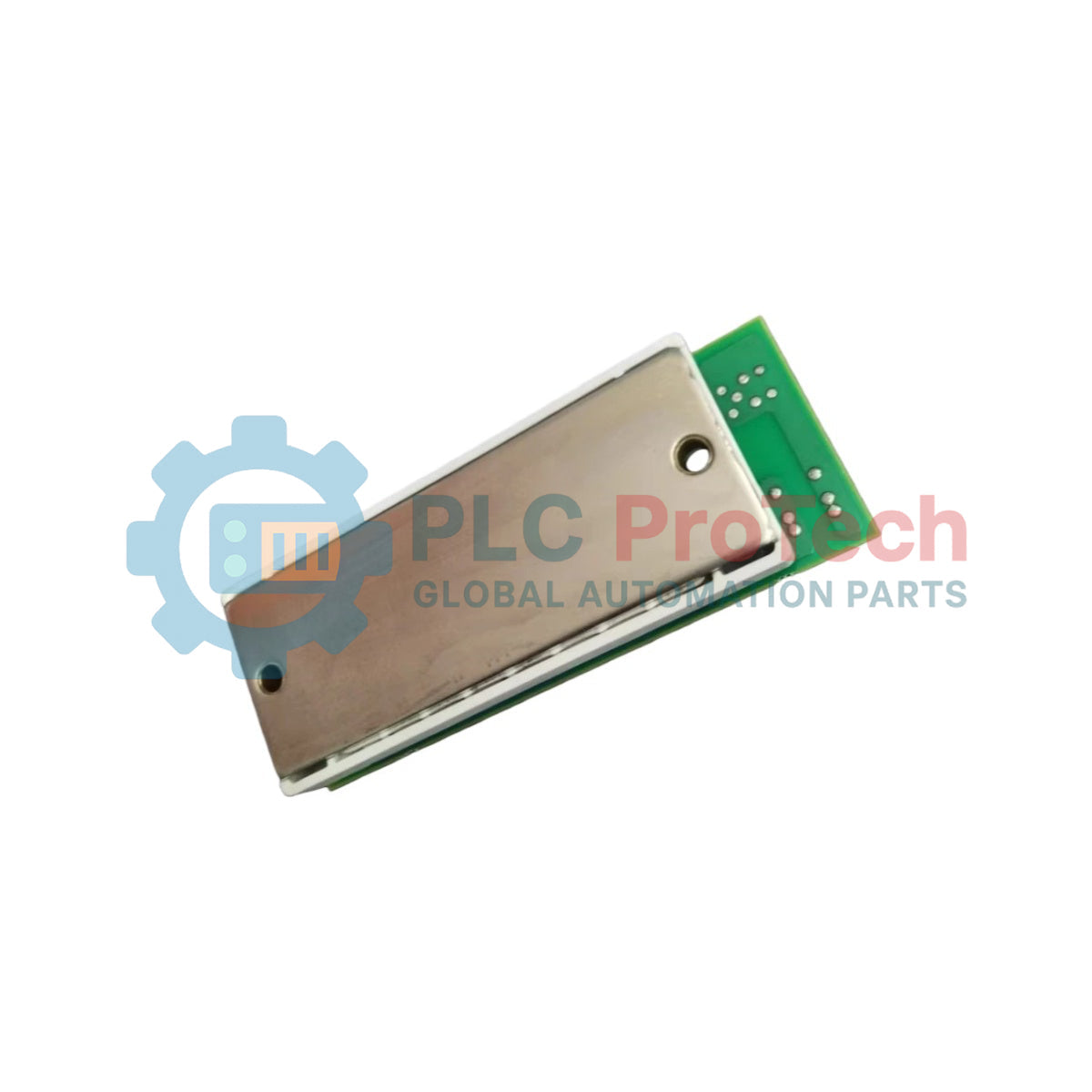

The SDCS-BAB-F02 (Product ID: 3ADT316400R0502) is a bridge adaption board manufactured by ABB for specialized integration within industrial DC drive frameworks. This circuit board functions primarily as a critical control component within the field exciter circuitry of DCS550 and DCS880-S series modules. It handles signal routing and structural adaptation between the main control electronics and the thyristor bridge components, serving as a vital link to preserve systemic feedback loop accuracy. The hardware layout is engineered for reliable placement as an internal spare part or as a functional element in dedicated multi-level configuration kits, such as the DCS550 and DCS880 suitcase assemblies.

Features

Seamless operational adaptation architecture designed for multi-converter power assemblies
Heavy-duty physical board design structured for field exciter system conditions
Cross-series hardware compatibility with various power ratings and frame sizes across industrial drive networks
Verified part integration layout for complete multi-level configuration kits

Applications

ABB DCS550 and DCS880-S industrial DC converter series
Thyristor bridge adaptation and control interfaces
Dedicated field exciter module tracking configurations

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product ID	3ADT316400R0502
ABB Type Designation	SDCS-BAB-F02
Catalog Description	SDCS-BAB-F02 BRIDGE ADAPTIO / SDCS-BAB-F02 BRIDGE ADAPTIONS BO
Product Name	SDCS-BAB-F02 BRIDGE ADAPTIONS BOARD
Customs Tariff Number	85049099
Country of Origin	China (CN)
Product Net Weight	0.299 kg
Gross Weight	0.299 kg
Drive Part Category	Field Exciter
Minimum Order Quantity	1 piece

Installation Guidelines

Disconnect all primary incoming line voltages and auxiliary control power feeds before touching or replacing internal electronics boards.
Wear an approved anti-static wrist strap properly bonded to a reliable earth ground point to mitigate electrostatic hazards during board handling.
Line up the pre-drilled circuit board mounting guide ports perfectly with the drive panel standoffs before applying torque to fasteners.
Verify that all internal terminal interconnect ribbon cables and wiring looms seat fully into their matching sockets without mechanical strain.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What primary operational category does this board fall under inside the drive module?

The board functions specifically as a Field Exciter component to facilitate proper bridge adaptation and signal tracking.

With which specific system kit configurations is this board integrated?

The device is used as a functional part in several kit assemblies, including the DCS550 Suitcase (2-Levels and 3-Levels) and the DCS880 Suitcase layouts.

What are the structural weight properties recorded for this hardware unit?

The board carries a verified product net weight and gross weight of exactly 0.299 kg.
