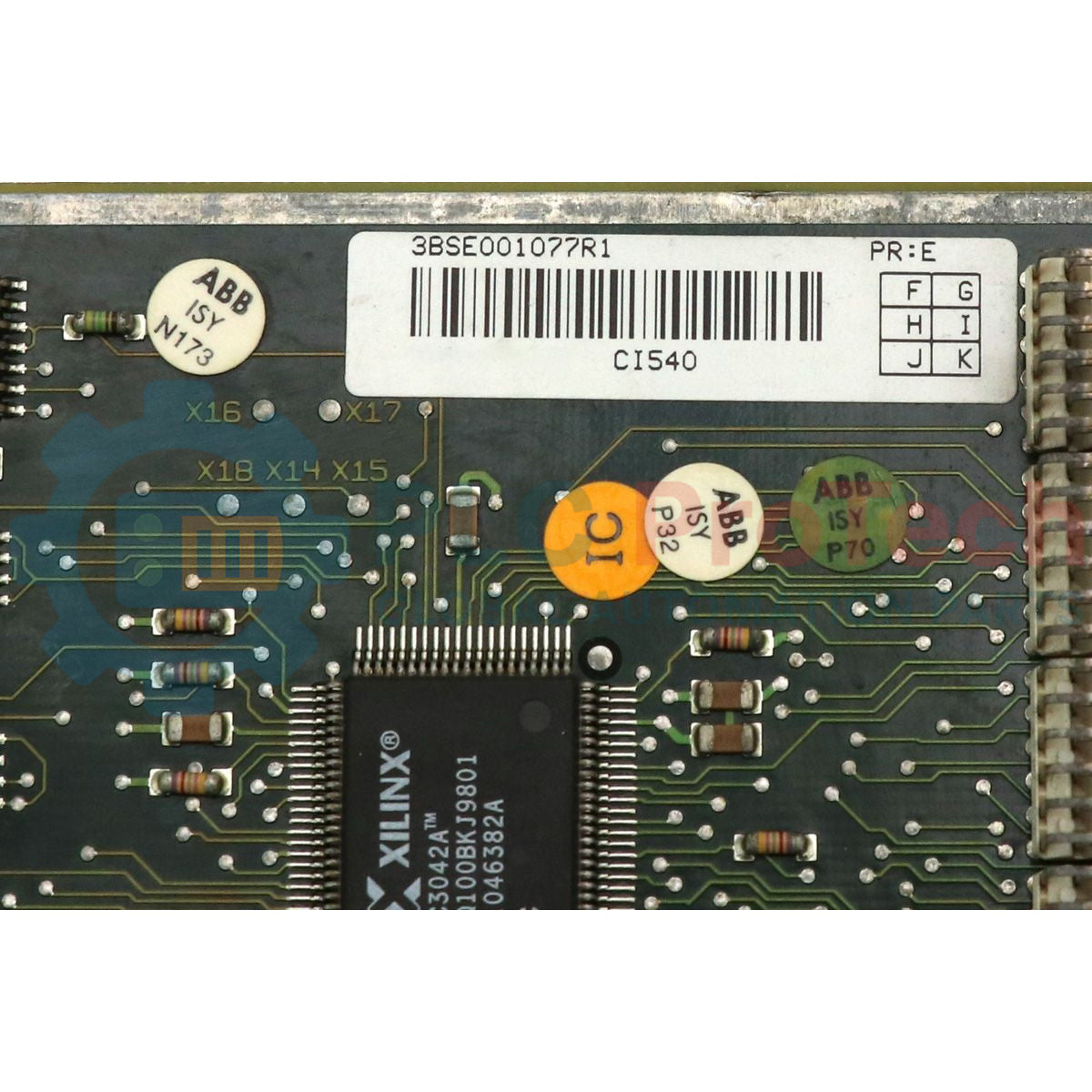

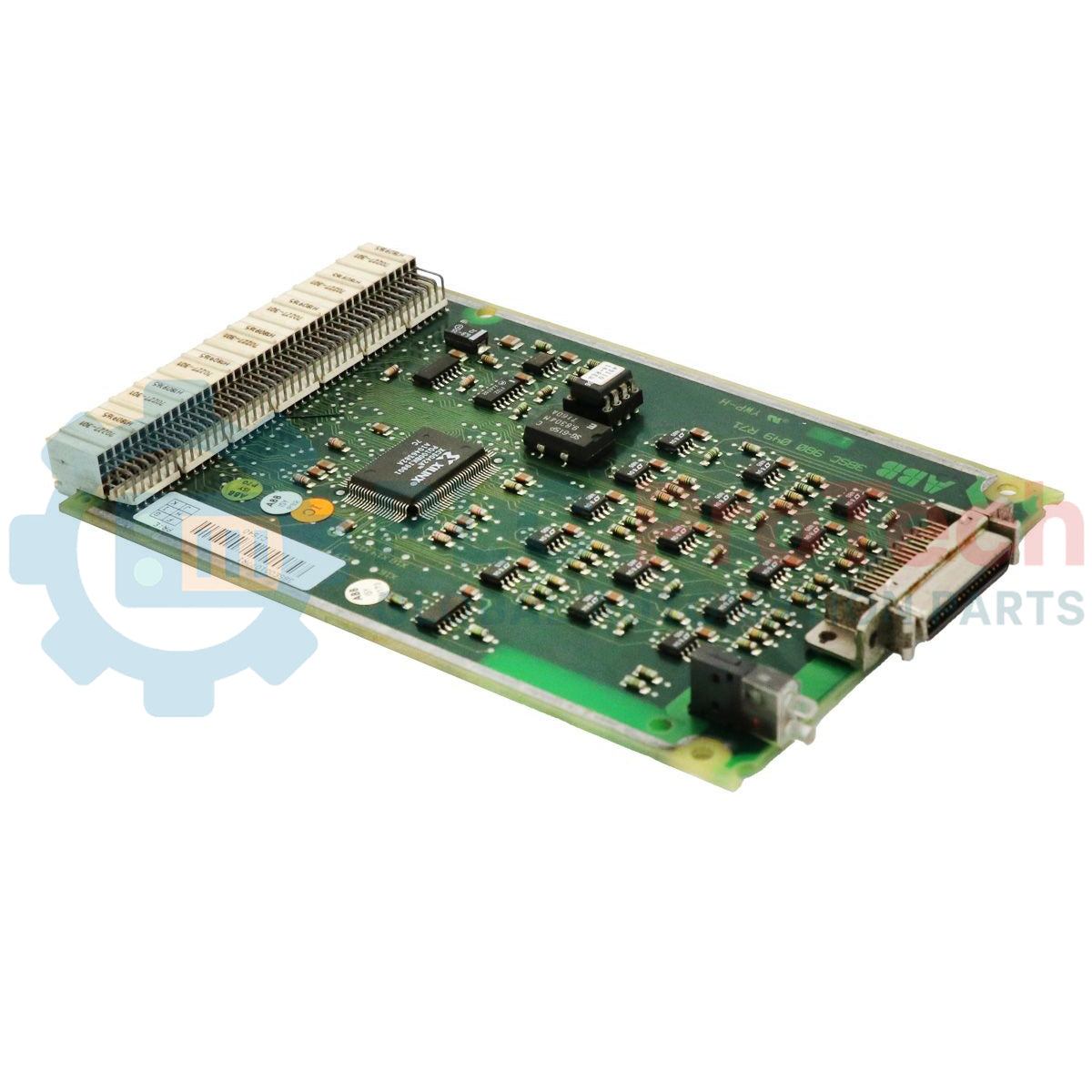

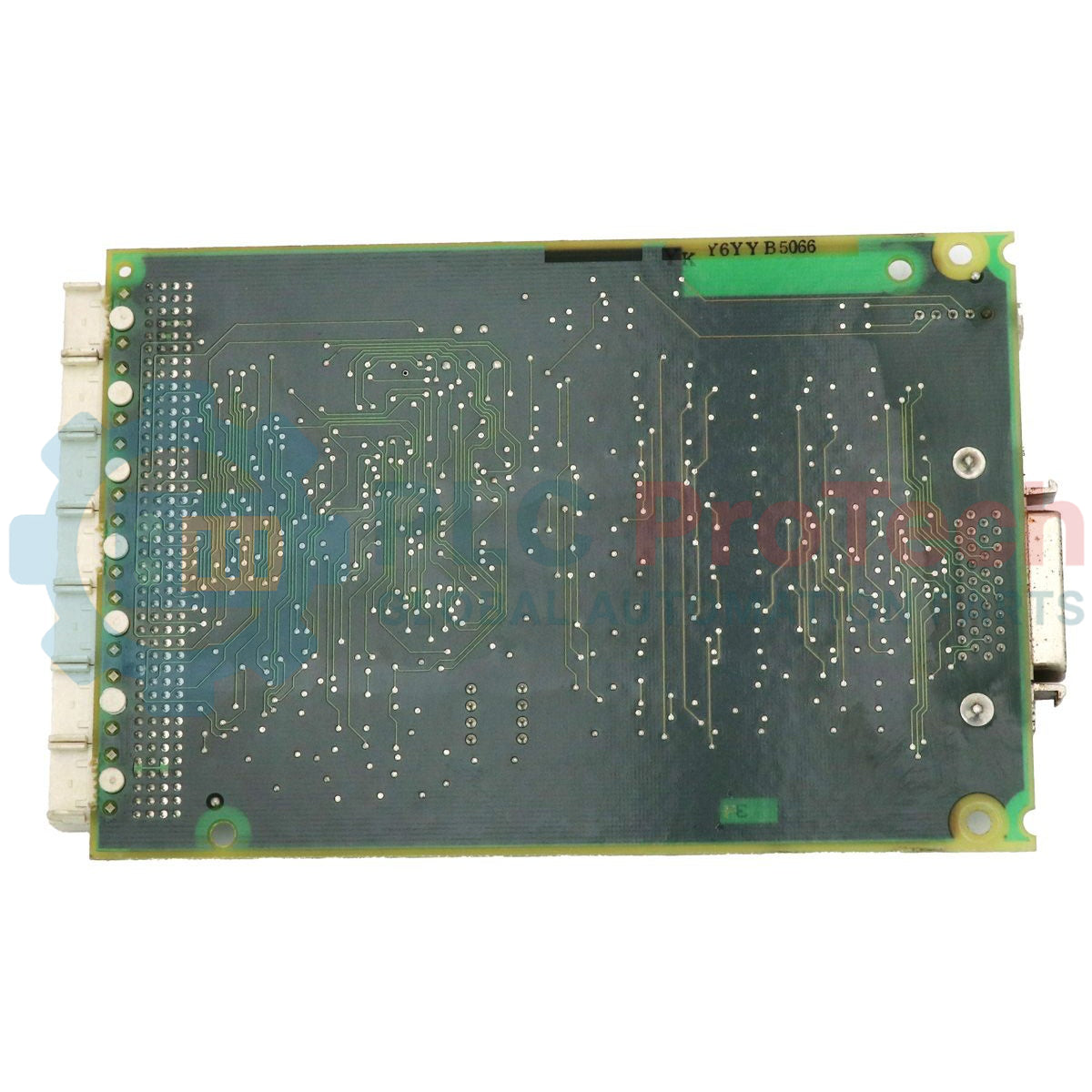

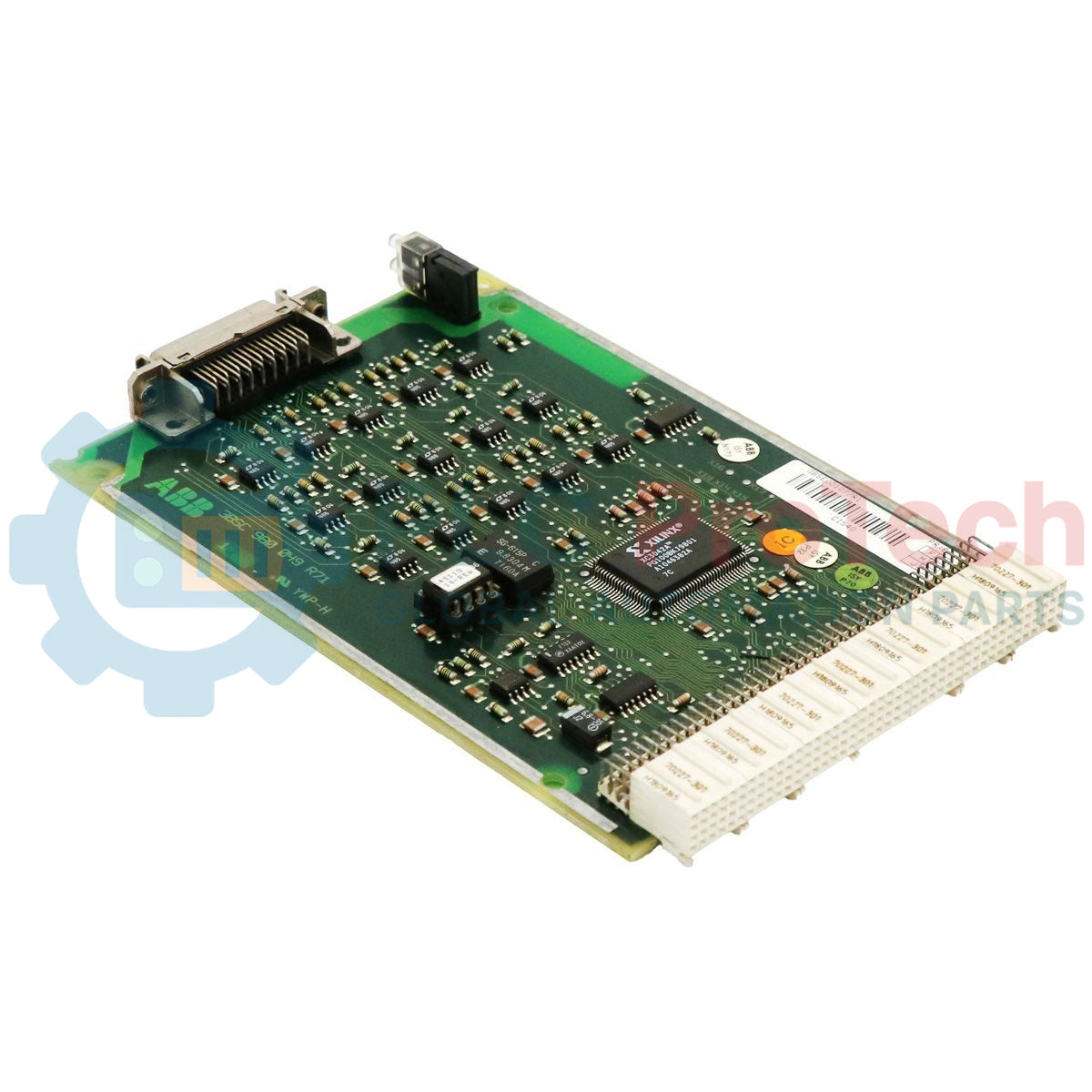

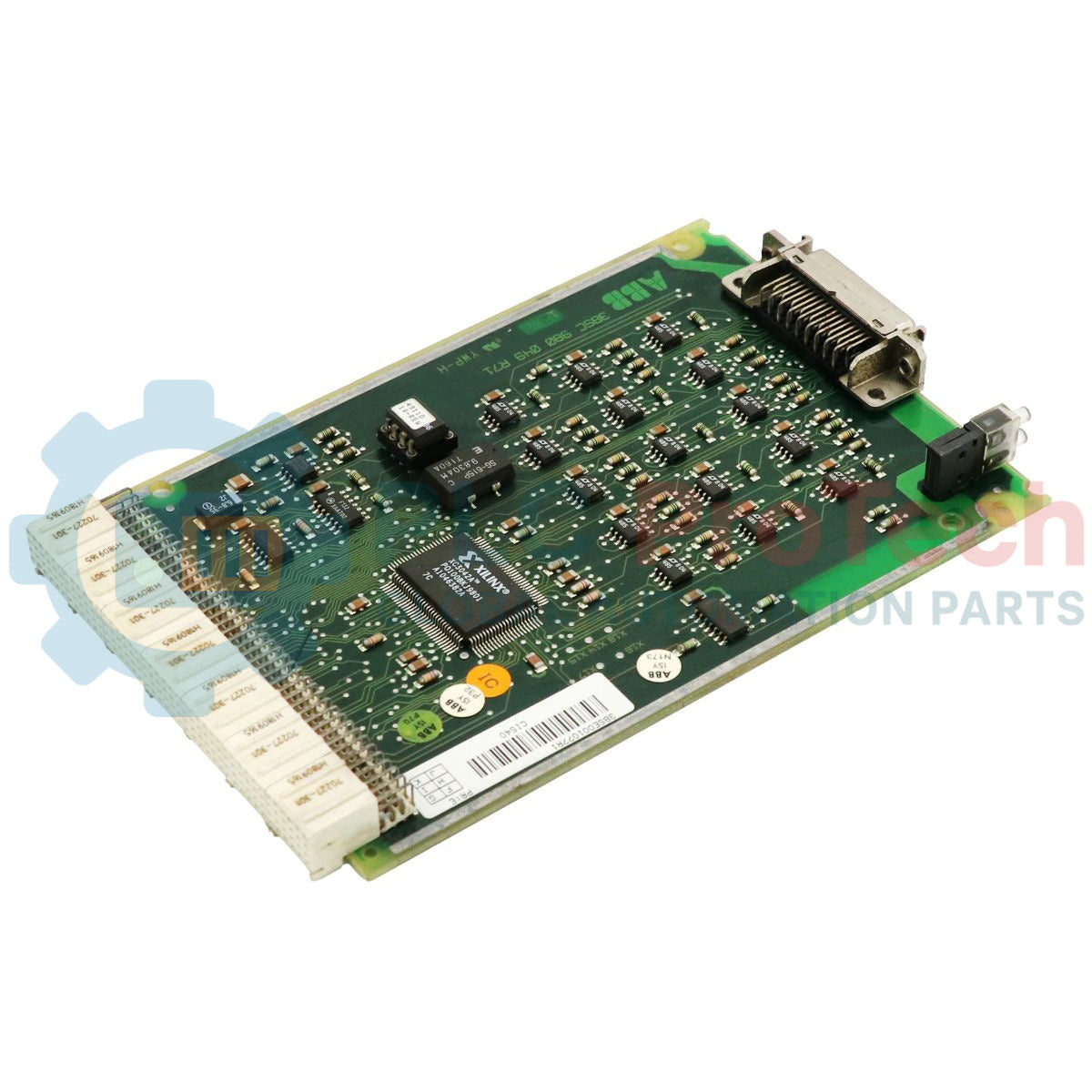

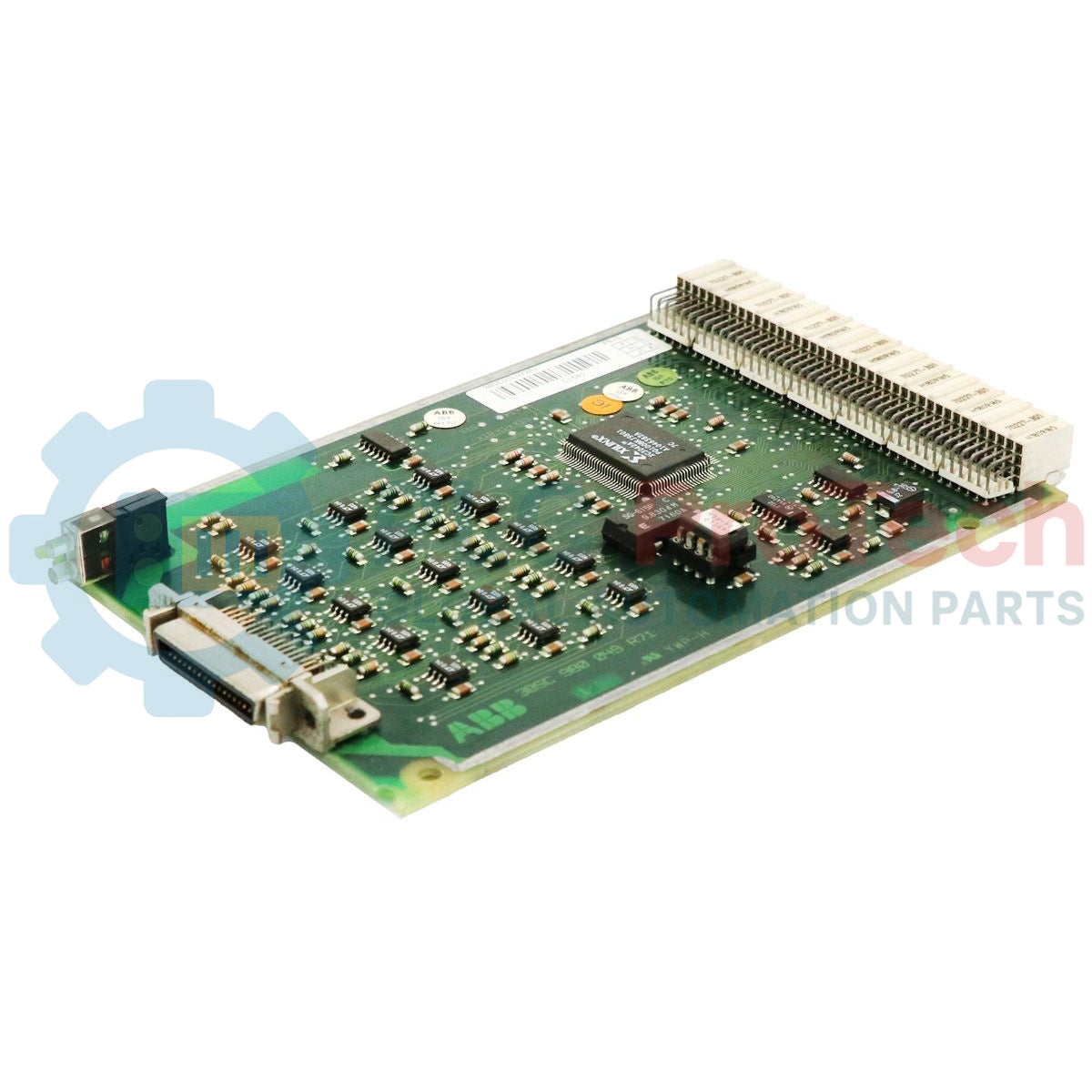

Interfacing directly with the Advant Controller system architecture, the ABB 3BSE001077R1 CI540 serves as a dedicated S100 I/O bus extension module designed to maintain deterministic communication between the processor backplane and remote S100 I/O racks. This module ensures stable, low-latency transmission of input/output data signals across extended physical layouts. Engineered for heavy industrial environments, the CI540 facilitates the seamless integration of legacy S100 systems with modern Advant OCS platforms, preserving critical control loop execution times.
| Parameter | Specification Value |
|---|---|
| Manufacturer | ABB |
| Part Number (SKU) | 3BSE001077R1 |
| Model Identifier | CI540 |
| System Series | Advant S800 I/O / S100 I/O Bus Extension |
| Product Phase | Active |
| Commodity Code | 85389091 |
| Shipping Weight (Calculated) | 0.50 kg |
| Package Dimensions (Calculated) | 25.0 cm x 12.0 cm x 10.0 cm |
The CI540 acts as a drop-in replacement for specific older-generation S100 interface cards. Verify your controller’s base firmware version to ensure proper slot allocation and backplane driver mapping during system initialization.
Improper termination of the S100 I/O bus can lead to localized signal reflections, registering as "Module Missing" faults in the AC 450 error logs. Always install the required terminal resistors on the final extension rack block to stabilize bus impedance.
When laying the bus extension cables from the CI540, maintain a minimum physical separation of 30 cm from high-power AC lines to prevent magnetic coupling. Always secure ribbon or optical connections using the integrated locking clips on the module housing.
CRITICAL WARNING
Disconnect all system power supplies before inserting or removing the CI540 module. Performing hot swaps on the S100 bus interface can cause voltage spikes, leading to hardware degradation or system-wide safety shutdowns.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: 3BSE001077R1
Country of origin:Sweden
Product Type: S100 I/O Bus Extensions
Barcode: 85389091
Payment: T/T, Western Union
Weight: 500g
Dimensions: 25.0 cm x 12.0 cm x 10.0 cm
Shipping port: Xiamen
Warranty: 12 months
