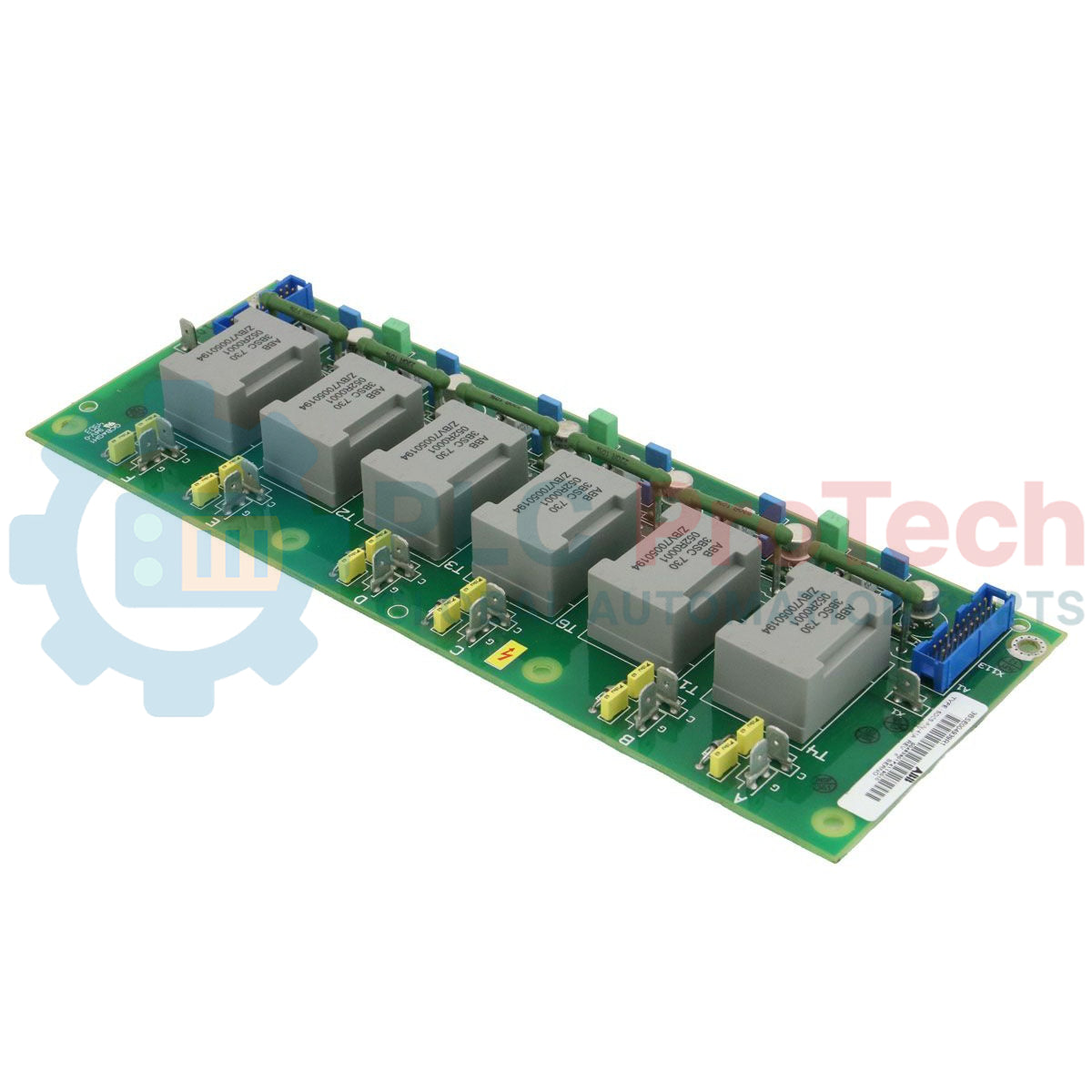

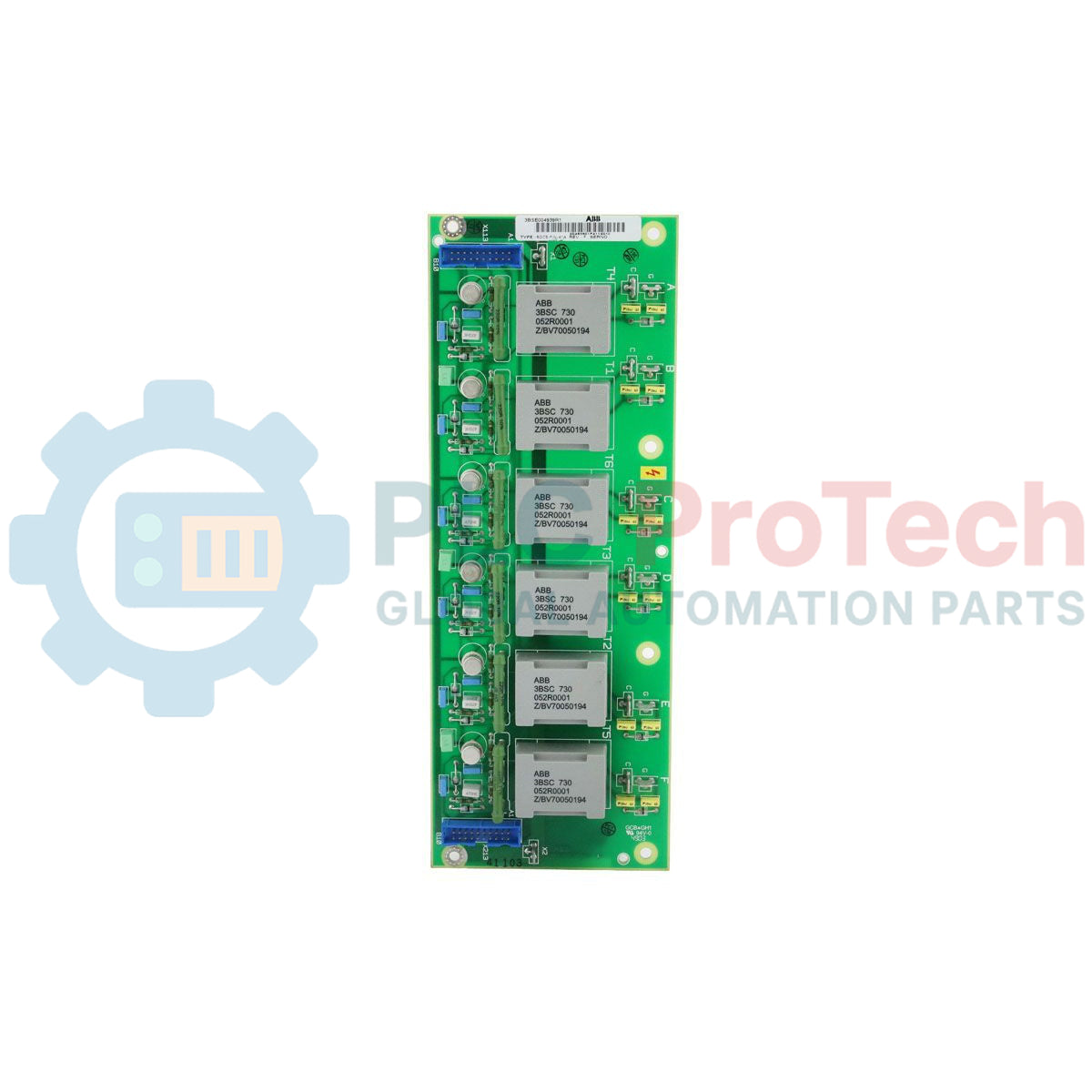

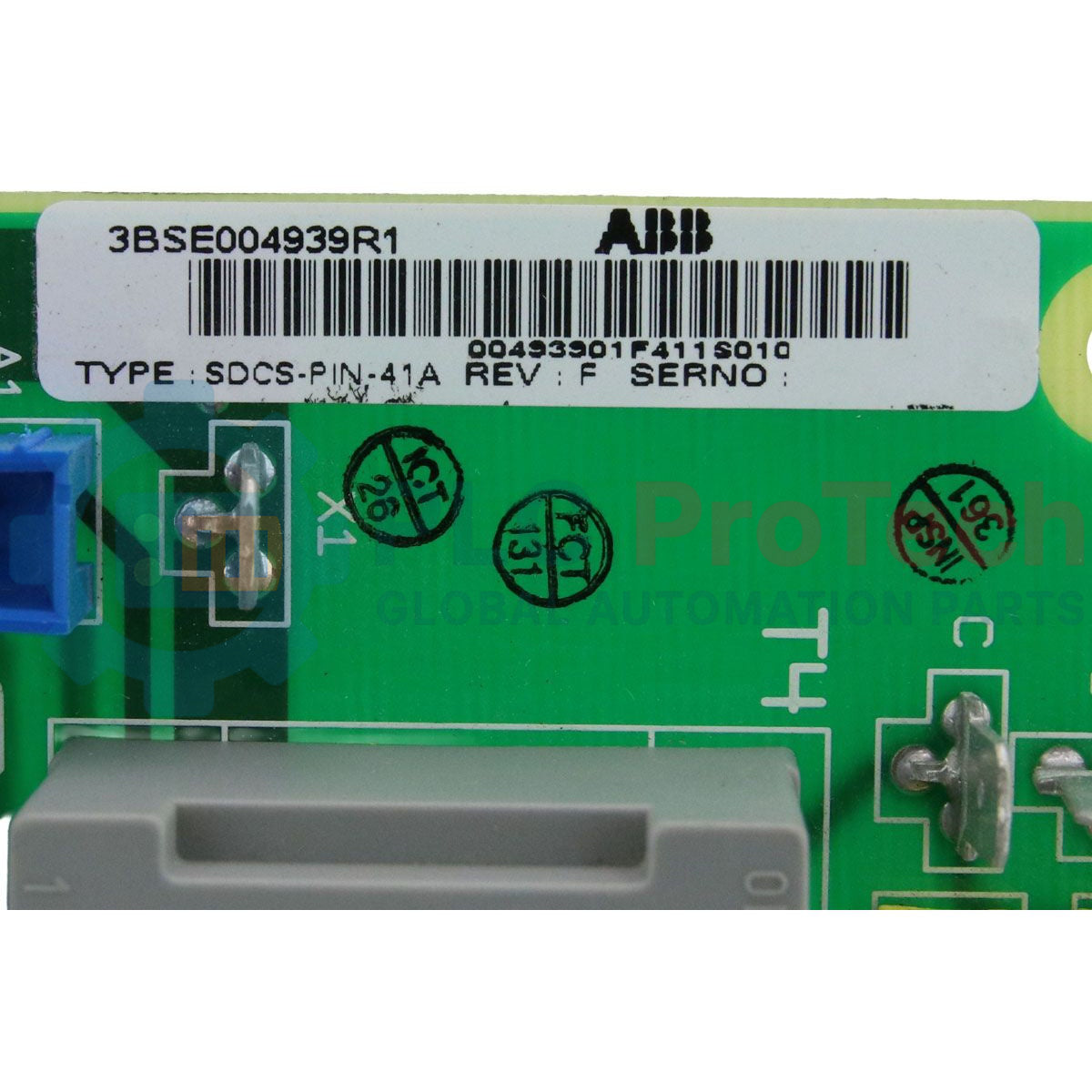

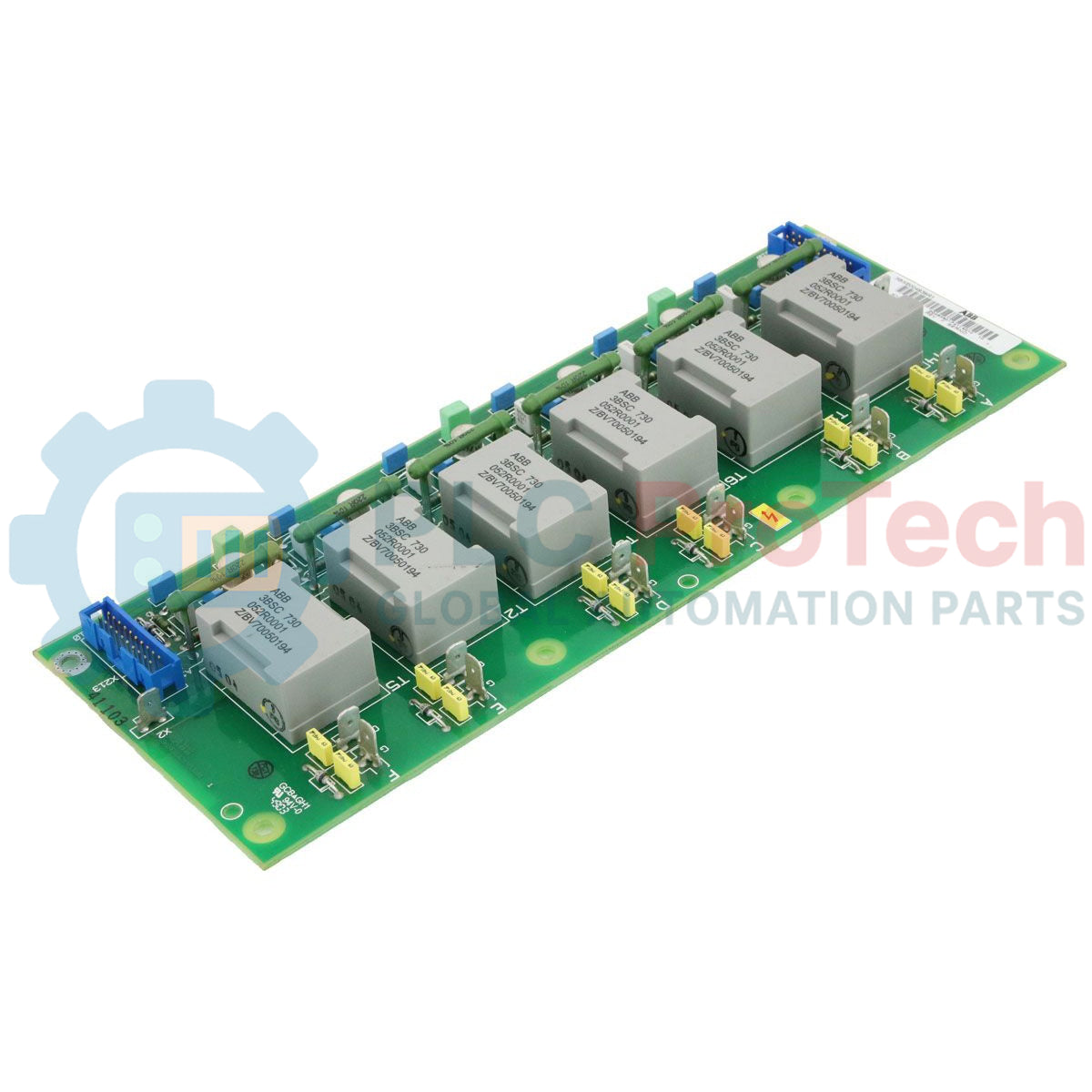

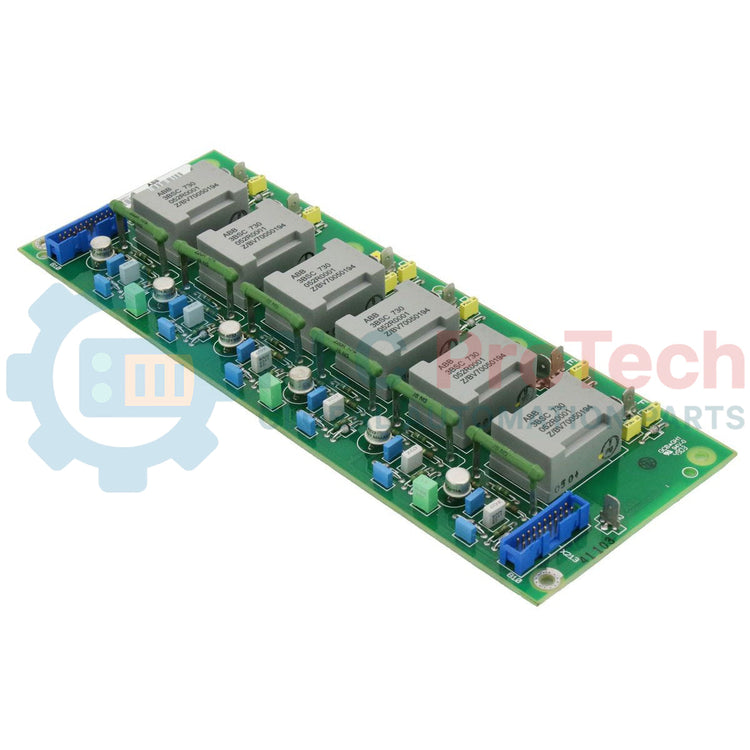

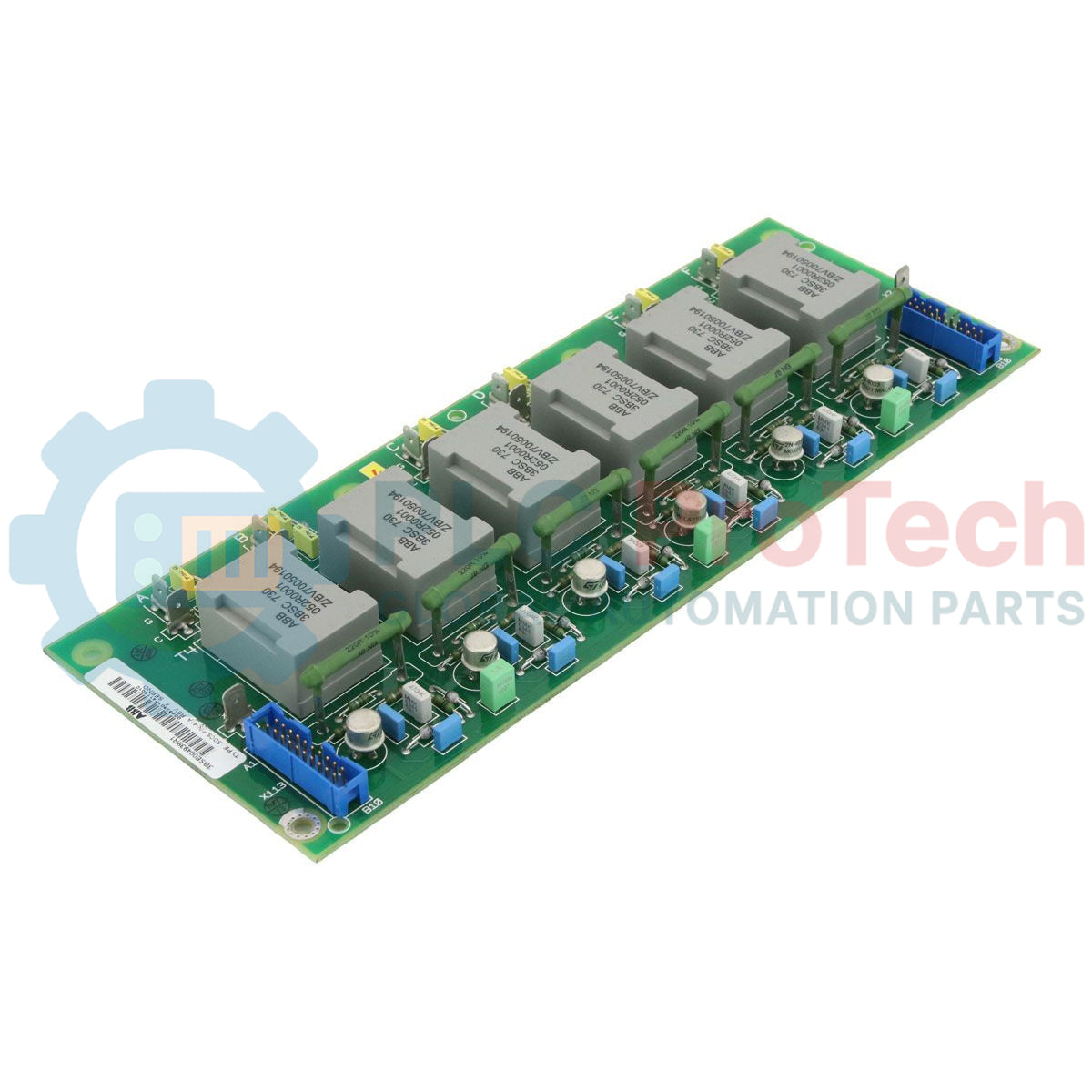

The SDCS-PIN-41A (3BSE004939R1) is a high-precision pulse transformer board engineered for the gate control circuitry of ABB industrial power converters. This specialized board serves as the critical galvanic isolation and signal amplification link between the low-voltage control electronics (SDCS-CON) and the high-power thyristor modules. Primarily utilized in large-scale DC motor drives and excitation systems within the power generation, metallurgy, and mining sectors, the SDCS-PIN-41A ensures that firing pulses are delivered with absolute timing accuracy. Its primary role is to protect sensitive control logic from high-voltage transients while ensuring reliable thyristor triggering, which is essential for maintaining torque stability and preventing catastrophic power-stage failures.
The SDCS-PIN-41A hardware is built around a series of high-reliability pulse transformers that convert electronic trigger signals into the high-current pulses required to overcome the gate impedance of large power semiconductors. The board features an optimized layout to minimize stray inductance, which is vital for achieving the fast rise times necessary for synchronized switching in multi-phase bridge configurations. It includes integrated protection components to suppress reflected noise from the power circuit and ensures uniform pulse distribution across all controlled branches. Designed for integration within ABB's modular drive architecture, the board connects via standardized pin headers and mounting footprints, facilitating rapid field service and reducing the mean time to repair (MTTR) for critical power infrastructure.
| Feature | Specification |
| Model | SDCS-PIN-41A |
| Product ID | 3BSE004939R1 |
| Brand | ABB |
| Origin | USA |
| Product Type | Pulse Transformer Board |
| Weight | 1.36 kg (3 lb) |
| Customs Tariff | 85352100 |
| Application | Thyristor Gate Triggering / Isolation |
| Operating Temp | 0 to 55 deg C |
| Cooling | Natural Convection or Forced Air |
What is the primary function of the transformers on the SDCS-PIN-41A?
The transformers provide electrical (galvanic) isolation between the control logic and the high-voltage power section. They also transform the voltage/current characteristics of the firing pulse to ensure the thyristor gate is fully and rapidly turned on.
Can this board be used in both 2-quadrant and 4-quadrant ABB drives?
Yes, provided the drive series specifies the SDCS-PIN-41A in its technical manual. It is commonly found in DCS 500 and DCS 600 systems that require robust gate pulse transmission for heavy-duty industrial cycles.
What are the signs of a failing pulse transformer board?
Common symptoms include inconsistent motor torque, "Armature Overcurrent" faults, or specific "Phase Loss" alarms. Physical inspection may reveal discoloration around the transformers or leaked potting compound due to localized overheating.
Firing Pulse Integrity: Ensure that the wiring between the SDCS-PIN-41A and the thyristor gates is as short as possible and consists of twisted-pair conductors. Long or untwisted lead wires increase inductance, which can round off the pulse leading edge, causing delayed or failed thyristor triggering.
Isolation Clearance: When installing the board, maintain the specified air and creepage distances between the pulse transformer outputs and the drive frame. Dust or conductive carbon buildup in these areas can lead to high-voltage tracking, potentially bypassing the isolation and damaging the control electronics.
Component Inspection: During routine maintenance, check for "dry" or cracked solder joints on the transformer pins. Due to the thermal expansion and contraction cycles in power rooms, these joints can fail over time, leading to intermittent firing pulses and erratic drive behavior.
Voltage Verification: Before commissioning, use an oscilloscope with isolated probes to verify the pulse shape at the output of the SDCS-PIN-41A. A healthy pulse should have a sharp "hard firing" peak followed by a sustained "back porch" current to keep the thyristor latched throughout the conduction period.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: 3BSE004939R1
Country of origin:Sweden
Product Type: Pulse Transformer Board
Barcode: 85389091
Payment: T/T, Western Union
Weight: 1360g
Shipping port: Xiamen
Warranty: 12 months
The SDCS-PIN-41A (3BSE004939R1) is a high-precision pulse transformer board engineered for the gate control circuitry of ABB industrial power converters. This specialized board serves as the critical galvanic isolation and signal amplification link between the low-voltage control electronics (SDCS-CON) and the high-power thyristor modules. Primarily utilized in large-scale DC motor drives and excitation systems within the power generation, metallurgy, and mining sectors, the SDCS-PIN-41A ensures that firing pulses are delivered with absolute timing accuracy. Its primary role is to protect sensitive control logic from high-voltage transients while ensuring reliable thyristor triggering, which is essential for maintaining torque stability and preventing catastrophic power-stage failures.
The SDCS-PIN-41A hardware is built around a series of high-reliability pulse transformers that convert electronic trigger signals into the high-current pulses required to overcome the gate impedance of large power semiconductors. The board features an optimized layout to minimize stray inductance, which is vital for achieving the fast rise times necessary for synchronized switching in multi-phase bridge configurations. It includes integrated protection components to suppress reflected noise from the power circuit and ensures uniform pulse distribution across all controlled branches. Designed for integration within ABB's modular drive architecture, the board connects via standardized pin headers and mounting footprints, facilitating rapid field service and reducing the mean time to repair (MTTR) for critical power infrastructure.
| Feature | Specification |
| Model | SDCS-PIN-41A |
| Product ID | 3BSE004939R1 |
| Brand | ABB |
| Origin | USA |
| Product Type | Pulse Transformer Board |
| Weight | 1.36 kg (3 lb) |
| Customs Tariff | 85352100 |
| Application | Thyristor Gate Triggering / Isolation |
| Operating Temp | 0 to 55 deg C |
| Cooling | Natural Convection or Forced Air |
What is the primary function of the transformers on the SDCS-PIN-41A?
The transformers provide electrical (galvanic) isolation between the control logic and the high-voltage power section. They also transform the voltage/current characteristics of the firing pulse to ensure the thyristor gate is fully and rapidly turned on.
Can this board be used in both 2-quadrant and 4-quadrant ABB drives?
Yes, provided the drive series specifies the SDCS-PIN-41A in its technical manual. It is commonly found in DCS 500 and DCS 600 systems that require robust gate pulse transmission for heavy-duty industrial cycles.
What are the signs of a failing pulse transformer board?
Common symptoms include inconsistent motor torque, "Armature Overcurrent" faults, or specific "Phase Loss" alarms. Physical inspection may reveal discoloration around the transformers or leaked potting compound due to localized overheating.
Firing Pulse Integrity: Ensure that the wiring between the SDCS-PIN-41A and the thyristor gates is as short as possible and consists of twisted-pair conductors. Long or untwisted lead wires increase inductance, which can round off the pulse leading edge, causing delayed or failed thyristor triggering.
Isolation Clearance: When installing the board, maintain the specified air and creepage distances between the pulse transformer outputs and the drive frame. Dust or conductive carbon buildup in these areas can lead to high-voltage tracking, potentially bypassing the isolation and damaging the control electronics.
Component Inspection: During routine maintenance, check for "dry" or cracked solder joints on the transformer pins. Due to the thermal expansion and contraction cycles in power rooms, these joints can fail over time, leading to intermittent firing pulses and erratic drive behavior.
Voltage Verification: Before commissioning, use an oscilloscope with isolated probes to verify the pulse shape at the output of the SDCS-PIN-41A. A healthy pulse should have a sharp "hard firing" peak followed by a sustained "back porch" current to keep the thyristor latched throughout the conduction period.
