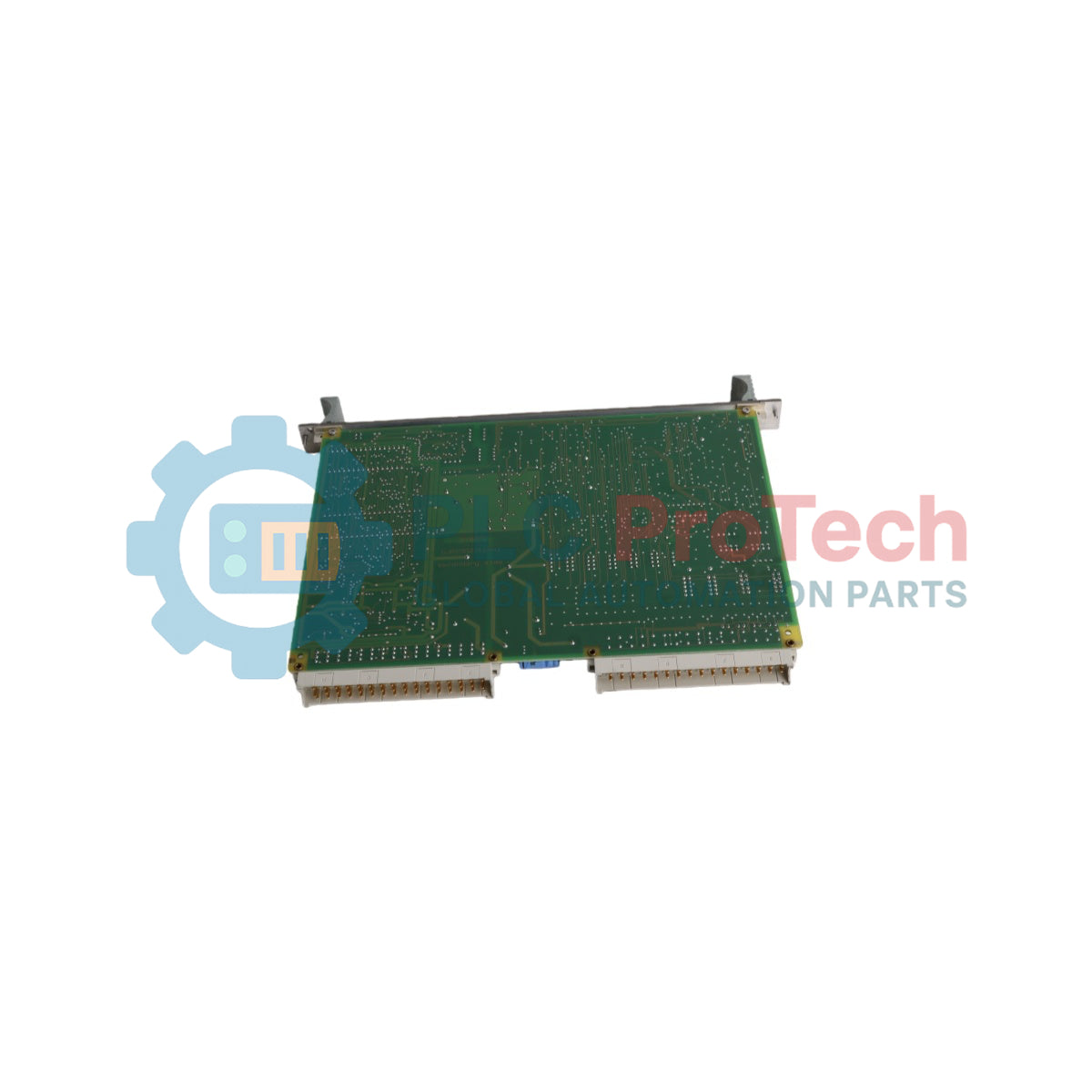

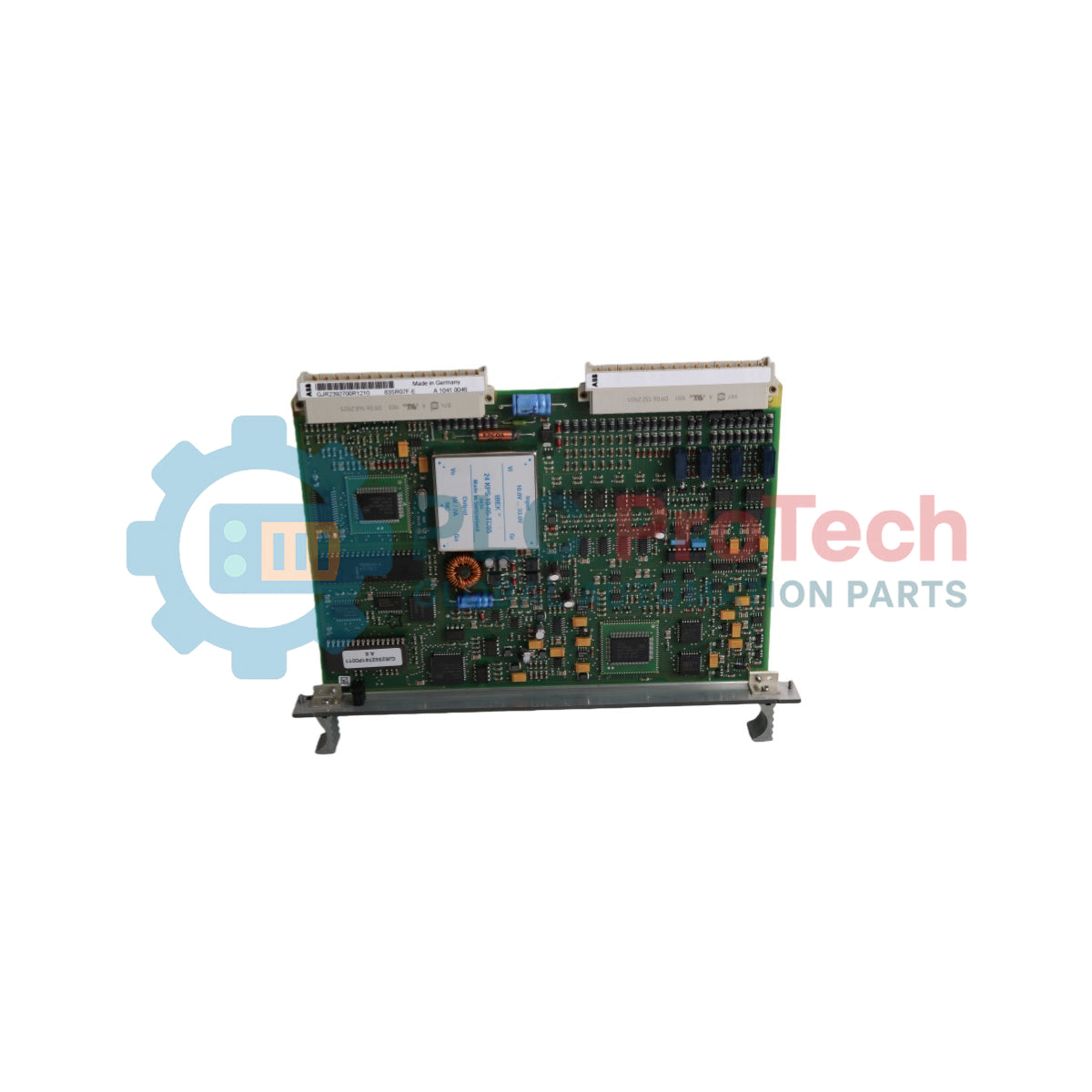

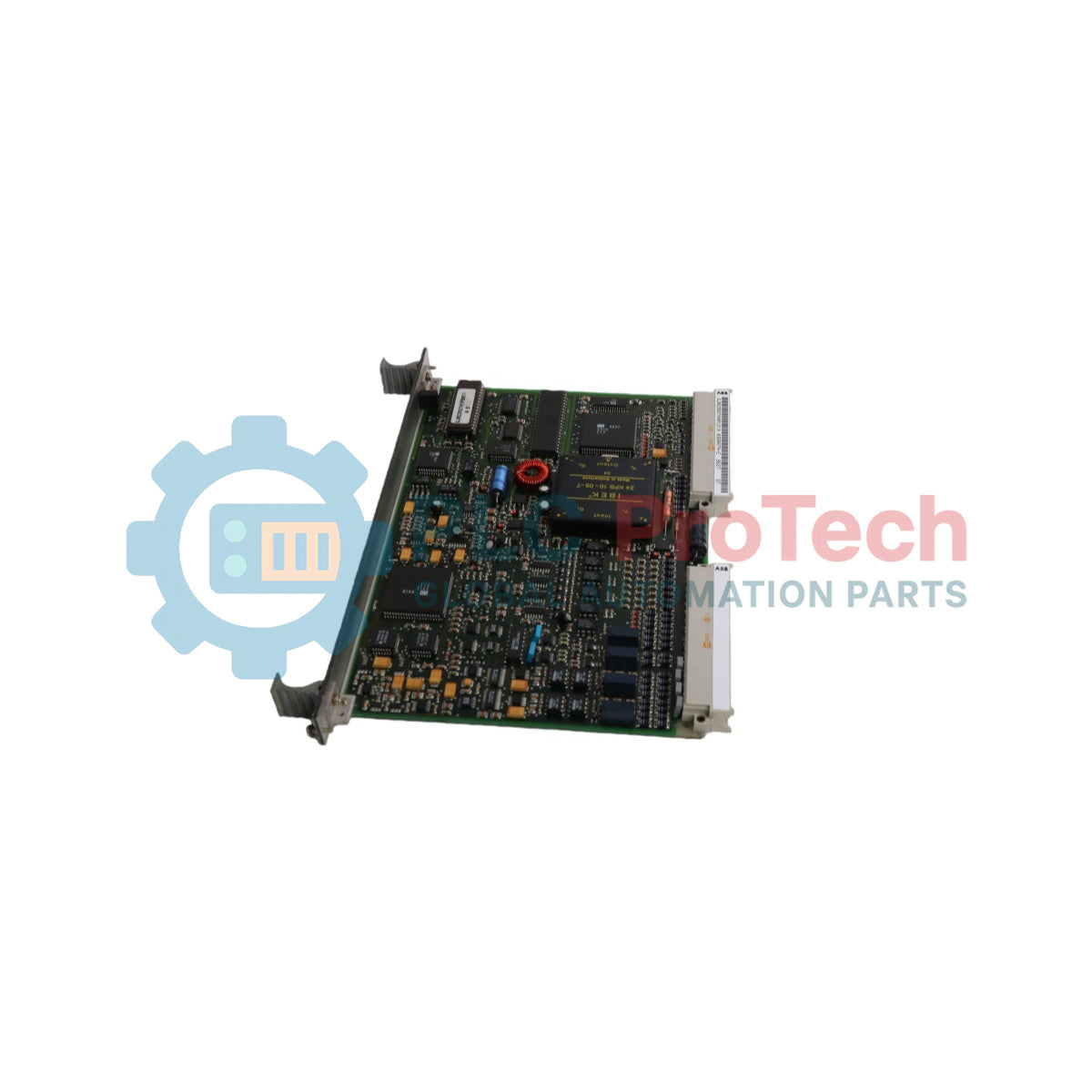

ABB 83SR07-E/R1210 GJR2392700R1210 PROCONTROL P Control Module

SKU GJR2392700R1210 83SR07B-E

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: GJR2392700R1210 83SR07B-E
Origin Sweden
Product Type: Control Modules
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.55 kg
Dimensions: 2.0 x 26.5 x 16.0 cm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The ABB 83SR07-E/R1210 GJR2392700R1210 is a stored-program analog control module designed for controlling one or two process variables within the PROCONTROL P automation architecture. The 83SR07-E/R1210 GJR2392700R1210 features two continuous outputs for outputting correcting variables to electrohydraulic actuators, electropneumatic actuators, and electric-motor-powered drives. Equipping two hardware process interfaces, the module operates with fixed cycle times of 100 ms for single-actuator control or 200 ms for two-actuator control. The unit interfaces directly with the station bus via a shared memory structure for data exchange with process operator stations and higher-level automatic control systems.

Features

Module address is configured automatically upon insertion into the PROCONTROL station slot.
Bus telegram transfers are verified using parity bit generation and checking.
User programs are stored in non-volatile EEPROM and can be loaded or modified via the bus.
Includes short-circuit-proof internal contact and transducer power supply outputs (UK1, UK2, S11/S13, S21/S23).
Features front-panel LED indicators for general disturbance (ST) and module disturbance (SG).
Microprocessor processing section supported by EPROM, EEPROM, and RAM memory areas.

Applications

Analog control of electrohydraulic and electropneumatic process actuators.
Continuous positioning and drive control for electric-motor-powered actuators.
Process variable signal conditioning and single-variable or master control loops in power plant automation.

Ordering Information

Type Designation	Order Number
83SR07-E/R1210	GJR2392700R1210

Technical Specifications

Parameter	Specification
General & Structural
Manufacturer	ABB
Country of Origin	Germany
Board Dimensions	6 units, 1 division, 160 mm deep
Weight	Approx. 0.55 kg
Station Bus Connector	48-pin edge-connector, type F (Connector X11)
Process Connector	32-pin edge-connector, type F (Connector X21)
Electrical / Power Supply
Operating Voltage (USA/USB)	19.5 ... 30 V, typ. 24 V
Power Consumption (at 24 V)	145 mA + output values
Power Dissipation (at 24 V)	5 ... 8.4 W
Reference Potential (Process Side Z)	0 V
Reference Potential (Bus Side ZD)	0 V
Binary Inputs & Outputs
Process Checkback Inputs (EZx, EOx, TSx, STAx)	Direct connection for 2 process interfaces, 5 mA at 48 V
Contact Voltages (UK1, UK2)	48 V / <= 30 mA (short-circuit-proof)
Drive Release Outputs (AFx)	US - max. 4 V, Output current <= 100 mA
Analog Inputs
Input Channels (Ex1, Ex2, Ex3, Ex4)	Configurable for 2-wire or 4-wire transducers
Current Signal Ranges	0 ... 20 mA or 4 ... 20 mA
Maximum Input Value	-1 ... 50 mA
Input Resistance (Ri)	50 ohms
Accuracy (at 23 degC)	<= 0.1 %
Accuracy (0 to 70 degC, Aging, Voltage)	<= 0.3 %
Resolution	12 bits
Common-Mode Rejection	120 dB
Transducer Power Supply (Sx1/Sx3)	US - max. 4 V, Output current <= 50 mA
Analog Outputs
Output Channels (AYx/Zx1)	0 ... 20 mA or 4 ... 20 mA
Burden	<= 500 ohms
Accuracy (at 23 degC)	<= 0.1 %
Accuracy (over Temp., Aging, Voltage)	<= 0.4 %
Resolution	12 bits
Performance & Immunity
Initialization Time	2 ... 22 sec
Electrostatic Discharge Immunity	DIN EN 61000-4-2: 8 kV / 4 kV
Radiated RF Electromagnetic Field Immunity	DIN EN 61000-4-3: 10 V/m
Electrical Fast Transient/Burst Immunity	DIN EN 61000-4-4: 2 kV
Surge Immunity	DIN EN 61000-4-5: 2 kV / 1 kV
Conducted Disturbances Immunity	DIN EN 61000-4-6: 10 V

Connections/Interfaces

Connector Pin	Function
X21/z02	Process interface 1: Analog output AY1
X21/b02	Process interface 1: Process checkback signal CLOSED EZ1
X21/z04	Process interface 1: Analog output reference Z11
X21/b04	Process interface 1: Process checkback signal OPEN EO1
X21/z06	Process interface 1: Drive release AF1
X21/b06	Process interface 1: Local intervention TS1
X21/z08	Process interface 1: Substation disturbance STAx
X21/b08	Process interface 1: Contact supply UK1
X21/z10	Process interface 1: Analog input E13
X21/b10	Process interface 1: Analog input E11
X21/z12	Process interface 1: Transducer supply S13
X21/b12	Process interface 1: Transducer supply S11
X21/z14	Process interface 1: Analog input E14
X21/b14	Process interface 1: Analog input E12
X21/z16	Process interface 1: Reference Z14
X21/b16	Process interface 1: Reference Z12
X21/z18	Process interface 2: Analog output AY2
X21/b18	Process interface 2: Process checkback signal CLOSED EZ2
X21/z20	Process interface 2: Analog output reference Z21
X21/b20	Process interface 2: Process checkback signal OPEN EO2
X21/z22	Process interface 2: Drive release AF2
X21/b22	Process interface 2: Local intervention TS2
X21/z24	Process interface 2: Substation disturbance STA2
X21/b24	Process interface 2: Contact supply UK2
X21/z26	Process interface 2: Analog input E23
X21/b26	Process interface 2: Analog input E21
X21/z28	Process interface 2: Transducer supply S23
X21/b28	Process interface 2: Transducer supply S21
X21/z30	Process interface 2: Analog input E24
X21/b30	Process interface 2: Analog input E22
X21/z32	Process interface 2: Reference Z24
X21/b32	Process interface 2: Reference Z22

Installation Guidelines

Ensure module slot assignment correctly sets the module address automatically on insertion.
Connect terminal X11/d18 to bus reference potential ZD once per subrack to ensure proper module functioning.
Configure hardware jumpers X200 through X203 according to the analog input transducer configuration (plugged in for non-floating 2-wire transducers; removed for floating 2-wire or 4-wire transducers).
Verify that field wiring load requirements do not exceed short-circuit-proof current outputs (100 mA for drive release AFx, 50 mA for transducer supply Sx1/Sx3, 30 mA for contact supply UKx).

Compliance and Certifications

DIN EN 61000-4-2
DIN EN 61000-4-3
DIN EN 61000-4-4
DIN EN 61000-4-5
DIN EN 61000-4-6

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the control module?

The device provides stored-program analog control for one or two process variables with continuous output signals to actuators.

How are the analog inputs configured for 2-wire versus 4-wire transducers?

Jumpers X200 to X203 are inserted for non-floating 2-wire transducers, and removed for floating 2-wire or 4-wire transducers.

What are the standard cycle times during analog control operation?

The module operates with a fixed cycle time of 100 ms for single-actuator applications and 200 ms for dual-actuator applications.

Reviews

GJR2392700R1210 83SR07B-E

Stock & lead time on request

Call
