Operational Overview

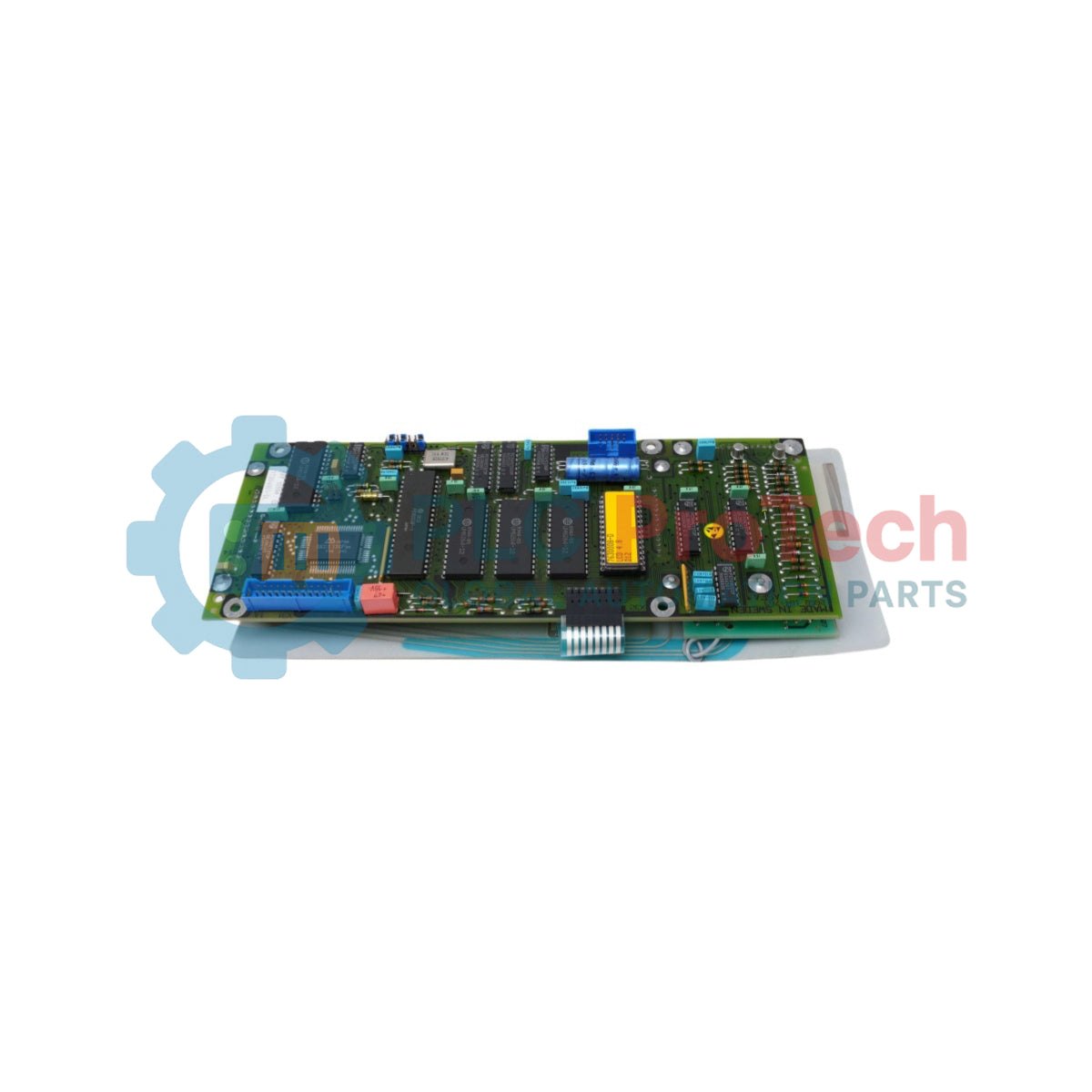

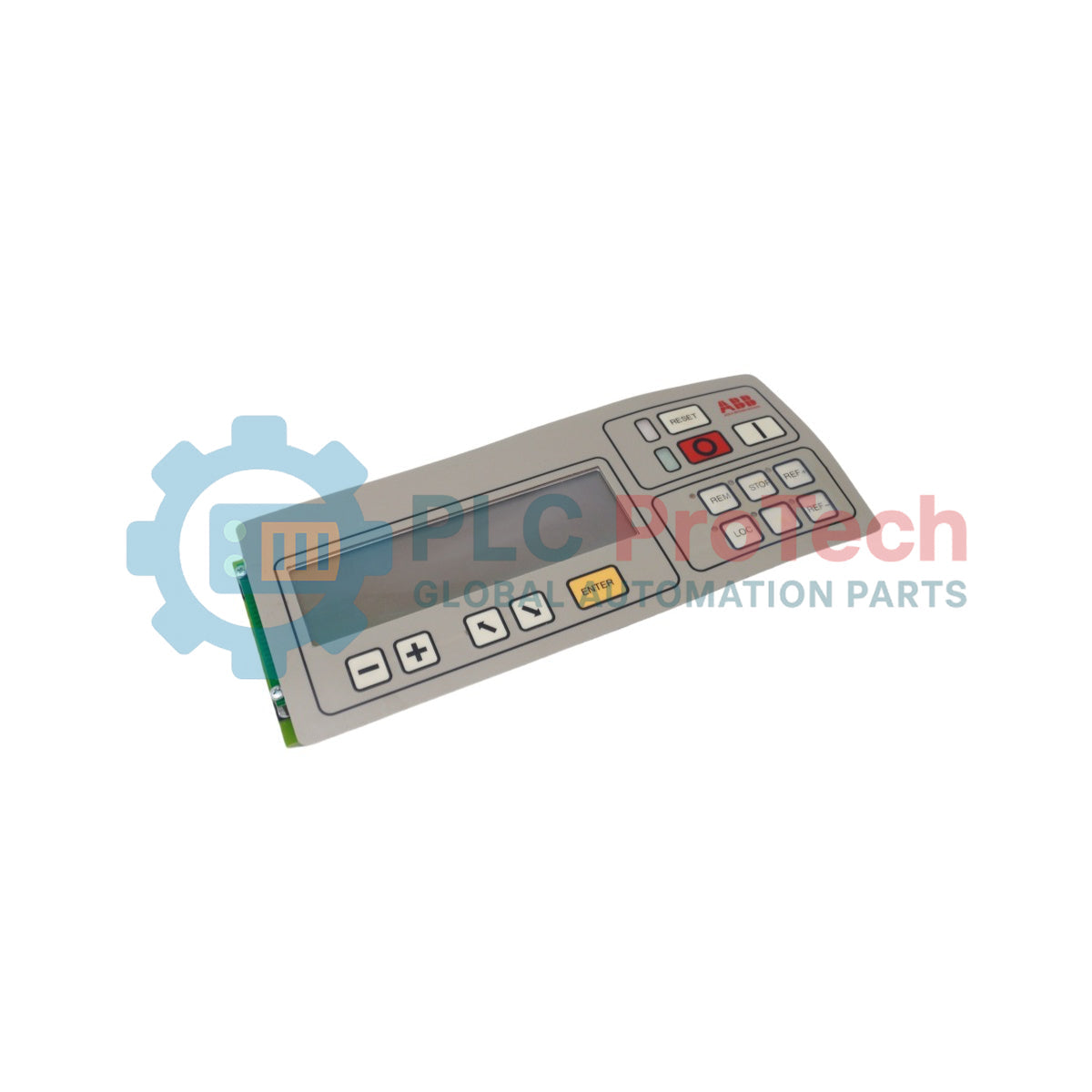

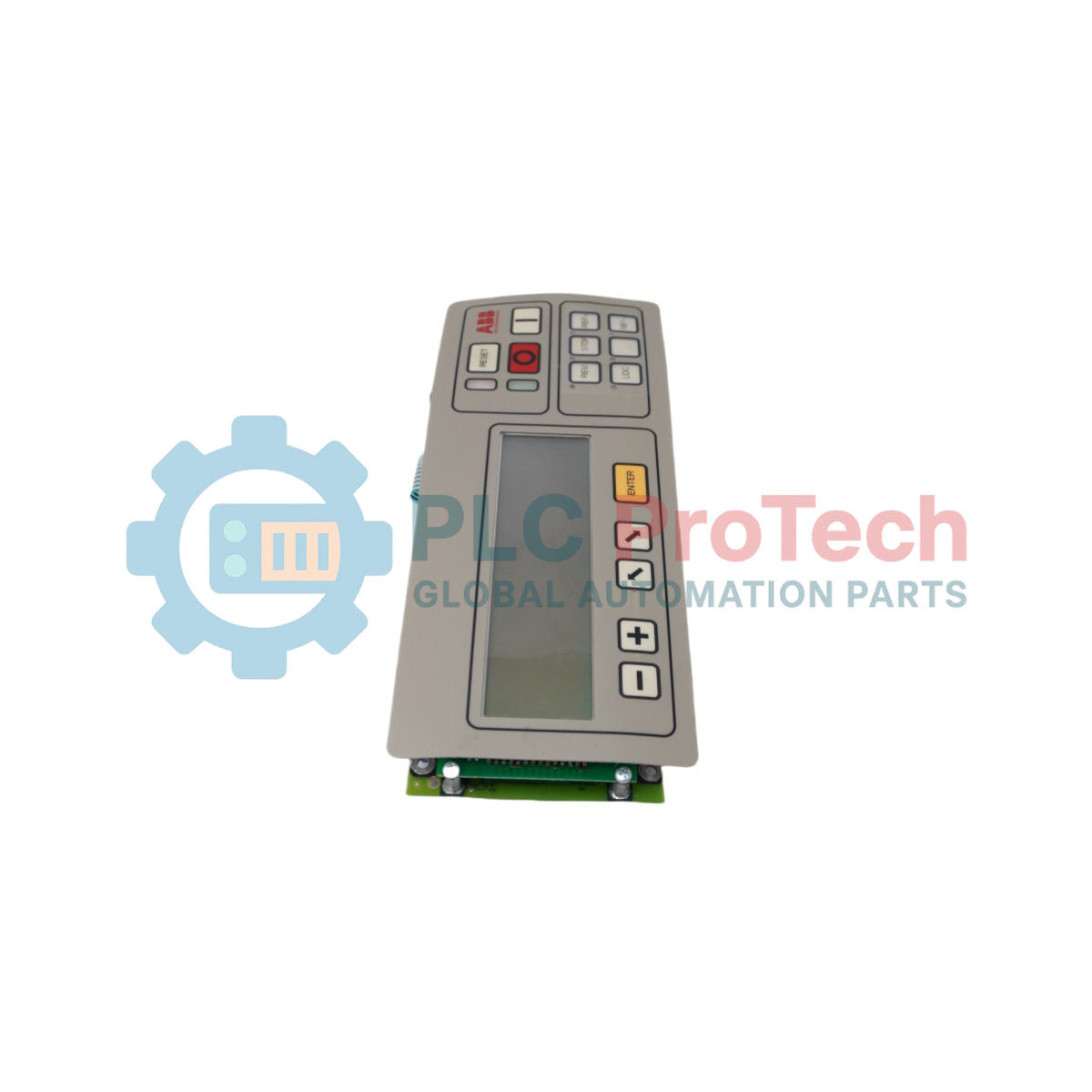

The ABB YT204001-DL YPP 109A is an industrial display controller board engineered to manage human-machine interface logic and alphanumeric console diagnostics within legacy power conversion systems. Acting as a dedicated processing node, this ABB YPP 109A assembly (frequently written as the YPP109A module by plant technicians) drives the data refreshing cycles for operator control panels and diagnostic terminals. By processing local terminal input commands and encoding them for the centralized bus, the module ensures reliable parameter visualization and operational oversight across heavy industrial motor drive installations.

Design Features

• Multi-Indexing Nomenclature: Accommodates varying schematic notations by providing exact physical and electrical drop-in identity with both YPP 109A and YPP109A system designations.
• Downstream Circuit Continuity: Engineered as a certified engineering progression from the legacy YT204001-CL architecture while fully matching original mounting dimensions and screw patterns.
• High-Density Logic Layout: Built with high-grade solid-state semiconductors to guarantee reliable data conversion and signal stability within harsh electrical switchgear rooms.
• Low-Mass Form Factor: Weighing only 0.2 kg, the card minimizes physical mechanical stress on vertical display panel hinges and mounting standoffs during severe machine vibration.

Target Deployments

• YGMP Series Legacy DC Drives: Manages control desk data arrays, fault display updating, and parameter input conditioning for high-torque motor systems.
• YHMP Control Lineups: Installed directly inside the console interface sub-assembly to handle real-time variable speed drive feedback metrics.
• Industrial Control Console Overhauls: Deployed as a critical replacement component to re-establish human-machine telemetry links without requiring comprehensive panel re-wiring.

Technical Specifications

Field Deployment Steps

1. 1 Put on an approved, grounded electrostatic discharge wrist strap linked to a clean earth point before removing the card from its shielding material.
2. 2 Disconnect the low-profile communications ribbon cables and display connection harnesses carefully, ensuring no stress is applied to the board traces.
3. 3 Remove the old board from its internal panel standoffs and position the new hardware onto the mounts, securing the fasteners evenly to ensure reliable frame grounding.
4. 4 Reattach all data and panel interfaces, verifying that keyed alignments match correctly before applying system auxiliary power.
