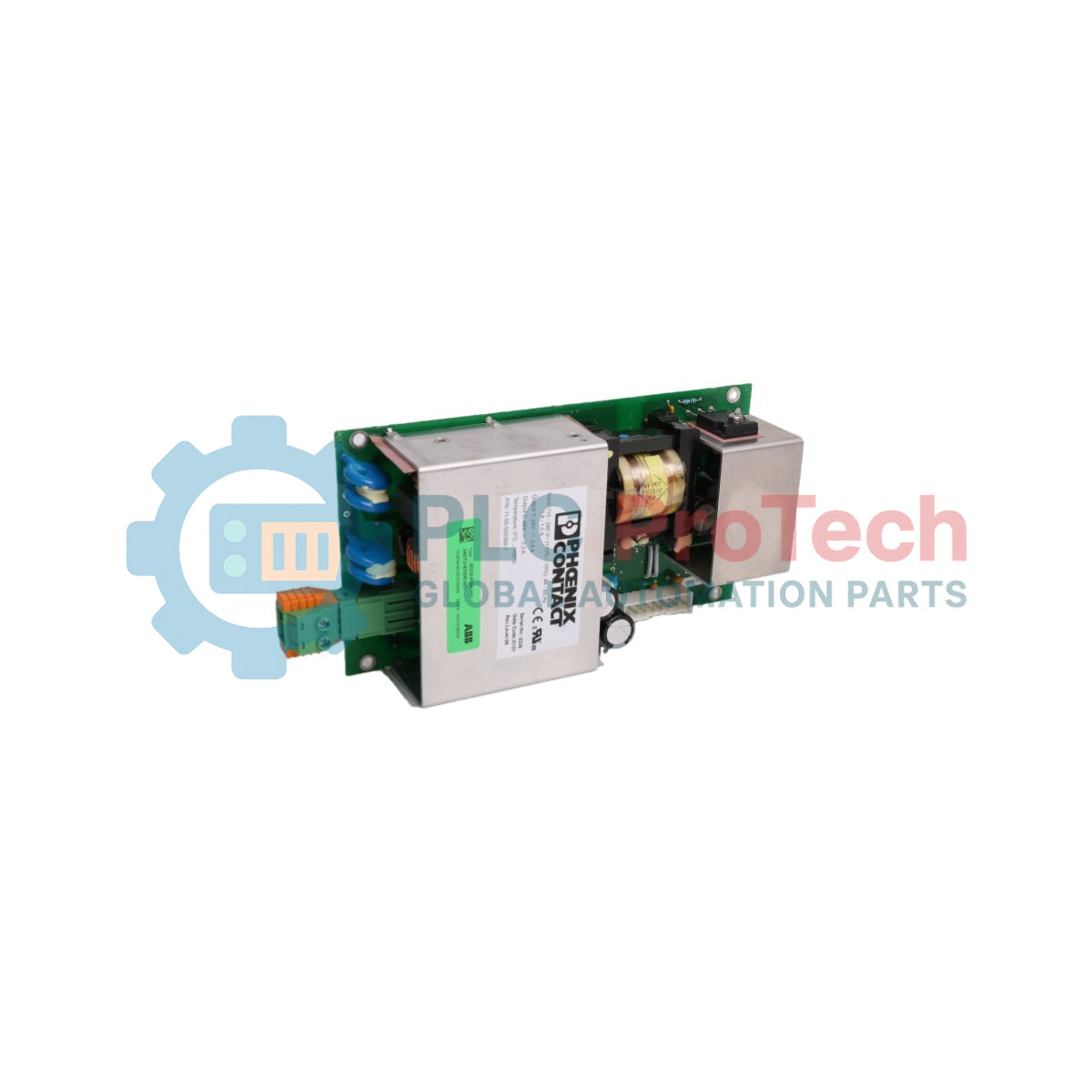

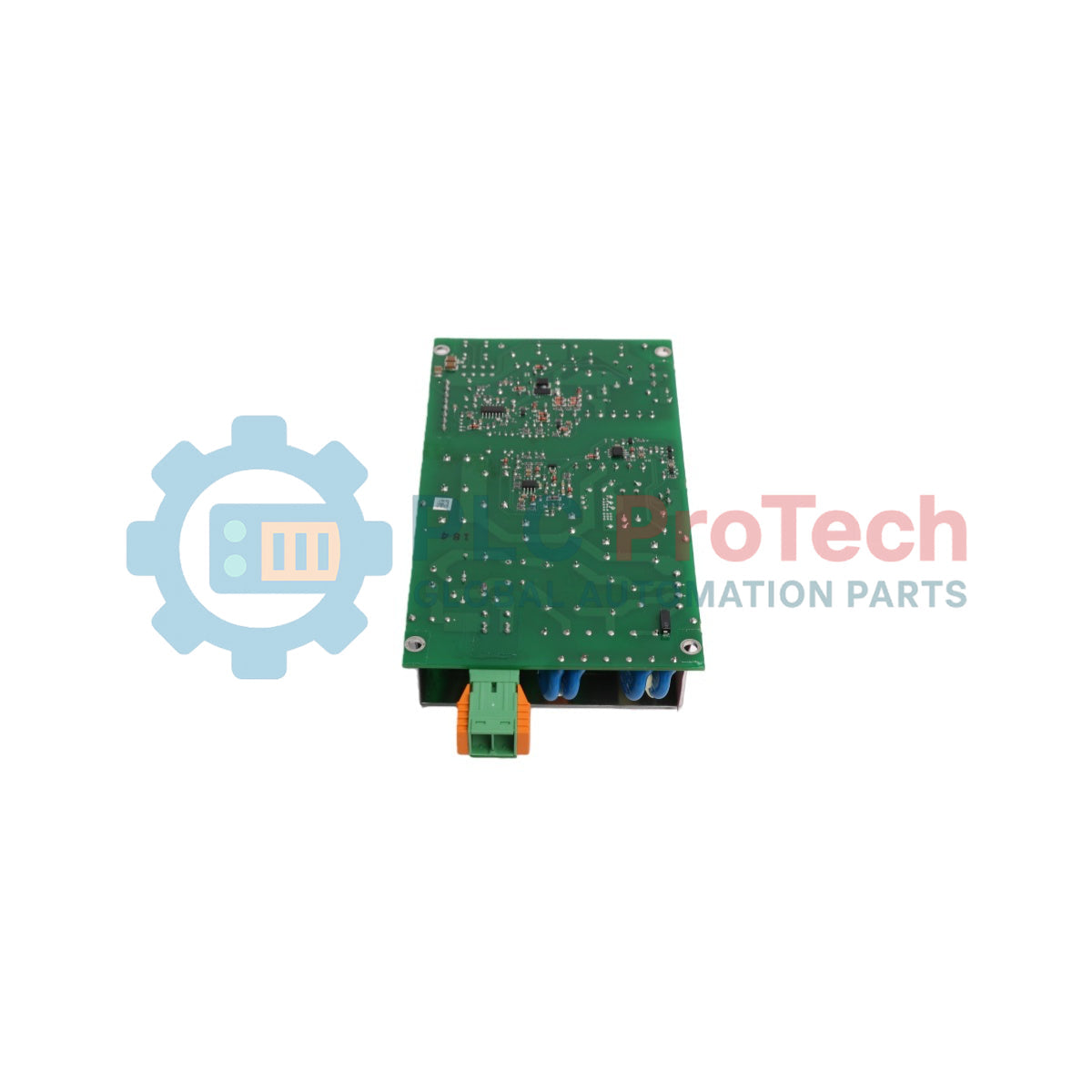

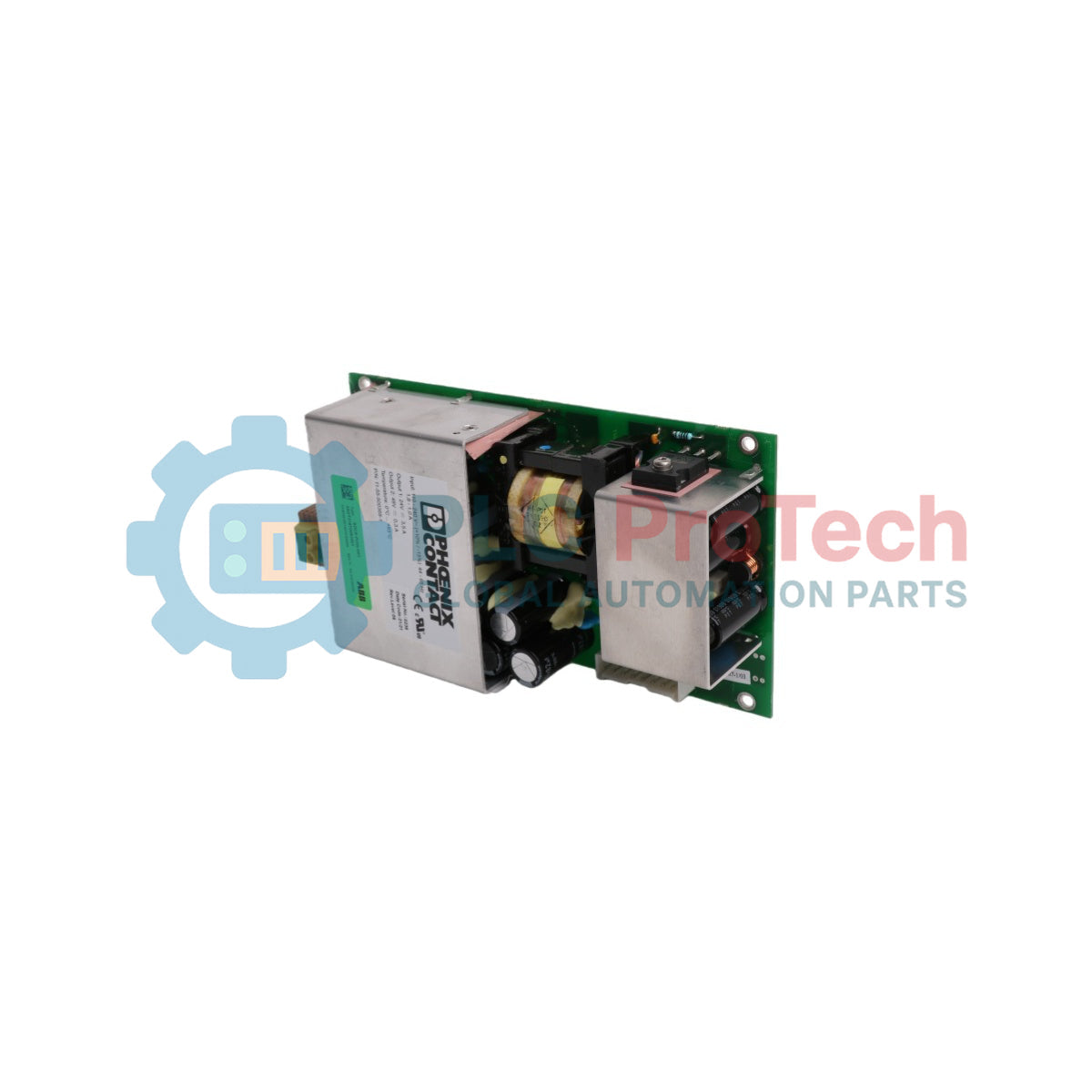

The SDCS-POW-1 is a switched-mode power supply board designed for use in DCS 500 converter modules. Mounted directly on the electronic support framework, this unit functions in a flyback configuration to generate all required internal DC operating voltages for the SDCS-CON-2 main control board and associated electronic peripheral boards. The board features universal system adaptability, operating independently of the specific current or voltage ratings of the drive module. It accommodates standard dual-voltage AC mains inputs, selectable via an onboard slide switch, and includes dedicated jumper configurations to manage encoder power distribution based on the specific control board and I/O board pairing in use.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model | SDCS-POW-1 |
| Country of Origin | Finland (FI) / Saudi Arabia (SA) |
| Customs Tariff Number | 85049090 |
| Product Net Weight | 0.44 kg |
| Gross Volume | 0.01 m3 |
| Dimensions (H x W) | 220 mm x 135 mm |
| Frame Size | Spare_Parts |
| AC Supply Input Voltage Options | 115 V AC / 230 V AC (Switch SW1 selectable) |
| Supply Voltage Tolerance | -15% / +10% |
| Supply Frequency Range | 45 Hz to 65 Hz |
| Power Consumption | 120 VA |
| Power Loss | 60 W or less |
| Inrush Current (115 V AC) | 20 A for 20 ms |
| Inrush Current (230 V AC) | 10 A for 20 ms |
| Mains Buffering Time | 30 ms minimum |
| Output X96-DO8 Contact Rating (AC) | 250 V~ or less / 3 A~ or less |
| Output X96-DO8 Contact Rating (DC) | 24 V- or less / 3 A- or less (or 115/230 V- or less / 0.3 A- or less) |
| MOV Element Protection | 275 V |
| UNSPSC Classification | 391220043 |
| Component | Function / Setting | Configuration Details |
|---|---|---|
| SW1 | AC Supply Selection |
Position Left: 230 V AC (Default)
Position Right: 115 V AC |
| X3, X4, X5 | Encoder Supply Selection |
5 V Output (Default): Jumpers set to Position A on X5, X4, X3 (Sense function: Yes)
12 V Output: Jumpers set to Pos B on X5, Pos B on X4, Pos A on X3 (Sense function: Yes)
15 V Output: Jumpers set to Pos A on X5, Pos A on X4, Pos B on X3 (Sense function: No)
24 V Output: Jumpers set to Pos B on X5, Pos B on X4, Pos B on X3 (Sense function: No) |
| Connector / Terminal | Function | Description |
|---|---|---|
| X99 (N, L) | AC Supply Input | Main AC power supply input terminals. |
| X96 (1, 2) | Relay Output (DO8) | Potential-isolated normally open (NO) contact with MOV protection. |
| X95 | Backup Supply Terminals | Connection points for adding external capacitance (e.g., KJ 2001) to increase mains buffering time. |
| X37 | Interface Connector | 26-pin ribbon cable interface connection. |
| X5 B | Test Terminal | Hardware test point for checking +5 V level (valid when 5 V output is selected). |
| X3 A | Test Terminal | Hardware test point for checking +15 V level. |
| X3 B | Test Terminal | Hardware test point for checking +24 V level. |
| T 10 (Heat Sink) | Test Terminal | Hardware test point for checking +48 V V2 level. |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: SDCS-POW-1
Country of origin:Finland,Saudi Arabia
Product Type: Schede di alimentazione
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 440g
Dimensions: 24 cm x 19 cm x 5.3 cm
Shipping port: Xiamen
Warranty: 12 months
