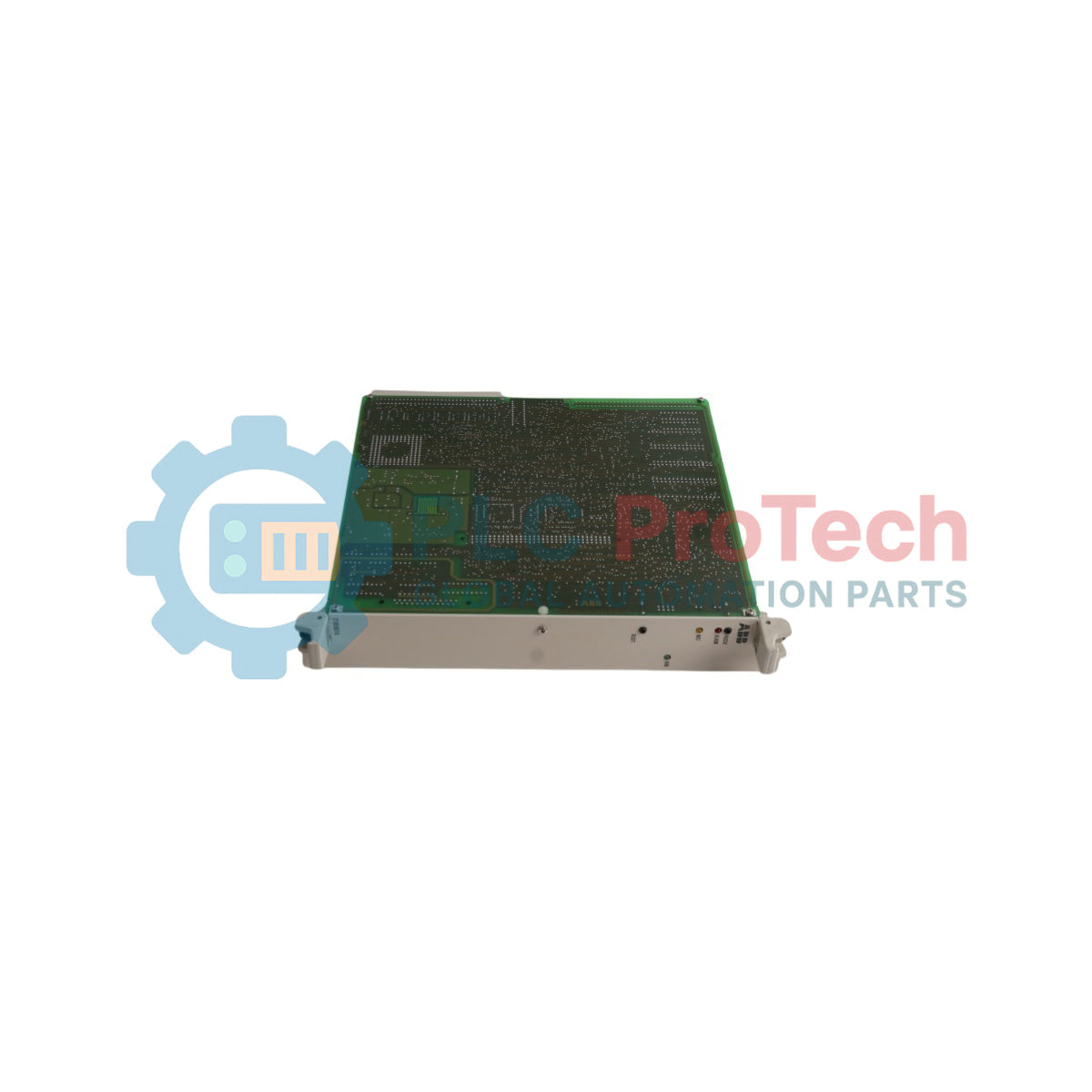

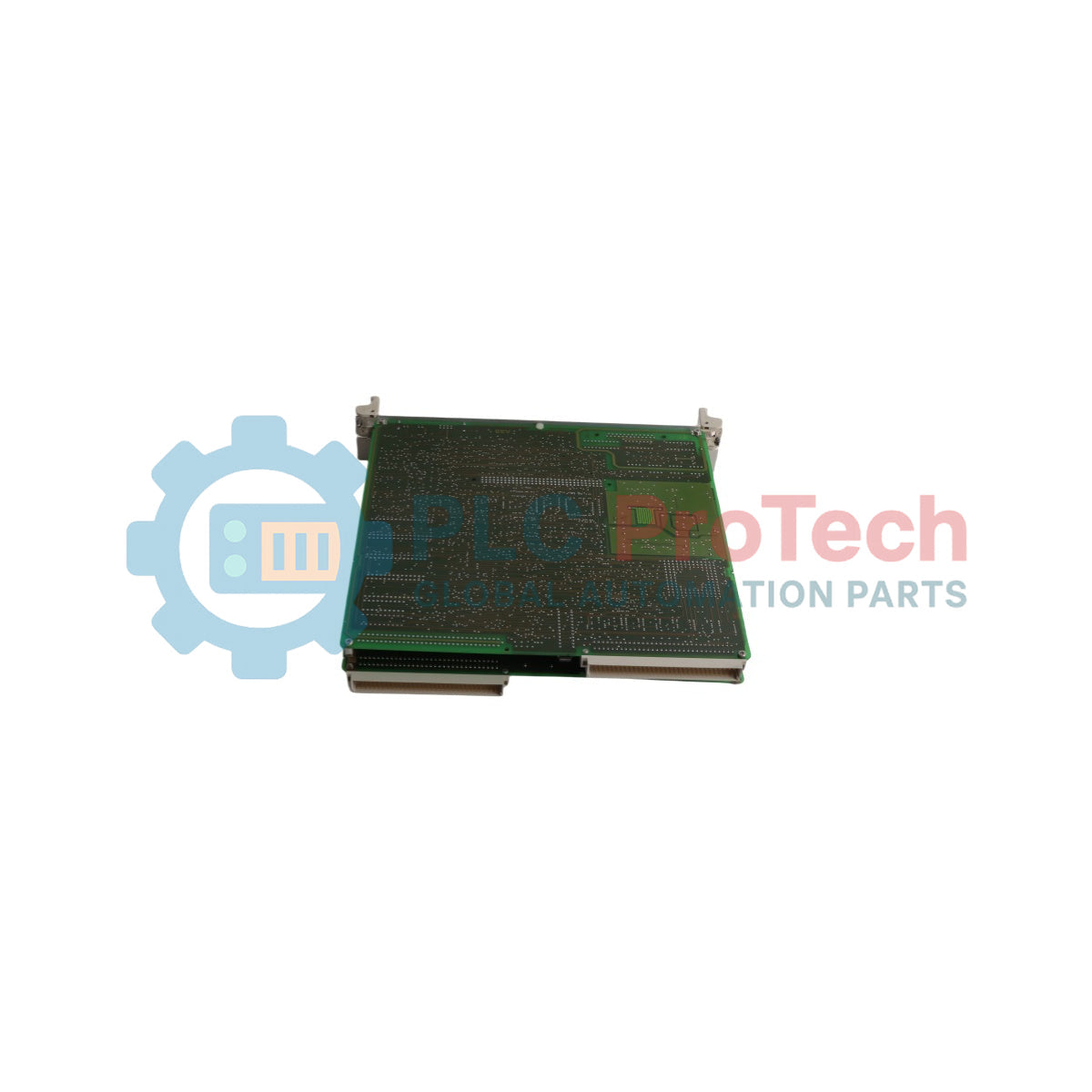

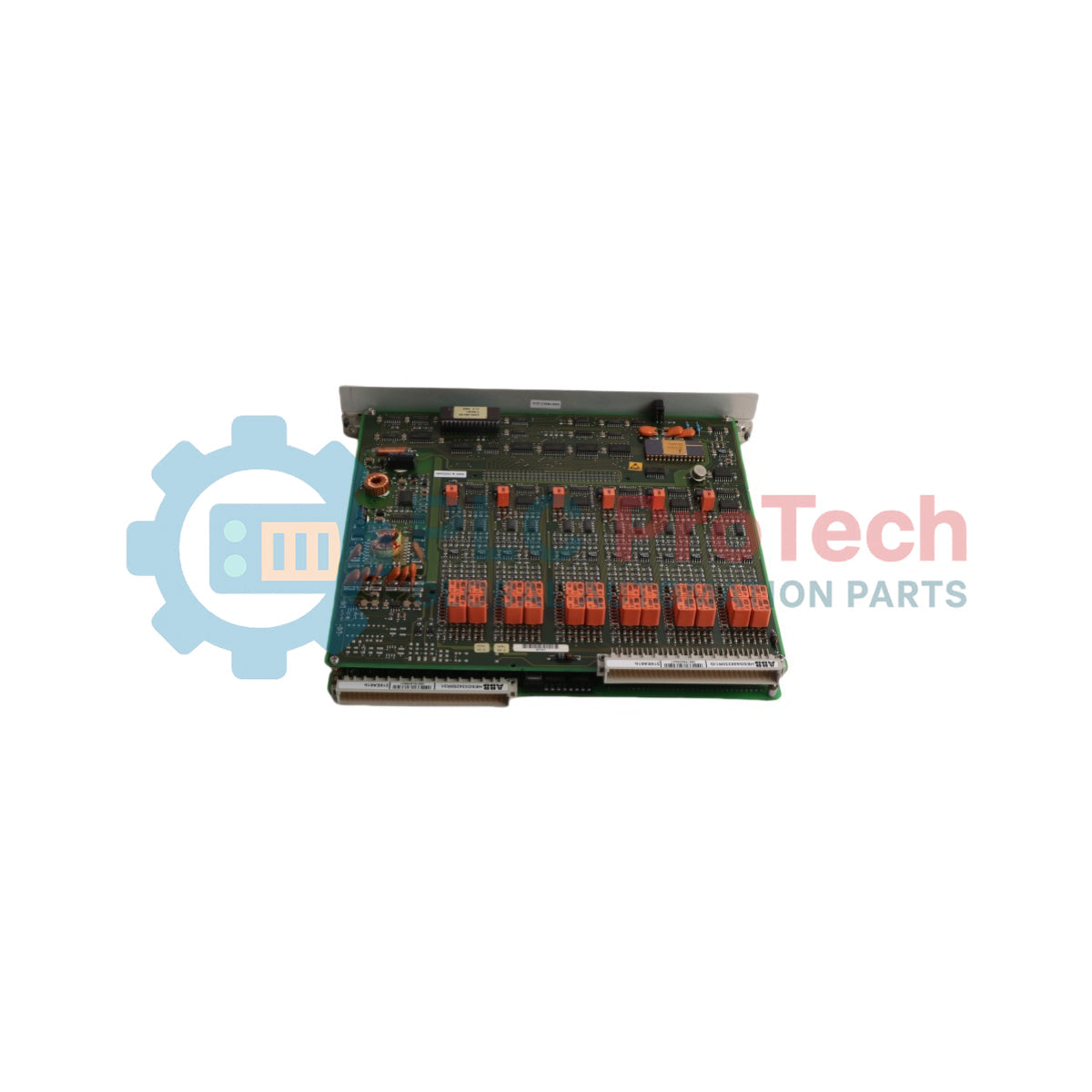

ABB HESG448230R1/G 216EA61B is an analogue input unit designed for the RE. 216 digital protection and control system. The unit receives analogue measured variables from the 216GW61 input transformer module, digitises them via an A/D converter, and transfers the digitised signal data to the system's B448C parallel bus.
The module functions as a core measurement acquisition unit within the RE. 216 hardware architecture. Operating with an internal supply voltage of 5 V derived from the rack's main 24 V DC auxiliary supply, the ABB HESG448230R1/G 216EA61B processes analogue input voltages ranging from -40 V to +40 V. Digitised measurement channels are subsequently assigned to active protection and control functions stored within the processing unit via the user interface software.
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Product ID | HESG448230R1/G |
| Model Designation | 216EA61B |
| Module Type | Analogue I/P Unit |
| System Platform | RE. 216 (REG 216 / REC 216) |
| Number of Channels | 24 analogue I/P channels |
| Analogue Voltage Range | -40 V to +40 V |
| Internal Auxiliary Supply | 5 V DC (derived from 24 V DC main auxiliary supply) |
| Module Width | 2 standard divisions (2T) |
| Processor Type | 80C186 |
| Bus Interface | 64 kByte DPM/RAM |
| Program Memory | 128 kByte EPROM |
| Main Memory | 64 kByte RAM |
| Data Memory | 8 kByte EEPROM |
| Front Controls & Diagnostics | LEDs: ALARM (red), MST (yellow), RUN (green); Sockets: PASSIVE, RESET |
| Connector Pin / Interface | Function |
|---|---|
| Connector "a" (Upper) | Analogue Measurement Channels CH01...CH12 |
| Connector "b" (Lower) | Analogue Measurement Channels CH13...CH24 |
| PASSIVE Socket | Shorting pin socket; blocks the A/D converter and stops data transfer to the bus |
| RESET Socket | Shorting pin socket; restarts program execution and reinitialises module tables |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: HESG448230R1/G 216EA61B
Country of origin:Switzerland
Product Type: Analog Input Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 850g
Dimensions: 260 mm x 30 mm x 180 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
