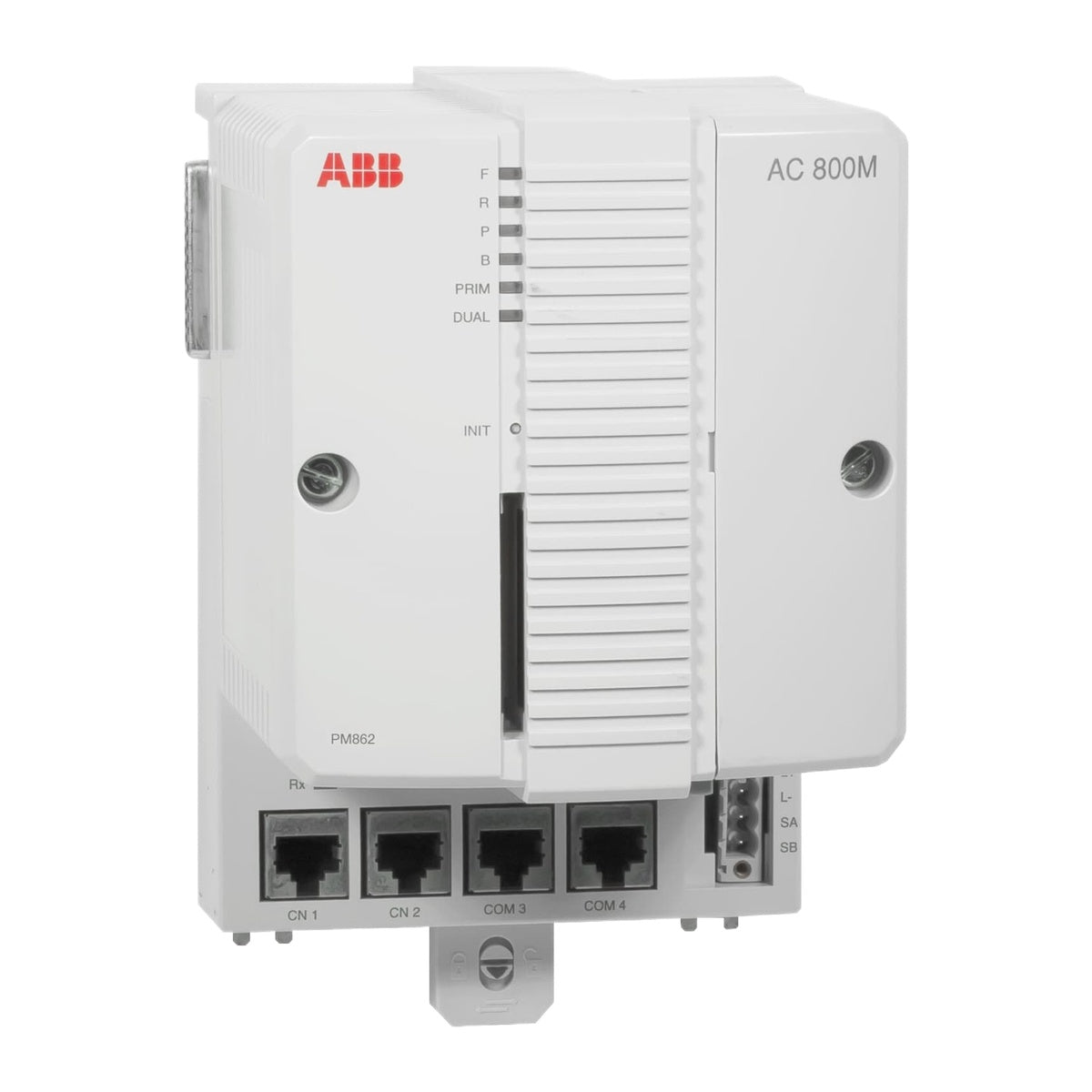

The ABB PM862K01 3BSE076940R1 is a central processing unit designed for the AC 800M controller hardware platform within industrial control applications. Operating at a clock speed of 67 MHz and equipped with 32 MB of memory, the PM862K01 3BSE076940R1 serves as the primary processing module for execution of process control software and automation tasks. The unit includes a complete hardware package consisting of the PM862 CPU module, TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, and a lithium battery for memory backup. System compatibility requires System 800xA 6.0.2 or Compact Control Builder 6.0.0-1 and onwards.
| Product ID | ABB Type Designation | Description |
|---|---|---|
| 3BSE076940R1 | PM862K01 | Processor Unit Package (67 MHz, 32 MB, includes PM862 CPU, TP830 Baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, Memory Backup Battery) |
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BSE076940R1 |
| ABB Type Designation | PM862K01 |
| Product Type | Central Unit |
| CPU Speed | 67 MHz |
| Memory Capacity | 32 MB |
| Battery Type | Portable Lithium Battery (9 g) |
| Number of Batteries | 1 |
| System Compatibility | 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards |
| Product Net Height | 186 mm |
| Product Net Width | 119 mm |
| Product Net Depth / Length | 135 mm |
| Product Net Weight | 1.1 kg |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: PM862K01 3BSE076940R1
Country of origin:Sweden
Product Type: 15-inch display 1024 x 768
Barcode: 85371091
Payment: T/T, Western Union
Weight: 1100g
Dimensions: 135 mm x 119 mm x 186 mm (D x W x H)
Shipping port: Xiamen
Warranty: 12 months
The ABB PM862K01 3BSE076940R1 is a central processing unit designed for the AC 800M controller hardware platform within industrial control applications. Operating at a clock speed of 67 MHz and equipped with 32 MB of memory, the PM862K01 3BSE076940R1 serves as the primary processing module for execution of process control software and automation tasks. The unit includes a complete hardware package consisting of the PM862 CPU module, TP830 baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, and a lithium battery for memory backup. System compatibility requires System 800xA 6.0.2 or Compact Control Builder 6.0.0-1 and onwards.
| Product ID | ABB Type Designation | Description |
|---|---|---|
| 3BSE076940R1 | PM862K01 | Processor Unit Package (67 MHz, 32 MB, includes PM862 CPU, TP830 Baseplate, TB850 CEX-bus terminator, TB807 ModuleBus terminator, TB852 RCU-Link terminator, Memory Backup Battery) |
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BSE076940R1 |
| ABB Type Designation | PM862K01 |
| Product Type | Central Unit |
| CPU Speed | 67 MHz |
| Memory Capacity | 32 MB |
| Battery Type | Portable Lithium Battery (9 g) |
| Number of Batteries | 1 |
| System Compatibility | 800xA 6.0.2, Compact Control Builder 6.0.0-1 and onwards |
| Product Net Height | 186 mm |
| Product Net Width | 119 mm |
| Product Net Depth / Length | 135 mm |
| Product Net Weight | 1.1 kg |
Global Express Shipping
Returns & Warranty
Orders are processed and delivered Monday-Friday (excluding public holidays).
For full eligibility, restocking fees, and international return details, please view our official Refund & Return Policy .
| Country of origin |
Sweden
|
