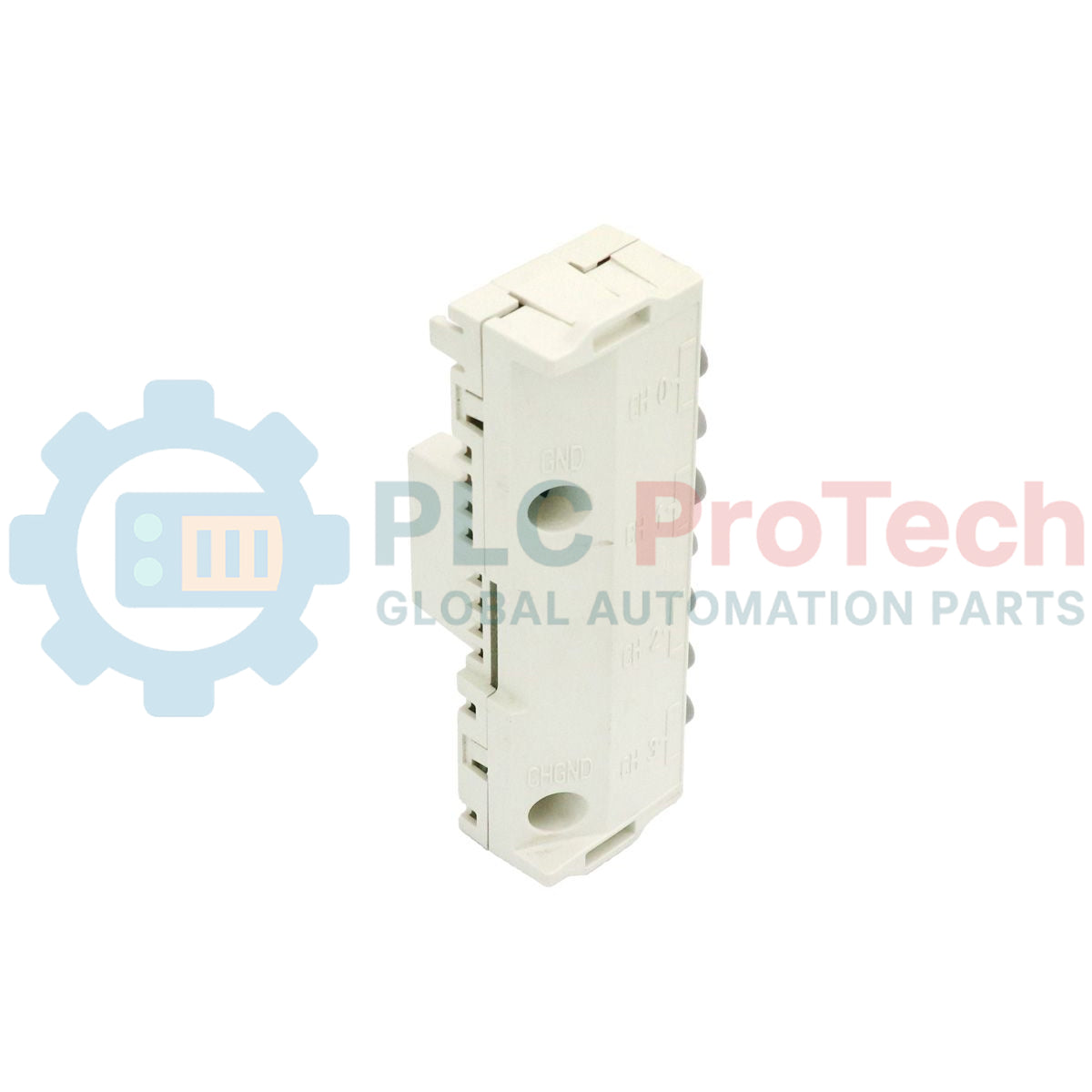

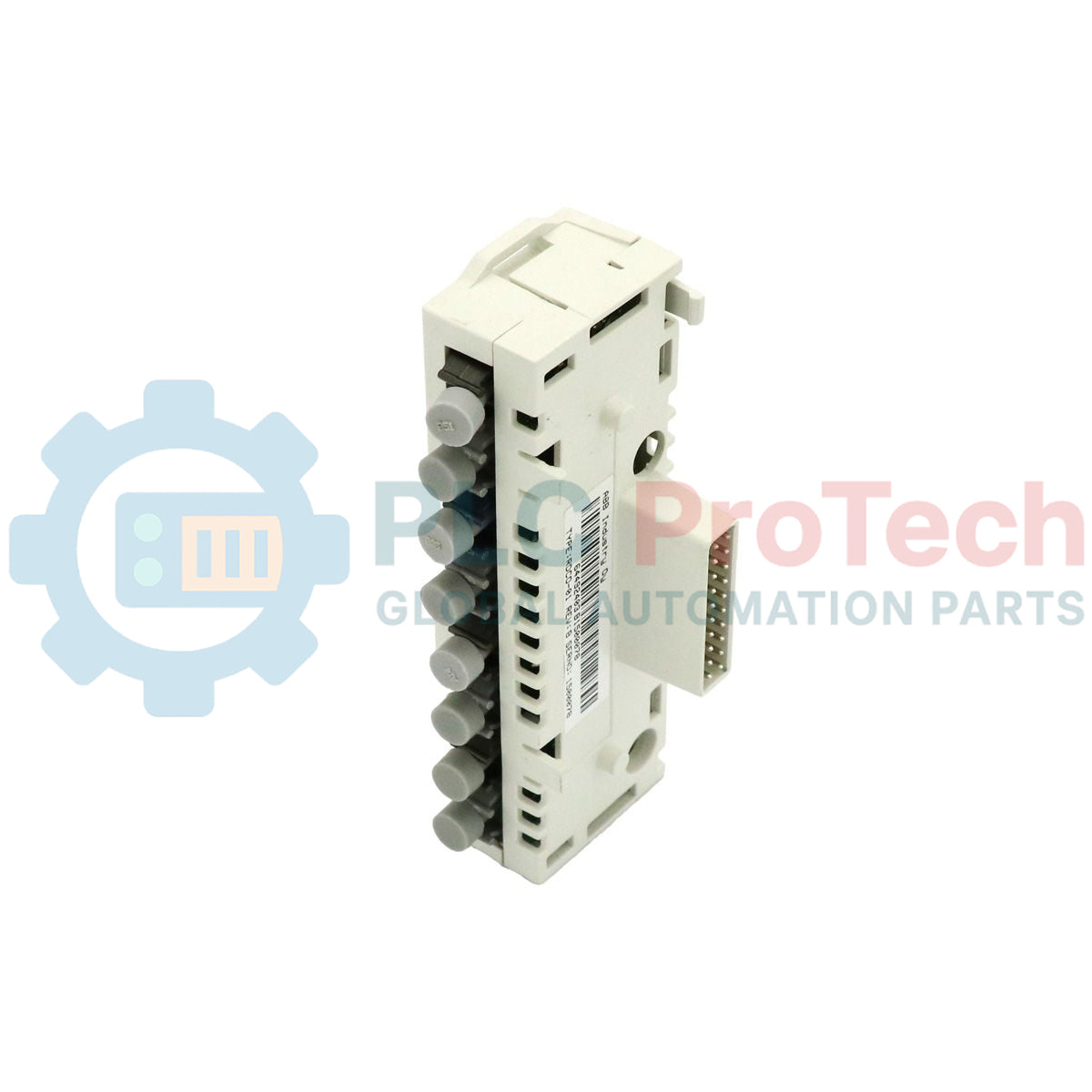

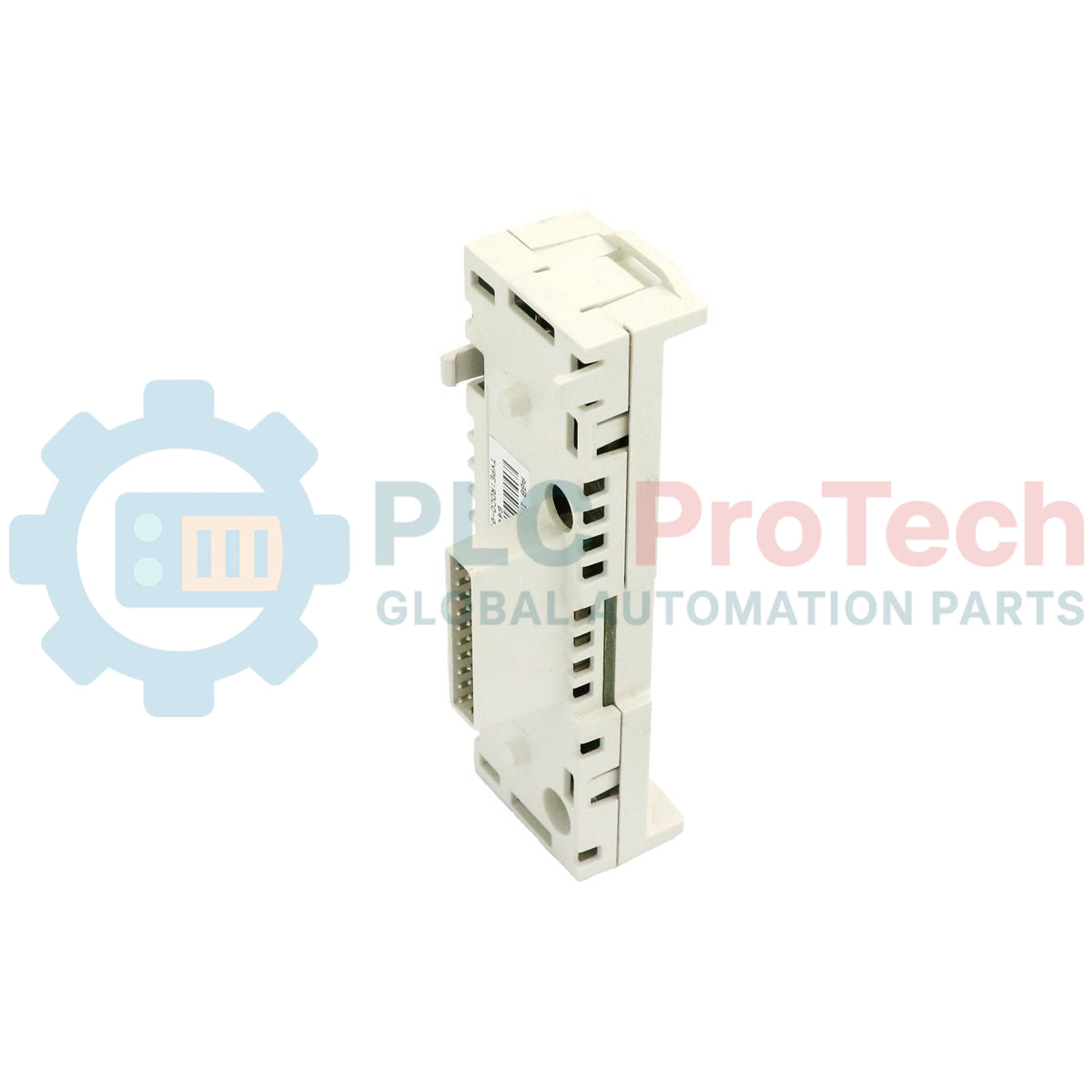

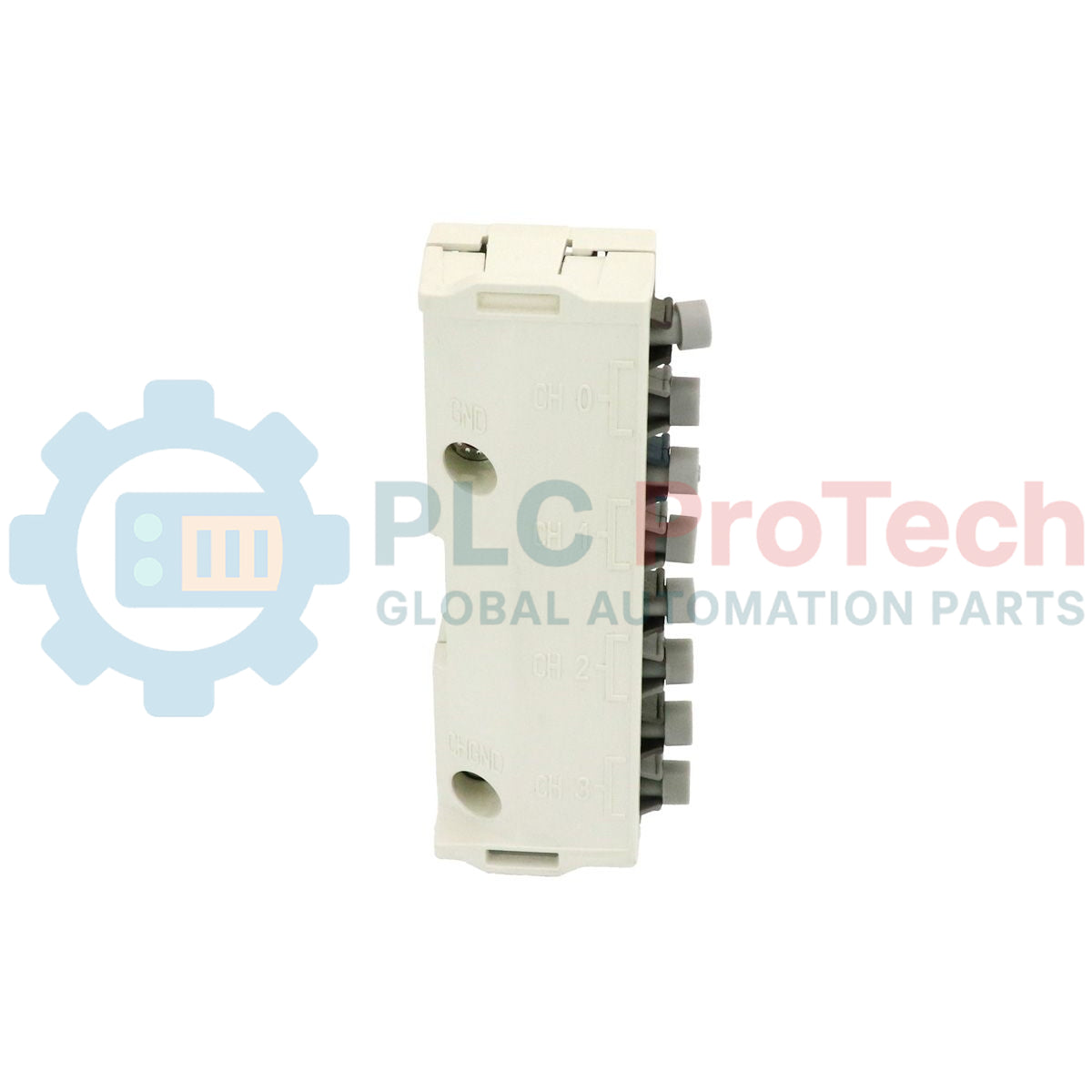

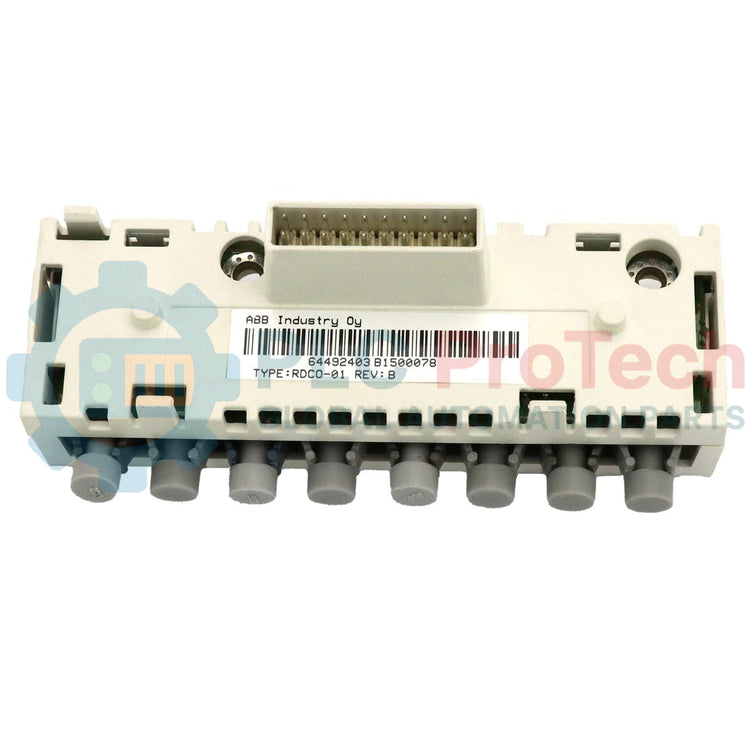

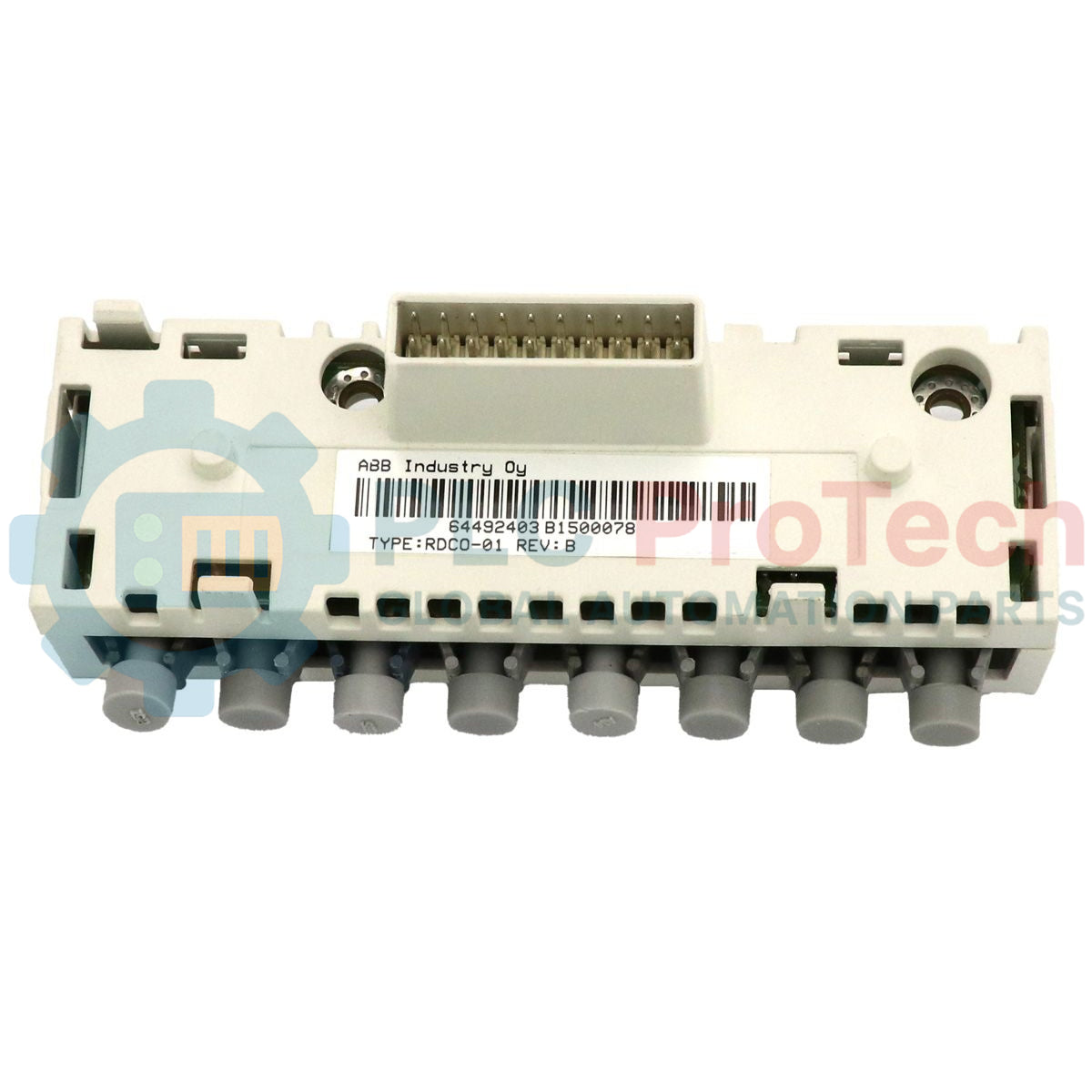

Designed for integration with RMIO motor control and I/O boards, the RDCO-01 module provides multi-channel Distributed Drives Communication System (DDCS) functionality. This communication option card mounts directly to RDCU control units and BCU units, establishing high-speed fiber optic links between drives and external control systems. The board features four distinct communication channels (CH0 to CH3), enabling parallel connections to PLC/fieldbus adapters, decentralized I/O, master/follower drive networks, and engineering PC tools. High-speed data transmission is managed via dedicated optical components, ensuring electrical isolation and noise-immune signaling in demanding industrial environments.
| Manufacturer | ABB |
| Part Number / Model | RDCO-01 |
| Module Type | DDCS Communication Option Module |
| Number of Channels | 4 (CH0, CH1, CH2, CH3) |
| Optical Transmitter/Receiver Speeds | CH0: 10 MBd CH1: 5 MBd CH2: 10 MBd CH3: 10 MBd |
| Communication Speed | 1, 2, or 4 Mbit/s |
| Operating Voltage | +5 V DC (±10%) supplied by the host drive |
| Current Consumption | 200 mA (maximum) |
| Degree of Protection | IP20 |
| Dimensions (H x D x W) | 95 mm x 34 mm x 30 mm |
| Channel | Assigned Function | Optical Transmitter/Receiver Performance |
|---|---|---|
| CH0 | Overriding system (e.g., fieldbus adapter module) | 10 MBd (supports POF and HCS) |
| CH1 | I/O options and supply unit interface | 5 MBd |
| CH2 | Master/Follower link configuration | 10 MBd (supports POF and HCS) |
| CH3 | PC tool connection (specifically for ACS800) | 10 MBd (supports POF and HCS) |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: RDCO-01
Country of origin:Sweden
Product Type: Communication Modules
Barcode: 85044095
Payment: T/T, Western Union
Weight: 600g
Dimensions: 95 mm x 34 mm x 30 mm
Shipping port: Xiamen
Warranty: 12 months
