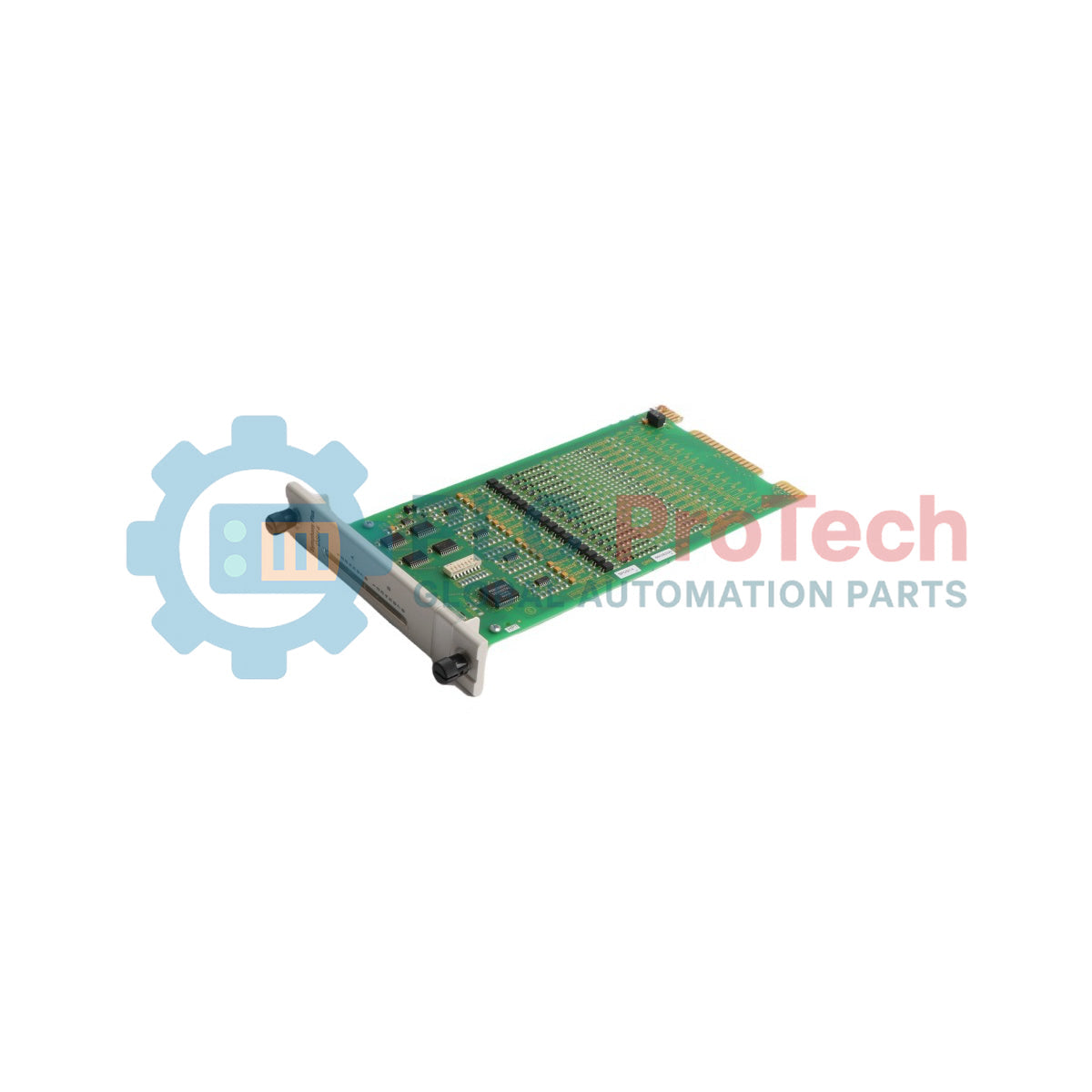

ABB SPDSI14 B HR Series I/O Digital Input Module

SKU SPDSI14

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: SPDSI14
  • Origin Sweden
  • Product Type: Bailey Digital Input Module
  • Barcode: 85389081
  • Payment: T/T, Western Union
  • Weight: 0.82 kg
  • Dimensions: 410 mm x 320 mm x 110 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB SPDSI14 B HR Series I/O Digital Input Module

Quantità

Product Description

The ABB SPDSI14 is a high-density Digital Input Module engineered for the Symphony Plus distributed control system architecture. Operating within the S+ HR I/O (Harmony Rack) platform, this module monitors 16 discrete input channels dedicated specifically to 48 VDC field loop monitoring applications. Unlike adjustable configurations, the ABB SPDSI14 features a fixed electrical profile containing no hardware jumpers, minimizing field setup mistakes while providing high-reliability optocoupler isolation for individual contact tracking inside harsh industrial substation and processing environments.

Features

  • 16 Dedicated DI Channels: Fixed high-density digital monitoring within a single rack chassis allocation slot.
  • 48 VDC Native Interface: Tailored voltage parameters engineered for centralized control system battery bank and power distributions.
  • No-Jumper Configuration: Eliminates onboard hardware jumper switches, enforcing hardwired reliability and eliminating physical assembly adjustments.
  • Symphony Plus Backplane Access: Direct data transmission via the internal bus architecture facilitates rapid status scanning and hardware diagnostic logs.

Applications

  • Centralized 48 VDC utility circuit breaker indication and switchgear trip-circuit supervision.
  • Sequence of Events (SOE) tracking for critical valve positioning and industrial process safety networks.
  • Distributed automation networks needing dry field contact wet-sensing via localized 48 VDC power distribution.

Technical Specifications

Manufacturer ABB
Product ID SPDSI14
ABB Type Designation SPDSI14
Channel Type DI (Digital Input)
Number of Input Channels 16 Channels
Nominal Signal Voltage 48 VDC
Hardware Adjustments None (No Jumpers)
Product Net Depth / Length 73.66 mm
Product Net Height 358.14 mm
Product Net Width 266.70 mm
Product Net Weight 0.82 kg (Calculated)
Package Dimensions 410 mm x 320 mm x 110 mm (Calculated)
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
Customs Tariff Number / HS Code 85389081

Connections and Interfaces

Interface Connector Circuit Destination & Mapping Profile
Rear PCB Plug-In Assembly Binds directly into standard Harmony Rack backplane slot lines, extending individual isolated channel loops 1 through 16 to terminal blocks on the paired module termination unit.
External Loop Interface Requires direct connection via specific Symphony Plus Termination Units (TU). Field wiring configurations map terminals explicitly based on the designated TU model layout.

Empirical Engineering Insights

Alternative Models & Compatibility

The module hardware is physically and logically designated as SPDSI14. It differs directly from multi-voltage options like the SPDSI22 by removing all configuration jumper traces. If upgrading older Harmony Rack layouts that previously relied on multi-voltage jumper parameters, verify that field wiring potentials have been fully standardized to 48 VDC before deploying this assembly.

Application Pitfalls & Engineering Notes

This module enforces a strict fixed operating threshold. Running 24 VDC loops into this card will fail to cross the optocoupler logic limits, whereas exposing channels to 120 VAC or 125 VDC potentials will cause immediate hardware trace failures or terminal breakdown. Avoid installing this module adjacent to high-dissipation thermal loads inside tight, unventilated marshalling spaces.

Commissioning & Wiring Tips

Since the assembly has no jumpers, field checkout timelines are shortened during plant deployment. Ensure that loop validation testing centers entirely on field-side common auditing and verifying wire continuity back to the corresponding Symphony Plus Termination Unit (TU). Always test loop voltage at the terminal plate before latching the module into its active chassis slot.

Installation Guidelines

CRITICAL WARNING: Verify all 48 VDC external loop supplies are fully isolated and tagged out prior to module handling. Inserting or pulling modules from an active subrack chassis block without proper safety checks can generate inductive arcs, potentially disrupting adjacent control lanes or damaging the backplane logic bus.
1
Inspect the front-facing assembly for storage debris and verify that the module slot layout maps correctly to a 48 VDC loop allocation.
2
Position the top and bottom edges of the card assembly carefully with the integrated guide tracking channels within the subrack.
3
Slide the unit backward using steady pressure until the rear connection plug interlocks fully with the chassis power and communications bus.
4
Secure the integrated front panel captive fasteners to verify solid chassis grounding and lock the assembly against vibration.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Does this version require physical configuration prior to chassis slot insertion?
No. The hardware features a fixed 48 VDC input design with no physical jumpers, which completely removes the need for hardware pre-configuration on site.
What happens if a 24 VDC circuit loop is routed into this module?
The channel will fail to register the input state because 24 VDC does not possess sufficient voltage to cross the built-in optocoupler isolation threshold designed for 48 VDC operation.
Where can I find the precise external screw-terminal wiring paths for the channels?
The exact physical terminal assignments are determined exclusively by the specific Symphony Plus Termination Unit that interfaces with the slot location, rather than the card enclosure itself.
