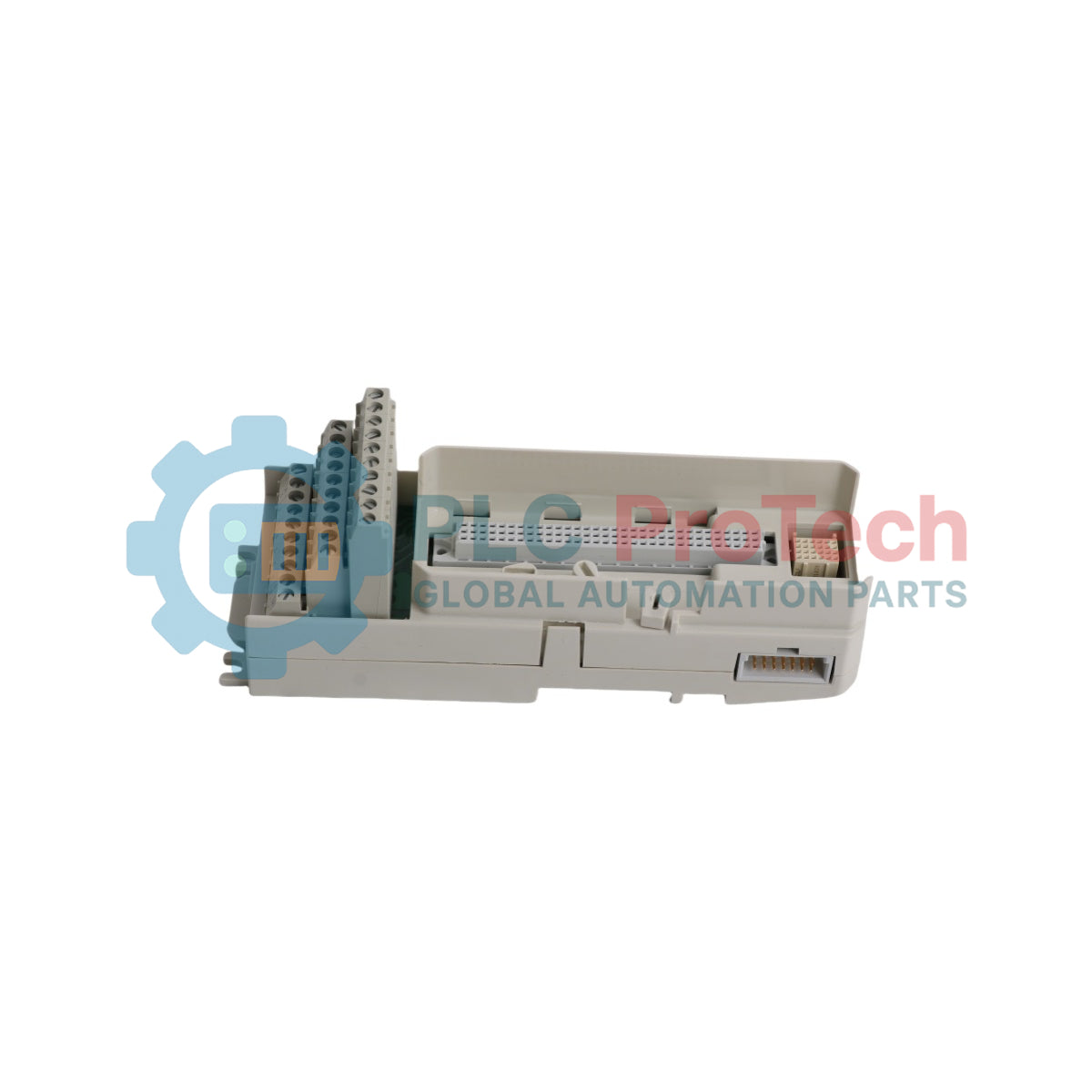

The TU810V1 is a compact module termination unit designed for ABB S800 I/O systems. It provides 2x8 signal terminal connections for field wiring integration within distributed control and PLC automation architectures.
The unit supports signal termination between S800 I/O modules and external process wiring while maintaining compact cabinet installation requirements. The 3BSE013230R1 termination unit is intended for use in ABB 800xA, Advant OCS, and Compact Product Suite automation environments.
Its compact mechanical construction allows efficient DIN rail mounting inside industrial control enclosures. The module termination unit is designed for low-voltage applications up to 50 V and supports organized signal routing for process automation systems.
The TU810V1 is compatible with ABB S800 I/O platforms used in control, monitoring, and distributed automation applications.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product ID | 3BSE013230R1 |
| ABB Type Designation | TU810V1 |
| Product Type | Module_Termination_Unit |
| Series | S800 I/O |
| Description | Compact MTU, 50V |
| Function | Compact Module Termination Unit 2x8 signal terminals |
| Signal Terminal Configuration | 2x8 terminals |
| Rated Voltage | 50 V |
| Product Width | 58.5 mm |
| Product Height | 170 mm |
| Product Depth | 64 mm |
| Net Weight | 0.2 kg |
| HS Code | 853710 |
| Customs Tariff Number | 85371098 |
| RoHS Information | Following EU Directive 2011/65/EU |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Batteries | 0 |
| SCIP Status | No SVHC present Bulgaria |
Install the termination unit on a properly grounded DIN rail inside a protected industrial control cabinet. Ensure adequate spacing for wiring access and ventilation around adjacent I/O components.
Separate signal wiring from high-voltage power cables to minimize electromagnetic interference. Use proper cable identification and secure terminal tightening practices during field installation.
Verify compatibility with associated ABB S800 I/O modules before commissioning the system.
What is the function of the TU810V1?
It provides signal termination for ABB S800 I/O modules.
How many signal terminals are available?
The unit includes 2x8 signal terminals.
Which ABB platform uses this termination unit?
It is designed for ABB S800 I/O systems.
Is the unit suitable for distributed control systems?
Yes. It is commonly used in DCS and PLC architectures.
What is the voltage rating?
The unit is specified for applications up to 50 V.
Can the module be DIN rail mounted?
Yes. It is intended for cabinet DIN rail installation.
What industrial systems support this MTU?
It is compatible with ABB 800xA, Advant OCS, and Compact Product Suite systems.
Does the unit contain batteries?
No. The product contains no batteries.
What is the product weight?
The net weight is 0.2 kg.
Is the unit designed for compact cabinet layouts?
Yes. The compact mechanical design supports space-efficient installations.
Does the module provide communication functions?
No communication capability is specified for this termination unit.
What is the product depth?
The product depth is 64 mm.
Is RoHS compliance specified?
Yes. ABB specifies compliance with EU Directive 2011/65/EU.
What type of wiring applications is it intended for?
It is intended for low-voltage industrial signal wiring.
